| Brand | Lightigo |
|---|---|
| Origin | Czech Republic |
| Model | DragonFly LIBS |
| Vacuum Chamber Range | 1–1300 mbar |
| Laser Wavelengths | 1064 nm / 532 nm / 266 nm (DPSS, Q-switched) |
| Max Pulse Rate | 100 Hz |
| Spectral Range | 200–1000 nm |
| Spectral Resolution | up to 60,000 λ/Δλ (Echelle + EMCCD) |
| Spatial Mapping Resolution | down to 50 µm |
| Sample Stage | 3-axis motorized (X×Y×Z = 60×80×50 mm), resolution 0.08 µm (fine), 5 µm (standard) |
| Imaging | Dual CMOS microscopes (axial & lateral), 55 fps, 1.5 mm & 80 mm FOV |
| Delay Generator | 8-channel digital, 10 ns time resolution, ±5 ns accuracy |
| Gas Control | Programmable Ar/He purge & active suction |
| Detector Options | iCCD, EMCCD, sCMOS, CMOS |
| Optical Path | Modular Echelle or Czerny-Turner spectrometer |
| Customization | Dual/multi-pulse excitation, multi-channel collection, UV-vacuum module available |
| Dimensions (L×W×H) | 1320 × 850 × 1500 mm |
| Weight | 300 kg |
| Brand | Lightigo |
|---|---|
| Origin | Czech Republic |
| Model | FireFly |
| Measurement Principle | Laser-Induced Breakdown Spectroscopy (LIBS) |
| Detection Range | Li to U (nearly all elements in the periodic table) |
| Detection Limit | 1–100 ppm (matrix-dependent) |
| Spatial Resolution | 10–150 µm |
| Imaging Mode | 2D surface mapping & depth-resolved (line-scan or layer-by-layer ablation) |
| Max Scan Area | 100 mm × 100 mm |
| Ablation Rate | Up to 100 Hz |
| Sample Type | Solid materials only (conductive and non-conductive, no vacuum required) |
| Operating Environment | Ambient air or controlled atmosphere (N₂, Ar) |
| Compliance | CE-marked |
| Origin | Sweden |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

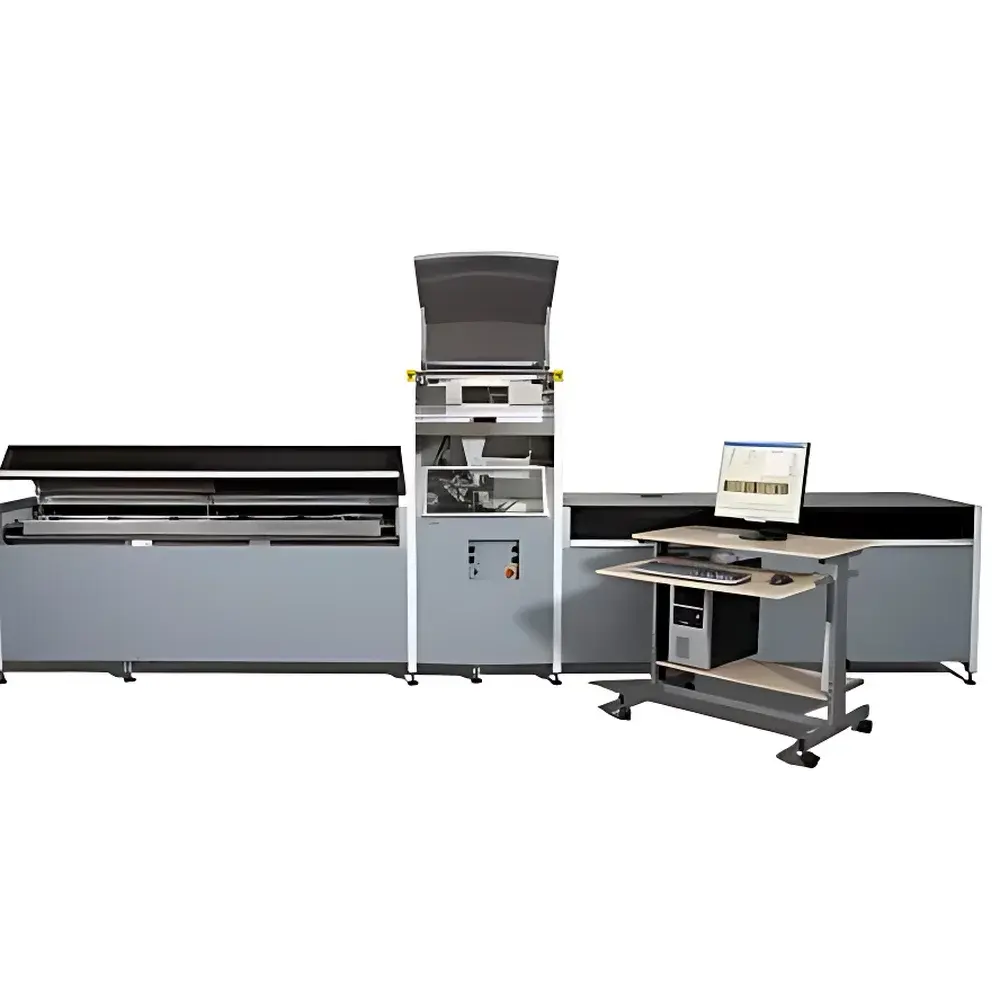

| Model | CoreScanner |
| Pricing | Upon Request |
| Origin | Sweden |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

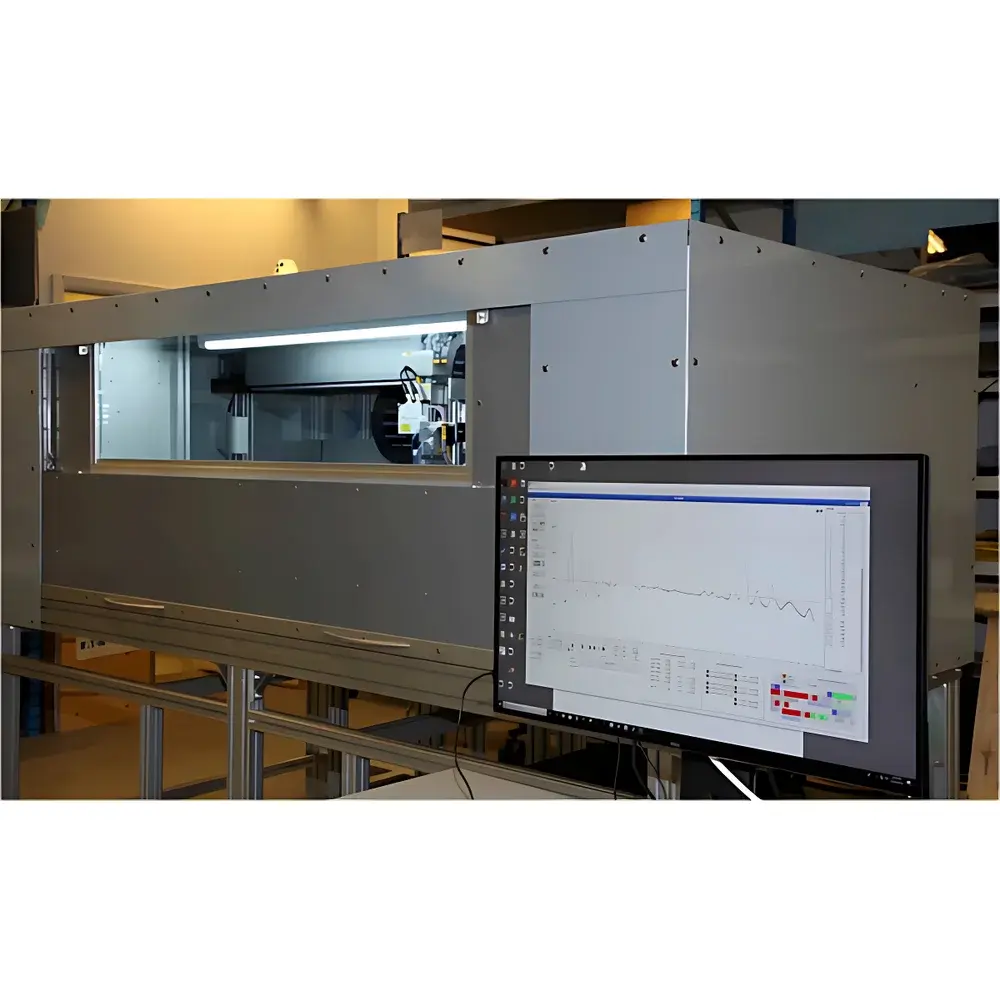

| Model | XRF Scanner |
| Pricing | Upon Request |
