| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BTC-Borescope Miniature Minirhizotron Root Observation System |
| Price Range | USD $26,000 – $39,000 |

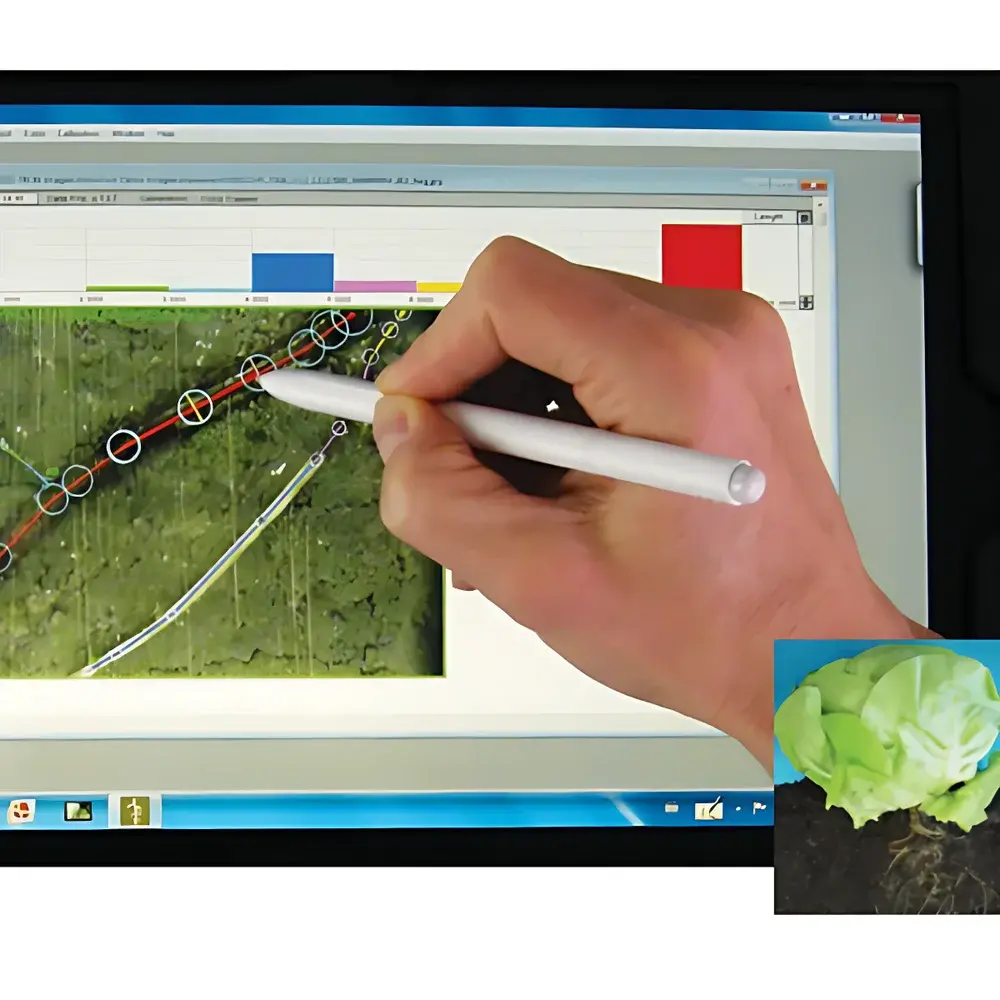

| Brand | VSI (Austria) |
|---|---|
| Origin | Austria |
| Model | MS-190 |
| Image Sensor Resolution | 8 MP (3280 × 2464 px) |
| Optical Resolution | 2500 dpi |
| Imaging Speed | <1 s per frame |
| Illumination | Dual-row COB LED (2 × 160–230 lm, software-adjustable) |
| Standardized Output Image Size | 20 mm × 20 mm (distortion-corrected) |
| Compatible Root Tube ID | ≥5.08 cm |
| Max. Tube Length Supported | 500 cm |
| Power Supply | Dual-source (laptop battery + internal Li-ion, 12 h runtime) |
| Camera Module Dimensions | Ø52–62 mm × 170 mm, 420 g |
| Smucker Positioning Handle | Aluminum, 25 mm × 25 mm × 1000 mm, 670 g |
| Software Platform | ICAP 8 (Windows-based), includes real-time preview, experiment scheduling, naming automation, and distortion correction |
| Root Morphometric Analysis | Root length, projected area, surface area, volume, diameter-class distribution, topology & connectivity mapping, multi-frame time-series alignment |
| Brand | EcoTech |
|---|---|
| Origin | Austria |
| Model | AC-21 |
| Camera Resolution | 8 MP (3280 × 2464) |
| Optical Resolution | 2500 dpi |
| Image Capture Time | <1 s per frame |
| Root Tube Dimensions | OD 70 mm, ID 64 mm |
| Field of View | 40 mm × 30 mm (full), 20 mm × 20 mm (cropped) |
| Illumination | Dual-row COB LED (3 W each, 330 lm @ 6500 K, adjustable) |
| Power Supply | 24 V DC, max 72 W, standby <1 W |
| System Weight | 4–5 kg |
| Software | MR Editor + In-situ Root Morphology Analysis Suite |

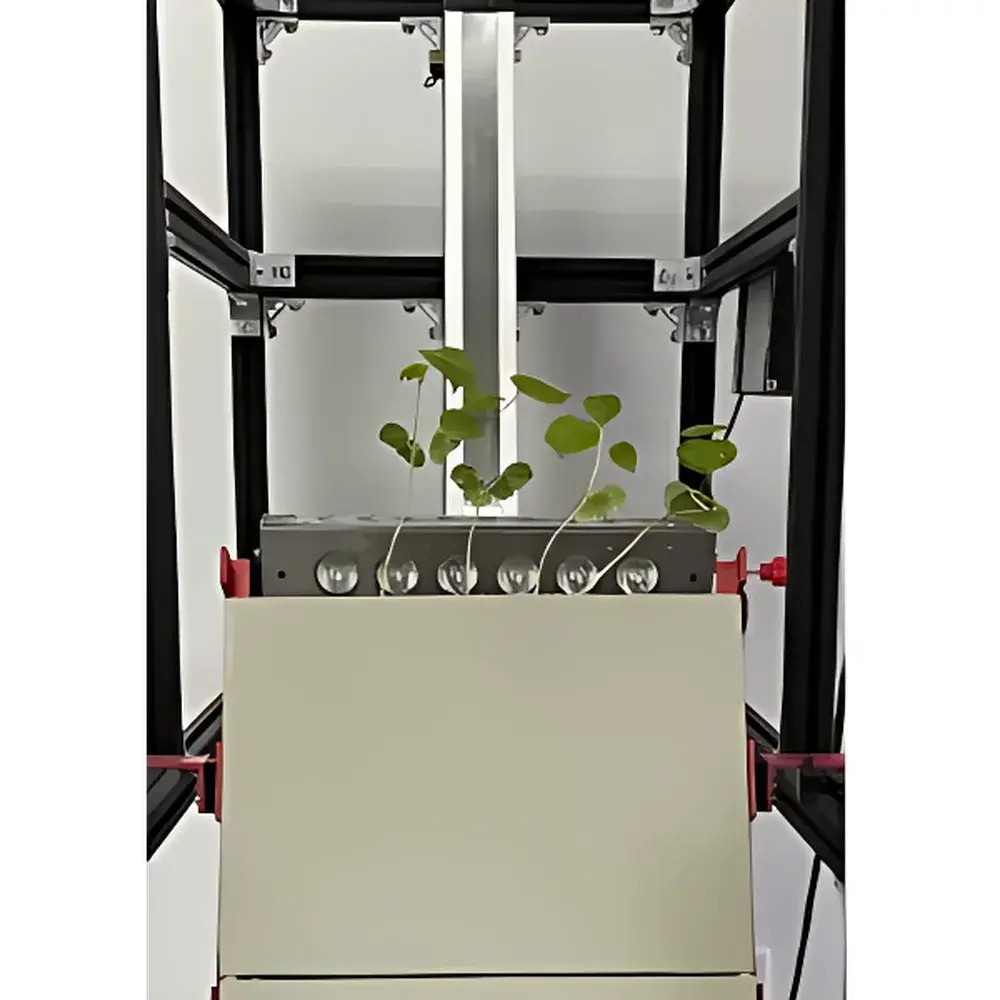

| Brand | EcoTech |
|---|---|
| Model | RhizoTron® |
| Origin | Beijing, China |
| Core Technology | Hyperspectral Imaging (400–1000 nm, optional 900–1700 nm) + UV-Induced Autofluorescence Imaging |
| Imaging Platform | Motorized Tilt-Scanning Stage (60° standard, optional 45°/70°/90°) |
| Spectral Resolution | <5 nm (VIS-NIR), <10 nm (SWIR) |
| Spatial Resolution | ≤0.1 mm/pixel at 10 cm working distance |
| RGB Sensor | 2448 × 2048 pixels |
| Software Suite | PhenoRoot™ (root morphology), SpectrAPP® (hyperspectral analytics), optional Thermo-RGB Fusion & Chlorophyll Fluorescence Analysis Modules |
| Compliance | Designed for GLP-compliant plant phenotyping workflows |

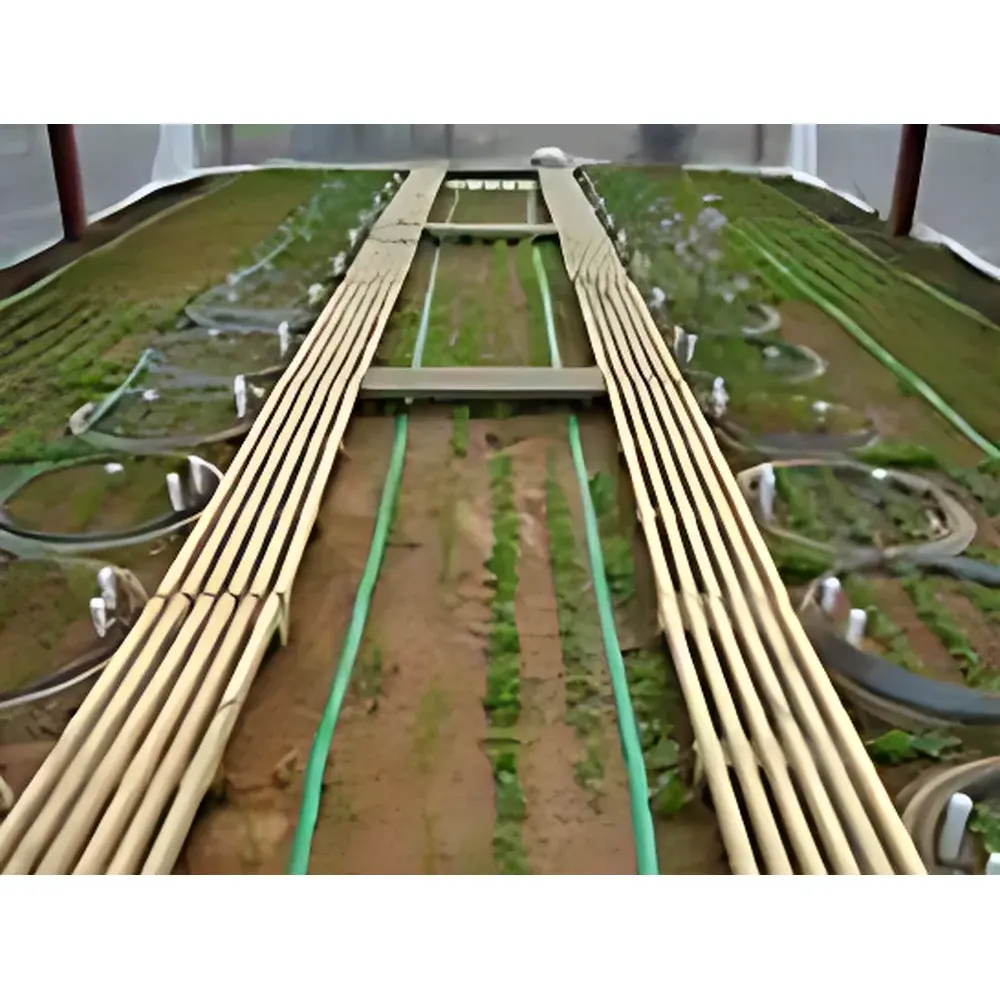

| Brand | EcoTech |
|---|---|
| Origin | Imported (Sensors & Data Logger: Europe |
| Rhizotron Imaging Unit | USA) |
| Model | SoilTron-Rhizo |
| Construction | Stainless Steel Cylinder (Rhizo-50: Ø125 cm, H=250 cm, 3 mm wall |
| Rhizo-80 | Ø200 cm, H=375 cm, 4 mm wall) |
| Root Observation Zones | 4 (Rhizo-50) or 5 (Rhizo-80) horizontal layers |
| Soil Moisture Sensors | TRIME PICO 32 TDR probes (0–100% vol., ±1% @ 0–40%, IP68) |
| Temperature Range | –15–50 °C (±0.2 °C) |
| Imaging System | SuperHAD II 1/3" IT CCD, 768×494 px, 30 fps, 55° FOV, 360° rotatable mirror tube, fiber-optic illumination |
| Data Logger | 16-channel (optional 32), 16-bit resolution, ±20 mV to ±2.5 V, 0.03% accuracy, 220,000 timestamped records, 3 s–4 h sampling interval, GSM/GPRS/Internet telemetry |
| Software | RootFly (standard), WinRhizo (optional), proprietary data analysis suite with statistical aggregation, regression, and time-series visualization |
| Compliance | Designed for GLP-aligned long-term ecological monitoring |
| Brand | EcoTech |
|---|---|
| Origin | Beijing, China |
| Model | SpectraScan-R |
| Imaging Modality | VIS-NIR Hyperspectral + High-Resolution RGB Scanning |
| Spectral Range (Standard) | 400–1000 nm |
| Optional Extensions | 900–1700 nm or 1000–2500 nm SWIR |
| Spatial Resolution | 512 × 512 pixels (configurable to 1024 × 1024) |
| Spectral Resolution | 7 nm (204 bands) |
| Field of View | 31° (55 × 55 cm at 1 m) |
| Imaging Distance | 15 cm to infinity |
| Integrated Touchscreen | 4.3″ with 13 physical control keys |
| Data Acquisition Mode | Push-broom with embedded preview camera (5 MPix) |
| Software Platform | WinRHIZO Pro (Professional Edition) with Scanner.cal calibration support, SAM classification, Savitzky-Golay spectral smoothing |
| Compliance | Compatible with GLP-compliant data workflows |

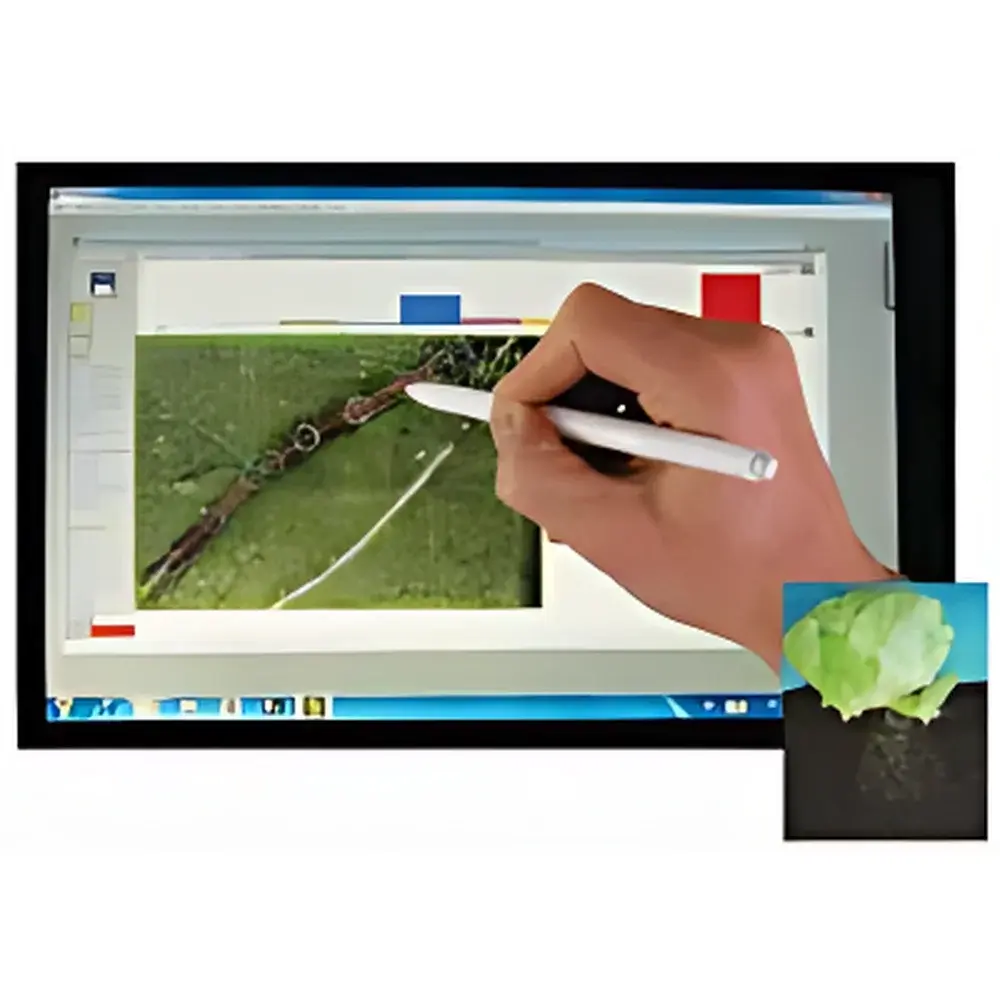

| Brand | Regent |
|---|---|
| Origin | Canada |
| Model | WinRHIZO Tron |
| Version Options | Basic, Reg, MF (Multi-Frame) |
| Software Type | Image-Based Root Morphometric Analysis Platform |
| Compatibility | Grayscale & Low-Contrast Root Images from Minirhizotron Systems, Flatbed Scanners, or Digital Cameras |
| Data Output Format | CSV, Excel-compatible (.xls/.xlsx via XLRhizo), XML |
| Operating System | Windows 10/11 (64-bit) |
| License | Perpetual node-locked license with optional annual maintenance support |
| Origin | USA |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | SoilBox |
| Price Range | USD 27,000–41,000 (based on FGA/FMS configuration and optional modules) |
