| Brand | Macherey-Nagel |
|---|---|
| Origin | Germany |

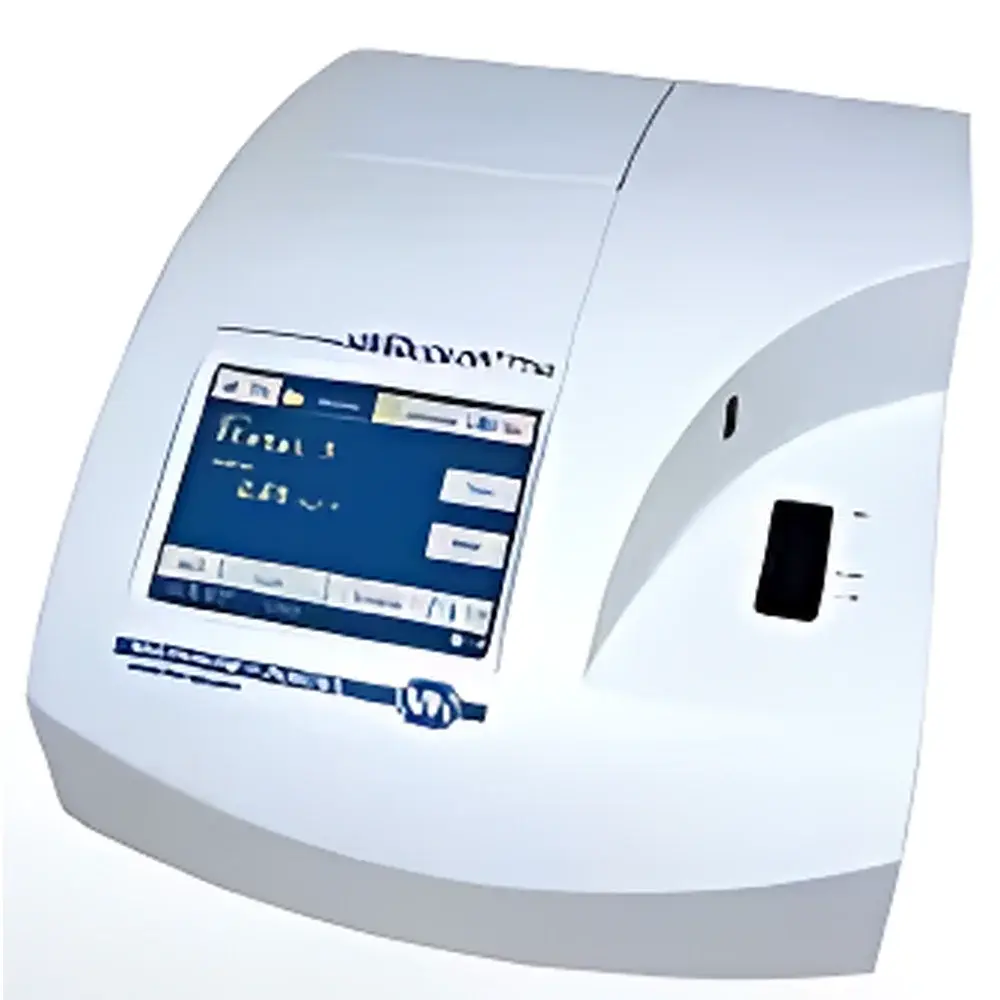

| Model | NANOCOLOR® UV/VIS Spectrophotometer with Reference Detection Technology (RDT) |
| Wavelength Range | 190–1100 nm |
| Light Sources | Tungsten-halogen lamp (vis) and deuterium lamp (uv) |
| Optical System | Single-beam stabilized optics |
| Wavelength Accuracy | ±1 nm |
| Wavelength Resolution | 0.3 nm |
| Spectral Bandwidth | <4 nm |
| Absorbance Range | ±3.0 E (200–900 nm) |
| Absorbance Accuracy | ±0.005 E (0.0–0.5 E) |
| Absorbance Linearity | <0.5% at 2.0 E |
| Stray Light | <0.05% |
| Measurement Modes | Predefined test methods, absorbance, transmittance, factor, multi-wavelength, kinetics, full-spectrum scan, turbidity |
| Cuvette Compatibility | Round tubes (Ø16 mm outer / Ø14 mm inner), rectangular cuvettes (10, 20, 50 mm pathlength) |
| Data Storage | 1000 GLP-compliant measurements with audit trail |
| Display | Color backlit LCD touchscreen |
| Interface | 1× USB, 2× RS-232 (bidirectional) |
| Environmental Operating Conditions | 10–40 °C, ≤80% RH (non-condensing) |
| Power Supply | 110–240 V AC, 50/60 Hz, 60 VA |
| Dimensions (L×W×H) | 390 × 285 × 155 mm |
| Weight | 6.5 kg |
| Compliance | CE-marked per Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC (incl. 92/31/EEC) |
