| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Model | APDA-370 |
| Measurement Principle | Beta-ray attenuation |
| Measured Parameters | PM2.5 and PM10 |
| Range | 0–1000/5000 µg/m³ (standard), up to 10,000 µg/m³ (custom configurations) |
| Repeatability | ±20 µg/m³ @ 200/500 µg/m³ |
| Linearity | ±30 µg/m³ @ 200/500 µg/m³ |
| Zero Drift | ±20 µg/m³/day across all ranges |
| Span Drift | ±30 µg/m³/day @ low ranges |
| Sampling Flow Rate | ~16.7 L/min |
| Measurement Interval | 1 hour |
| Data Output | RS-232C, optional LAN (TCP/IP), analog 0–1 V, pulse & contact I/O |
| Power Supply | AC 100 V ±10 V, 50/60 Hz, ~200 VA |
| Dimensions (W×D×H) | 430 × 483.5 × 266 mm |
| Weight | Monitor unit: ~19 kg |
| Sampling pump | ~5 kg |
| Brand | HORIBA |
|---|---|
| Origin | Japan |

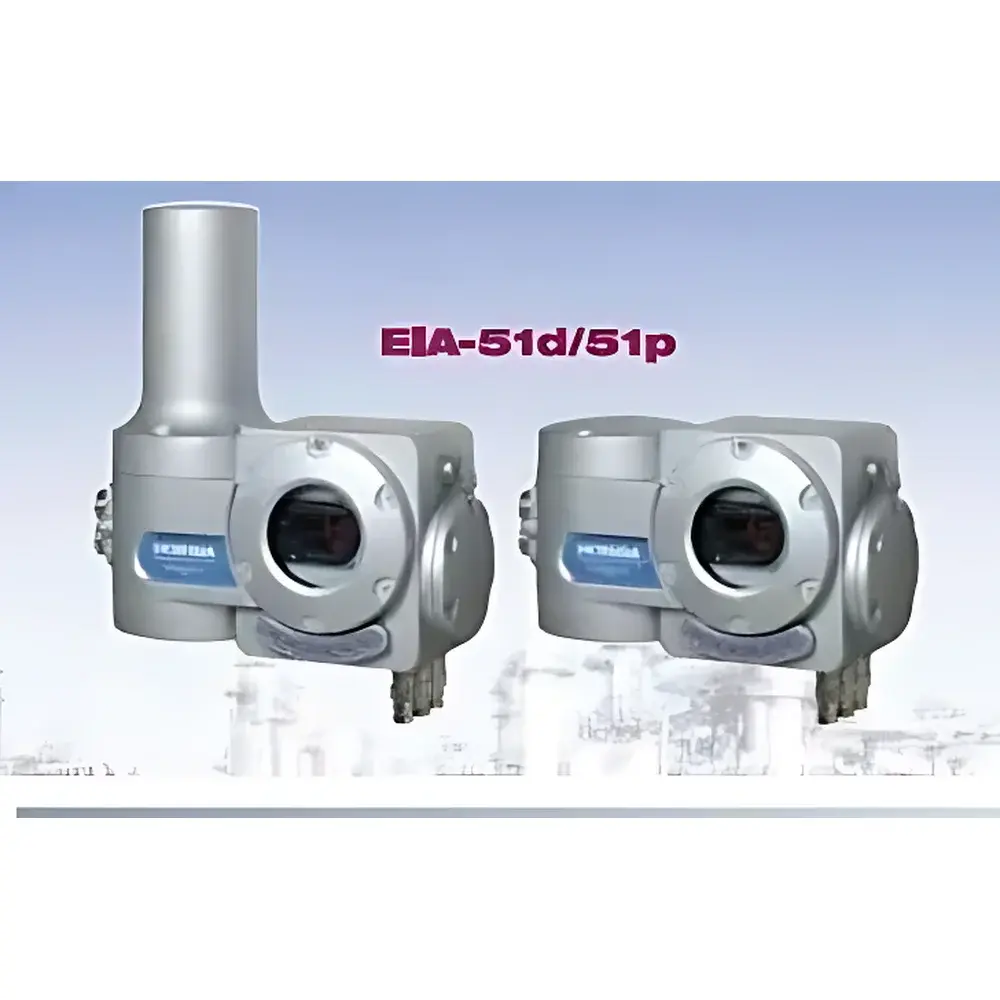

| Model | EIA-51d / EIA-51p |
| Explosion Protection Type | Ex d IIB+H2 T4 (EIA-51d) / Ex p IIB T4 X (EIA-51p) |
| Measurement Principle | Non-Dispersive Infrared (NDIR) Absorption with Interference Compensation |
| Measured Gases | CO, CO₂, CH₄, and other hydrocarbons |
| Range | 0–0.11 vol% to 0–100 vol% (gas-dependent) |
| Repeatability | ±0.5% F.S. (zero & span, standard range) |
| Linearity | ±1.0% F.S. |
| Zero & Span Drift | ±2.0% F.S./week |
| Response Time (T90) | ≤20 s (standard), ≤40 s (optional ranges) |
| Sample Flow Rate | 500 mL/min |
| Operating Temperature | –5 to +40 °C |
| Analog Output | Isolated DC 4–20 mA (standard), optional 0–10 V / 1–5 V / 0–1 V |
| Communication | RS-485, Modbus RTU (selectable baud rates: 1200–19200 bps) |
| Wetted Materials | SUS304, SUS316, FKM, CaF₂, Au |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Brand | HORIBA |
|---|---|
| Origin | Japan |

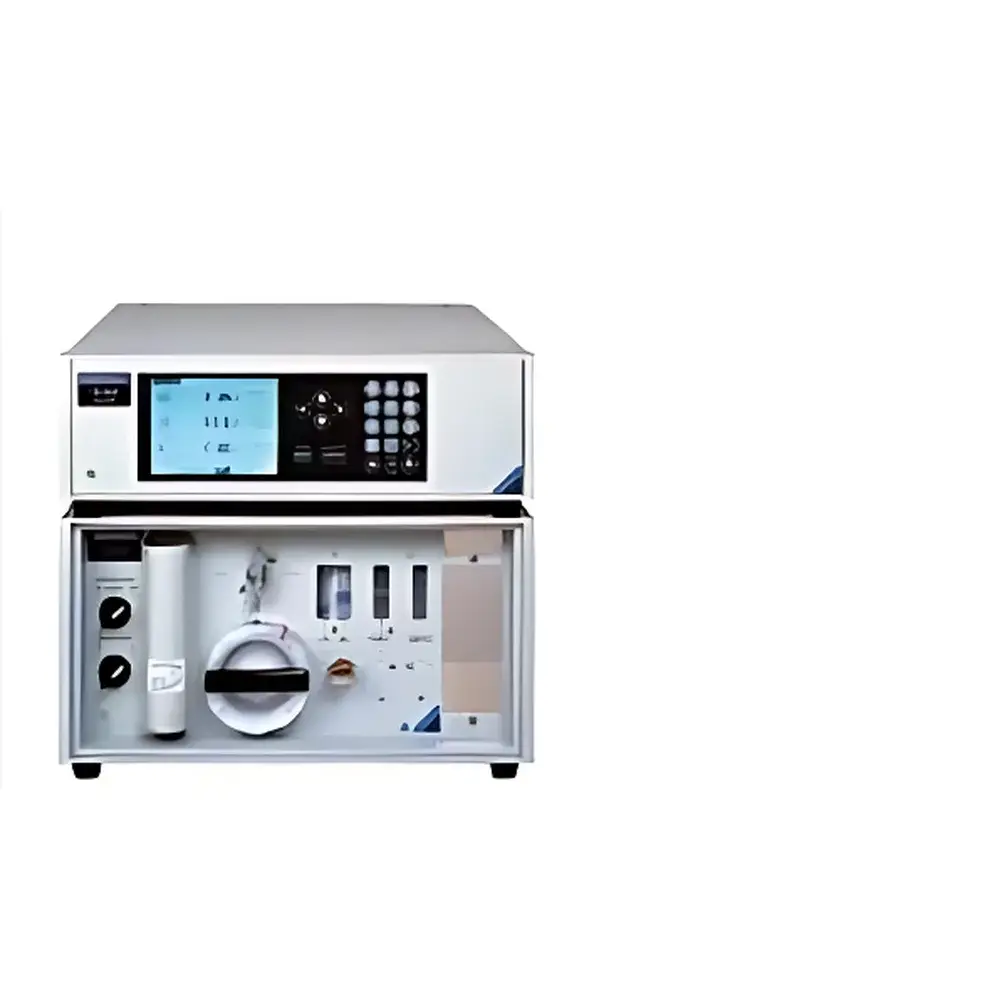

| Model | VA-3000 / VS-3000 |
| Measurement Principles | NDIR (Non-Dispersive Infrared), CLD (Chemiluminescence Detection), Paramagnetic, Electrochemical, Zirconia, Magnetic Pressure |
| Measured Gases | CO, CO₂, CH₄, NO, NO₂, NOₓ, N₂O, SO₂, O₂ |
| Warm-up Time | ≤20 min (NDIR modules) |
| Module Capacity | Up to 3 sensor modules per 19″ rack unit |
| Compliance | Designed for ISO 14001-aligned monitoring, EPA Method-compliant configurations available, supports GLP/GMP data integrity requirements |
