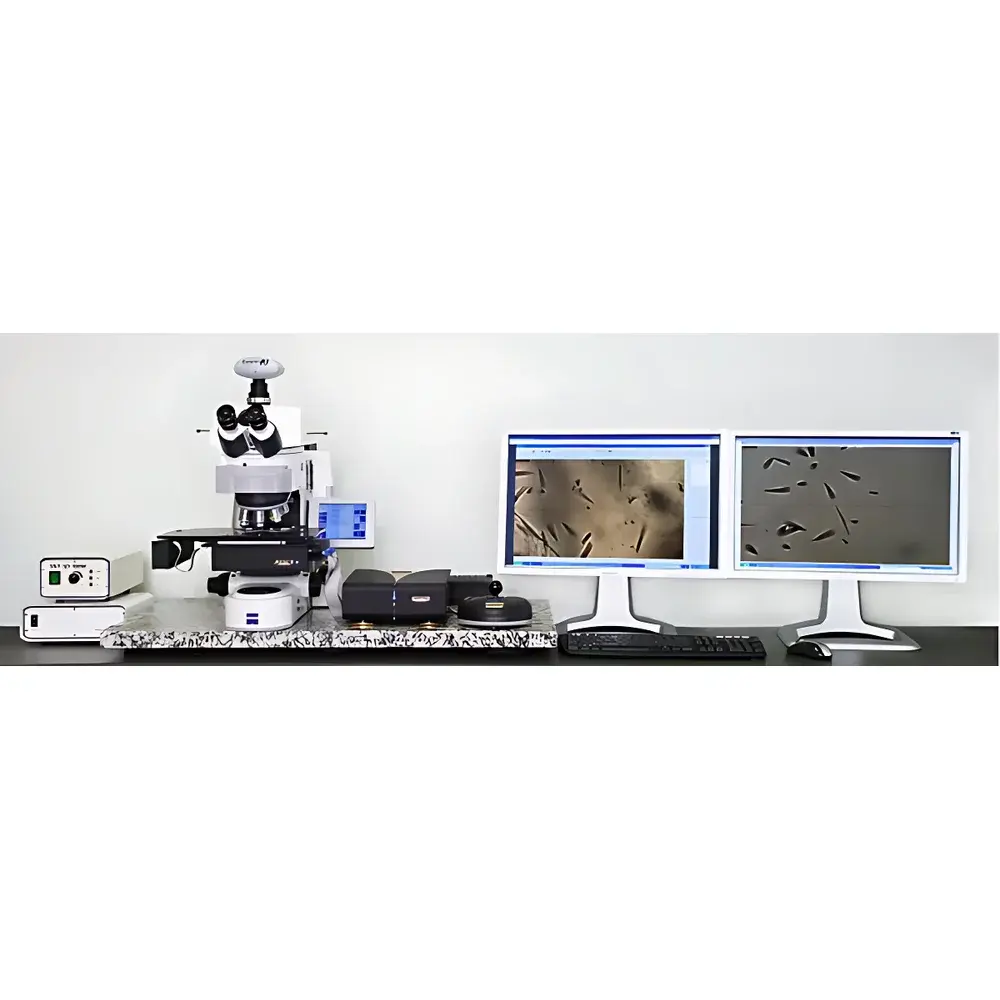

| Brand | AUTOSCAN |
|---|---|
| Model | FastTracks 3 (v.3) |
| Measurement Principle | Optical microscopy-based fission track counting and length analysis on etched mineral surfaces (apatite, zircon) |
| Imaging Resolution | 0.1 µm step resolution, sub-micron feature detection capability |
| Motorized Stage | 75 mm (X) × 50 mm (Y) × 3 mm (Z), repeatability ±2 µm |
| Camera | Monochrome CCD, 768 × 576 pixels, 40 fps full-resolution acquisition |
| Software Suite | TrackWorks 3 + FastTracks 3 v.3, GLP-compliant audit trail support |
| Compliance | Designed for ISO/IEC 17025-accredited thermochronology labs |
| Sample Compatibility | Standard petrographic thin sections (25 × 75 mm), polished grain mounts, apatite/zircon separates on epoxy resin stubs |
| Automation Level | Fully automated grain search, track identification, constrained/unconstrained track counting, 3D semi-track length measurement, Dpar/Dper calculation, c-axis orientation mapping |
| Training Module | Integrated pedagogical overlay with instructor-reference overlay and change-diff annotation |
