| Key | Brand: Amptek |
|---|---|
| Origin | USA |
| Model | Mini-X2 |
| Max Power | 4 W or 10 W |
| Max HV | 50 kV or 70 kV |
| Anode Materials | Ag, Rh, Au, W |
| Tube Voltage Range | 10–50 kV or 35–70 kV |
| Tube Current Range | 5–200 µA |
| Anode Thickness | Ag/Rh = 0.75 µm (±0.1 µm), Au/W = 1.00 µm (±0.1 µm) |
| Window Material | Be (127 µm) |
| Focus Size | ~2 mm |
| HV Polarity | Grounded Anode |
| HV Stability | <0.1% |
| Output Flux Stability | <0.3% (temperature-stabilized) |
| Beam Divergence | 120° |
| Cooling | Air-cooled |
| Leakage Radiation | <5 µSv/h at 5 cm with safety plug |
| Operating Temp | −10°C to +50°C |
| Storage Temp | −25°C to +60°C |
| Humidity | 30–90% RH (non-condensing) |
| Interface | USB 2.0 (mini-USB), 12 VDC input, AUX I/O with interlock & status indicators |
| Control Software | Mini-X Control GUI + Mini-X API (C/C++, Python, LabVIEW) |
| Warranty | 1 year or 2000 operating hours, whichever occurs first |

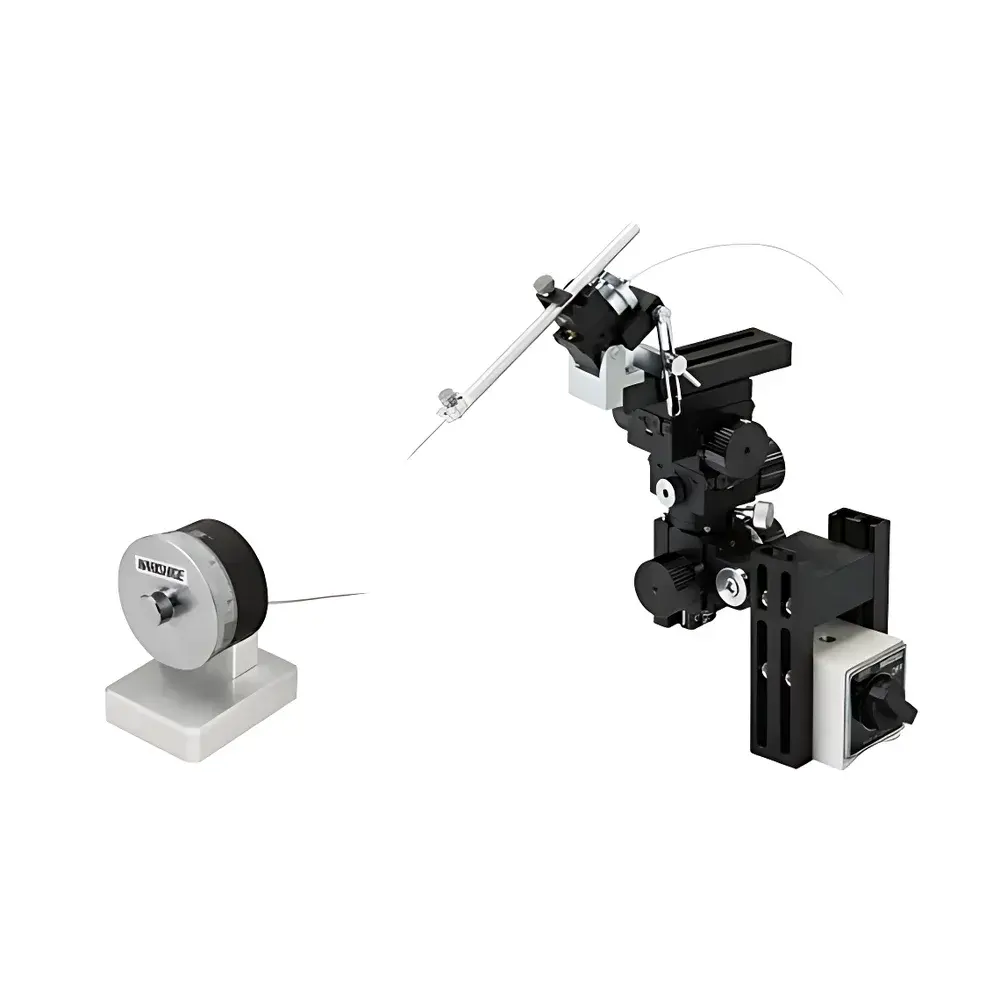

| Brand | Narishige |
|---|---|
| Origin | Japan |
| Model | M-152 |
| Coarse Travel (X/Y/Z) | 25 mm / 20 mm / 25 mm |
| Fine Adjustment Resolution | Sub-micrometer (via optional single-axis micrometer drive) |
| Dimensions (W×D×H) | 95 × 36 × 135 mm |
| Weight | 320 g |
| Standard Accessory | B-8B Spherical Joint |
| Optional Upgrade | Uniaxial Micrometer Drive (pipette-aligned axis) |
