| Brand | NARISHIGE |
|---|---|
| Origin | Japan |
| Model | NT88-V3 |
| Type | Motorized/Hydraulic Hybrid Micromanipulator System |
| Compatibility | Designed exclusively for Nikon TE2000-series inverted microscopes |
| Positioning Resolution | Sub-micrometer (hydraulic fine control) + motorized coarse positioning |
| “Co-location” Function | Yes, enables rapid return to pre-set reference coordinates after dish exchange |
| Integrated XYZ Scale Indicators | Yes, independent mechanical scales for X, Y, Z axes |
| Vibration-Damped Microscope Interface | Yes, optimized for stable operation on optical tables or anti-vibration platforms |
| Ergonomic Joystick Controller | Height-adjustable, space-saving footprint |
| Primary Applications | Intracytoplasmic Sperm Injection (ICSI), transgenic embryo microinjection, fluorescent dye/indicator delivery, patch-clamp electrode positioning, nuclear transfer |

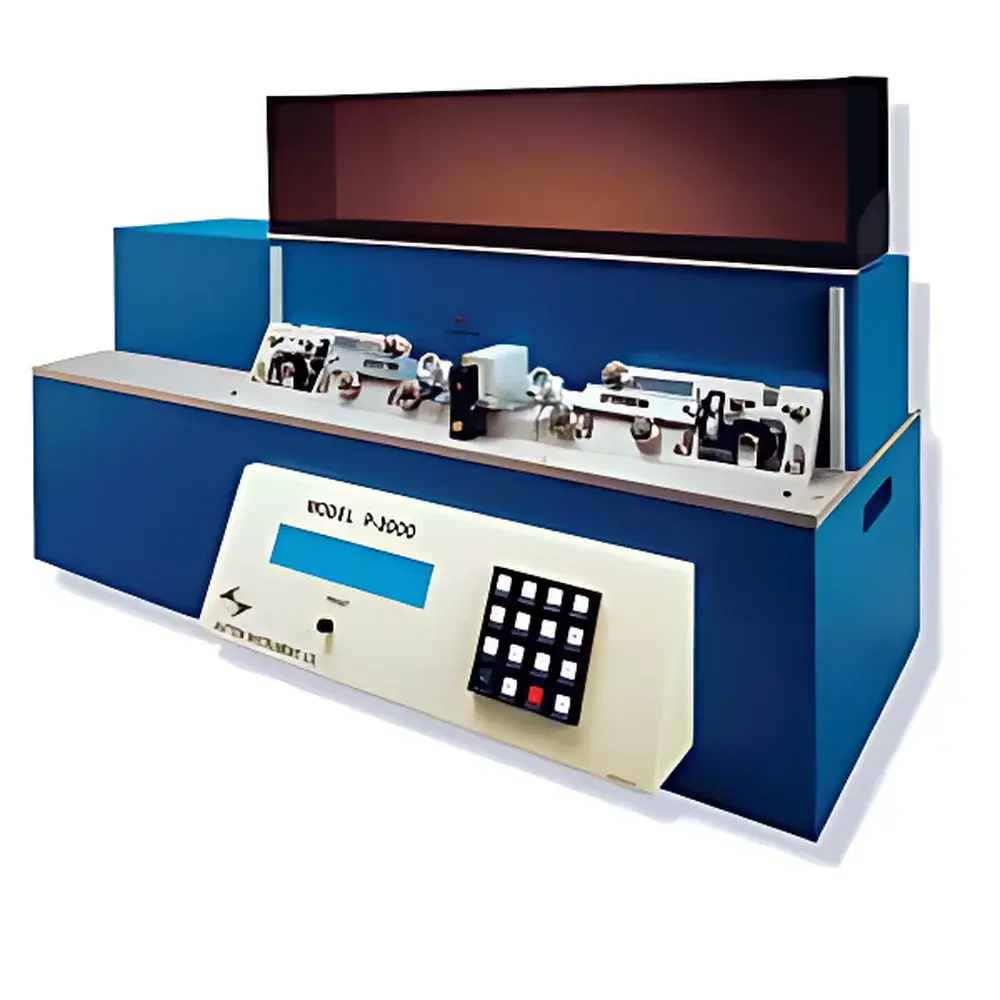

| Brand | Sutter |
|---|---|
| Origin | USA |
| Model | P-2000 |
| Dimensions | 76 cm × 36 cm × 33.5 cm |
| Weight | 36 kg |
| Power Supply | 115/230 V, 50/60 Hz |
| Laser Type | CO₂ |
| Max. Glass OD | 1.5 mm (quartz), 1.8 mm (borosilicate) |
| Programmable Protocols | 100 × 8-step |
| Tip Diameter Reproducibility | < 30 nm |
| Laser Lifetime | > 10 years |
| Brand | Narishige |
|---|---|
| Origin | Japan |
| Model | IM-31 |
| Operating Modes | Count Mode (Pressure/Time/Count), Footswitch Mode (Pressure Only) |
| Pressure Range | 50–500 kPa |
| Time Setting Range | 10 ms – 99.99 s |
| Count Setting Range | 1–99 |
| Interval Setting Range | 10 ms – 99.99 s |
| Input Voltage | AC 100–240 V (±5%), 50/60 Hz |
| Dimensions | 240 × 215 × 130 mm |
| Weight | 4 kg |
| TTL Input | Negative logic compatible |
| Compatibility | Modular integration with Narishige micromanipulators (e.g., MMO-4, MDO-84) via adapter kits |
| Accessories | HI-7 syringe holder, tubing connectors, footswitch, silicone O-rings, power cord |
