| Brand | CRAIC |
|---|---|
| Origin | USA |
| Model | FLEXT Microspectrophotometer |
| Spectral Range | 240–900 nm (UV-VIS-NIR) |
| Reflectance Range | 400–900 nm |
| Fluorescence Excitation | 365–546 nm |
| Fluorescence Emission | 254–546 nm |
| Fluorescence Range | 400–900 nm |
| Sampling Area | 1–10,000 µm² |
| Spectral Resolution | Adjustable from 1–15 nm |
| Detector | TE-cooled CCD array |
| Cooling | Thermoelectric (Peltier) |
| Minimum Scan Time (Full Spectrum) | 4 ms |
| Imaging Resolution | Up to 5 MP color digital imaging |
| Operating System | Windows 7/8 |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Model | 508PV |
| Spectral Range | 200–2100 nm |
| Spectral Resolution | 1–15 nm (adjustable) |
| Imaging Resolution | 3409 × 3409 pixels |
| Field of View (TFOV) | 25 mm |
| Instantaneous Field of View (IFOV) | 1–15 µm (adjustable) |
| Frame Rate | 25 fps |
| Detection Modes | Transmission, Reflectance, Polarization, Fluorescence, Photoluminescence |
| Detector | Thermoelectrically Cooled CCD Array |
| Spectral Acquisition Speed | As fast as 4 ms per full spectrum |
| Optical Interface | Direct coupling to microscope photoport (<30 cm optical path, fiber-free) |
| Software | LambdaFire™ with touchscreen control, rIQ™ refractive index module, spectral database, GLP-compliant audit trail, and NIST-traceable calibration support |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | UVM-1 |
| Instrument Type | Laboratory |
| Operating Principle | Grating-based, Non-scanning Array Detector |
| Wavelength Range | 200–2500 nm |
| Acquisition Speed | 250 spectra/sec |
| Data Sampling Interval | User-selectable |
| Sample Handling | Automated |
| Chemometrics Software | LambdaFire |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Apollo™ |
| Instrument Type | Grating-Based Raman Spectrometer |
| Spectral Range | 120–3000 cm⁻¹ |
| Spectral Resolution | 6 cm⁻¹ |
| Spatial Resolution | 1 µm |
| Minimum Wavenumber | 6 cm⁻¹ |
| Spectral Reproducibility | ≤ ±0.2 cm⁻¹ |
| Laser Wavelengths | 405, 473, 488, 532, 638, 660, 785, 830 nm |
| Laser Linewidth | < 0.02 nm |
| Output Power | 50–100 mW per laser |
| Detector | TE-Cooled CCD |
| A/D Resolution | 16-bit |
| Dynamic Range | 2500:1 |
| Integration Time | 8 ms – 10 min |
| Electrical Interface | USB 2.0 |
| Input Voltage | 110–220 VAC |
| Sampling Area | 14 µm |
| Spectral Surface Imaging™ Capability | Yes |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Apollo II™ Raman Microspectrometer — Advanced Raman Microscope |
| Pricing | Available Upon Request |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Model | CoalPro III™ |
| Compliance | ISO 7404-5, ASTM D2798 |
| Measurement Principle | Microscale Reflectance Spectrophotometry at 546 nm |
| Detector Type | High-Sensitivity, Low-Noise Silicon Photodiode Array |
| Imaging Capability | Integrated Full-Color Digital Microscopy |
| Automation Level | Manual or Fully Automated Operation |
| Upgrade Path | Compatible with CRAIC 308 Coal™ Microspectrophotometer Platform |
| Temperature Control | Precision Sample Stage Thermostat (±0.1 °C) |
| Software Suite | CRAIC CoalPro™ v5.x (Includes Reflectance Calculation Engine, Spectral Database, Image Analysis Module, GLP-Compliant Audit Trail) |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Model | 20/30PV™ |
| Wavelength Range | 200–2100 nm |
| Minimum Scan Speed | 4 ms |
| Spatial Sampling Interval | 1 µm |
| Measurement Mode | Automated |
| Software | LambdaFire™ |
| Detector Type | TE-Cooled Array Detectors |
| Sample Stage | Precision Motorized with Sub-Micron Positioning |
| Polarization Capability | Full UV-Vis-NIR Polarimetric Imaging |
| Optional Modules | Apollo™ Raman, rIQ™ Refractive Index Mapping, Spectral Surface Imaging |
| Brand | RELION |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | RELION CL-MicroSpectra |
| Operating Principle | Electron Beam–Induced Cathodoluminescence Spectroscopy |
| Imaging Modality | Computerized Tomographic Spectral Mapping |
| Platform Compatibility | Ground-Based & Airborne Integration |
| Spectral Range | 200–850 nm (CL Emission), Extended to 1–10,000 µm² spatial sampling area |
| Spectral Resolution | 1–15 nm (FWHM) |
| Spatial Resolution (IFOV) | 1 nm (at optimal beam focus) |
| Field of View (TFOV) | 8 mm diameter |
| Imaging Frame Rate | 15 fps (full-frame spectral cube acquisition) |
| Vacuum Chamber | ≤0.25 Pa base pressure |
| Electron Gun | Cold Cathode, Horizontal Geometry |
| Acceleration Voltage | 0–30 kV (adjustable in 100 V increments |
| Beam Current | 0.15–1 mA continuous (5 mA peak, current-limited with thermal feedback) |
| Spot Size Control | Variable demagnification from defocused (≥5 µm) to diffraction-limited point focus (<10 nm at 25 kV) |
| Digital Interface | Real-time vacuum, HV, beam current, and operational mode display with status logging |
| Brand | CRAIC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |

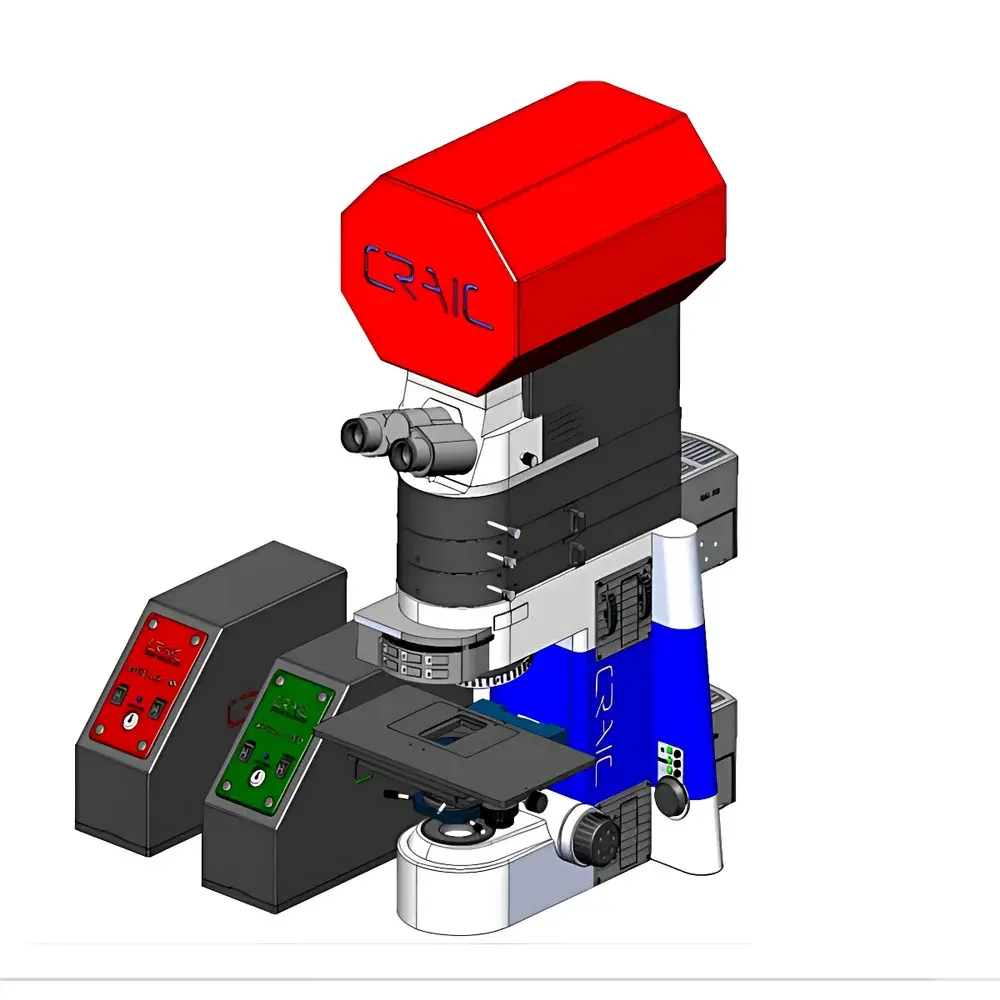

| Model | CRAIC Apollo II™ Confocal Raman Microspectrometer |
| Pricing | Available Upon Request |
