| Brand | HeadWall |
|---|---|
| Origin | USA |
| Model | MV.C VNIR |
| Operating Principle | Push-broom |
| Platform | Ground-based |
| Spectral Range | 400–1000 nm |
| Spectral Resolution (FWHM) | 6 nm |
| Spatial Pixels | 1024 |
| Detector | CMOS |
| Pixel Size | 5.86 µm |
| Aperture | f/2.5 |
| Sampling Interval | 1.75 nm/pixel |
| Slit Width | 20 µm |
| A/D Conversion | 12-bit |
| Interface | USB 3.1 |
| Weight (no lens) | 0.3 kg |
| Dimensions | 64 × 50 × 38 mm |
| Operating Temperature | 0–50 °C |
| Storage Temperature | −20–60 °C |
| Brand | HeadWall |
|---|---|
| Origin | USA |

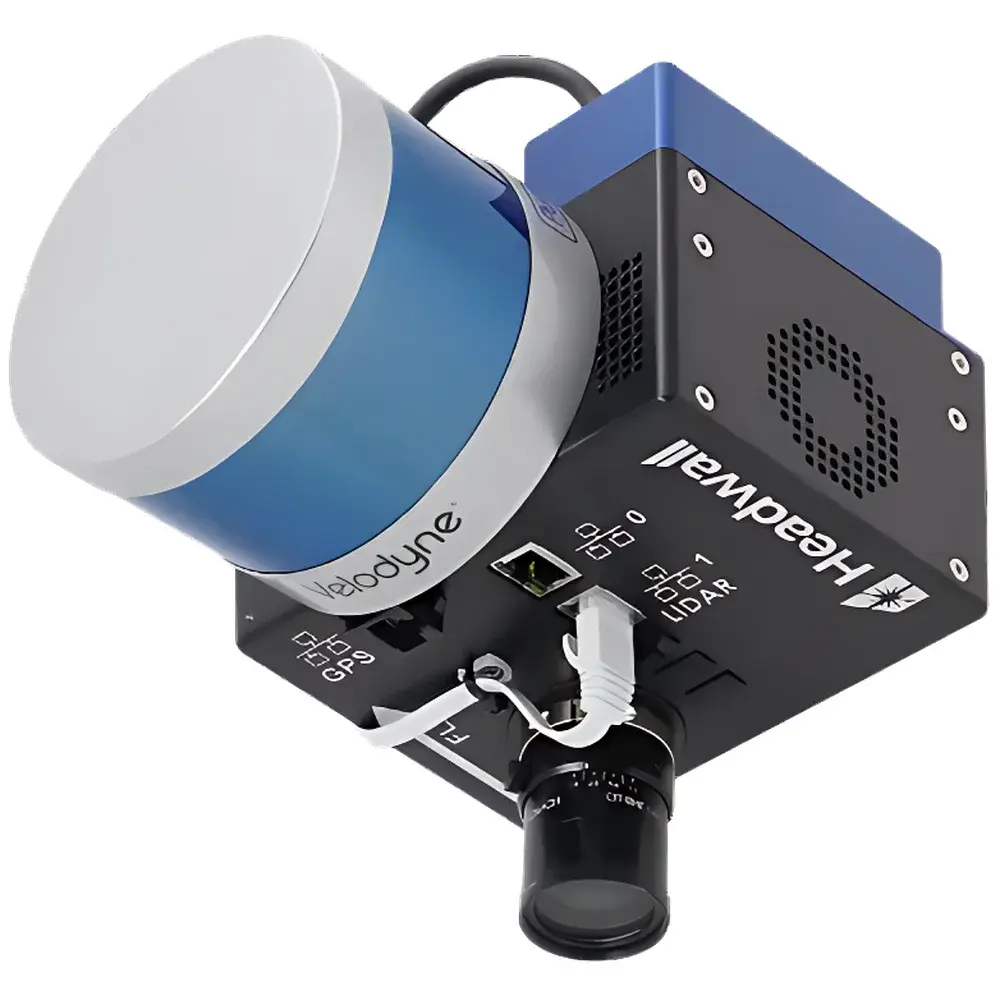

| Model | Nano HP |
| Imaging Principle | Push-broom |
| Operational Modes | Airborne & Ground-based |
| Spectral Range | 400–1000 nm |
| Spectral Resolution (FWHM) | 6 nm |
| Spatial Pixels | 1020 |
| Spectral Bands | 342 |
| Onboard Storage | 480 GB |
| Weight (without LiDAR) | 1.0 kg |
| Weight (with 16-line LiDAR) | 1.7 kg |
| Optical Design | All-reflective concentric optics with holographic grating |
| Optional Accessories | Integrated 16-line LiDAR, Motorized Rotation Mount |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Import Status | Imported |
| Model | Co-Aligned HP |
| Operating Principle | Push-broom |
| Imaging Method | Dispersive |
| Deployment Mode | Ground-based & Airborne Compatible |
| Spectral Range | 400–1000 nm (VNIR) and 900–2500 nm (SWIR) |
| Spectral Resolution (FWHM) | 6 nm (VNIR), 8 nm (SWIR) |
| Spatial Resolution | 1020 px (VNIR), 640 px (SWIR) |
| Total Field of View (TFOV) | 12° (VNIR), 16° (SWIR) |
| Spectral Bands | 342 (VNIR), 267 (SWIR) |
| Weight | 4 kg |
| Optional Integration | 16-line LiDAR, Rotational Mount, High-Precision GPS/IMU |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Import Category | Imported |

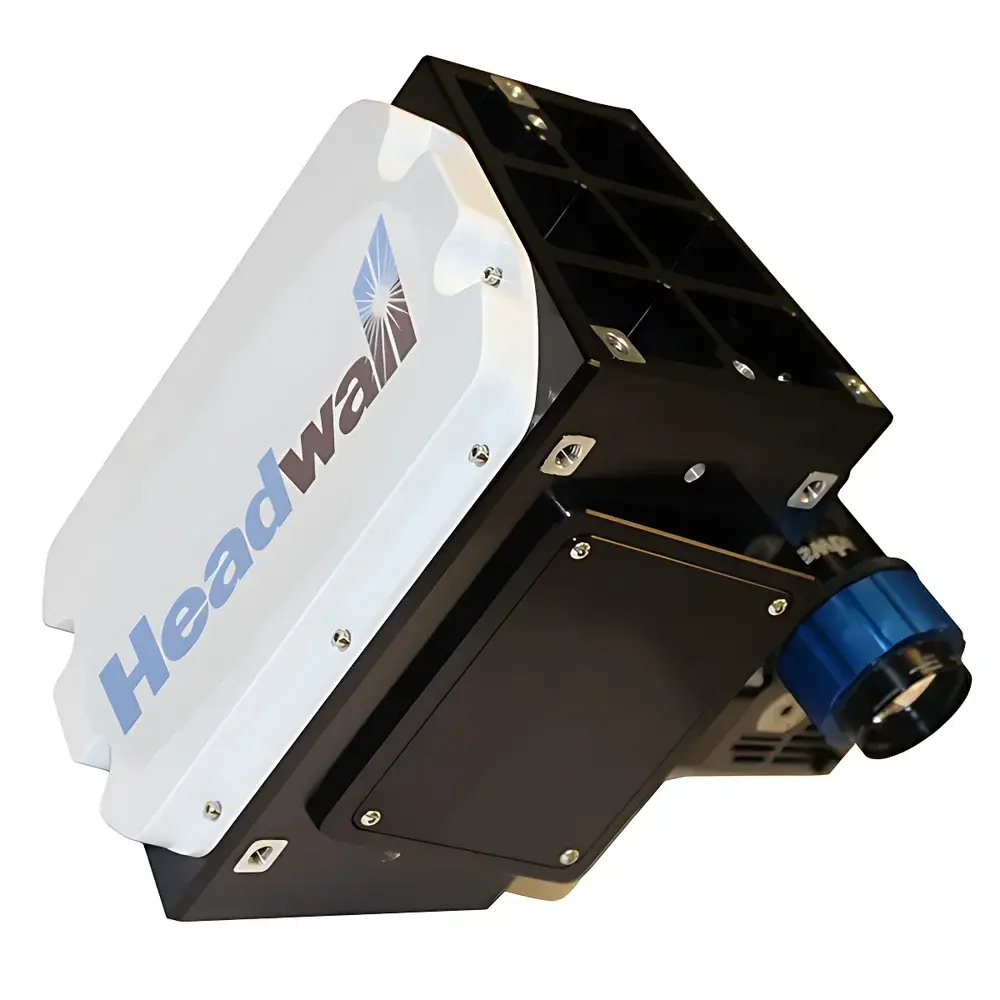

| Model | Solar-Induced Fluorescence |
| Operating Principle | Push-broom |
| Deployment Mode | Ground-based & Airborne |
| Spectral Range | 670–780 nm |
| Spectral Resolution | ≤0.2 nm (FWHM) |
| Total Spectral Channels | 2160 |
| Spatial Pixels | 1600 |
| Field of View (TFOV) | 23.5° (with 25 mm lens) |
| Instantaneous Field of View (IFOV) | 0.256 mrad |
| Frame Rate | ≤100 Hz |
| Weight (incl. 25 mm lens) | 6.3 kg |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Model | BlueEye UV |
| Spectral Range | 220–380 nm |
| Spectral Resolution | < 2 nm |
| Spatial Channels | 1750 |
| Spectral Channels | 1845 |
| Operating Mode | Ground-based Pushbroom |
| Weight | 1.9 kg |
| Integrated Ozone Scrubbing System | Yes |
| Illumination System | Integrated UV-optimized broadband source |
| Motorized Scanning Stage | Optional (standard in turnkey configuration) |
| Enclosure | Ruggedized, light-tight, ozone-resistant housing |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Import Category | Imported |
| Model | Hyperspec MV.X |
| Price Range | USD 68,000 – 136,000 (estimated) |
| Operating Principle | Push-broom |
| Deployment Mode | Ground-based |
| Spectral Range | 400–1000 nm |
| Spectral Resolution (FWHM) | 6 nm |
| Spectral Bands | 342 |
| Spatial Pixels | 1024 |
| Weight | 4 kg |
| Memory/Storage | 8 GB RAM / 128 GB SSD |
| Ingress Protection Rating | IP67 |
| Brand | OptoTech |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MV-VNIR |
| Pricing | Upon Request |
| Operating Principle | Push-broom Scanning |
| Deployment Platform | UAV-mounted |
| Spectral Range | 400–1000 nm |
| Spectral Resolution | 6 nm (FWHM) |
| Spatial Resolution | 1024 pixels across track |
| Spectral Sampling Interval | 1.75 nm/pixel |
| Aperture | f/2.5 |
| Detector | CMOS |
| Number of Spectral Bands | 342 |
| Optical Design | All-reflective concentric with aberration correction |
| Interface | USB 3.1 |
| Power Consumption | 5 V / 2.4 W (max) |
| Weight | < 1 kg |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VNIR-NIR-Ext / VNIR-SWIR |
| Operating Principle | Push-broom |
| Imaging Method | Dispersive |
| Deployment Mode | Ground-based & UAV-mounted |
| Spectral Range | 400–2500 nm |
| Spectral Resolution (FWHM) | 5.5 nm |
| Spatial Resolution (IFOV) | 0.872 mrad |
| Field of View (TFOV) | 32° |
| Image Resolution | 1600 × 1200 pixels |
| Frame Rate | 200 Hz |
| Optional Spectral Configurations | 900–1700 nm (134 bands), 600–1700 nm (267 bands), 900–2500 nm (166 bands) |
| Weight | 0.9–2.0 kg |
| Brand | Optosky |
|---|---|
| Model | MV-FS |
| Instrument Type | Push-broom Hyperspectral Imager |
| Operating Environment | Ground-based (Field & Lab) |
| Spectral Range | 400–1000 nm |
| Spectral Resolution | 6 nm (FWHM) |
| Spectral Sampling Interval | 1.75 nm/pixel |
| Spatial Pixels | 1024 |
| Spectral Bands | 342 |
| Optical Design | All-reflective concentric aberration-corrected |
| Grating Type | Convex holographic diffraction grating |
| Detector | CMOS |
| A/D Resolution | 12-bit |
| Interface | USB 3.1 |
| Max Frame Rate | >100 Hz |
| Power Supply | 5 V DC / 2.4 W (max) |
| Weight (body only) | 0.3 kg |
| Dimensions | 64 × 50 × 38 mm |
| Aperture | f/2.5 |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | MV.C NIR |
| Pricing | USD $65,000–$105,000 (FOB USA) |
| Operating Principle | Push-broom |
| Imaging Method | Dispersive |
| Deployment Environment | Ground-based |
| Spectral Range | 900–1700 nm |
| Spectral Resolution | 7.5 nm (FWHM) |
| Spatial Resolution | 640 pixels × variable line length |
| Total Field of View (TFOV) | 25° |
| Frame Rate | 547 Hz |
| Spectral Channels | 213 |
| Sampling Interval / Dispersion | 3.75 nm/pixel |
| Optical Design | All-reflective, concentric aberration-corrected |
| Dimensions (w/o lens) | 130 × 170 × 70 mm |
| Weight (w/o lens) | 2.2 kg |
| IP Rating | IP54 |
| Software Compatibility | perClass® Mira® Suite, perClass API, eBUS SDK |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Product Origin | Imported |
| Model | HSM |
| Price Range | USD 55,000 – 138,000 (FOB) |
| Operating Principle | Push-broom Scanning |
| Deployment Environment | Benchtop / Laboratory Ground-based |
| Brand | HeadWall |
|---|---|
| Origin | USA |
| Distribution Status | Authorized Distributor |
| Import Category | Imported |
| Models | Standard, Large-Format, Enclosed Dark-Box Configuration |
| Pricing | Available Upon Request |
