| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | UVCUT420 |
| Component Type | Optical Filter |
| Substrate Material | Fused Silica (Quartz) |
| Diameter | 63 mm |
| Clear Aperture | >57 mm |
| Cut-on Wavelength | 420 nm (typical, long-wave pass configuration) |
| Spectral Performance | High OD (>4) below cutoff, >90% average transmission above cutoff |
| Surface Quality | 20–10 scratch-dig |
| Parallelism | <1 arcmin |
| Thickness | 3.0 ± 0.1 mm |
| Coating | Hard-dielectric multilayer on both sides |

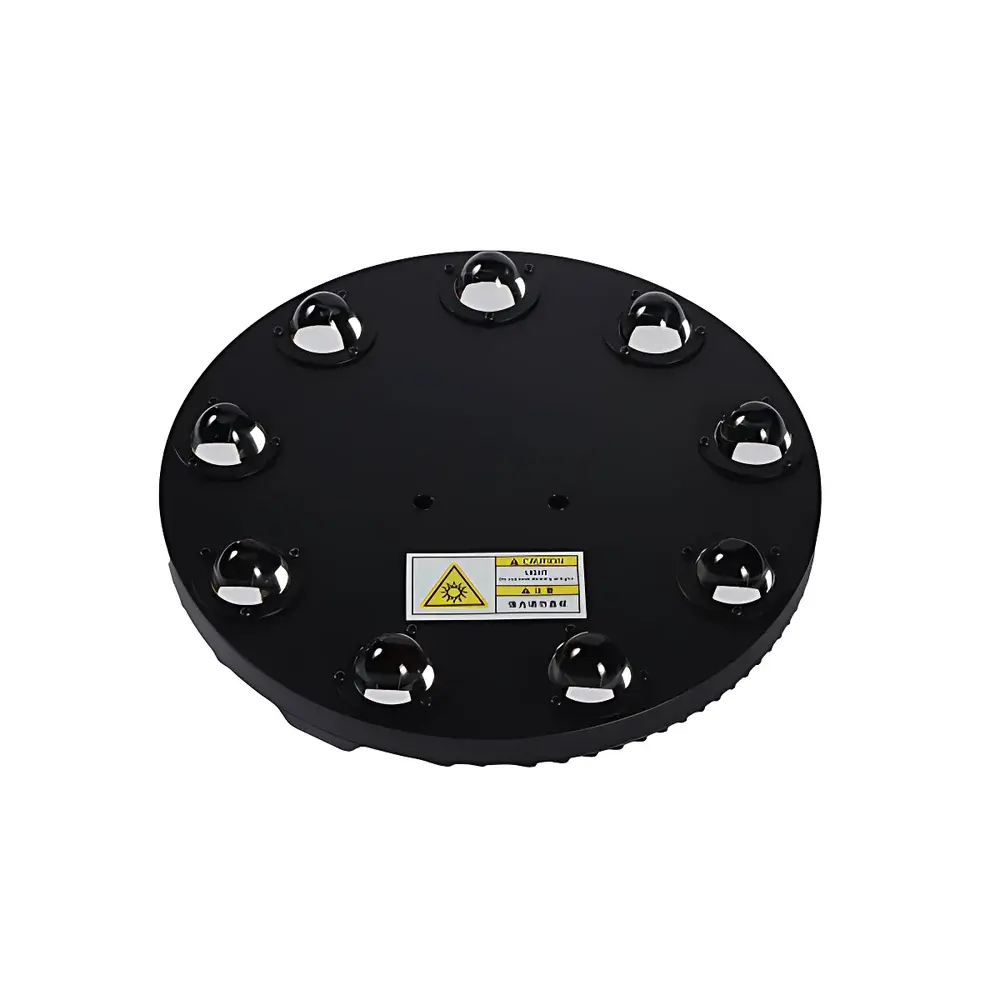

| Brand | PerfectLight |
|---|---|
| Model | Vlight |
| Type | Multi-Channel Solar-Simulating Light Panel |
| Spectral Range | 380–760 nm |
| AM1.5G Spectral Match Accuracy | ±15% |
| Irradiance Output | 100–450 mW/cm² |
| Input Power | 10 W |
| Compatibility | PCX50B and PCX50C Multi-Channel Photocatalytic Reaction Systems |
| Origin | Beijing, China |
| Component Category | Optical Instrument Subassembly |
