| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | Labsolar-IIIAG |
| Pricing | Available Upon Request |
| Vacuum Level | ≤0.1 MPa (absolute) |
| Operating Pressure Range | 0 kPa to ambient pressure |
| Gas Tightness | ≤1 kPa pressure change over 24 h |
| Tubing Material | High-borosilicate glass |
| Minimum Tubing ID | 3 mm |
| Total System Volume | 150 mL |
| Sampling Loop Volume | 1.5 mL |
| Gas Storage Vessel | 250 mL |
| Condenser Type | Spherical condenser |
| Cold Trap | Integrated for low-boiling component separation |
| Vacuum Pump | Single-stage rotary vane pump, pumping speed ≥6 L/s |
| Magnetic Circulator Speed | ≥4000 rpm |
| H₂ Calibration Linearity | R² > 0.999 in range 100 μL–10 mL |
| Repeatability (RSD) | <3% for quadruplicate injections |
| Valve Count | 13 |
| Valve Material | High-borosilicate glass with precision lapped plug-and-body |
| Vacuum Grease | Dow Corning high-performance vacuum grease (–40°C to 200°C, low vapor pressure, chemical resistant) |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PLR-GSPR |
| Pricing | Upon Request |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic Scientific Instrument |
| Model | PLR-SCR100A |
| Pricing | Upon Request |
| Max Operating Pressure | 3 MPa (≤300 °C) / 1 MPa (≤600 °C) |
| Max Temperature | 600 °C |
| Temperature Stability | ±1 °C |
| Pressure Accuracy | ±0.2 % F.S. |
| LED Wavelength Options | 365, 380, 405, 420, 760 nm (customizable) |
| Microwave Output | ~250 W (solid-state, real-time forward/reflected power monitoring) |
| Heating Rate (Joule) | up to 100 °C/min |
| Thermal Equilibration Time | ~15 min |
| Gas Inlets | 3 standard (4 optional), 100 mL/min N₂ calibration flow |
| Liquid Inlet | 0–1 channel, 0.001–2 mL/min |
| Preheater Max Temp | 400 °C |
| Condenser Volume | ≤50 mL, detachable |
| Power Supply | 220 V/10 A, <2.2 kW, grounded |
| Dimensions (W×H×D) | 700 × 800 × 480 mm |
| Brand | PufeiLai (PerfectLight) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ULTRA-SONIC COUPLED DUAL-CHAMBER ELECTROLYSIS CELL |
| Price | Upon Request |
| Ultrasonic Frequency | 40 kHz |
| Ultrasonic Power Range | 0–60 W per channel (dual independent channels) |
| Temperature Monitoring Range | 0–80 °C |
| Timer Range | 0–99 min |
| Chamber Configuration | Dual-compartment, dual-electrode |
| Electrode Active Area (Standard) | 2 × 2 cm² |
| Housing Material | 2 mm anodized aluminum |
| Dimensions (W × D × H) | 155 × 365 × 330 mm |
| Operating Environment | Non-condensing, ambient pressure, ≤60 °C |
| Ultrasonic Transducer Mounting | Threaded stud + structural epoxy bonding |
| Fluidic Interface | Dual inlet/dual outlet (optional) |
| Optical Compatibility | Single-chamber replaceable with quartz window + metal body for sonophotoelectrocatalysis |
| Brand | PerfectLight (PofeiLai) |
|---|---|
| Origin | Beijing, China |

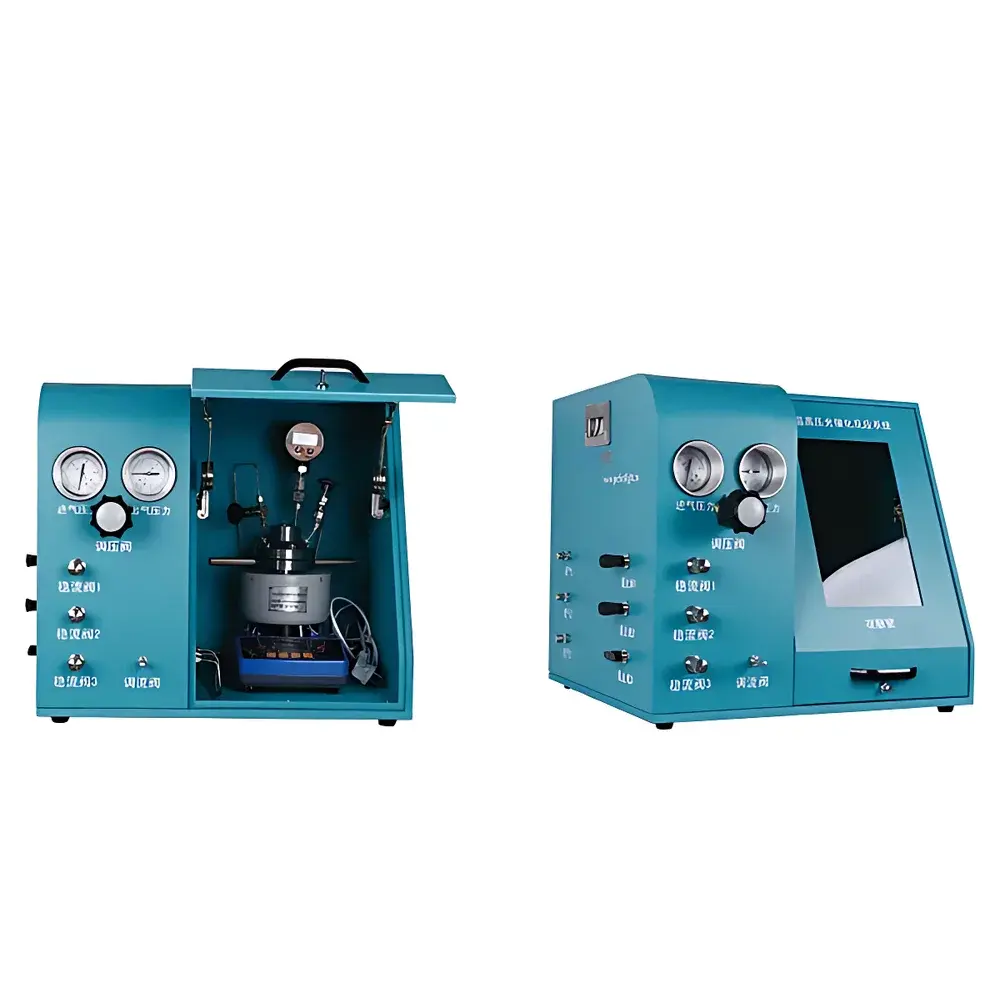

| Model | PLR-HGPR |
| Temperature Range | Ambient +10 °C to 300 °C (up to 380 °C) |
| Operating Pressure | 1–10 MPa |
| Reactor Volume | 50 mL (customizable: 25 mL or 100 mL) |
| Gas Inlets | 3 independent channels |
| Total Gas Flow Rate | 1–60 mL/min |
| Safety Relief Valve Setpoint | Adjustable up to 7 MPa |
| Gas Mixing Chamber Volume | 1 L |
| Flow Monitoring | Electronic soap-film flowmeter (10–60 mL/min range) |
| Optical Window | Thick fused-silica quartz, broadband transmission (190–2500 nm) |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLR PTCS-31 |
| Power Supply | AC 220 V, 50/60 Hz |
| Total Power | 1500 W (LED source: 900 W |
| Water cooling | 600 W) |
| Maximum Achievable Temperature | ≥500 °C (center zone, ±5 cm) |
| Reaction Tube Dimensions | Φ10 × Φ7 × 400 mm (quartz glass standard |
| Collector Tube Dimensions | Φ58 × Φ43 × 330 mm |
| Collector Tube Material | High-borosilicate glass with selective solar-absorbing coating |
| Long-term Operating Temperature Range (collector) | 5–300 °C |
| Short-term Exposure Limit | up to 500 °C (coating degradation risk above 300 °C) |
| Illumination Uniformity | >90% across irradiated surface |
| Peak Irradiance | ≥300 mW/cm² (at 1-sun equivalent, initial condition) |
| Spectral Control | Three-zone independently adjustable LED array (UV–vis–NIR) |
| Temperature Monitoring | Multi-point thermocouple interfaces along U-shaped reaction tube |
| Cooling | Integrated closed-loop water circulation system |
| Ambient Operating Conditions | 0–45 °C, non-condensing |
| Storage Conditions | −10–60 °C, 30–85% RH (drain coolant before storage below 0 °C) |
| Brand | PofeiLai (PerfectLight) |
|---|---|
| Origin | Beijing, China |
| Model | PQ Series Laboratory-Scale Photoreactor |
| Construction Material | JGS-2 Fused Quartz |
| Optical Window Options | Quartz Flat Plate (Φ110 × 8 mm) or Quartz Jacketed Window |
| Total Volume | ~350 mL |
| Effective Reaction Volume | ~150 mL |
| Sealing Method | Flanged Connection with Viton/FFKM O-Ring Seal |
| Standard Ground Joints | Two 19/26 taper joints |
| Integrated Features | Gas Inlet/Outlet Ports for Atmosphere Control, Manual Sampling Port with Septum Penetration, Optional Vacuum/Reagent Addition Port, Optional Thermostatic Water Jacket |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory use |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | CHF-XM Series |
| Pricing | Available Upon Request |
| Light Output Modes | Point Source, Collimated Beam, Fiber-Coupled Output |
| Point Source Diameter | 4–6 mm |
| Collimated Beam Diameter | 50 mm |
| Beam Divergence | ≤0.85° (at working distance < 250 mm) |
| Spectral Range | 300–1100 nm |
| Irradiance Uniformity (Φ60 mm) | ≤ ±11% |
| Local Uniformity (2 cm × 2 cm area) | ≤ ±5% |
| Focusing Capability | Adjustable between point source and Φ60 mm collimated output |
| Brand | PerfectLight (PoFeiLai) |
|---|---|
| Origin | Beijing, China |

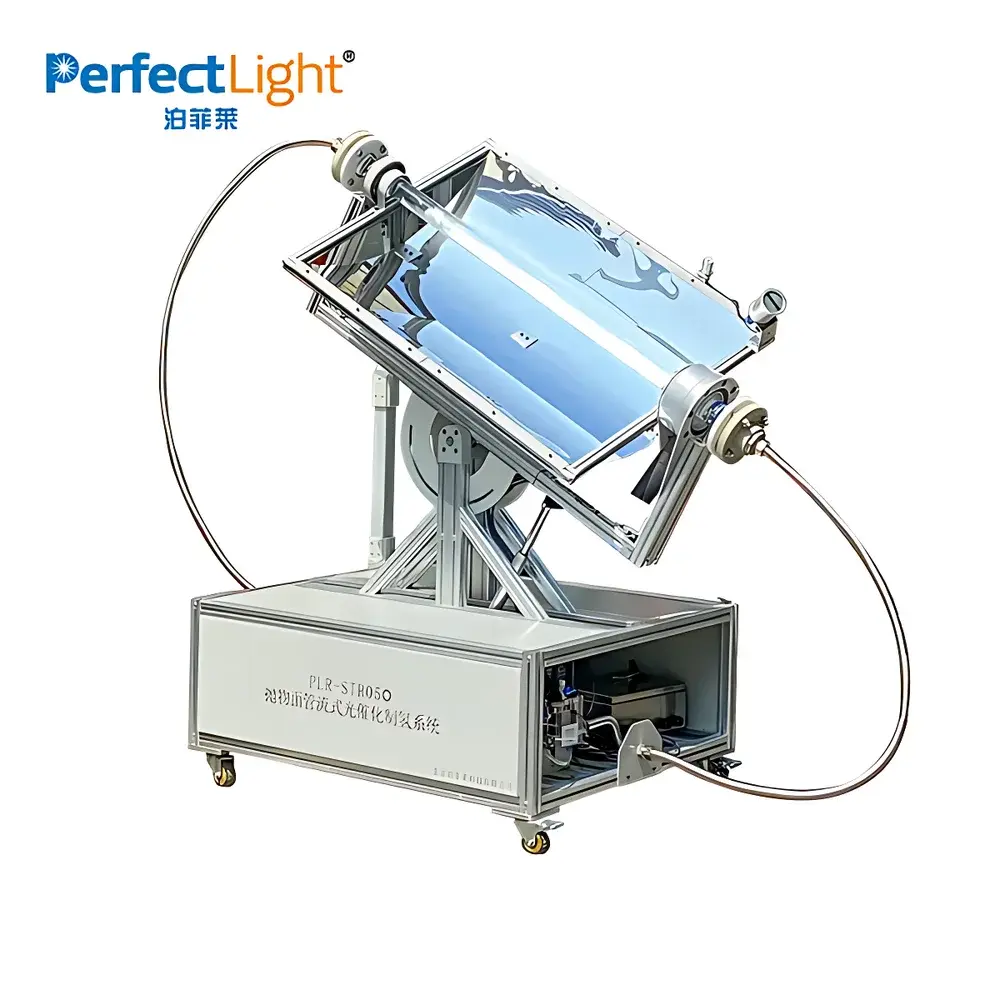

| Model | PLR-STR05O |
| Reactor Effective Illuminated Area | >0.5 m² |
| Concentration Ratio | ≤5 |
| Reactor Specification | DN50 borosilicate glass tube, length >1000 mm |
| Operating Pressure | Ambient with micro-positive pressure (5–10 kPa) |
| Gas–Liquid Separation | Integrated |
| Storage Tank Volume | 10 L |
| Irradiance Monitoring | 0–1200 W/m² (at reactor plane) |
| pH Range | 1–14, accuracy ±0.02 |
| ORP Range | −2000 to +2000 mV, accuracy ±15 mV |
| Flow Rate Monitoring | 3–60 L/min, accuracy ±3 L/min |
| Temperature Monitoring | 0–80 °C, accuracy ±1 °C |
| Environmental Sensors | Wind speed, ambient temperature/humidity/pressure |
| Flow Control | Variable-frequency pump (0–60 L/min, head >10 m) |
| Azimuth Tracking Range | ±70° |
| Elevation Adjustment Range | 0–50° (manual) |
| Safety Alarms | Wind speed, temperature, and angle limits |
| Data Logging | Real-time acquisition with automated report generation |
| Structural Wind Resistance | Grade 6 (IEC 61400-1 compliant) |
| Enclosure Rating | IP65 |
| Mobility | Modular, ground-mountable or mobile base compatible |
| Human–Machine Interface | 7-inch PLC touchscreen + PC-based control software |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |

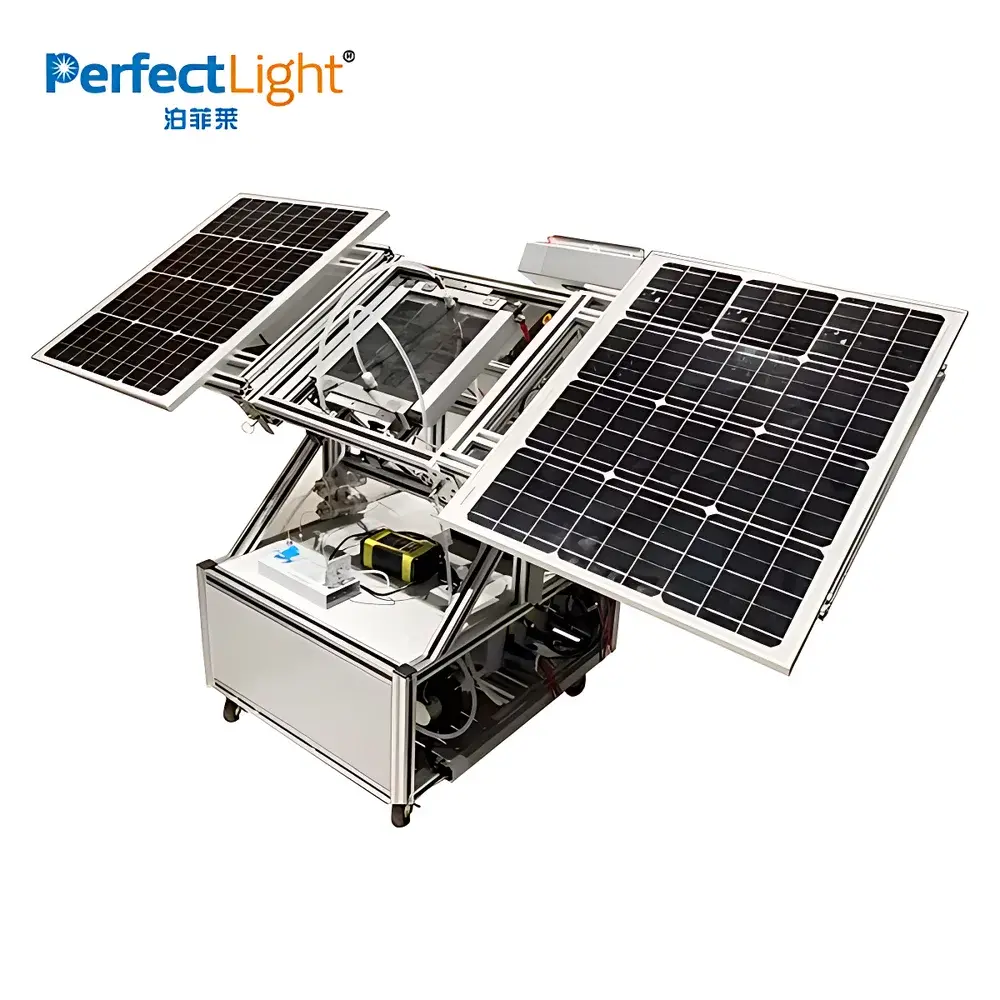

| Model | PV-H2 Demo Unit |
| Photoreactor Active Area | 20 × 20 cm² |
| Optical Window Material | High-Transmittance Borosilicate Glass |
| Liquid Flow Channel Thickness | 2 mm |
| Solution Flow Rate | 0.1–3 L/min |
| Circulation Pump Capacity | 3 L/min |
| Integrated Dual Reservoirs | 3 L each |
| Operating Temperature Range | 5–60 °C |
| Maximum Reactor Working Pressure | 40 kPa |
| Power Supply | DC 12 V |
| Mounting Frame | Outdoor Mobile & Tilt-Adjustable |
| Data Acquisition | Real-time Current, Voltage, Temperature, and Pressure Logging |
| Control Interface | Local HMI or Remote PLC Integration |
| Compliance | Designed for outdoor demonstration under ambient environmental conditions per IEC 61215 (photovoltaic module mounting), ISO 8502-9 (corrosion resistance of structural components), and GLP-aligned data integrity practices |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLR-MPPT-X |
| Gas Flow Control | 3-channel MFC (2–100% F.S., ±1% F.S. accuracy) |
| Liquid Delivery | 1-channel bubbling system (0–120 °C, ±1 °C control) |
| Light Source Compatibility | Xenon lamp (50 mm diameter irradiation area, 19.625 cm²) |
| Plasma Power Supply | 0–500 W, 0–30 kV output, 5–20 kHz frequency, integrated power measurement circuit |
| Heating Capability | Resistive heating plate (RT–300 °C), optional tubular furnace (RT–800 °C, ±1 °C precision) |
| Reactor Types | Integrated flat-plate multi-field coupling reactor (7.5 mL max. catalyst volume, 3 mm discharge gap) + optional tubular reactor (1.8 mL, 2 mm gap) |
| Temperature Monitoring | Up to 600 °C at reactor outlet, −100 to +100 kPa gauge pressure sensing |
| Data Acquisition | RS485-enabled multi-channel temperature/pressure/flow/power monitoring with real-time logging |
| Software | Local HMI + cloud-enabled IoT control interface (remote parameter setting, alarm management, historical trend analysis) |
| Brand | PerfectLight (PoFeiLai) |
|---|---|
| Origin | Beijing, China |

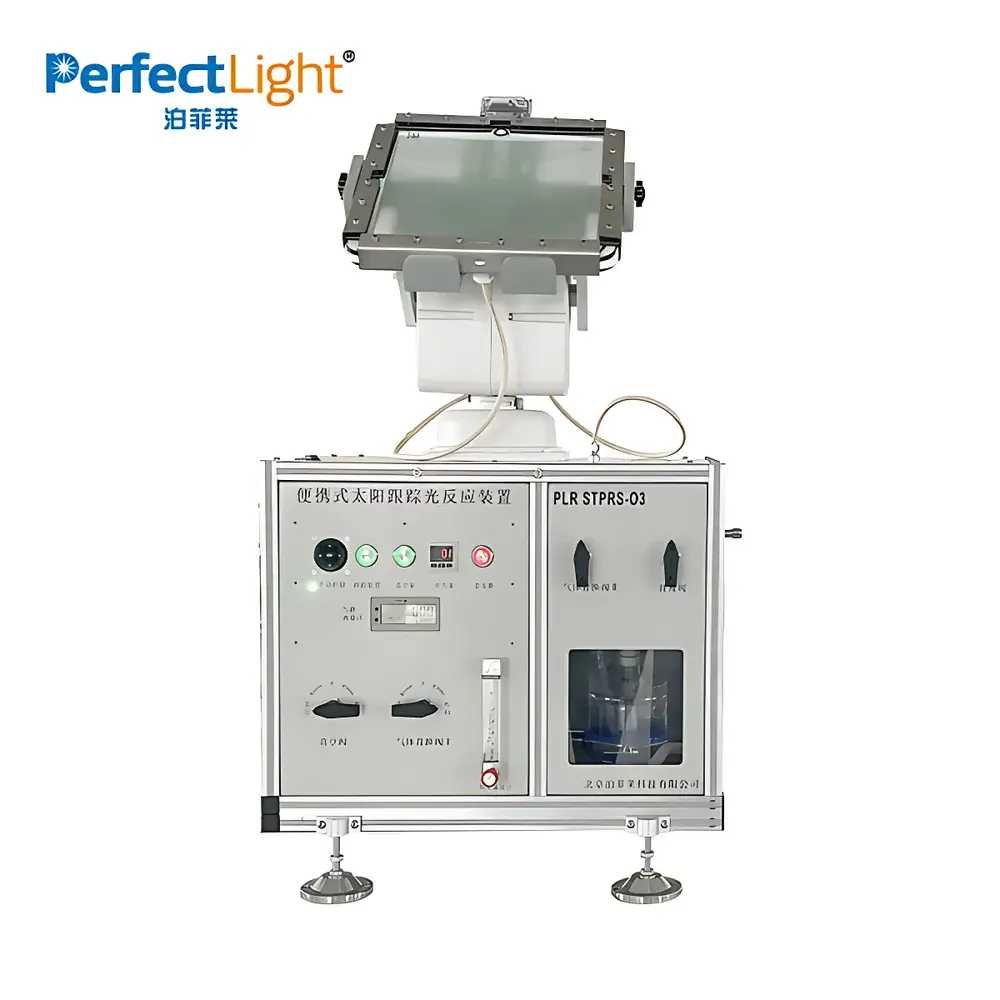

| Model | PLR STPRS-O3 |
| Tracking Actuation | Photoelectric Auto-Tracking & Manual Override |
| Pan Range | 0–210° (adjustable reference) |
| Tilt Range | 0–90° |
| Reactor Active Area | 250 × 250 mm |
| Optical Window | Ultra-White Glass |
| Diffuser Plate | Frosted Glass |
| Adjustable Liquid Layer Thickness | 3 mm |
| Tubing Dimensions | 4 × 6 mm (ID × OD) |
| Operating Pressure Range | −60 to +20 kPa (with automatic pressure relief >20 kPa) |
| Reaction Vessel Materials | Borosilicate Glass, Fluoropolymer (FEP/PFA), Silicone Elastomer, 316 Stainless Steel |
| Liquid Reservoir Volume | ~300 mL |
| Gas Flow Measurement | Standard Mass Flow Controller (H₂, 0–20 sccm) |
| Liquid Flow Control | Rotameter (0–1 L/min), recommended ≥100 mL/min |
| Gas Inlet Pressure Limit | <0.1 MPa |
| Ambient Operation Temperature | 15–35 °C |
