| Brand | PerfecLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | PLS-LCC |
| Light Source Type | High-Power Narrow-Band LED |
| Illumination Mode | External Irradiation |
| Cooling Method | Active Liquid Cooling (Integrated Chiller) |
| Wavelength Options | 365 nm, 385 nm, 415 nm, 450 nm (±5 nm peak tolerance) |
| Spectral Bandwidth (FWHM) | ≤30 nm |
| Beam Divergence (Full Angle) | ≤9.5° |
| Output Uniformity | ≥90% over Ø29.5 mm (measured at exit aperture), ≥85% over Ø10 mm |
| Maximum Irradiance | ≥3.0 W/cm² @ 385 nm (at Ø15 mm output port, 108.3 W optical power) |
| LED Drive Current Range | Adjustable up to 7.5 A |
| Max. Electrical Power (Source) | 120 W |
| Max. Electrical Power (Controller) | 200 W |
| Chiller Setpoint Temperature | Default 15 °C (recommended ≤15 °C) |
| Operating Ambient | 0–30 °C, non-condensing, non-freezing |
| Storage Conditions | −10–60 °C, 30–85% RH (non-condensing) |
| Source Dimensions | 75 × 75 × 86 mm |
| Controller Dimensions | 120 × 103 × 200 mm |
| Chiller Model | PLS LED-LC200 |
| Brand | PerfectLight (PerkinElmer-compatible architecture) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-SXE300/300UV |
| Light Source Type | DC-powered short-arc xenon lamp |
| Illumination Mode | External irradiation configuration |
| Total Optical Output Power | 50 W |
| Spectral Range | 320–780 nm (extendable to 2500 nm with optional optics) |
| Beam Divergence | ~6° (FWHM) |
| Spot Diameter | 30–60 mm (adjustable via working distance) |
| Long-term Irradiance Stability | ≤ ±3% over 8 h |
| Lamp Power Rating | 300 W (adjustable 150–300 W) |
| Lamp Lifetime | >1000 h (under photoreactor-relevant irradiance conditions) |
| Current Limit | 21 A |
| Ignition Method | Integrated dual-stage high-voltage trigger (no HV cabling between power supply and lamp housing) |
| Thermal Management | Passive aluminum finned heat sink |
| EMI Shielding | Fully enclosed grounded metal lamp housing |
| Control Interface | Microprocessor-based digital power management with programmable operation mode |
| Safety Compliance | No high-voltage transmission in interconnect cable |
| Brand | PerfectLight (PoPhilai) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-FX300HU |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Output Beam Shape | Rectangular |
| Adjustable Beam Area | 10×10 to 50×50 mm² |
| Spectral Range | 320–800 nm |
| Total Optical Power | 50 W |
| Irradiance Uniformity (≤20×20 mm²) | < ±4% (meets ASTM E927 Class A solar simulator requirement) |
| Long-Term Stability (8 h) | < 2% |
| Spatial Non-Uniformity | ±1% |
| Max. Irradiance | ≥3000 mW/cm² (at 10×10 mm², direct output with focusing tube) |
| Intensity Control | Precision current regulation + motorized iris diaphragm |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Safety Features | Fan-failure interlock, post-shutdown fan delay, over-current/over-load auto-shutdown |
| Power Management | Embedded micro-CPU digital control system |
| Filter Compatibility | UV-, visible-, and narrowband bandpass filters |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-SXE300D / PLS-SXE300DUV Xenon Light Source |
| Light Source Type | Short-Arc Xenon Lamp |
| Illumination Mode | External Irradiation |
| Total Optical Power | 50 W |
| Spectral Range | 320–780 nm (extendable to 2500 nm) |
| Beam Divergence | Avg. 6° |
| Spot Diameter | Adjustable at 30–60 mm working distance |
| Long-Term Irradiance Stability | ≤ ±3% |
| Lamp Power | 300 W |
| Power Adjustment Range | 150–300 W |
| Power Supply Ripple | 200 mVp-p |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Trigger Method | Integrated High-Voltage Ignition (Two-Stage, No High-Voltage Cabling) |
| Cooling Architecture | Patented Axial Forced-Air Heat Dissipation (Patent No. CN201320740323.5) |
| Safety Features | Fan Fault Protection, Post-Shutdown Fan Delay, Overcurrent/Overload Auto-Cut-off, Low-Voltage Control Cabling |
| Brand | PerkinElmer |
|---|---|
| Model | PEL-Portable Liquid-Cooled Ceramic Xenon Light Source |
| Light Source Type | Xenon Arc Lamp |
| Cooling Method | Active Liquid Cooling |
| Spectral Range | 300–2500 nm |
| Illumination Mode | External Irradiation |
| Beam Delivery | Omnidirectional Mounting Interface |
| Origin | Beijing, China |
| Compliance | CE, RoHS, ISO 9001-certified Manufacturing |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | CHF-XM Series |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Spectral Range | 300–1100 nm |
| Output Modes | Point Source, Collimated Beam, Fiber-Coupled Output |
| Point Source Diameter | 4–6 mm |
| Collimated Beam Diameter | 50 mm (adjustable up to Φ60 mm) |
| Beam Divergence | ≤0.85° (at working distance < 250 mm) |
| Spatial Uniformity | ≤±11% (over Φ60 mm spot), ≤±5% (over 2 cm × 2 cm area) |
| Spectral Continuity | Continuous UV-Vis-NIR output from 300 nm to 1100 nm with strong irradiance in 800–1200 nm region |
| Lamp Power Options | 35 W, 75 W, 150 W, 200 W, 350 W, 450 W, 500 W |
| Optional Accessories | Fiber coupling kits (two fiber types), bandpass/notch/longpass/shortpass filters, calibrated optical power meter, UV/IR safety goggles, lens cleaning cloth, zoom collimation adapter |
| Brand | PerfectLight (PoPhilae) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-EM150 |
| Light Source Type | Integrated Xenon-Based Tunable Monochromator System |
| Illumination Mode | External Irradiation |
| Electrical Power | 300 W |
| Focal Length | 150 mm |
| Wavelength Tuning Step | 1 nm |
| Grating Dimensions | 50 × 50 mm² |
| Grating Line Density | 2400 lines/mm (multi-option available) |
| Blaze Wavelength | 300 nm |
| Spectral Output Range | 350–680 nm |
| Irradiance at 470 nm | >40 mW/cm² |
| Output Configurations | Rotatable Head, Homogenizer, Fiber-Coupled Output |
| Key Compliance Context | Designed for ISO/IEC 17025-aligned photoreactor calibration, compatible with ASTM E973 and IEC 60904-8 for spectral responsivity validation |
| Brand | PerfecLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | SLight |
| Light Source Type | Tunable Multi-LED Array |
| Illumination Mode | External Irradiation |
| Spectral Range | 360–760 nm (AM1.5G-UV), 400–760 nm (AM1.5G-V) |
| Spectral Match Accuracy | ±10% @ 50 nm bandwidth (exceeding IEC 60904-9 Class A requirement) |
| Irradiance Output | >250 mW/cm² |
| LED Module Power Rating | ≥18 W per unit |
| Constant-Current Driver Resolution | 1 mA |
| Absolute Current Accuracy | ±2 mA |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-SME300E H1 |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Lamp Power | 300 W |
| Total Optical Output | 50 W |
| Spectral Range | 320–780 nm (extendable to 2500 nm) |
| Beam Diameter | 30–60 mm |
| Maximum Irradiance | >4200 mW/cm² |
| Long-Term Stability | ≤±3% |
| Power Supply Stability | ±0.3% (instantaneous) |
| Current Limit Adjustment | up to 25 A |
| Lamp Lifetime | >1000 h |
| Triggering | Integrated High-Voltage Ignition (two-stage, no high-voltage cabling) |
| Control Modes | Constant Current / Constant Irradiance |
| Feedback System | Precision Optical Photometric Feedback |
| Cooling Architecture | Redesigned Forced-Air Thermal Management |
| Interface | RS232/Ethernet-enabled Host PC Software Control |
| Safety Features | Fan-fault shutdown, auto-startup, delayed shutdown, over-current/over-load protection |
| Compliance | Designed for GLP-compliant photoreactor integration and ISO/IEC 17025-aligned optical calibration workflows |

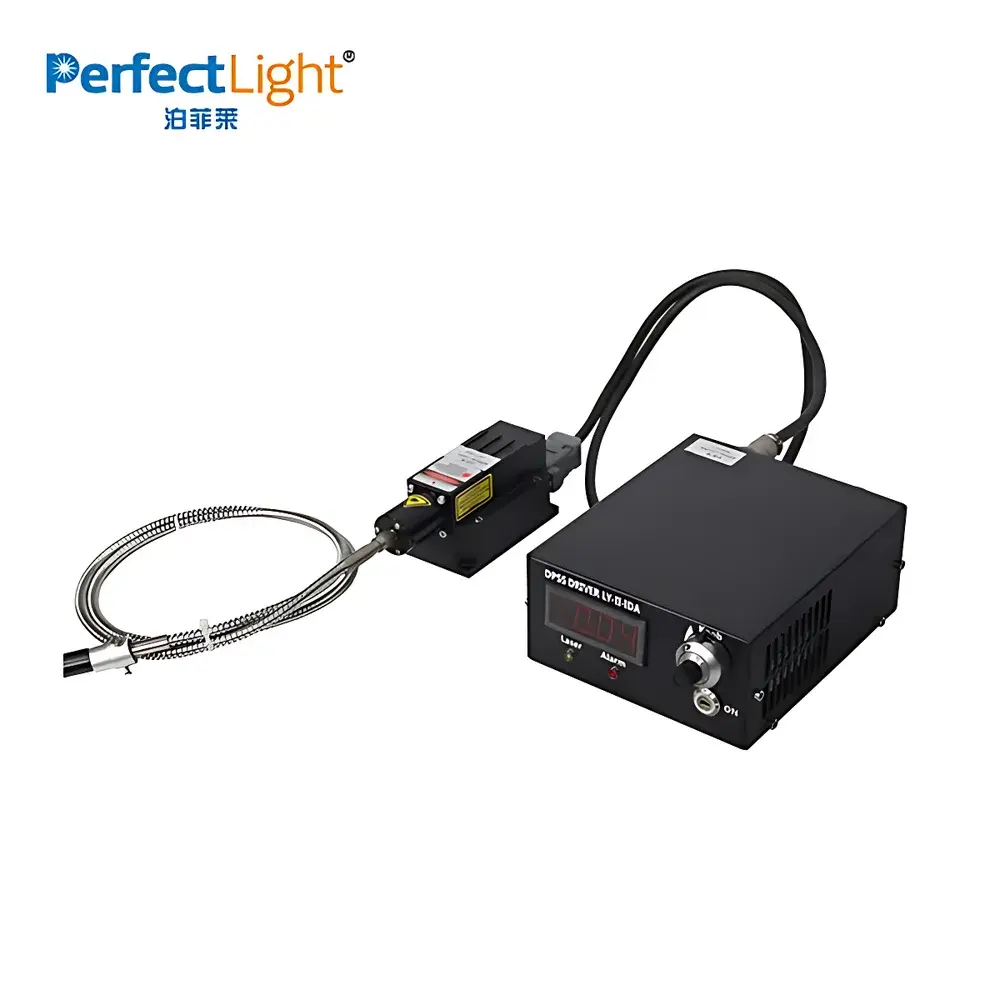

| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-LD |
| Light Source Type | Diode Laser |
| Irradiation Mode | Internal Illumination |
| Output Power | >100 mW (wavelength-dependent) |
| Spectral Bandwidth (FWHM) | <2.5 nm |
| Beam Divergence | ≤60° (with fiber + collimating lens), ≤1.2 mrad (collimated beam) |
| Collimated Beam Diameter (Entrance Pupil) | 40 mm |
| Available Wavelengths | 405 nm, 447 nm, 473 nm, 532 nm, 635 nm, 671 nm |
| Output Options | Free-space direct output or fiber-coupled (with optional coupling kit) |
| Warm-up Time | <8 min |
| Modulation Support | TTL and analog input, max frequency <20 kHz |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-ILS Integrated |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Lamp Power Options | 250 W / 350 W |
| Total Optical Power | 50 W |
| Irradiance | ≥2000 mW/cm² |
| Spectral Range | 320–780 nm (extendable to 2500 nm) |
| Beam Diameter | ≥50 mm (distance-dependent) |
| Divergence Angle | <10° |
| Current Regulation Range | 9–16 A |
| Lamp Lifetime | >1000 h (under standard photocatalytic irradiation conditions) |
| Long-Term Stability | ≤±3% |
| Optional Accessories | Fiber Optic Coupling Kit, Homogenizer, Liquid Filter, Light Guide Tube, Motorized Height Adjustment Stage, Mechanical Shutter, Five-Point Irradiance Calibration Set |
| Optional Filter Solutions | Bandpass Filters, Edge Filters, AM1.5G Solar Spectrum Correction Filters, Neutral Density Attenuators |
| Optional Safety Solutions | UV-Blocking Safety Goggles, Light-Tight Enclosure |
| Optional Metrology Tools | Calibrated Optical Power Meter, Fiber-Coupled Spectrometer |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-STAS-I |
| Light Source Type | Direct Natural Sunlight (Outdoor Concentrated Illumination) |
| Illumination Mode | Internal Irradiation Configuration |
| Tracking Method | Hybrid Optical + Astronomical Time-Based Tracking |
| Elevation Range | 0–90° |
| Azimuth Range | −110° to +110° (0° = True South) |
| Tracking Accuracy | <0.3° (Optical), <1° (Time-Based) |
| Fresnel Lens Area | 0.2 m² |
| Minimum Focal Spot Area | 7 cm² |
| Concentration Ratio | 278× |
| Operating Temperature | 5–60°C |
| Ambient Temperature Range | −25°C to +55°C |
| Pressure Condition | Ambient Atmospheric |
| Gas Collection | 300 mL / 500 mL Gas Sampling Bags |
| Photosynthetic/Photochemical Irradiance Measurement | ≤10 W/cm² |
| Radiation Monitoring | Direct & Global Solar Irradiance |
| Environmental Sensors | Ambient Temperature, Relative Humidity, Barometric Pressure, Wind Speed |
| IP Rating | IP67 |
| Wind Resistance | Up to Beaufort Scale 6 |
| Control Architecture | Integrated PLC with GPS Geolocation and Real-Time Parameter Logging |
| Safety Features | End-Position Limit Switches, Wind-Activated Auto-Stow, Rain Detection & Shutdown |
| Brand | PerkinElmer (licensed from PerfectLight) |
|---|---|
| Model | PLS-MRRS |
| Temperature Range | Up to 800 °C |
| Pressure Range | Up to 3.0 MPa |
| Reactor Stages | Up to 4 cascaded units |
| Gas Inlets | 4 independent channels |
| Liquid Inlet | 1 precision syringe pump path |
| Preheating Temp | Up to 600 °C |
| Tubing Trace Heating | Up to 250 °C |
| Control Interface | 10.2″ touchscreen with embedded SCADA software |
| Safety Compliance | Dual hardware/software interlock, flame arrestors, leak detection, over-temp/over-pressure shutdown |
| Brand | PerkinElmer |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | Microsolar300 |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Total Optical Power | 50 W (Visible: 19.6 W |
| UV | 2.6 W) |
| Spectral Range | 320–780 nm (extendable to 2500 nm with optional filters) |
| Beam Divergence | ~6° (average) |
| Spot Diameter | Adjustable via working distance (30–60 mm) |
| Long-Term Irradiance Stability | ≤ ±3% over 8 h |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Lamp Power Rating | 300 W |
| Power Adjustment Range | 150–300 W |
| Output Current | 21 A |
| Power Supply Ripple | 200 mVp-p |
| Control Modes | Constant-Current (Programmable) and Constant-Irradiance (Optical Feedback) |
| Display | LCD with real-time relative irradiance value and lamp hour counter |
| Safety Features | Fan-fault protection, post-shutdown fan delay, overcurrent/overload cutoff, low-voltage lamp-to-power-supply cabling (no high-voltage transmission), patented integrated heat-dissipation structure (CN Patent No. 201320740323.5) |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | μLED |
| Light Source Type | High-Power Pulsed LED |
| Illumination Mode | External Irradiation |
| Pulse Frequency Range | 1 Hz – 100 kHz |
| Wavelength Compatibility | Version A: 365–590 nm |
| Version B | 630–1040 nm |
| LED Drive Current | 0.05–3.5 A (Constant Current Mode), 0.3–3.5 A (Pulse Mode) |
| LED Voltage Range | 10–40 V DC |
| Max Power Output | ≤100 W |
| Beam Diameter | Ø50 mm (adjustable via working distance) |
| Optimal Working Distance | 50 mm |
| Operating Ambient Temperature | −5 to 40 °C (short-term), Humidity: 0–85 % RH (non-condensing) |
| Input Voltage | Version A: AC 100–270 V / 50 Hz (via built-in stabilizer) |
| Version B | AC 220 V / 50 Hz (direct mains) |
| Protection Features | Overvoltage, Overcurrent, Overtemperature, Stall Detection & Self-Diagnostic Function |
| Power Stability | ≤0.5 W (electrical), ≤15 mW (optical) |
| Current Regulation Step | 1 mA |
| Current Stability | ±2 mA (0.05–0.3 A), ±15 mA (0.3–1.0 A), ±20 mA (1.0–3.5 A) |
| Brand | PerfectLight (PoPhilae) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-LED 100C |
| Light Source Type | High-Intensity Monochromatic/Polychromatic LED Array |
| Illumination Mode | External Irradiation |
| Spectral Output | Narrowband (FWHM 15–20 nm), Center Wavelength Tolerance ±10 nm |
| Output Aperture | Φ38 mm (expandable via collimating or diffusing extension tubes) |
| Adjustable Collimated Spot Size | Φ50–60 mm (near-collimated, focus-tunable) |
| Wavelength Options | 365–940 nm (discrete monochromatic), Warm/Natural/Cool White (3000–>7000 K), Custom Multi-Spectral Arrays (e.g., 660 nm:460 nm = 9:1 to 1:9, Pink Broadband 380–840 nm, Hexa-/Hepta-LED) |
| LED Lifetime | >10,000 h |
| Output Stability | ≤±1% short-term fluctuation (measured over 1 h, ambient temp 25°C) |
| Control Interface | Digital microcontroller-based power management with continuous/pulsed/stepwise irradiation modes |
| Safety Features | Fan-failure auto-shutdown, over-current/over-load protection, 360° rotatable lamp housing, height-adjustable precision optical mount |
| Optional Accessory | PLS-LED ZM articulated beam steering head |
| Brand | PerfecLight |
|---|---|
| Origin | Beijing, China |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Radiation Area | 40 × 40 mm² |
| Spectral Match | AM1.5G (Class A) |
| Temporal Instability | <1% (Class A) |
| Spatial Uniformity | ±2% (Class A) |
| Initial Irradiance | 1.0 sun |
| Adjustable Irradiance Range | 70–130% |
| Lamp Lifetime | 2000 h (1000 h warranty) |
| Collimation Angle | ±4° |
| Shutter Timing Range | 0.1 s – 9990 h |
| Output Orientation | Vertical Down/Up, Horizontal Left/Right, 45° Mirror-Reflected |
| Input Voltage | AC 100–220 V ±10%, 50/60 Hz |
| Operating Environment | 5–35 °C, 20–85% RH |
| Brand | PerkinElmer |
|---|---|
| Model | PLS-ModuLED |
| Light Source Type | High-Power Tunable LED Array |
| Illumination Mode | External (Top-Down or Side-Illumination) |
| Wavelength Options | 455–460 nm (Blue), 520–525 nm (Green), 620–625 nm (Red), 2700–3000 K (Warm White), 5000–6000 K (Cool White) |
| Max. Single-LED Power | 20 W |
| Max. Single-LED Current | 1500 mA |
| Current Control Resolution | 0.4 mA |
| Absolute Current Accuracy | ±1 mA |
| Luminous Flux Range | 333–1530 lm (model-dependent) |
| Operating Modes | Continuous, Modulated (square-wave, frequency-tunable), and Single-Pulse (programmable pulse width & delay) |
| Brand | PerfectLight (Perfetlight) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-SXE300+300UV |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Total Optical Power | 50 W |
| Spectral Range | 320–780 nm (extendable to 2500 nm) |
| Beam Divergence | ~6° (average) |
| Spot Diameter | 30–60 mm (distance-dependent) |
| Long-Term Irradiance Stability | ≤ ±3% |
| Lamp Power | 300 W |
| Power Adjustment Range | 150–300 W |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Max Current Limit | 21 A |
| Triggering Method | Integrated High-Voltage Ignition (dual-stage, no high-voltage cabling) |
| Lamp Housing | Shielded Metal Enclosure |
| Power Management | Microcontroller-Based Digital Control |
| Safety | Low-Voltage Interconnect Between Lamp Housing and Power Supply |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Model | PLS-EM150 |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Electrical Power | 300 W |
| Focal Length | 150 mm |
| Wavelength Tuning Step | 1 nm |
| Grating Size | 50 × 50 mm² |
| Grating Line Density | 2400 lines/mm (multiple options available) |
| Grating Blaze Wavelength | 300 nm |
| Spectral Output Range | 350–680 nm |
| Irradiance at 470 nm | >40 mW/cm² |
| Optical Design | Integrated monochromator-light source architecture with optimized collimation and throughput |
| Brand | PerfectLight (PoPhilae) |
|---|---|
| Origin | Beijing, China |
| Model | PLS-FX300HU |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Optical Output Power | 50 W |
| Spectral Range | 320–800 nm |
| Adjustable Rectangular Beam Size | 10×10 to 50×50 mm² |
| Beam Uniformity (≤20×20 mm²) | ≤±4% (A-class solar simulator compliant) |
| Long-Term Irradiance Stability (8 h) | <2% |
| Spatial Non-Uniformity | ±1% |
| Max. Irradiance Density | ≥3000 mW/cm² (at 10×10 mm², direct output) |
| Intensity Control | Constant-current regulation + motorized iris aperture |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Safety Features | Integrated lamp/power housing, fan-failure protection with post-shutdown cooling delay, overcurrent/overload auto-shutdown |
| Control Architecture | Microprocessor-based digital power management with dedicated optical feedback loop |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Light Source Type | Xenon Lamp |
| Illumination Mode | External Irradiation |
| Focal Length | 150 mm |
| f-number | f/2.5 |
| Stray Light Level | 5×10⁻⁴ |
| Wavelength Step Resolution | 1 nm |
| Grating Type | Imported Dual Grating |
| Grating Active Area | 45×45 mm² |
| Groove Density | 2400 lines/mm (multiple options available) |
| Blaze Wavelengths | 300 nm & 780 nm |
| Output Wavelength Range | 350–750 nm |
| Slit Width Adjustment | 0.01–3 nm (continuous manual) |
| Optional Motorized Filter Wheel | 4-position, anti-secondary-diffraction filters |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PLS-LD Laser |
| Light Source Type | Monochromatic Diode Laser |
| Irradiation Mode | External Illumination |
| Output Power | >100 mW (wavelength-dependent) |
| Spectral Bandwidth (FWHM) | <2.5 nm |
| Beam Divergence | ≤60° (with fiber + collimating lens) / ≤1.2 mrad (collimated beam) |
| Collimated Beam Diameter (Entrance Pupil) | 40 mm |
| Available Wavelengths | 405 nm, 447 nm, 473 nm, 532 nm, 635 nm, 671 nm |
| Output Options | Free-space direct output or fiber-coupled (with optional coupling kit) |
| Warm-up Time | <8 min |
| Modulation Support | TTL and Analog, up to 20 kHz |
| Cooling & Stability | Integrated precision thermoelectric cooling and constant-current driver for wavelength and power stability |
| Brand | PerfectLight |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

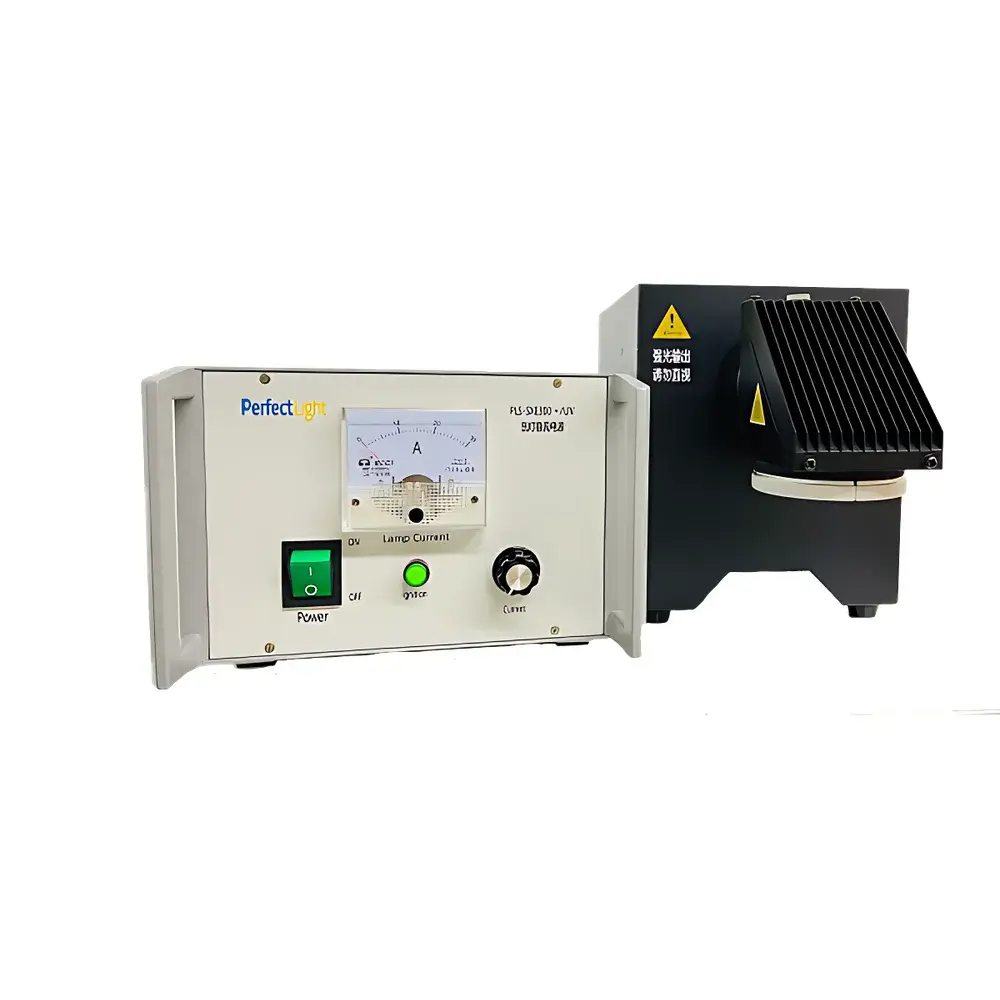

| Model | PL-X300UV-VIS-NIR |
| Light Source Type | 300 W Short-Arc Xenon Lamp |
| Illumination Mode | Internal Irradiation Configuration |
| Total Optical Power Output | 50 W |
| Spectral Range | 320–780 nm (extendable to 2500 nm with optional optics) |
| Beam Divergence | Avg. 6° |
| Spot Diameter | 30–60 mm (distance-dependent) |
| Long-Term Irradiance Stability | ≤ ±3% |
| Power Adjustment Range | 150–300 W |
| Lamp Lifetime | >1000 h (under standard photocatalytic operating conditions) |
| Trigger Method | Integrated High-Voltage Ignition (dual-stage, no high-voltage cabling) |
| Max Current Limit | 21 A |
| Cooling | Passive large-area aluminum heatsink |
| Control Interface | Microprocessor-based digital power management with programmable mode |
Show next
