Showing all 18 results
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |

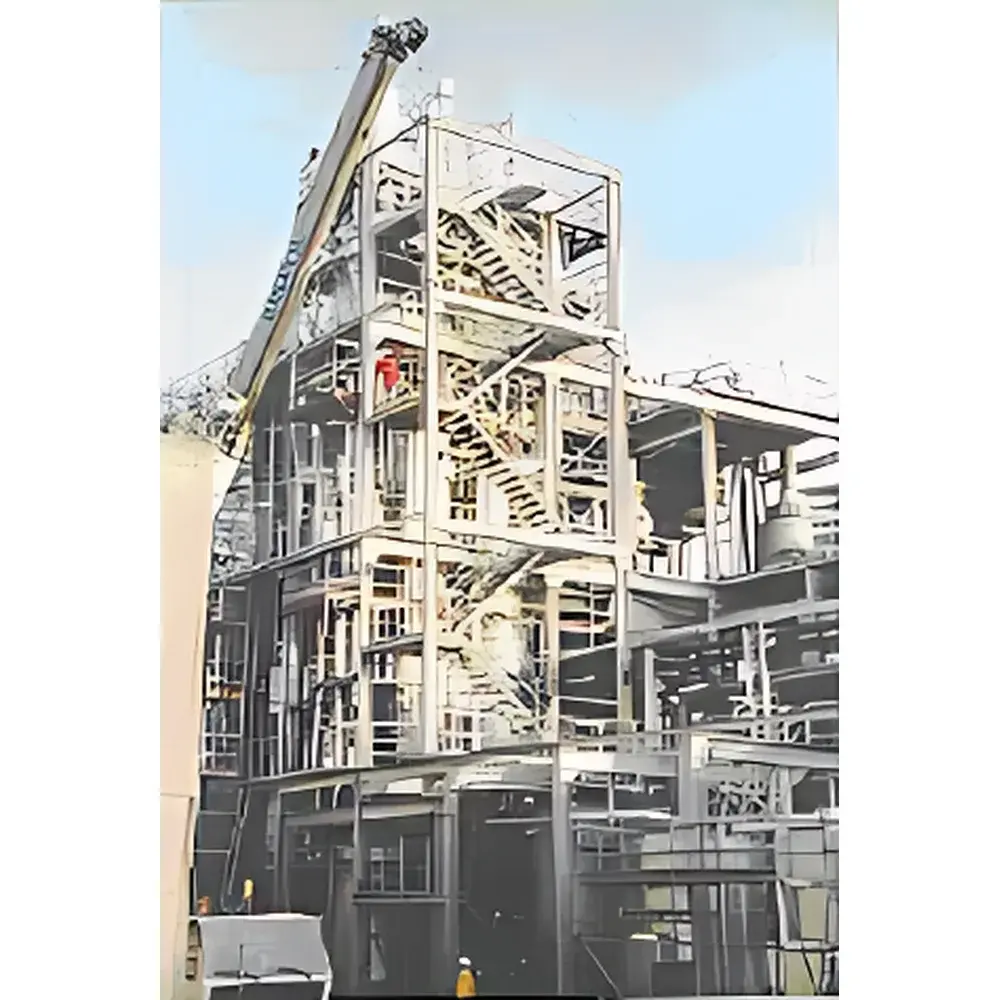

| Equipment Type | Integrated Multi-Stage Thin-Film Evaporation & Short-Path Molecular Distillation System |
| Model | KD 1800 / KD 3600 Combination Unit |
| Feed Capacity | 50–20,000 kg/h |
| Effective Evaporation Area | 3–100 m² |
| Evaporator Internal Diameter | 300–800 mm |
| Condenser Area | 3–100 m² |
| Collecting Vessels | 3 |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | DSL 5 / KDL 5 |
| Feed Rate | 0.5–2.5 kg/h |
| Effective Evaporation Area | 0.05 m² |
| Evaporator Inner Diameter | 180 mm |
| Condenser Area | 0.085 m² |
| Collecting Flasks | 3 |
| Construction Material | Borosilicate Glass 3.3 |
| Max Evaporation Temp (DSL 5) | 250 °C |
| Max Evaporation Temp (KDL 5) | 350 °C |
| Min Operating Pressure (DSL 5) | 1 mbar |
| Min Operating Pressure (KDL 5) | 0.001 mbar |
| Film Formation | Self-Cleaning Roller System |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | DSL 5 |
| Feed Rate | 0.5–2.5 kg/h |
| Effective Evaporation Area | 0.05 m² |
| Evaporator Internal Diameter | 180 mm |
| Condenser Area | 0.085 m² |
| Number of Collecting Flasks | 3 |
| Operating Pressure | Down to 1 mbar |
| Maximum Evaporation Temperature | 250 °C |
| Construction Material | Borosilicate Glass 3.3 |
| Film Formation System | Self-Cleaning Roller-Type Wiper |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | EA10-KD6 |
| Feed Rate | 3–9 kg/h |
| Effective Evaporation Area | 0.06 m² |
| Evaporator Internal Diameter | 180 mm |
| Condenser Area | 0.088 m² |
| Collectors | 3 x interchangeable receiving flasks |
| Configuration | Integrated vacuum degassing unit (pre-evaporation light-fraction removal) |
| Brand | UIC GMBH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Multi-Stage System |
| Price | €500,000 |
| Feed Capacity | 50–20,000 kg/h |
| Effective Evaporation Area | 3–100 m² |
| Evaporator Internal Diameter | 300–800 mm |
| Condenser Area | 3–100 m² |
| Collecting Flasks | 3 |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KD 6 |
| Feed Rate | 3–9 kg/h |
| Effective Evaporation Area | 0.06 m² |
| Evaporator Inner Diameter | 180 mm |
| Condenser Area | 0.088 m² |
| Collecting Flasks | 3 |
| Operating Pressure Range | down to 0.001 mbar |
| Max Evaporation Temperature | 350 °C |
| Condenser/Cold Trap Temperature Range | –25 to 200 °C |
| Heating Method | Thermostatic Oil Circulation |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Construction Material | AISI 316L Stainless Steel (optional: Hastelloy® variants) |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KD Series |
| Feed Capacity | 50–20,000 kg/h |
| Effective Evaporation Area | 3–100 m² |
| Evaporator Internal Diameter | 300–800 mm |
| Condenser Area | 3–100 m² |
| Collecting Flasks | 3 |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Equipment Type | Pilot-Scale Molecular Distillation System |
| Feed Rate | 5–15 kg/h |
| Effective Evaporation Area | 0.1 m² |
| Evaporator Internal Diameter | 180 mm |
| Condenser Area | 0.088 m² |
| Collection Vessels | 3-position automated fraction collector |
| Control System | PLC-based fully automated process control |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KD10 |
| Feed Rate | 8–15 kg/h |
| Effective Evaporation Area | 10 dm² |
| Evaporator Internal Diameter | 20 cm |
| Condenser Area | 15 dm² |
| Collecting Flasks | 2 |
| Construction Material | ASTM A240 UNS S31603 (1.4571) Stainless Steel |
| Max Evaporation Temperature | 350 °C |
| Min Operating Pressure | 1 mbar |
| Heating Method | Thermostatic Oil Bath |
| Independent Zone Heating | Evaporator Surface, Feed Line, Distillate Outlet |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KD6 |
| Feed Rate | 3–9 kg/h |
| Effective Evaporation Area | 0.08 m² |
| Evaporator Internal Diameter | 180 mm |
| Condenser Area | 0.06 m² |
| Collecting Flasks | 3 |
| Max Operating Temperature | 350 °C |
| Min Operating Pressure | 0.001 mbar |
| Construction Material | Stainless Steel (optional: Hastelloy® upon request) |
| Heating Method | Independent Oil-Bath Heating for Evaporator Surface, Feed Line, Distillate Outlet, Residue Outlet, and Internal Condenser |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL 5 CADi |
| Feed Rate | 0.5–1.5 kg/h |
| Effective Evaporation Area | 0.05 m² |
| Evaporator Internal Diameter | 120 mm |
| Condenser Area | 0.85 m² |
| Collecting Vessels | 3 |
| Maximum Evaporation Temperature | 350 °C |
| Minimum Operating Pressure | 0.001 mbar |
| Construction Material | Borosilicate Glass 3.3 |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Heating Method | Thermostatic Oil Bath |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL1 |
| Feed Rate | 50–400 g/h |
| Effective Evaporation Area | 0.017 m² |
| Evaporator Internal Diameter | 120 mm |
| Condensation Area | 0.018 m² |
| Collecting Vials | 3-position rotatable receiver |
| Construction Material | Borosilicate Glass 3.3 |
| Max Evaporation Temperature | 250 °C |
| Ultimate Vacuum | ≤0.001 mbar |
| Heating Method | External Oil Bath |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL10 |
| Feed Rate | 3–9 kg/h |
| Effective Evaporation Area | 0.1 m² |
| Evaporator Internal Diameter | 180 mm |
| Condenser Area | 0.18 m² |
| Collecting Flasks | 3 units |
| Construction Material | Borosilicate Glass 3.3, Nickel-Based Alloys, Tantalum Alloys |
| Max Evaporation Temperature | 300 °C |
| Min Operating Pressure | 0.001 mbar |
| Heating Method | Thermostatic Oil Bath |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Evaporator Design | Modular Three-Zone Heated Assembly (Evaporation Zone, Residue Outlet Zone, Distillate Outlet Zone + Integrated Condenser) |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL2 |
| Feed Rate | 0.5–1.5 kg/h |
| Effective Evaporation Area | 0.028 m² |
| Evaporator Internal Diameter | 120 mm |
| Condenser Area | 0.018 m² |
| Collection Vials | 3-position rotatable receiver system |
| Construction Material | Borosilicate Glass 3.3 |
| Max Operating Temperature | 250 °C |
| Min Operating Pressure | 0.001 mbar |
| Heating Method | External Oil Bath |
| Film Formation | Self-cleaning Roller Film System |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL30 |
| Feed Rate | 3–9 kg/h |
| Effective Evaporation Area | 0.15–0.3 m² |
| Evaporator Inner Diameter | 280 mm |
| Condenser Area | 0.58 m² |
| Collecting Flasks | 3 units |
| Construction Material | Borosilicate Glass 3.3, Nickel-Based Alloys, Tantalum Alloys |
| Max Evaporation Temperature | 250 °C |
| Min Operating Pressure | 0.001 mbar |
| Heating Method | Oil Bath |
| Film Formation | Self-Cleaning Roller-Type Wiper System |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | KDL5 |
| Feed Rate | 3.0 kg/h |
| Effective Evaporation Area | 5.0 dm² |
| Evaporator Internal Diameter | 10 cm |
| Condenser Area | 8 dm² |
| Collecting Vessels | 2 |
| Construction Material | Borosilicate Glass 3.3 |
| Max Evaporation Temperature | 350 °C |
| Min Operating Pressure | 0.001 mbar |
| Heating Method | Thermostatic Oil Bath |
| Film Formation | Dual-stage (centrifugal + mechanical roller) |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Custom-Engineered per Application |
| Price | €500,000 |
| Feed Rate | 50–20,000 kg/h |
| Effective Evaporation Area | 3–100 m² |
| Evaporator Internal Diameter | 300–800 mm |
| Condenser Area | 3–100 m² |
| Collecting Vessels | 3 |
| Brand | UIC GmbH |
|---|---|
| Origin | Germany |
| Model | RF 4500 |
| Feed Rate | 50–20,000 kg/h |
| Effective Evaporation Area | 3–100 m² |
| Evaporator Internal Diameter | 300–800 mm |
| Condenser Area | 3–100 m² |
| Collection Vessels | 3 |
| Material of Construction | ASTM A240 316 stainless steel (standard), optional titanium or Hastelloy C-276 |
| Design Standard | AD-Merkblätter, ASME Section VIII Div. 1 (upon request) |
