| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | MLW-400 |
| Quotation | Available upon Request |
| Temperature Range | Ambient to 400 °C ±1 °C |
| Heating Rate | 1–6 °C/min (adjustable in 0.1 °C/min increments) |
| Temperature Accuracy | <±0.5 °C (displayed by PC), Resolution: 0.1 °C |
| Piston Diameter | φ11.28 mm (tolerance: –0.012 mm to –0.05 mm) |
| Piston Cross-sectional Area | 1 cm² |
| Pressure Range | 1–50 MPa ±1% |
| Die Configurations | Φ1×5, Φ1×10, Φ1×20, Φ1×40 mm (diameter × length) |
| Die Material | Tungsten Carbide |
| Power Supply | 220 V AC, 50 Hz, <400 W |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MLW-400D |
| Instrument Type | Capillary Rheometer |
| Sample Type | High-Viscosity Polymer Melts |
| Sample State | Solid (pre-melt) / Molten State During Test |
| Drive System | Servo Motor–Driven Piston |
| Minimum Piston Speed | 0.001 mm/min |
| Maximum Piston Speed | 500 mm/min |
| Maximum Applied Load | 10 kN |
| Load Resolution | 1 part in 100,000 |
| Pressure Range | 1–50 MPa ±1% |
| Temperature Range | Ambient to 400 °C ±1 °C |
| Heating Rate | 1–10 °C/min, Continuously Adjustable |
| Temperature Accuracy | ±0.5 °C (Display), 0.1 °C Resolution |
| Die Geometry | Ø1×5, Ø1×10, Ø1×20, Ø1×40 mm (L/D = 5, 10, 20, 40) |
| Die Material | Tungsten Carbide |
| Plunger Diameter | φ11.28 mm (−0.012/−0.05 mm tolerance) |
| Plunger Cross-Sectional Area | 1.00 cm² |
| Displacement Measurement Accuracy | ±0.5% |
| Deformation Measurement Accuracy | ±1% |
| Software Compliance | Audit Trail, Data Integrity, Exportable ASCII/CSV Reports |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Model | MLW-400B |
| Instrument Type | Capillary Rheometer |
| Temperature Range | Ambient to 400 °C ±1 °C |
| Heating Rate | 1–6 °C/min (adjustable) |
| Temperature Accuracy | ±0.5 °C (displayed), Resolution: 0.1 °C |
| Piston Diameter | Φ11.28 mm (−0.05 mm / −0.012 mm) |
| Piston Cross-Sectional Area | 1 cm² |
| Pressure Range | 1–50 MPa ±1% |
| Capillary Dies | Φ1 mm × 5 mm, Φ1 mm × 10 mm, Φ1 mm × 20 mm, Φ1 mm × 40 mm |
| Die Material | Tungsten Carbide |
| Power Supply | 220 V, 50 Hz, <400 W |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Model | MLW-90 |
| Temperature Range | Ambient to 90 °C ±1 °C |
| Heating Rate | 0.5–6 °C/min (adjustable) |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | <±0.5 °C (computer-displayed) |
| Pressure Range | 1–50 MPa ±1% |
| Load Cell Capacity | 500 kg |
| Load Accuracy | ±1% |
| Load Resolution | 20,000 counts |
| Piston Area | 1 cm² |
| Sample Mass | 15 g |
| Sample Density | 1.34 g/cm³ |
| Die Dimensions (ID × L) | φ1.5 mm × 5/10/20/40 mm |
| Die Material | Tungsten Carbide |
| Piston Speed Range | 0.001–100 mm/min |
| Die Quantity | 12 sets included |
| Piston Options | Steel or copper with polyethylene sheathing |
| Heating Method | Water Bath |
| Safety Architecture | Explosion-proof enclosure + operator-isolated control station |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ZJL-200B |
| Torque Range | 0–200 N·m (Rated: 300 N·m) |
| Torque Measurement Accuracy | ±0.3% F.S. |
| Speed Range | 0.1–200 rpm |
| Speed Control Accuracy | ±0.1% F.S. |
| Motor Power | 5.0 kW (Panasonic Servo Motor & Drive) |
| Reduction Ratio | 10:1 |
| Melt Pressure Range | 0.1–100 MPa |
| Pressure Measurement Accuracy | ±0.3% F.S. |
| Temperature Control Range | Ambient to 350 °C |
| Temp. Control Channels | 5 (extruder), 7–8 (twin-screw), 3 (mixer) |
| Temp. Control Accuracy | ±0.5 °C |
| Screw Diameter | 22 mm |
| L/D Ratio | 40:1 |
| Screw Configuration | Modular Co-Rotating Parallel Twin-Screw |
| Max. Screw Speed | 500 rpm |
| Mixer Capacity | 60 mL / 200 mL |
| Max. Mixer Torque | 200 N·m |
| Heating Method | Segmented Electric Heating (5500 W extruder |
| Cooling Method | Compressed Air |
| Data Acquisition Rate | 50 Hz |
| Software Version | 4.1.14–4.1.18 (Torque Rheology, Melt Viscosity, Extrusion, Mixing Modules) |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |

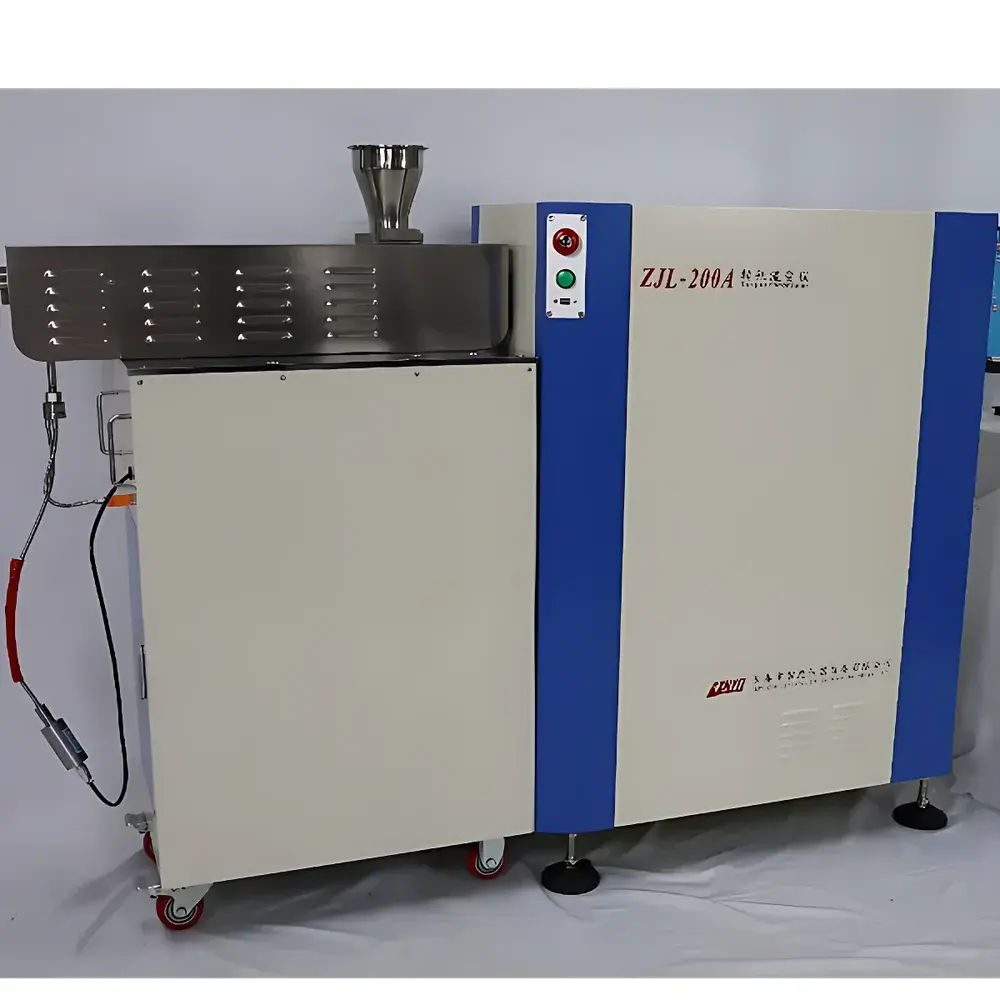

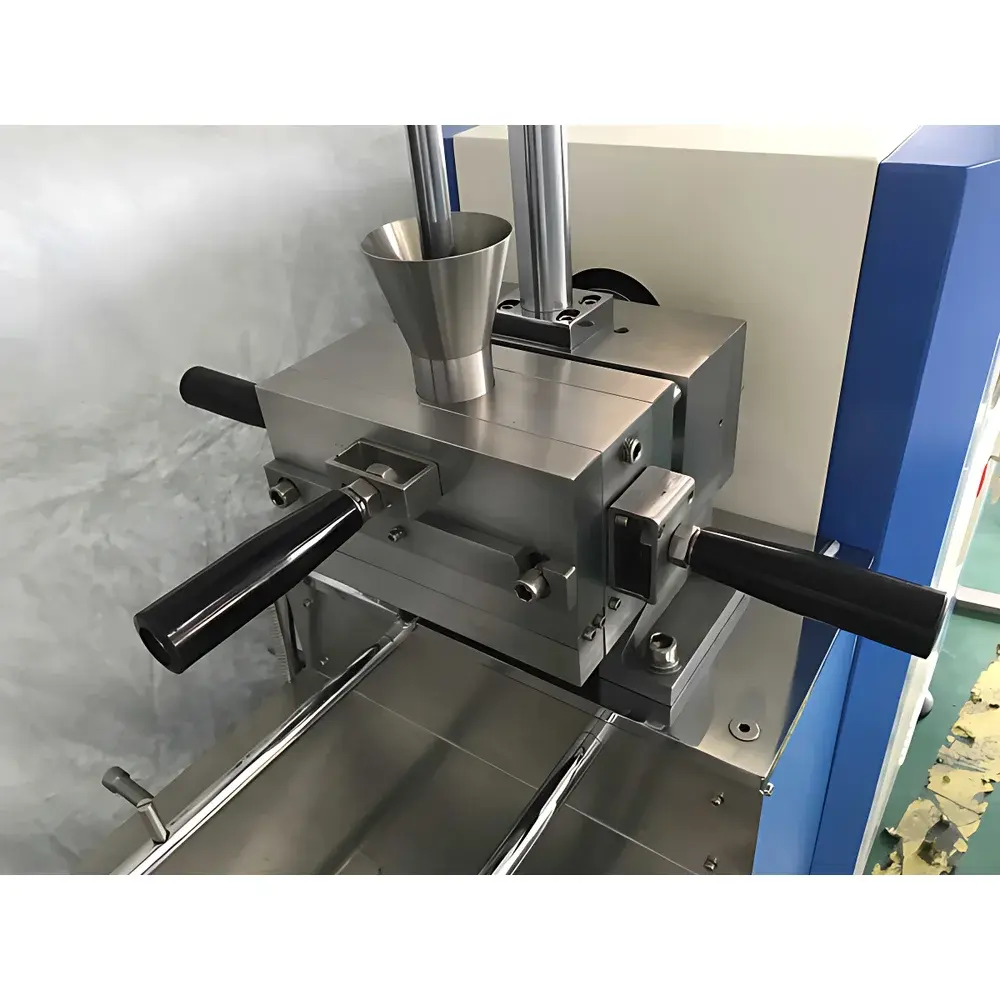

| Model | ZJL-200A |
| Motor Power | 3.0 kW |
| Speed Range | 0.1–150 rpm |
| Speed Control Accuracy | ±0.5% F.S. |
| Torque Measurement Range | 0–200 N·m |
| Torque Resolution | 0.1 N·m |
| Torque Accuracy | ±0.5% F.S. |
| Frequency Range | 10⁻³–628 rad/s |
| Melt Pressure Range | 0.1–100 MPa |
| Pressure Accuracy | ±0.5% F.S. |
| Temperature Control Range | Ambient to 300 °C (5-zone) |
| Temperature Accuracy | ±1.0 °C |
| Mixer Chamber Capacity | 60 mL |
| Screw L/D Ratio | 25:1 |
| Capillary Dies | Ø1.27 mm, L/D = 20:1, 30:1, 40:1 |
| Dimensions (Host + Mixer or Extruder) | 1600 × 450 × 1300 mm (L×W×H) |
| Supply Voltage | AC 380 V, 6 kW |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | MLW-400A |
| Price | USD 13,800 (FOB China) |
| Temperature Range | Ambient to 400 °C |
| Heating Rate | 1–10 °C/min (adjustable) |
| Temperature Accuracy | ±0.1 °C |
| Pressure Range | 1–50 MPa (±0.5% FS) |
| Force Capacity | 5 kN |
| Pressure Resolution | 0.1 MPa |
| Piston Speed | 0.01–500 mm/min |
| Piston Diameter | φ12 mm (standard) |
| Die Geometry | Capillary dies: 1×5, 1×10, 1×20, 1×40 mm (L/D), tungsten carbide |
| Data Acquisition Rate | >100 Hz |
| Compliance | ISO 11443, HG/T 4300–2012 |
| Software Certification | China Copyright No. 2243448 |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Model | ZJL-200A |
| Max Temperature | 350 °C |
| Speed Range | 0.1–120 rpm |
| Torque Range | 0–300 N·m |
| Torque Accuracy | ±0.5% F.S. |
| Pressure Range | 0.1–100 MPa |
| Pressure Accuracy | ±0.5% F.S. |
| Temperature Control | 5-zone, ±1 °C |
| Temp Resolution | 0.1 °C |
| Motor | AC 380 V, 3.0 kW |
| Mixer Volume | 60 mL |
| Extruder Barrel | φ20 mm, L/D = 25:1, 4Cr13 steel |
| Capillary Dies | φ1.27 mm, L/D = 20/1, 30/1, 40/1, 38CrMoAl material |
