| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | LY-150 |
| Quotation | Upon Request |
| Max Load Capacity | 2000 kN |
| Load Measurement Accuracy | ±1% FS |
| Maximum Test Length | 14,000 mm |
| Adjustable Crosshead Travel | 10,000 mm |
| Test Speed Range | 1–100 mm/min |
| Rapid Positioning Speed | 200 mm/min |
| Extensometer Gauge Length Range | 0–15,000 mm |
| Elongation Measurement Accuracy | ±0.2% FS ±1 mm |
| Displacement Measurement Range | 0–15,000 mm |
| Displacement Accuracy | ±0.5% FS ±1 mm |
| Hydraulic Cylinder Stroke | 1200 mm |
| Motor Power | 5.5 kW, 3-phase 380 V AC |
| Overall Dimensions (L×W×H) | 8000 × 8000 × 25,000 mm |
| Key | Brand: Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Model | LDS Series |
| Max Test Force | 5 kN |
| Load Cell Accuracy | ±0.5% |
| Load Accuracy | ±0.5% |
| Speed Accuracy | ±0.5% |
| Speed Range | 0.05–500 mm/min |
| Elongation Measurement Accuracy | ±0.5% |
| Large-Deformation Range | 0–1000 mm |
| Effective Crosshead Travel | 1160 mm |
| Effective Test Width | 420 mm |
| Jaw Spacing (Max) | 860 mm |
| Power Supply | AC 220 V, 2 kW |
| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | QC-III |
| Pricing | Available Upon Request |
| Vibration Axes | Z (vertical), X & Y (horizontal, sequential) |
| Max. Acceleration | 30 m/s² (adjustable) |
| Frequency Range | 1–35 Hz (programmable) |
| Amplitude Range | 0.1–5 mm (frequency-dependent, programmable) |
| Test Duration | Z-axis: 4 h |
| X-axis | 2 h |
| Y-axis | 2 h (independently configurable) |
| Fill Level | Up to 50% of rated capacity (configurable) |
| Pressure Monitoring | 0–30 kPa / 0–80 kPa dual-range, ±0.5% FS |
| Temperature Sensing | 0–100 °C, ±1 °C accuracy |
| Time Control Resolution | 1 s |
| Compliance Support | ASTM D471, ISO 16750-3, SAE J1739, GB/T 28046.3 |
| Key | Origin: Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

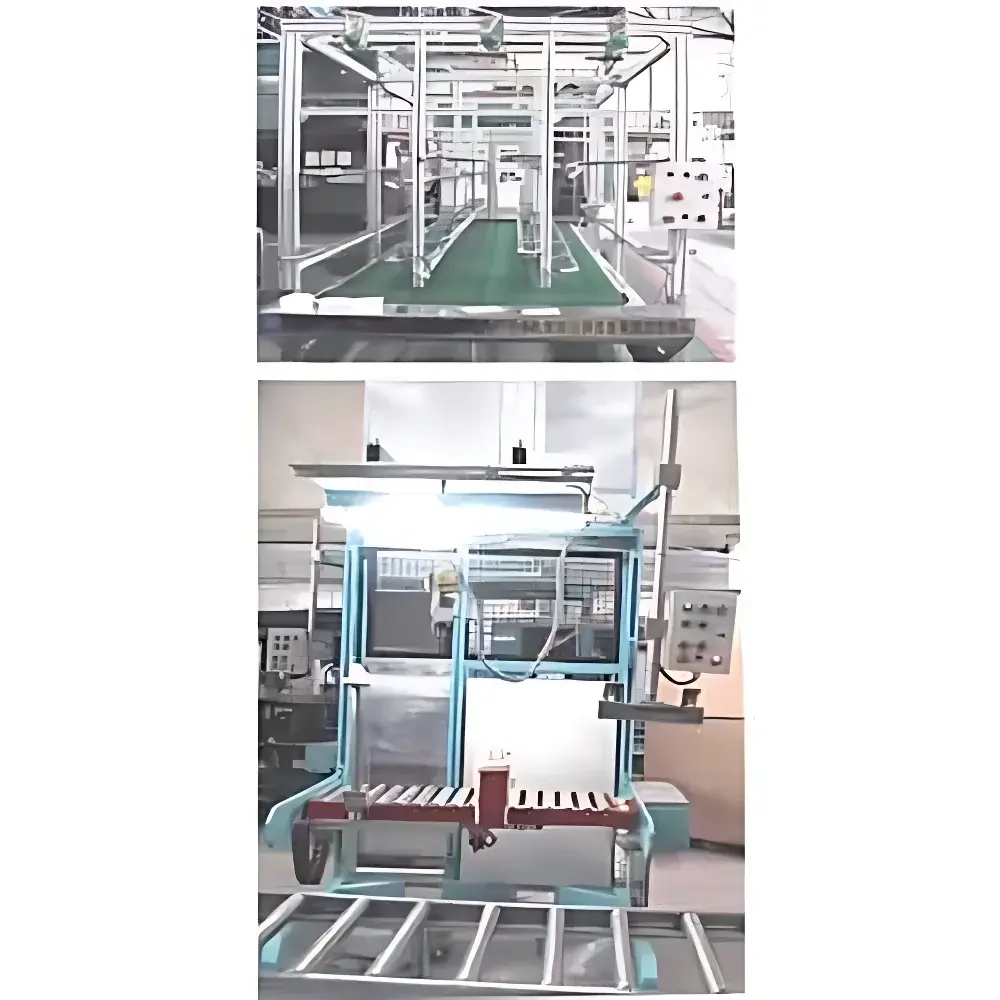

| Model | QC-II |
| Pricing | Available Upon Request |
| Key | Origin: Jilin, China |
|---|---|
| Manufacturer Type | Distributor |
| Model | QC-I |
| Quotation | Upon Request |
| Pressure Range | 1–100 kPa |
| Pressure Resolution | 0.1 kPa |
| Pressure Accuracy | ±0.5% F.S. |
| Water Tank Volume | 2.4 m³ (2400 × 1000 × 1000 mm) |
| Fixture Dimensions | 2200 × 900 mm |
| Lift Stroke | 1000 mm |
| Max. Test Object | Metallic tank ≤ 2000 × 872 × 700 mm |
| Rated Capacity | 1.22 m³ |
| Power Supply | 380 V AC, 5 kW |
| Weight | 1000 kg |
| Overall Dimensions | 2600 × 1600 × 2000 mm |
| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Max Load Capacity | 100 N |
| Force Range | 4–100 N |
| Force Accuracy | ±1% of reading |
| Displacement Accuracy | ±0.2% of reading |
| Crosshead Speed Range | 1–100 mm/min |
| Speed Accuracy | ±1% |
| Maximum Crosshead Travel | 600 mm |
| Effective Test Width | 430 mm |
| Compression Limit for Carbon Brushes | ≤40 mm |
| Typical Contact Load in Rail Grounding Applications | ≤400 N |
| Compliance | ASTM E4, ISO 7500-1, GB/T 228.1–2021 |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | LDS Series |
| Max Load Capacity | 5 kN |
| Load Measurement Accuracy | ±1% |
| Speed Measurement Accuracy | ±1% |
| Force Resolution | 0.1 N |
| Test Speed Range | 10–500 mm/min |
| Display | LCD Interface |
| Control System | Microprocessor-Based with PWM Speed Regulation |
| Data Output | Integrated Thermal Microprinter |
| Compliance | Designed to support ASTM D638, ISO 527, GB/T 1040, and GB/T 228.1 test methods |
| Brand | Changchun Intelligent |
|---|---|
| Origin | Jilin, China |

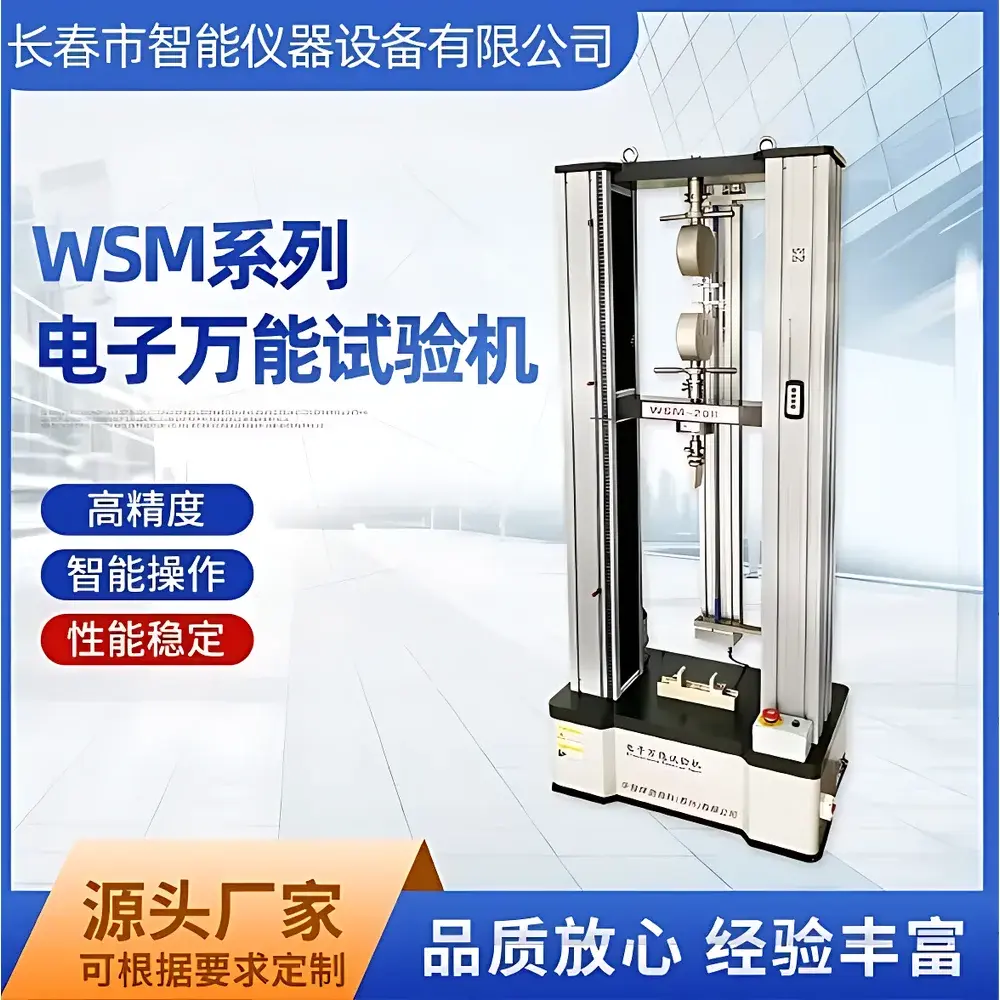

| Model | WSM-20kN |
| Maximum Test Force | 20 kN |
| Force Accuracy | ±0.5% of reading |
| Force Resolution | 1/300,000 FS |
| Test Speed Range | 0.05–500 mm/min (±0.5% speed accuracy) |
| Displacement Measurement Range | 0–1000 mm (resolution: 0.001 mm |
| accuracy | ±0.5%) |
| Crosshead Travel | 1200 mm |
| Effective Test Width | 400 mm |
| Load Frame Type | Dual-ball-screw, four-column rigid structure |
| Compliance Standards | GB/T 16491–2008, GB/T 2611–2007, ISO 527-1, ISO 604, ISO 178, ASTM D638, ASTM D695, ASTM D790 |
| Software | Windows-based test control & analysis suite with real-time curve plotting, multi-curve overlay, region zoom, data export to Excel/PDF/Word, and GLP-compliant audit trail |
| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | WSM-20KN |
| Quotation | Available upon Request |
| Max. Test Load | 20 kN |
| Load Cell Accuracy | ±0.5% FS |
| Speed Range | 0.05–500 mm/min |
| Speed Accuracy | ±0.5% |
| Large-Deformation Measurement Range | 0–1000 mm |
| Large-Deformation Accuracy | ±0.5% |
| Effective Travel (Crosshead) | 1160 mm |
| Effective Test Width | 420 mm |
| Power Supply | AC 220 V, 2 kW |
| Origin | Jilin, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | WSM-20KN |
| Maximum Test Load | 20 kN |
| Load Cell Accuracy | ±0.5% FS |
| Force Measurement Accuracy | ±0.5% |
| Speed Accuracy | ±0.5% |
| Speed Range | 0.05–500 mm/min |
| Displacement/Strain Accuracy | ±0.5% |
| Extensometer Range | 10–1000 mm |
| Crosshead Travel (Effective) | 1160 mm |
| Test Width | 420 mm |
| Distance Between Grips (Effective) | 860 mm |
| Temperature Chamber Range | −40 °C to +150 °C |
