| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 77500 |

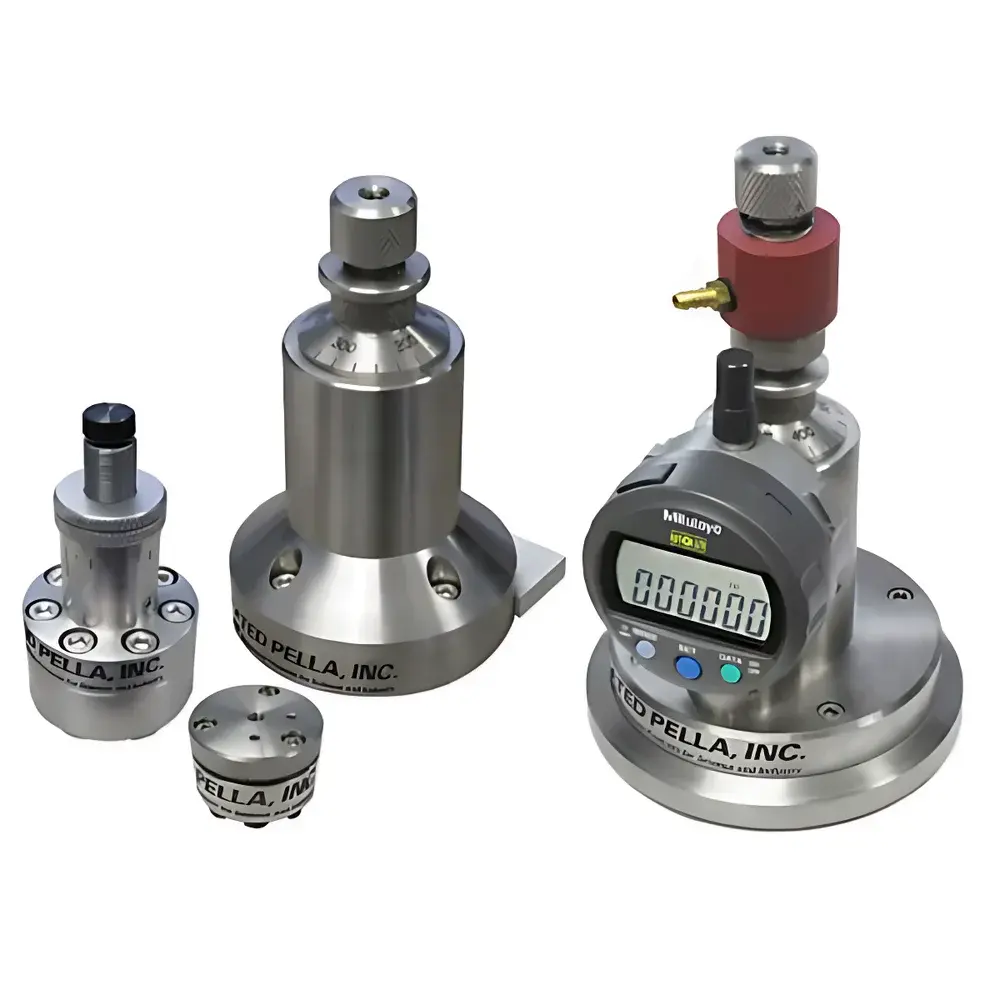

| Instrument Type | Precision Grinding Fixture |
| Sample Compatibility | Hard, brittle, and high-hardness materials (e.g., Si wafers, sapphire, fused silica, ceramics, geological specimens) |
| Maximum Sample Diameter | 50 mm |
| Maximum Sample Thickness | 13 mm |
| Feed Resolution | 25 µm (digital micrometer) |
| Typical Grinding Accuracy | ±1 µm |
| Mounting Options | Wax bonding or vacuum-assisted clamping |
| Replaceable Base Material | Tungsten carbide |
| Base Diameter | 102 mm |
| Compatible Accessories | PELCO Grinding Trays (300 × 300 mm), PELCO 590 Tri-Polisher |
