| Brand | Guangzhou Jingying |
|---|---|
| Origin | Guangdong, China |
| Manufacturer | Yes |
| Country of Origin | China |
| Model | JY-S100 |
| Vacuum Range | Atmosphere to 1×10⁻³ mbar |
| Ultimate Vacuum | ≤1×10⁻⁴ mbar |
| Sputtering Current | 5–30 mA (digital microprocessor-controlled) |
| Target Diameter | 57 mm × 0.1 mm thickness |
| Standard Sample Stage | 12-position SEM stub holder, height-adjustable (60 mm range) |
| Optional Rotating/Tilting Stage | 0–60 rpm, tilt angle −90° to +90° |
| Chamber | Stainless steel, Ø120 mm × H75 mm |
| Viewport | Ø120 mm × H45 mm |
| Base Rotation Stage | Ø40 mm (holds 4 standard stubs) |
| Vacuum Pump Speed | 133 L/min |
| Operating Noise Level | 56 dB(A) |
| Target Materials | Au (standard), optional Pt, Au/Pd, Pt/Pd |
| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Model | 28151-230 |
| Capacity | 2.5 gal (9.46 L) |
| Temperature Range | Ambient to 72°C (162°F) |
| Construction | Stainless steel interior with transparent polycarbonate lid |
| Dimensions | 40 W × 38.1 D × 45.7 H cm (16" × 15" × 18") |
| Weight | 21 kg (46 lbs.) |
| Spigot Type | Heated, non-drip, microprocessor-controlled |
| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | easiGlow™ 91000 |
| Plasma Current | 0–30 mA |
| Power | 30 W |
| Electrode Polarity | Reversible (Anode/Cathode) |
| Sample Stage Diameter | 75 mm |
| Stage Height Adjustment | 1–25 mm |
| Delay Time | 0–14,400 s |
| Treatment Time | 0–900 s |
| Chamber Dimensions | 120 × 100 mm (L × W) |
| Gas Inlets | Two 6 mm ports |
| Vacuum Control | Electromechanical proportional valve with Pirani gauge |
| Operating Vacuum Range | 0.20–1.1 mbar |
| Ultimate Vacuum (with GD4 pump) | 0.03 mbar |
| Pump Speed (GD4) | 2.5 m³/hr |
| Touchscreen Display | 3-inch LED-backlit capacitive touchscreen with five dedicated function keys |
| Programmability | Four user-defined automated protocols |
| Safety Interlocks | Dual hardware + software vacuum interlock |
| Dimensions (main unit) | 305 × 292 × 230 mm (L × W × H) |
| Weight (main unit) | 6.26 kg |
| Optional GD4 Vacuum Pump Dimensions | 337 × 138 × 244 mm |
| GD4 Weight | 11 kg |
| Power Supply | 230 V, 50 Hz, 10 A |
| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |

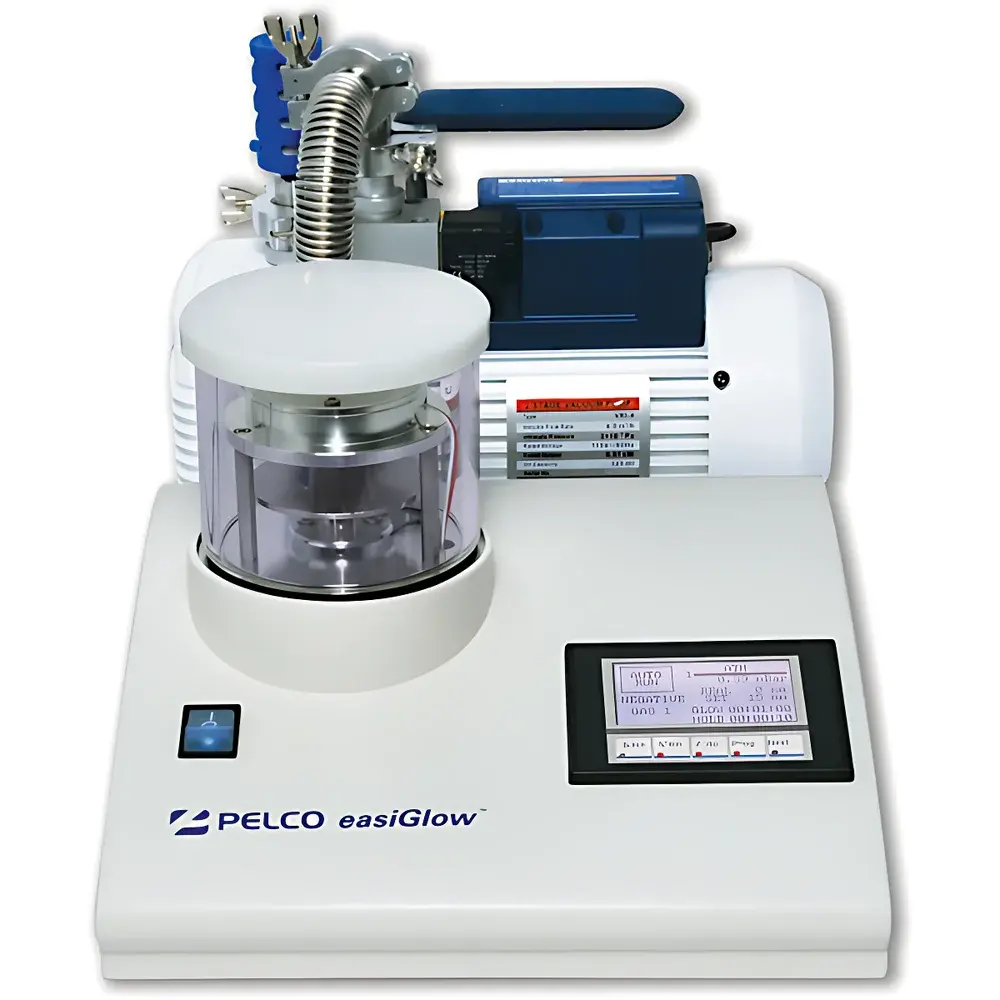

| Model | PELCO easiGlow™ 91000 |
| Plasma Current | 0–30 mA |
| Power | 30 W |
| Electrode Polarity | Reversible (Positive/Negative) |
| Sample Stage Diameter | 75 mm |
| Stage Height Adjustment | 1–25 mm |
| Delay Time | 0–14,400 s |
| Treatment Time | 0–900 s |
| Chamber Dimensions | 120 × 100 mm |
| Gas Inlets | Two 6 mm ports |
| Vacuum Control | Electromechanical proportional valve with Pirani gauge |
| Operating Vacuum Range | 1.1–0.20 mbar |
| Ultimate Vacuum (with optional GD4 pump) | 0.03 mbar |
| Pump Speed (GD4) | 2.5 m³/hr |
| Display | 3″ LED-backlit touchscreen with five dedicated function keys |
| Control Modes | Auto-programmable (up to 4 user-defined protocols) + Manual mode |
| Safety | Dual hardware/software vacuum interlock |
| Dimensions (unit) | 305 × 292 × 230 mm (L×W×H) |
| Weight (unit) | 6.26 kg |
| Optional GD4 Pump Dimensions | 337 × 138 × 244 mm |
| GD4 Weight | 11 kg |
| Electrical Requirement | 230 V, 50 Hz, 10 A |
