| Brand | Neocera |
|---|---|
| Origin | Finland |
| Model | PED-120 |
| Vacuum Chamber | 12" Ø |
| Base Pressure | <1×10⁻⁶ Torr |
| Substrate Heater | 2" diameter, 950 °C max, ±1 °C stability |
| Target Capacity | six 1" or three 2" targets |
| Target-to-Substrate Distance | 4" |
| Gas Flow Control | 100 sccm MFC (O₂-compatible) |
| Turbo Pump | 260 L/s with cryo-trap |
| Roughing Pump | 4 m³/hr oil-free rotary vane |
| Electron Source | PEBS-20, 8–20 kV, 0.1–0.8 J/pulse, ~100 ns pulse width, ≤15 Hz rep rate, beam spot ≥6×10⁻² cm², energy density up to 1.3×10⁸ W/cm² |
| Z-axis travel | 50 mm, XY-axis travel: ±20 mm |
| Operating Lifetime | ≥10⁷ pulses |
| Max PEBS Housing Temp | 85 °C |

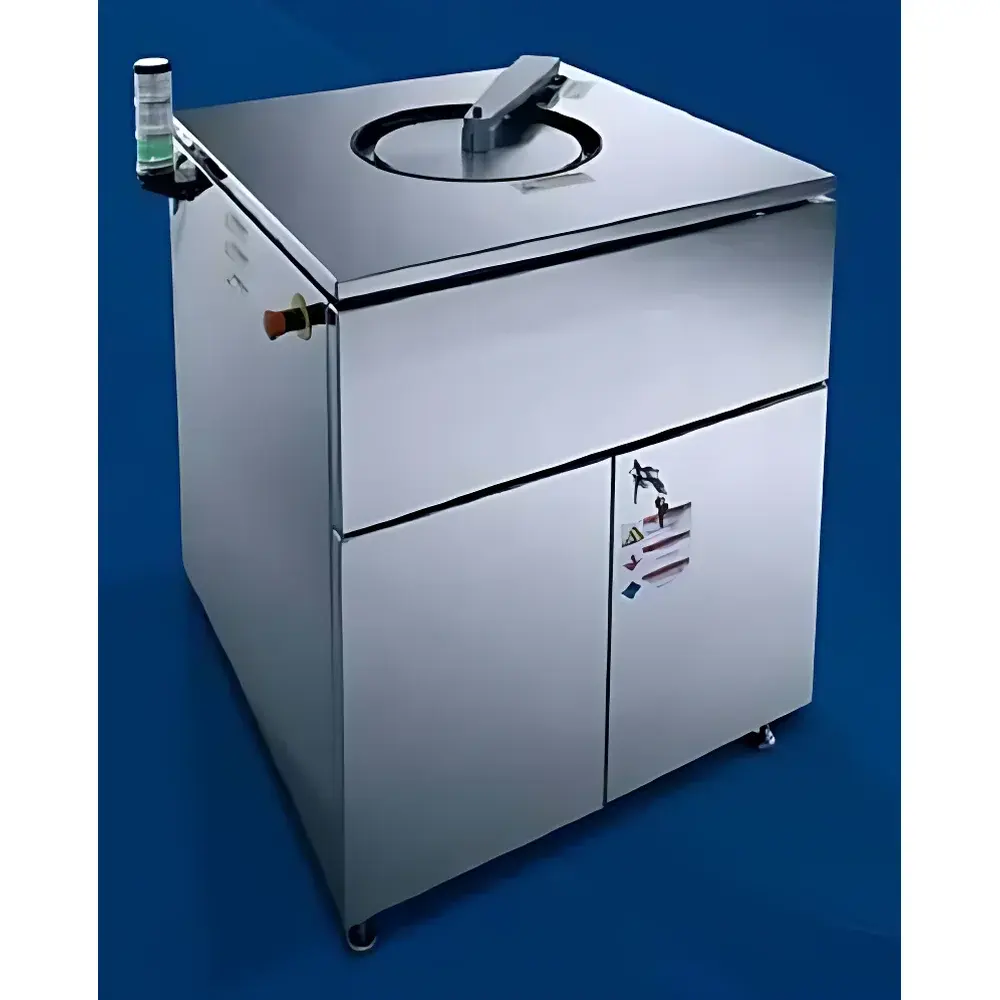

| Brand | Picosun |
|---|---|
| Origin | Finland |
| Model | R-Series |
| Substrate Size | 200 mm (8-inch) |
| Process Temperature | Up to 500 °C |
| Precursor Channels | 6 |
| Weight | 350 kg |
| Dimensions (W × H × D) | 146 cm × 146 cm × 84 cm |
| Thickness Uniformity | ±1% |
| Reactor Materials | 316 Stainless Steel, Titanium, Nickel, Aluminum, Quartz |
| Precursor States | Gas, Liquid, Solid |
| Load Lock | Picoloader™ Manual Transfer System with Pre-Vacuum Chamber and Gate Valve |
| Vacuum Pump Capacity | 30–80 m³/h |
| Carrier Gas | ≥99.999% N₂ or Ar, min. 2 slm |
| Power Supply | 100–240 V, 50/60 Hz, 1- or 3-phase, 3.7 kW |
| Cooling | Air-cooled (no external water required) |
| Exhaust | Dedicated for pump and precursor cabinets |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PLD |
| Pricing | Available Upon Request |
