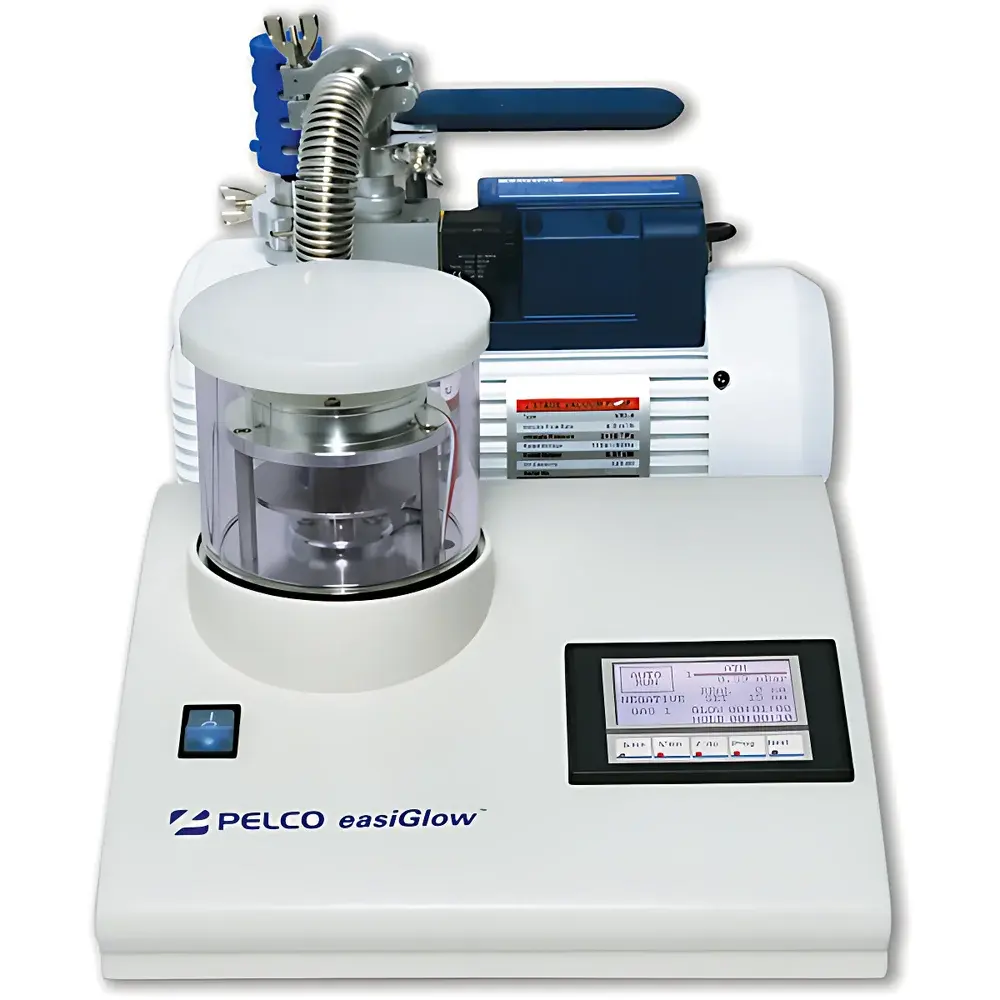

| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Model | Glow Discharge 91000 |
| Plasma Current | 0–30 mA |
| Power | 30 W |
| Polarity | Adjustable (Positive/Negative) |
| Sample Stage Diameter | 75 mm |
| Stage Height Adjustment | 1–25 mm |
| Processing Delay Time | 0–14,400 s |
| Processing Duration | 0–900 s |
| Chamber Dimensions | Ø120 × 100 mm |
| Inlet Ports | 2 × Ø6 mm |
| Vacuum Control | Pirani gauge, range: atmospheric pressure to 0.01 mbar |
| Operating Vacuum Range | 0.20–1.1 mbar |
| Touchscreen Display | 3-inch LED-backlit with 5 function keys |
| Control Modes | Automatic (4 programmable user protocols) and Manual |
| Safety Interlocks | Dual hardware + software vacuum interlock |
| Dimensions (Main Unit) | 305 × 292 × 230 mm |
| Weight (Main Unit) | 6.26 kg |
| Optional GD4 Vacuum Pump | 337 × 138 × 244 mm, 11 kg, pumping speed 2.5 m³/hr, ultimate vacuum 0.03 mbar |
| Power Supply | 230 V, 50 Hz, 10 A |
| Brand | Guangzhou Jingying |
|---|---|
| Origin | Guangdong, China |
| Manufacturer | Yes |
| Type | Domestic |
| Model | QuickGlow |
| Price | Upon Request |
| Plasma Current | 3–30 mA |
| High-Voltage Power Supply | 50 W |
| Electrode Polarity | Negative |
| Sample Stage Diameter | Ø63 mm (customizable) |
| Sample Stage Height Adjustment | 30–80 mm |
| Treatment Time Range | 0–999 s |
| Chamber Dimensions | Ø120 mm × 120 mm (H) |
| Operating Vacuum Range | 0.20–1.0 mbar |
| HV/Vacuum Interlock | Software-Enabled Safety Lockout |
| Display | 102 mm × 68 mm LCD |
| Unit Dimensions | 417 mm (L) × 305 mm (W) × 280 mm (H) |
| Weight | 9.6 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Guangzhou Jingying |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | QuickGlow |
| Pricing | Upon Request |
| Brand | Guangzhou Jingying |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Inverted |
| Total Magnification Range | 50×–1000× |
| Eyepiece | PL10×/18 mm (High-Eyepoint Wide-Field Plan Eyepiece) |
| Objective Lenses | Long Working Distance Plan Achromatic Metallurgical Objectives (5×, 10×, 20×, 50×, 100×) |
| Stage | Triple-Layer Mechanical Stage (180 mm × 155 mm) |
| Illumination | Reflected Köhler Illumination with Adjustable Aperture and Centerable Field Diaphragm |
| Micrometer Scale | 0.01 mm per division (1 mm total span) |
| Compliance | Designed for ASTM E3, ISO 643, and GB/T 6394 metallographic evaluation standards |
| Origin | United Kingdom |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | NKD8000 |
| Price | Upon Request |
| Spectral Range (Standard) | 350–1000 nm |
| Spectral Range (UV-Enhanced) | 280–1000 nm |
| Spectral Range (NIR) | 800–1700 nm |
| Spectral Range (Broadband) | 350–1700 nm |
| Spectral Range (Extended Broadband) | 350–2200 nm |
| Spectral Resolution | 1 nm or 2 nm (selectable) |
| Measurement Time | 2–10 minutes (dependent on spectral range and configuration) |
| Analysis Time | 5 seconds–5 minutes (dependent on model complexity) |
| Incident Angle Range | 20°–70° (motorized continuous variable), or fixed angles (30°/50°/70°) |
| Spot Size | 5 mm (standard), 250 µm (optional micro-spot) |
| Sample Stage | X-Y motorized scanning stage (100 mm travel), accommodates samples from 10×10 mm to 200×250 mm |
| Max. Layers | 5-layer stack with up to two unknown parameters per layer |
| Thickness Range | 1 nm – 25 µm (wavelength-, angle-, and polarization-dependent) |
| Accuracy (semi-absorbing films) | thickness <1% (typ.), <3% (max) |
| Accuracy (metallic films) | thickness <1% (typ.), <3% (max) |
| Repeatability | transmission <0.01% (typ.), <0.1% (max) |
| Light Source | 150 W xenon arc lamp (NKD8000v) |
| Power Supply | 220 V, 50 Hz, 2 A or 110 V, 60 Hz, 3 A |
| Dimensions | 890 × 540 × 720 mm |
| Weight | 105 kg |
| Brand | DOSAKA |
|---|---|
| Origin | Japan |
| Model | DTK-Zero1N |
| Power Supply | 100/120/220/240 V, 50/60 Hz |
| Blade Vibration Frequency | 0–55 Hz |
| Blade Stroke Amplitude | Fixed 2 mm |
| Sectioning Speed | 0–68 mm/min (approx.) |
| Retraction Speed | 104 mm/min (approx.) |
| Max. Specimen Height | 20 mm |
| Specimen Retraction Function | Yes |
| Max. Specimen Dimensions | 25 × 30 mm |
| Compatible Blade Size | 30 mm standard vibrating blade |

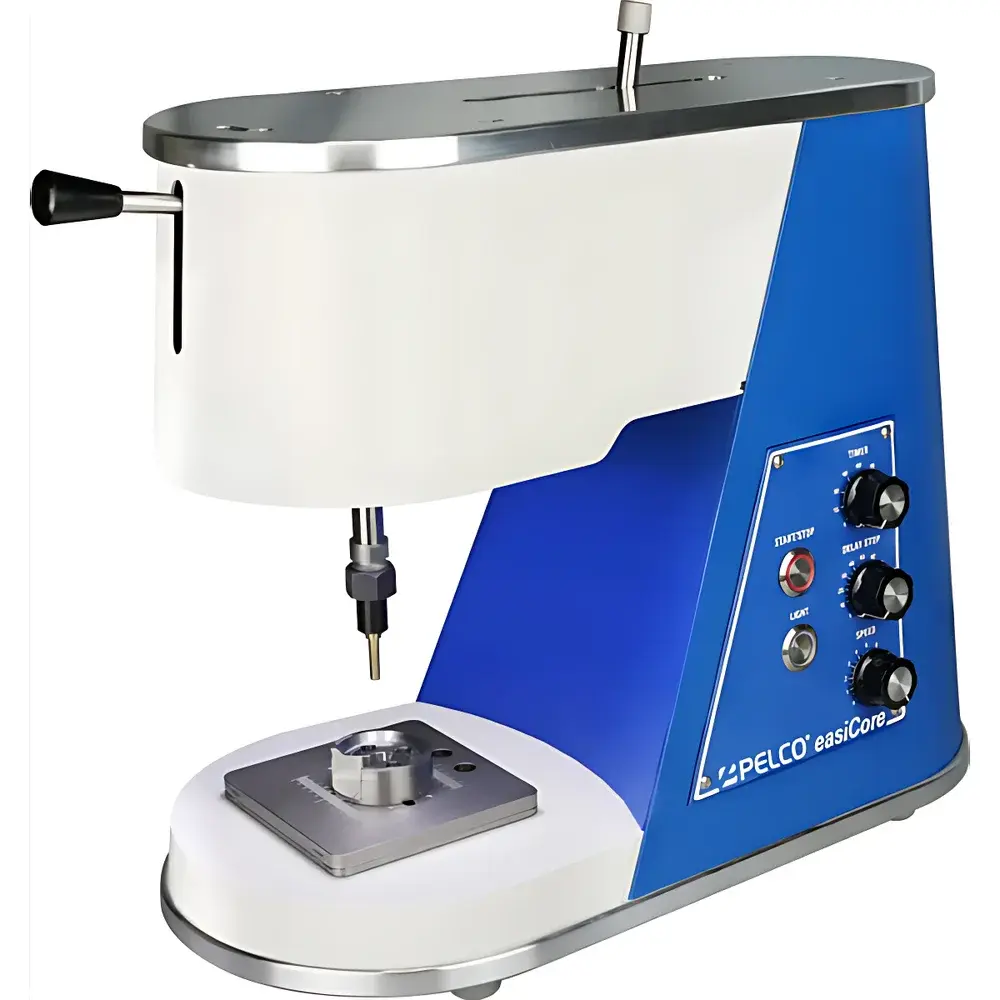

| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | PELCO easiCore |
| Price | Upon Request |
| Max Rotational Speed | 100–1500 rpm |
| Maximum Applied Load | 1 kg |
| Disc Diameter Range | 2.3–25 mm |
| Positioning Accuracy | X-Y Stage with 1 mm Graduated Scale |
| Compatible Mounting Fixtures | PELCO Precision Wire Saw, PELCO Precision Low-Speed Saw, PELCO Dimpler |
| Optional Accessory | PELCO Abrasive Dispenser (timed abrasive slurry delivery) |

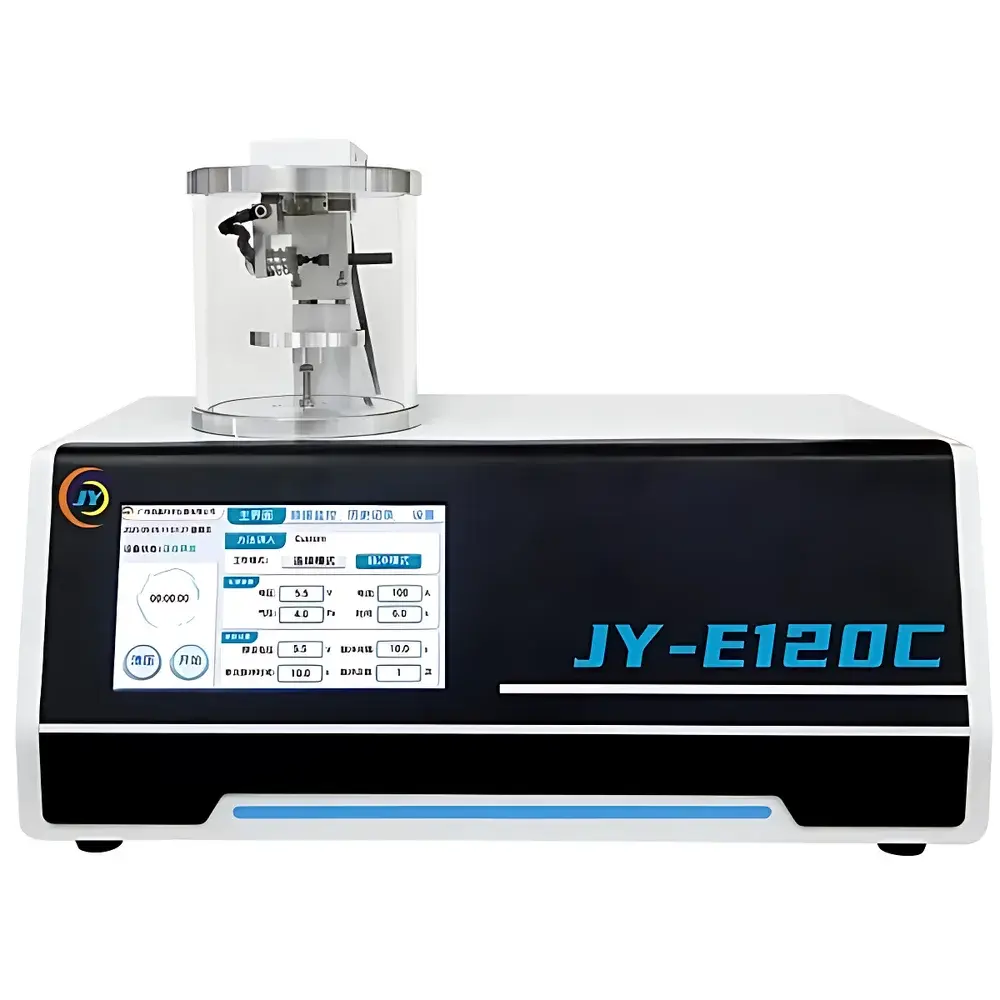

| Brand | Jingying (Guangzhou Jingying Scientific Instrument Co., Ltd.) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | JY-E120C |
| Price | USD 7,000 (approx.) |
| Dimensions | 450 × 310 × 340 mm |
| Touchscreen | 7-inch IPS color LCD |
| Evaporation Source | Graphite rod (carbon rope optional) |
| Operating Modes | Continuous mode & pulsed mode |
| Vacuum Pump Speed | 133 L/min |
| Ultimate Vacuum | ≤0.05 Pa |
| Working Vacuum | ≤5 Pa |
| Sample Chamber | 120 × 120 mm |
| Language Support | English / Chinese interface toggle |

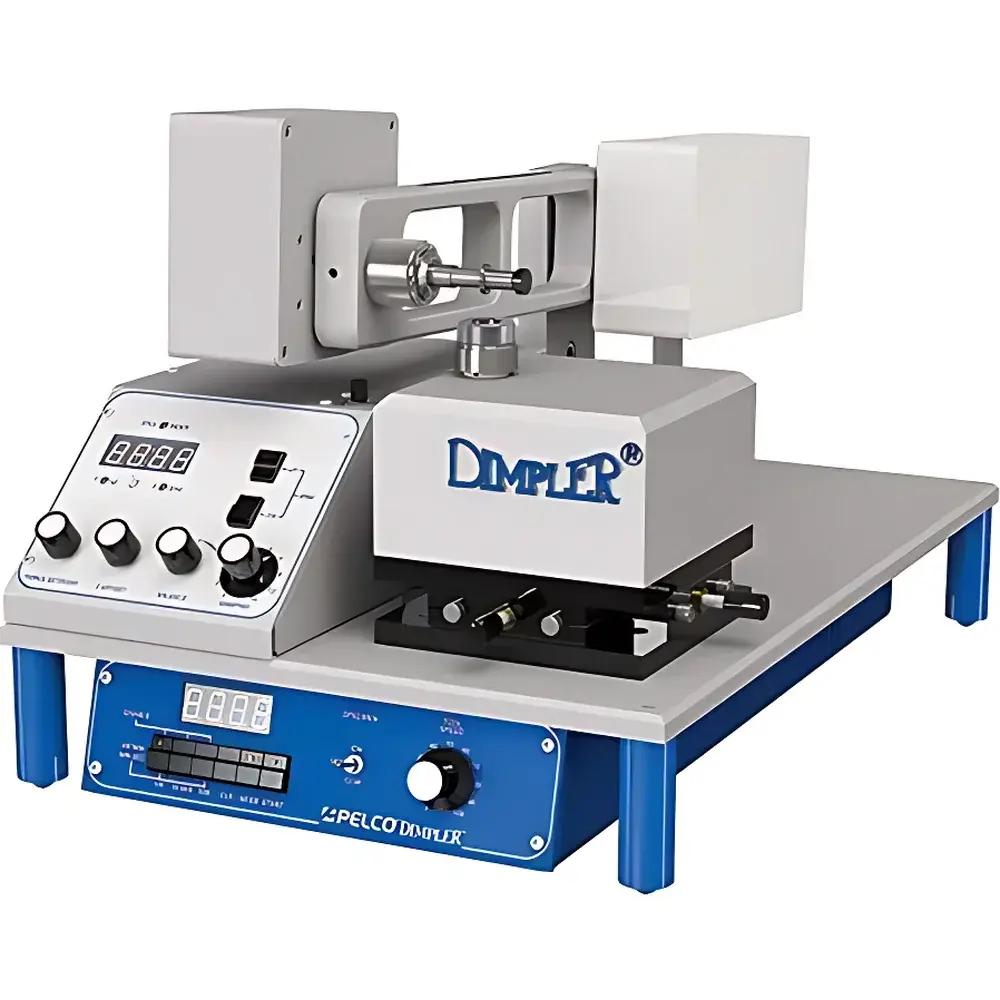

| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Model | Dimpler |
| Z-Axis Accuracy | ±1 µm |
| Z-Range | 2000 µm |
| Z-Termination Accuracy (Tool 1i/3i) | <±1 µm |
| Z-Termination Accuracy (Tool 2i/4i) | <±2 µm |
| Tool Load Range | 1–200 g (1 g increments) |
| Balance Sensitivity | 1 g (Range: 50 g) |
| Tool Rotation Speed | 100–600 RPM |
| Platen Rotation Speed | 10 RPM |
| Spindle Runout (TIR) | 0.5 µm |
| Tool TIR (1i/3i) | <±1 µm |
| Tool TIR (2i/4i) | <±2 µm |
| Platen Surface TIR | <0.5 µm |
| Dimensions (L×W×H) | 68.6 × 35.6 × 33 cm |
| Weight | 32 kg |
| Power Input | 85–264 VAC, 47–63 Hz |
| Product Codes | 84000 (Dimpler), 83050 (Video Alignment Tool), 83031 (Standard 3 mm TEM Tool Set), 83032 (Adjustable Clamp Assembly), 83001 (Sapphire Sample Holder) |
