| Brand | Young Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | HWP34-10S |
| Price | Upon Request |
| Operating Environment | (-5–45)°C, <95% RH |
| Heating Rate | (3.5 ± 0.3) K/s |
| Vessel Internal Dimensions | Φ50 mm × 94.5 mm |
| Vessel Material | 316 Stainless Steel |
| Burst Disc Material | Aluminum Plate, Ø38 mm |
| Burst Pressure | 620 ± 60 kPa @ 22°C |
| Orifice Plate Diameters | 1.0, 2.0, 3.5, 6.0, 9.0, 12.0, 16.0, 24.0 mm |
| Orifice Plate Thickness | 2.0 ± 0.2 mm |
| Temperature Resolution | ±0.1°C |
| Temperature Sensor Response Time | 0.5 s |
| Brand | Young Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MITL-450A |
| Temperature Range | Ambient to 450 °C |
| Heating Plate Diameter | 200 mm |
| Dust Layer Height Options | 5 mm / 12.5 mm / 15 mm |
| Temperature Uniformity | ±5.0 °C |
| Temperature Stability | ±3.0 °C |
| Temperature Accuracy | ±3.0 °C |
| Temperature Precision | ±0.1 °C |
| Ramp Time | ≤40 min (ambient to 350 °C) |
| Ambient Sensor Range | –10 °C to +60 °C / 5–95% RH |
| Power Supply | 220 VAC, 50 Hz |
| Power Consumption | 2800 W |
| Dimensions | 670 mm × 400 mm × 390 mm |
| Interface | Dual USB 2.0 |
| Display | 7-inch color TFT touchscreen |
| Brand | Young Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

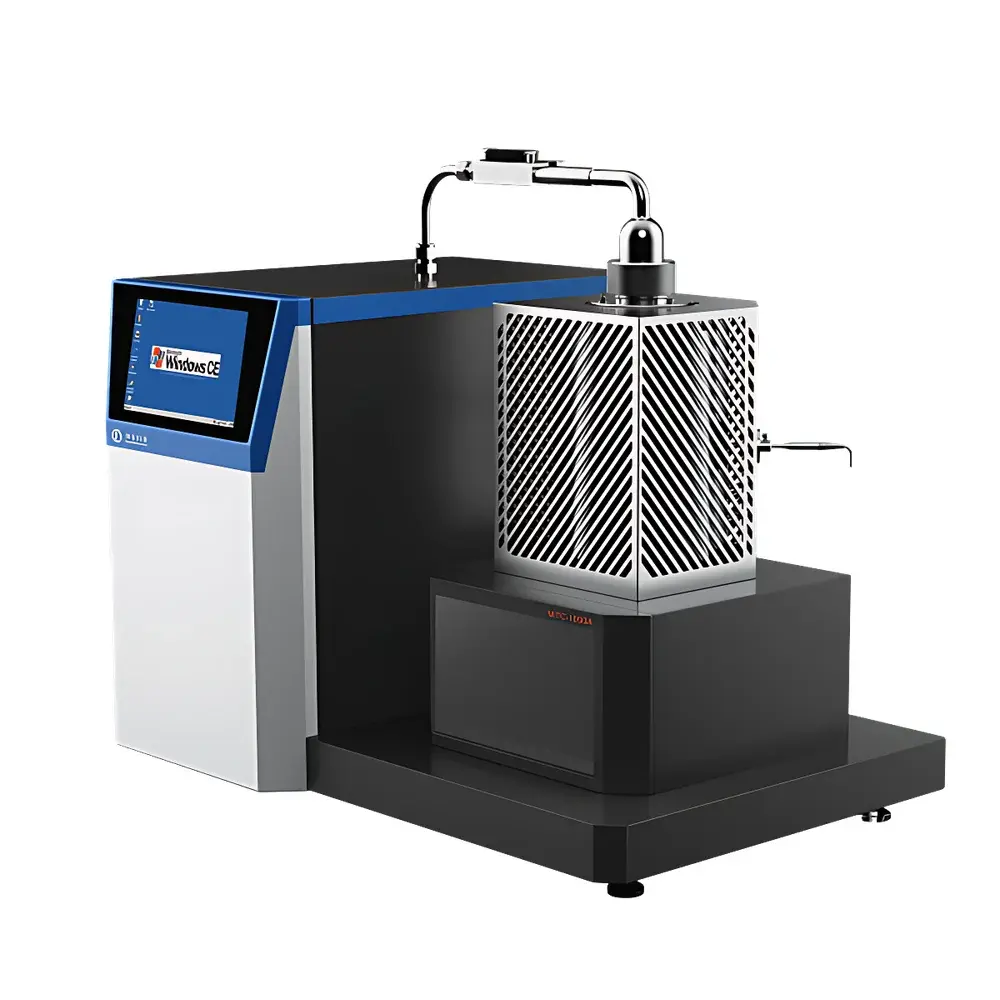

| Model | MITC-1000A |
| Pricing | Available Upon Request |
| Temperature Range | Ambient to 1000 °C |
| Heating Rate | ≤20 min (ambient to 500 °C) |
| Temperature Stability | ±5.0 °C |
| Temperature Accuracy | ±3.0 °C |
| Temperature Precision | ±0.1 °C |
| Powder Dispersion Pressure | 0–100 kPa (±5% accuracy) |
| Gas Reservoir Volume | 500 mL |
| Ambient Temp. Sensing | −10 °C to +60 °C |
| Ambient Humidity Sensing | 5–95% RH |
| Power Supply | 220 VAC / 50 Hz |
| Power Consumption | 2600 W |
| Dimensions | 670 mm × 400 mm × 590 mm |
| Display | 7-inch color TFT touchscreen |
| Interface | Dual USB 2.0 ports |
| Compliance Standards | ASTM E1491-06, EN 50281-2-1, GB/T 16429, IEC 61241-2, ISO/IEC 80079-20-2 |
