| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Type | ICC control |
| Temperature Range | 10–150 °C |
| Temperature Stability | ±0.01 K |
| Heating Power | 2000 W |
| Pump Type | Dual-mode pressure/suction pump |
| Circulation Mode | Internal and external circulation |
| Programmable Control | 10 programs × 10 segments |
| Display | Color TFT screen |
| Safety Features | Dual PT100/PT1000 temperature sensors, adjustable safety cutoff (0–160 °C), visual & audible alarms, overpressure protection, secondary safety circuit |
| Compliance | DIN 12876 Class III, DIN EN 60529 IP21, CE |
| Interface | RS232, USB |
| Dimensions (W×D×H) | 145 × 340 × 200 mm |
| Weight | 3.75 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Input Voltage | 230/115 V, 50/60 Hz |
| Max. Input Power | 2100 W |

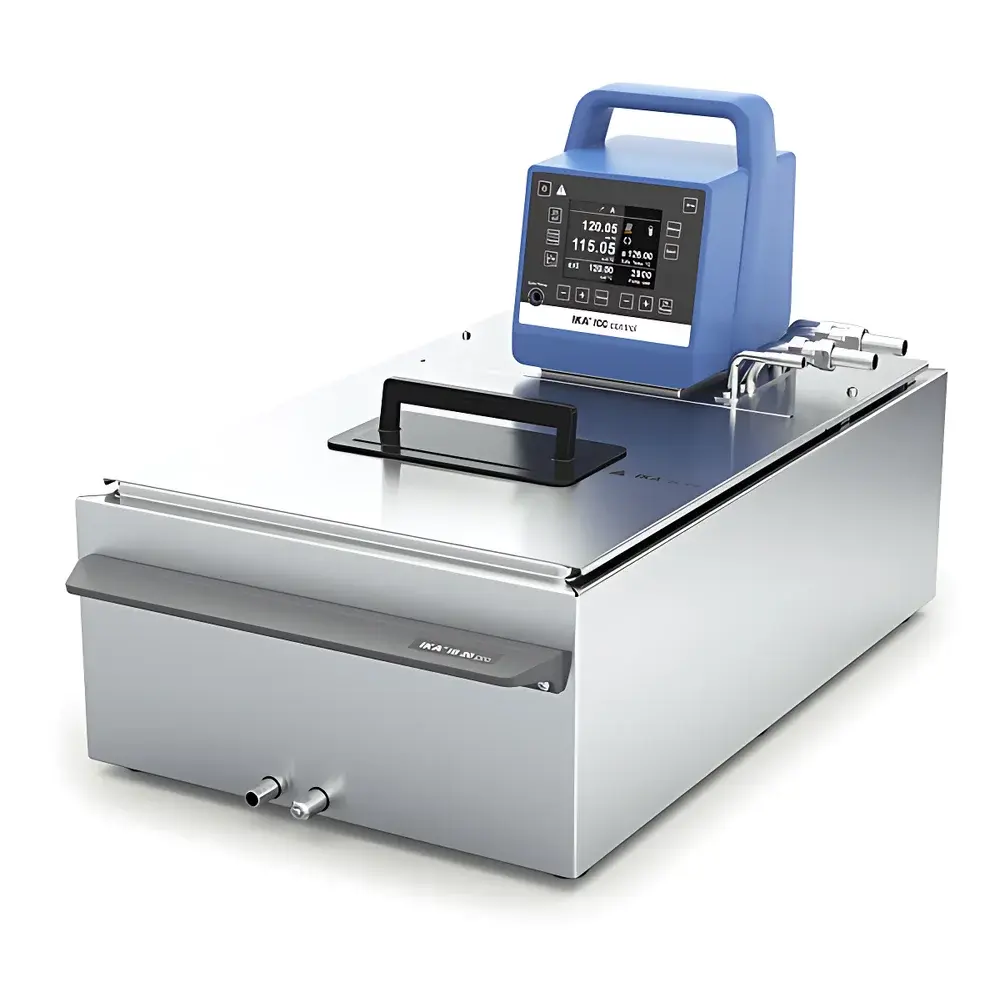

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | ICC control pro 20 c |
| Instrument Type | Constant-Temperature Bath Circulator |
| Circulation Mode | Internal & External Circulation |
| Temperature Control | Heating-Only |
| Bath Volume | 18 L |
| Temperature Range | Ambient +10 °C to 150 °C |
| Temperature Stability | ±0.01 °C |
| Input Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Pump Flow Rate (max) | 18 L/min at 0 bar backpressure |
| Max Pressure Output | 0.3 bar |
| Max Suction Pressure | 0.2 bar |
| Bath Opening Dimensions | 255 × 309 mm (standard), up to 292 × 325 mm (with optional large cover) |
| Immersion Depth Range | 85–125 mm |
| Bath Bottom Flat Surface Area | Compatible with standard lab plates |
| Protection Rating | IP21 per DIN EN 60529 |
| Safety Compliance | DIN 12876 Class III, FL-marked |
| Sensor Configuration | Dual PT100 (control) + PT1000 (safety cutoff) |
| Display | TFT touchscreen with dual temperature readout (working & safety setpoints) |
| Alarm System | Visual (LED) and audible alerts for temperature deviation, sensor failure, dry-run, and overtemperature |
| Programmable Safety Limit | 0–160 °C |
| Calibration Support | Traceable calibration options available per ISO/IEC 17025 guidelines |
| Interface | RS232 and USB for remote monitoring and data logging |
| Operating Environment | 5–40 °C ambient, ≤80% RH non-condensing |
| Continuous Duty Rating | 100% |
| Dimensions (circulator unit only) | 145 × 340 × 200 mm |
| Weight | 3.75 kg |
| Enclosure Material | Stainless steel housing with chemical-resistant coating |

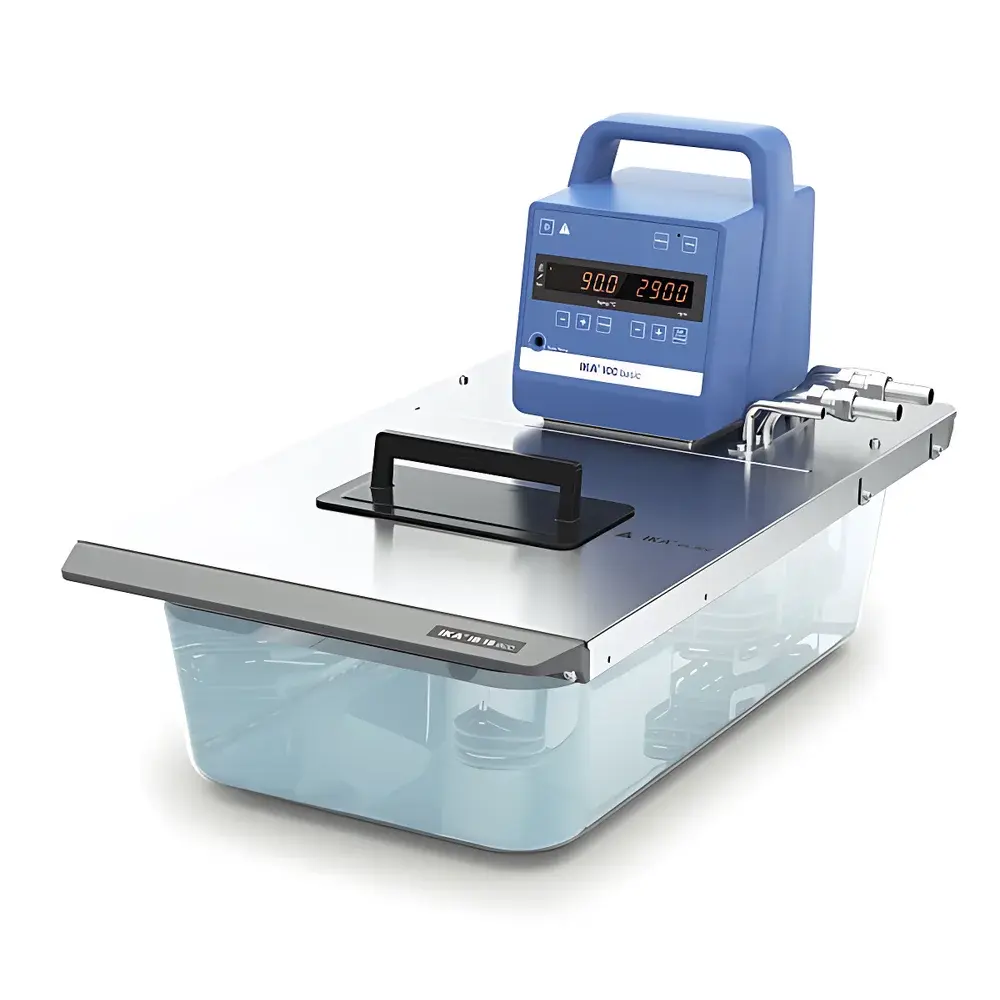

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | ICC basic eco 18 c |
| Instrument Category | Compact Immersion Circulator (DIN 12876 Class III) |
| Bath Volume | 18 L |
| Temperature Range | 10–150 °C |
| Temperature Stability | ±0.02 K |
| Heating Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Pump Flow Rate | up to 18 L/min (0 bar backpressure) |
| Max. Pressure | 0.3 bar |
| Max. Suction Head | 0.2 bar |
| External Sensor Input | Yes |
| Display Resolution | 0.1 K |
| Safety Cut-off Range | 0–160 °C |
| Protection Rating | IP21 |
| Interface | RS232, USB |
| Dimensions (Unit) | 145 × 340 × 200 mm |
| Weight | 3.75 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Model | Matrix Delta Plus |
| Temperature Range | –30 °C to +110 °C |
| Temperature Accuracy | ±1 °C (at setpoint) |
| Temperature Stability | ±0.5 °C |
| Temperature Homogeneity | ±0.5 °C (within block) |
| Heating Rate | 5.5 °C/min (max) |
| Cooling Rate | 2 °C/min (from ambient down to –30 °C) |
| Max Load Capacity | 0.3 kg |
| Timer Range | 1 s – 6000 min |
| Display | TFT LCD |
| Programmable Ramp Rates | Yes |
| Heating Power | 100 W |
| Cooling Power | 72 W |
| Integrated Peltier Cooling | Yes |
| Interchangeable Modules | Up to 10 standard configurations |
| Safety Cut-off | 145 °C |
| Dimensions (W × D × H) | 216 × 127 × 351 mm |
| Net Weight | 9.5 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Ingress Protection | IP21 |
| Interfaces | RS232, USB |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Max Input Power | 230 W |
| Operating Modes | Timer, Continuous, Program |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | RC 2 lite |
| Instrument Type | Circulating Chiller |
| Circulation Mode | Internal & External |
| Temperature Control | Refrigeration & Heating Capable |
| Bath Volume | 1–3.5 L |
| Temperature Range | –10 °C to Ambient (up to +70 °C with external heater) |
| Temperature Stability | ±0.5 K |
| Input Power | 250 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Refrigerant | R290 (Propane), 70 g |
| Max. Cooling Capacity | 400 W @ 20 °C |
| Pump Flow Rate | 18 L/min @ 0 bar |
| Max. Pressure | 0.35 bar (pressure side), 0.15 bar (suction side) |
| Protection Rating | IP21 |
| Compliance | DIN 12876 Class I, DIN EN 60529, CE |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | ICC 150 lite pro 20 |
| Instrument Type | Constant-Temperature Bath Circulator |
| Circulation Mode | Internal & External Circulation |
| Temperature Control | Heating-Only |
| Bath Volume Capacity | 20 L |
| Temperature Range | Ambient to 150 °C |
| Temperature Stability | ±0.05 K |
| Input Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Pump Flow Rate (at 0 bar backpressure) | 15 L/min |
| Max. Pressure (no-flow) | 0.3 bar |
| Max. Suction Pressure (no-flow) | 0.1 bar |
| Minimum Bath Depth | 150 mm |
| Dimensions (W × H × D) | 135 × 303 × 180 mm |
| Weight | 4.7 kg |
| IP Rating | IP21 |
| Safety Compliance | DIN 12876 Class III, DIN EN 60529, Overpressure & Overtemperature Protection |
| Sensor Type | Dual PT1000 (Working + Safety), PID Control |
| Display | LED, Resolution 0.1 K |
| Alarm System | Visual (LED) and Audible |
| Interface | RS232, USB-B |
| Continuous Duty Rating | 100% |
| Operating Ambient | 5–40 °C, ≤80% RH |

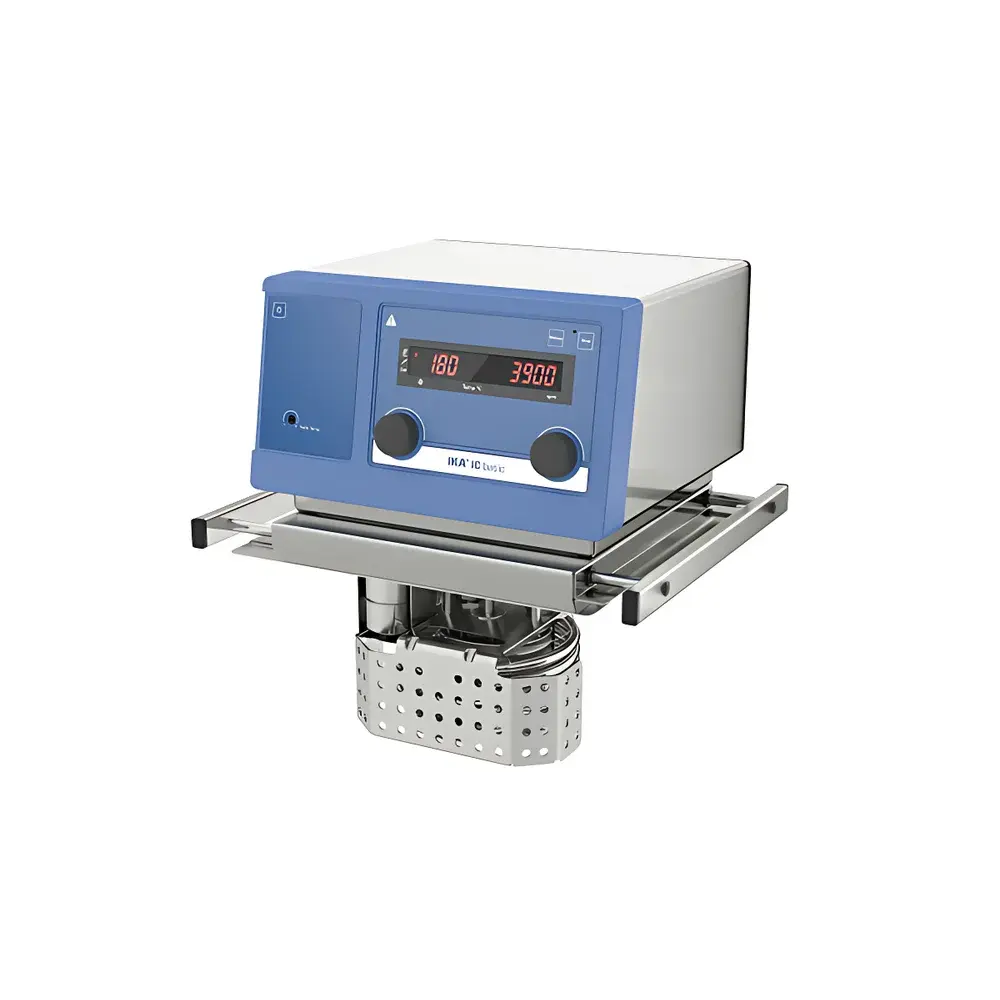

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | IC basic |
| Instrument Type | Water/Oil Bath Circulator |
| Circulation Function | Internal & External Circulation |
| Temperature Control | Heating-Only |
| Temperature Range | 10–200 °C |
| Temperature Stability | ±0.02 K |
| Input Power | 2650 W |
| Supply Voltage | 230 V |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Model | ICC 100 lite eco 18 |
| Instrument Type | Immersion Circulator (Heating-Only) |
| Circulation Mode | Internal Recirculation |
| Bath Volume | 18 L |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±0.05 K |
| Heating Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Dimensions (W × H × D) | 135 × 303 × 180 mm |
| Weight | 4.2 kg |
| Protection Class | IP21 (per DIN EN 60529) |
| Safety Compliance | DIN 12876 Class III, FL-marked |
| Temperature Sensor | Dual PT1000 (working + safety) |
| Control Algorithm | PID |
| Display | LED, 0.1 K resolution |
| Alarm | Visual and audible |
| Adjustable Safety Cut-off | 0–110 °C |
| Minimum Bath Depth | 150 mm |
| Interface | RS232 + USB-B |
| Continuous Operation | 100 % duty cycle |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |

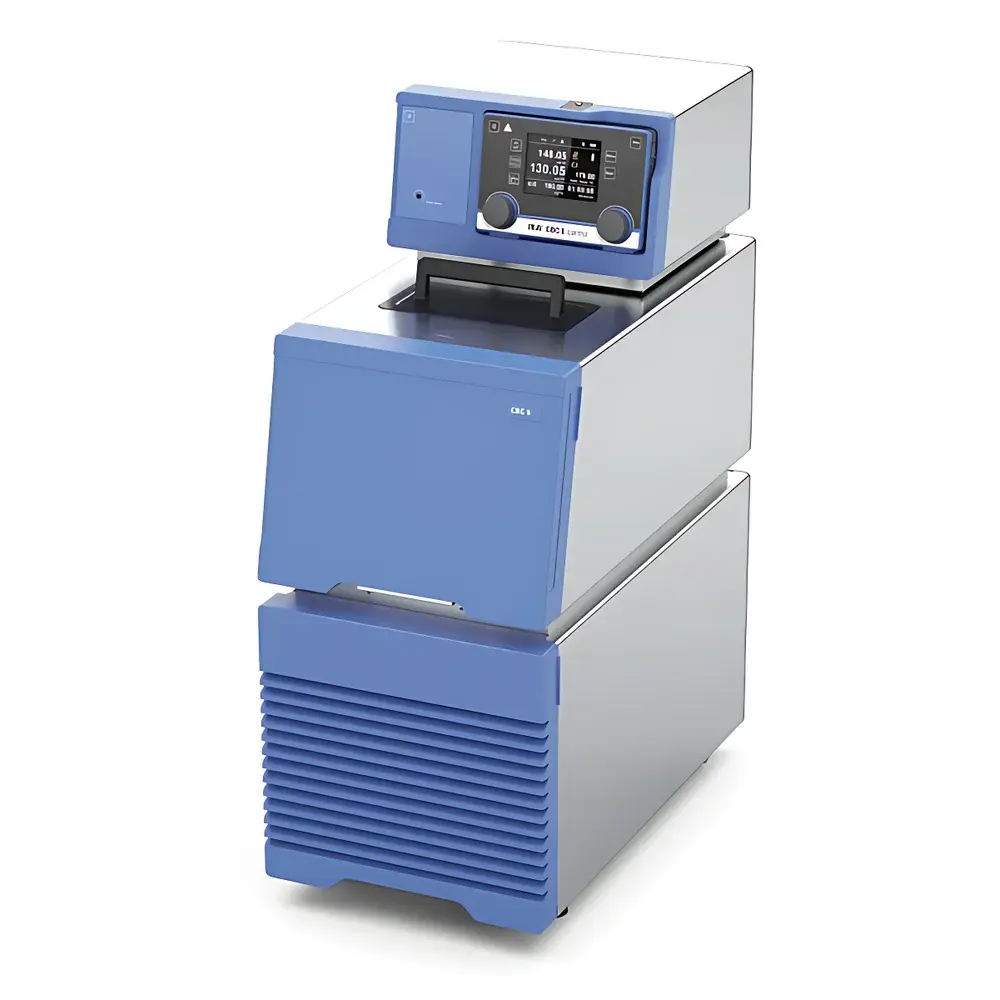

| Type | CBC 5 control |
| Instrument Category | Refrigerated/Heating Circulator (Water/Oil Bath) |
| Circulation Mode | Internal & External |
| Temperature Control | Dual-mode (Cooling & Heating) |
| Bath Volume | 7 L |
| Temperature Range | −25 °C to +200 °C |
| Temperature Stability | ±0.02 °C (@ +70 °C, DIN 12876) |
| Heating Power | 2500 W |
| Cooling Capacity | 400 W (@ 20 °C) |
| Input Power | 3000 W |
| Supply Voltage | 230 V (50/60 Hz) |
| Pump Type | Pressure/Suction Pump |
| Max. Flow Rate | 31 L/min (at 0 bar backpressure) |
| Max. Pressure | 0.61 bar |
| Safety Class | DIN 12876 Class III (FL) |
| Refrigerant | R134a |
| Protection Rating | IP21 |
| Dimensions (W×H×D) | 275 × 690 × 490 mm |
| Weight | 40.0 kg |

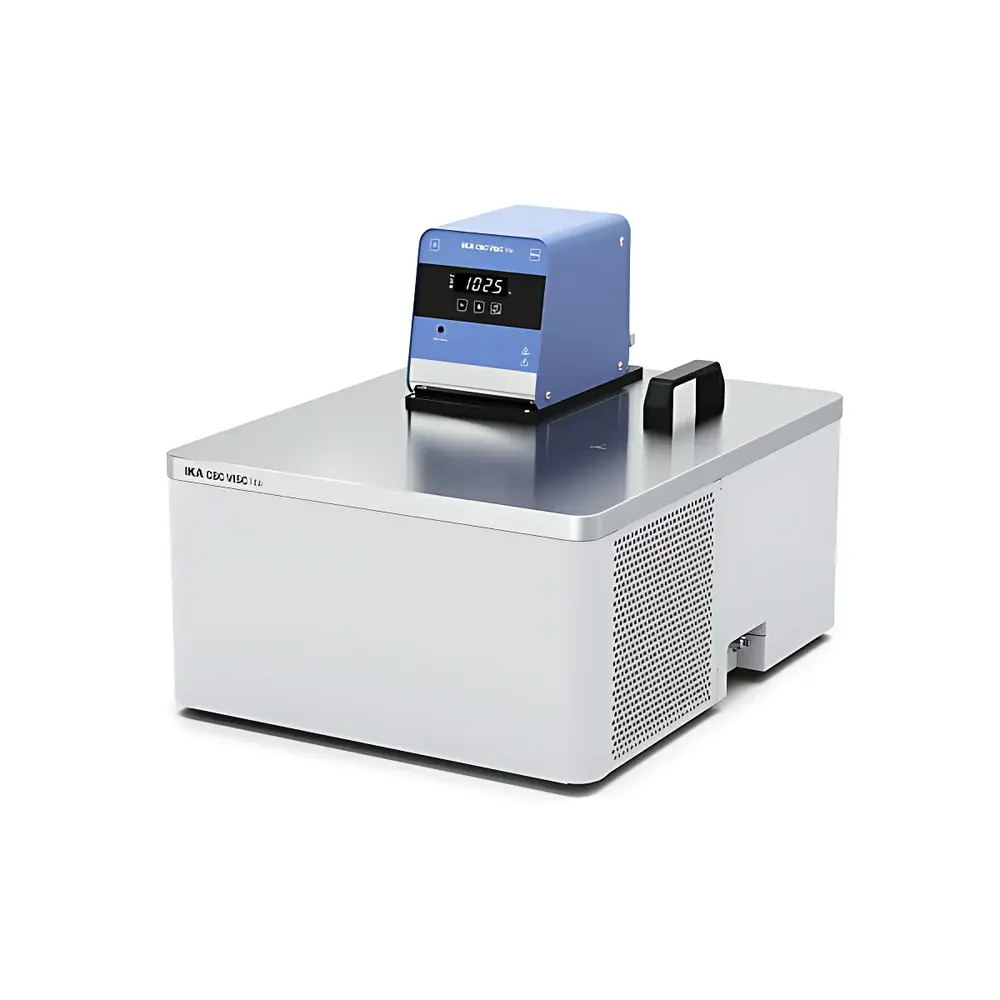

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | CBC VISC lite |
| Instrument Category | Heating and Cooling Circulating Bath |
| Circulation Mode | Internal and External |
| Temperature Control | Dual-mode (Heating & Refrigeration) |
| Bath Volume | 5.5–8.5 L |
| Temperature Range | –25 °C to +125 °C |
| Temperature Stability | ±0.05 K (per DIN 12876, @ +70 °C and @ –10 °C) |
| Heating Power | 2000 W |
| Cooling Capacity | 450 W (@ 20 °C), 420 W (@ 10 °C), 380 W (@ 0 °C), 250 W (@ –10 °C), 120 W (@ –20 °C) |
| Refrigerant | R290 (propane, A3 class) |
| Refrigerant Charge | 48 g |
| Max. Refrigerant Pressure | 21 bar |
| Pump Flow Rate | 18 L/min (at 0 bar backpressure) |
| Max. Pressure Head | 0.35 bar |
| Suction Pressure | 0.15 bar |
| Safety Features | Dual PT1000 temperature sensors (operational + safety cutoff), adjustable safety limit (0–135 °C), secondary overtemperature protection, overpressure protection |
| Compliance | DIN 12876 Class III, DIN EN 60529 IP21, CE marked |
| Interface | RS232 and USB |
| Power Supply | 230 V, 50/60 Hz |
| Input Power | 2320 W |
| Dimensions (W × D × H) | 414 × 392 × 505 mm |
| Weight | 29 kg |
| Ambient Operating Conditions | 5–32 °C, ≤80 % RH |
| Noise Level | 53 dB(A) |
| Continuous Duty Cycle | 100 % |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Imported Laboratory Metal Bath |
| Model | Dry Block Heater 2 |
| Temperature Range | +5 °C to 120 °C |
| Temperature Accuracy | ±0.3 °C (at 37 °C, typical per IKA specification) |
| Heating Time | ≤15 min (to 100 °C, ambient start) |
| Dimensions (W × D × H) | 151 × 73 × 304 mm |
| Net Weight | 1.3 kg |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | ICC 100 lite |
| Instrument Type | Constant-Temperature Bath Circulator |
| Circulation Mode | Internal Recirculation Only |
| Temperature Control | Heating-Only |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±0.05 K (per DIN 12876 at +70 °C) |
| Input Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Dimensions (W × D × H) | 135 × 303 × 180 mm |
| Weight | 4.2 kg |
| Protection Rating | IP21 (per DIN EN 60529) |
| Safety Classification | DIN 12876 Class III, FL-marked |
| Sensor Type | Dual PT1000 (working + safety) |
| Display Resolution | 0.1 K |
| Control Algorithm | PID |
| Alarm System | Visual (LED) and Audible |
| Low-Level Liquid Detection | Yes |
| External Cooling Capability | Down to –25 °C (with external chiller) |
| Calibration Support | Yes |
| Mounting | Standardized clamp fixture |
| Minimum Bath Depth | 150 mm |
| Operating Ambient | 5–40 °C, ≤80 % RH |
| Continuous Duty Cycle | 100 % |
| Interface Options | RS232 and USB |

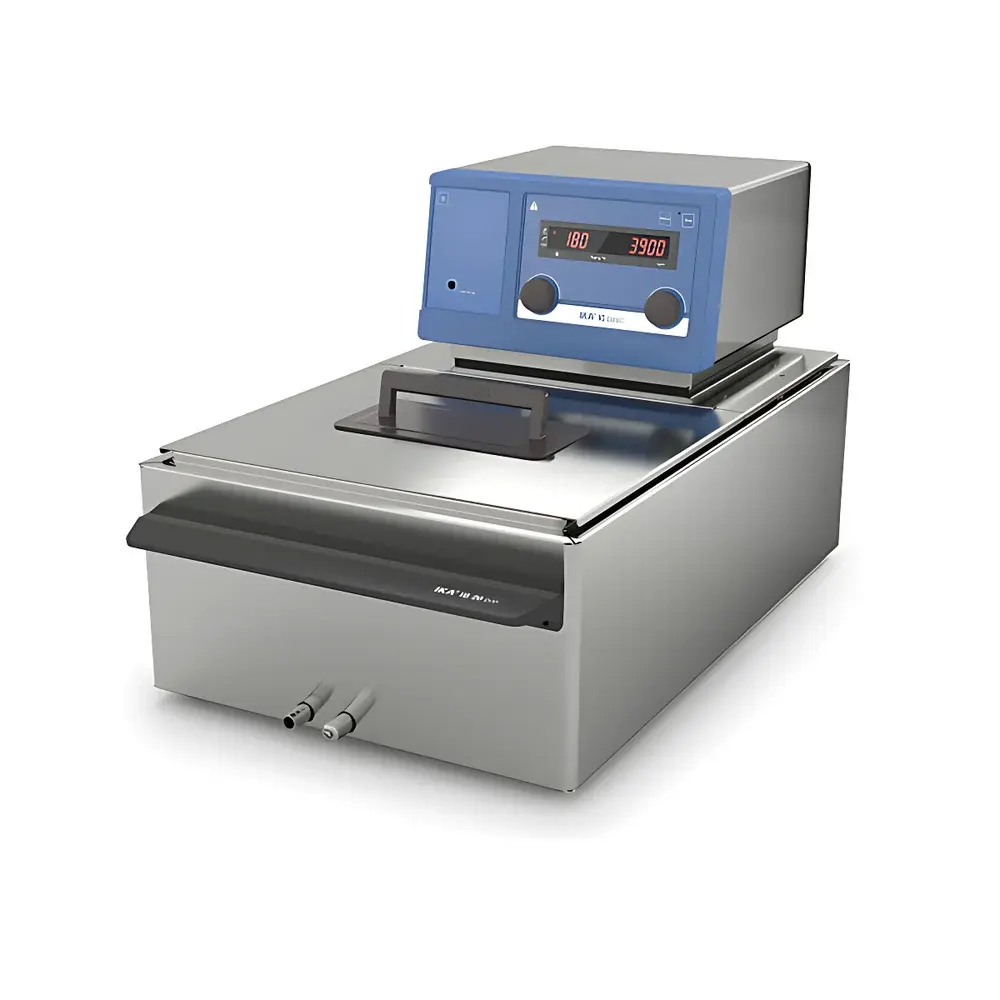

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Immersion Circulator (Heating-Only) |
| Model | IC basic pro 20 c |
| Bath Volume | 3 L |
| Temperature Range | 0–260 °C |
| Temperature Stability | ±0.02 K |
| Heating Power | 2650 W |
| Pump Flow Rate | 31 L/min (at 0 bar backpressure) |
| Max. Pressure | 0.61 bar |
| Max. Suction Pressure | 0.45 bar |
| External Sensor Interface | PT100 compatible |
| Display Resolution | 0.1 K |
| Control Accuracy | ±0.1 K |
| Safety Cut-off Range | 0–260 °C |
| Protection Class | IP21 |
| Input Voltage | 230 V, 50/60 Hz |
| Dimensions (unit only) | 285 × 313 × 291 mm |
| Weight | 10 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Compliance | DIN 12876 Class III, DIN EN 60529, CE, RoHS |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |

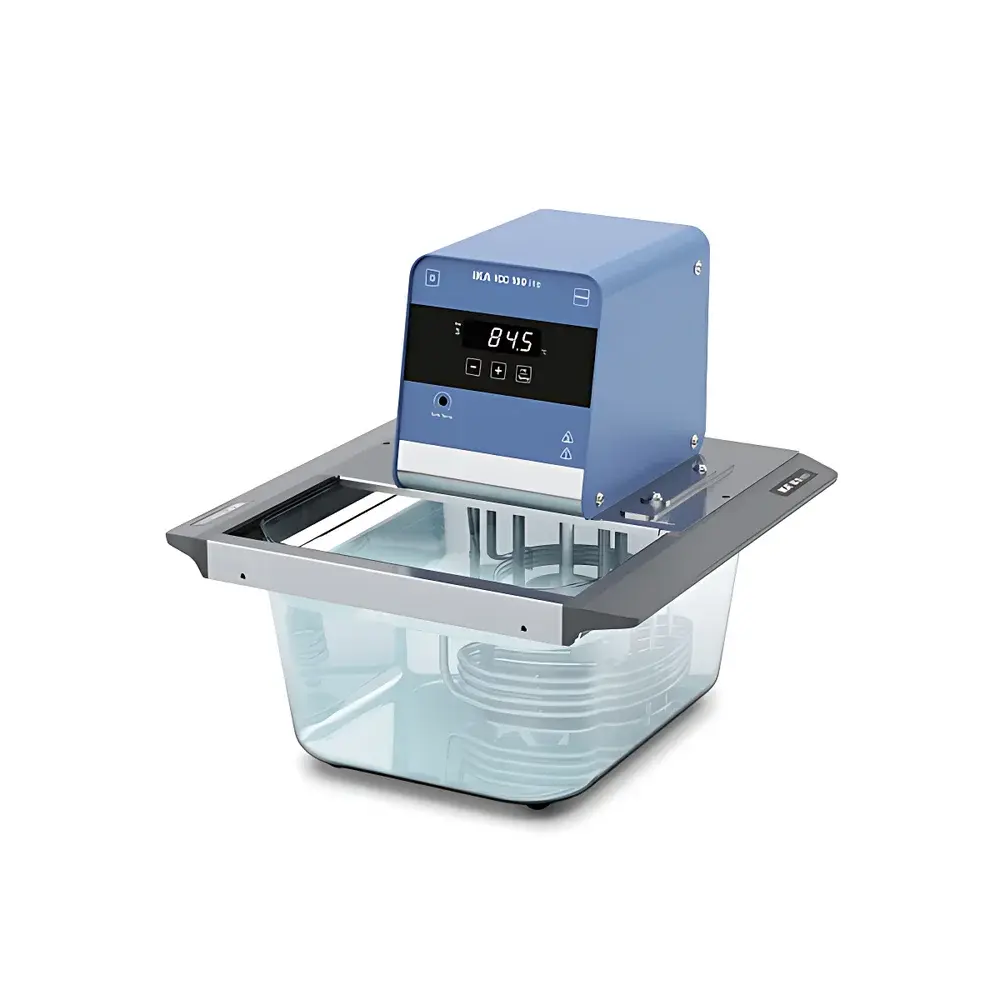

| Model | ICC 100 lite eco 8 |
| Instrument Type | Constant-Temperature Bath Circulator |
| Circulation Mode | Internal Circulation Only |
| Temperature Control | Heating-Only |
| Bath Volume Capacity | 8 L |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±0.05 K |
| Input Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Protection Rating | IP21 |
| Safety Compliance | DIN 12876 Class III, DIN EN 60529 |
| Control Principle | PID with Dual PT1000 Sensors (Working + Safety) |
| Display Resolution | 0.1 K |
| Heating Accuracy | ±0.1 K |
| Max. Bath Depth Requirement | 150 mm |
| Dimensions (W × H × D) | 135 × 303 × 180 mm |
| Weight | 4.2 kg |
| Operating Ambient | 5–40 °C, ≤80% RH |
| Interface | RS232, USB-B |
| Continuous Duty Cycle | 100% |
| Calibration Support | Yes |
| Secondary Safety Protection | Integrated Thermal Cut-off |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Product Type | Forced-convection drying oven |
| Model | Oven 125 control – dry glass |
| Temperature Range | RT +5 to 300 °C |
| Temperature Uniformity | ±0.3 K |
| Interior Dimensions | 550 × 525 × 450 mm |
| Interior Volume | 125 L |
| Chamber Material | Stainless steel (AISI 304) |
| External Dimensions | 700 × 650 × 825 mm |
| Heating Power | 2400 W |
| Safety Circuit Range | 50–320 °C |
| Display | Dual TFT screens |
| Interface | RS232, USB port for data logging to USB stick |
| Shelf Capacity | Up to 6 adjustable shelves (30 kg per shelf) |
| Protection Class | IP20 |
| Power Supply | 220–240 V / 115 V / 100 V, 50/60 Hz |
| Standby Power | 2 W |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |

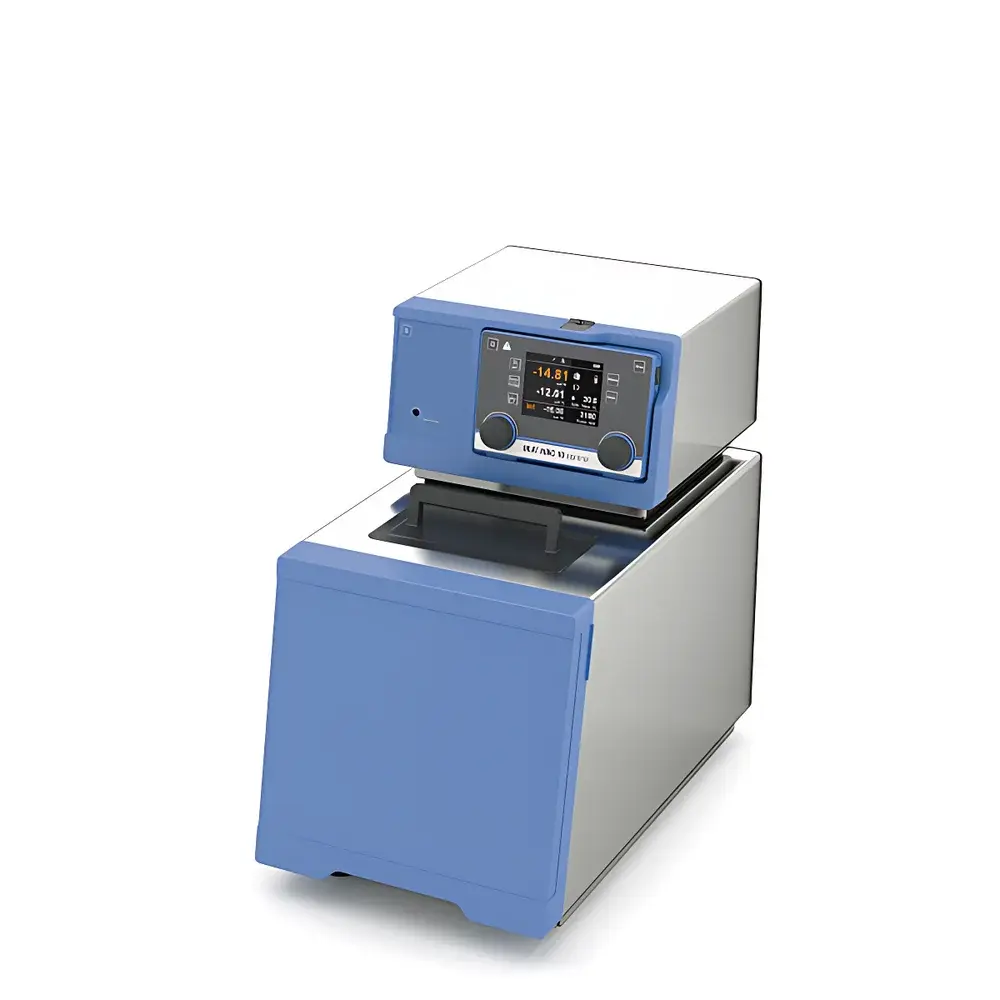

| Model | HBC 10 control |
| Instrument Type | Water/Oil Bath Circulator |
| Circulation Mode | Internal & External |
| Temperature Control | Heating-Only |
| Bath Volume | 8–11 L |
| Temperature Range | 10–200 °C |
| Temperature Stability | ±0.01 K |
| Input Power | 2650 W |
| Supply Voltage | 230 V |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | ICC control IB R RO 15 eco |
| Instrument Type | Constant-Temperature Bath Circulator |
| Circulation Mode | Internal & External |
| Bath Volume | 18 L |
| Temperature Range | Ambient +10 °C to 150 °C |
| Temperature Stability | ±0.01 °C |
| Input Power | 2100 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Pump Flow Rate | Up to 18 L/min (at 0 bar backpressure) |
| Max. Pressure Output | 0.3 bar |
| Max. Suction Pressure | 0.2 bar |
| Bath Opening Dimensions | 317 × 492 mm |
| Immersion Depth Range | 35–75 mm |
| Max. Bath Material Temp (eco-series plastic tank) | 100 °C (water only) |
| Sensor Type | PT100 (working), PT1000 (safety), with external PT100 interface |
| Display | TFT screen, 0.1 K resolution |
| Safety Features | Adjustable overtemperature cutoff (0–160 °C), secondary thermal protection, overvoltage protection, visual & audible alarms |
| Compliance | DIN 12876 Class III, DIN EN 60529 IP21, CE-marked |
| Interface | RS232, USB |
| Continuous Duty Rating | 100% |
| Dimensions (W×D×H) | 340 × 200 × 145 mm |
| Weight | 3.75 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Calibration Capability | Yes |
| Mounting | Integrated clamp system |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | CBC 5 basic |
| Instrument Category | Circulating Bath (Water/Oil) |
| Circulation Mode | Internal & External |
| Temperature Control | Refrigeration & Heating |
| Bath Volume | 7 L |
| Temperature Range | −25 °C to +200 °C |
| Temperature Stability | ±0.02 °C (@ +70 °C, DIN 12876) |
| Input Power | 3000 W |
| Supply Voltage | 230 V AC, 50/60 Hz |
| Cooling Capacity | 400 W (@ 20 °C) |
| Heating Power | 2500 W |
| Pump Flow Rate | up to 31 L/min (0 bar backpressure) |
| Max. Pressure | 0.61 bar |
| Safety Class | DIN 12876 Class III (FL) |
| Refrigerant | R134a |
| Net Weight | 39.5 kg |
| Dimensions (W × D × H) | 275 × 690 × 490 mm |
| Protection Rating | IP21 |
| Interface | RS232 & USB |
| External Sensor Support | PT100 input |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |

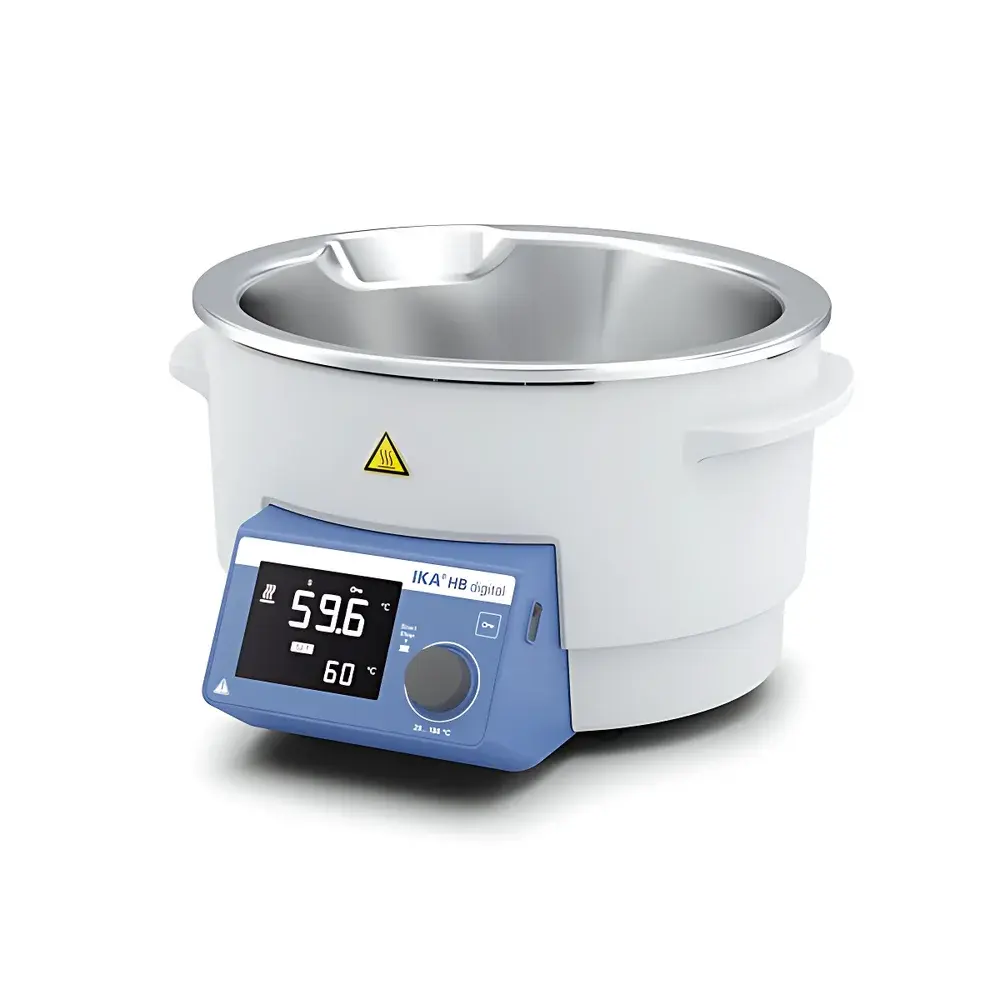

| Model | HB digital |
| Price | ¥15,300 |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |

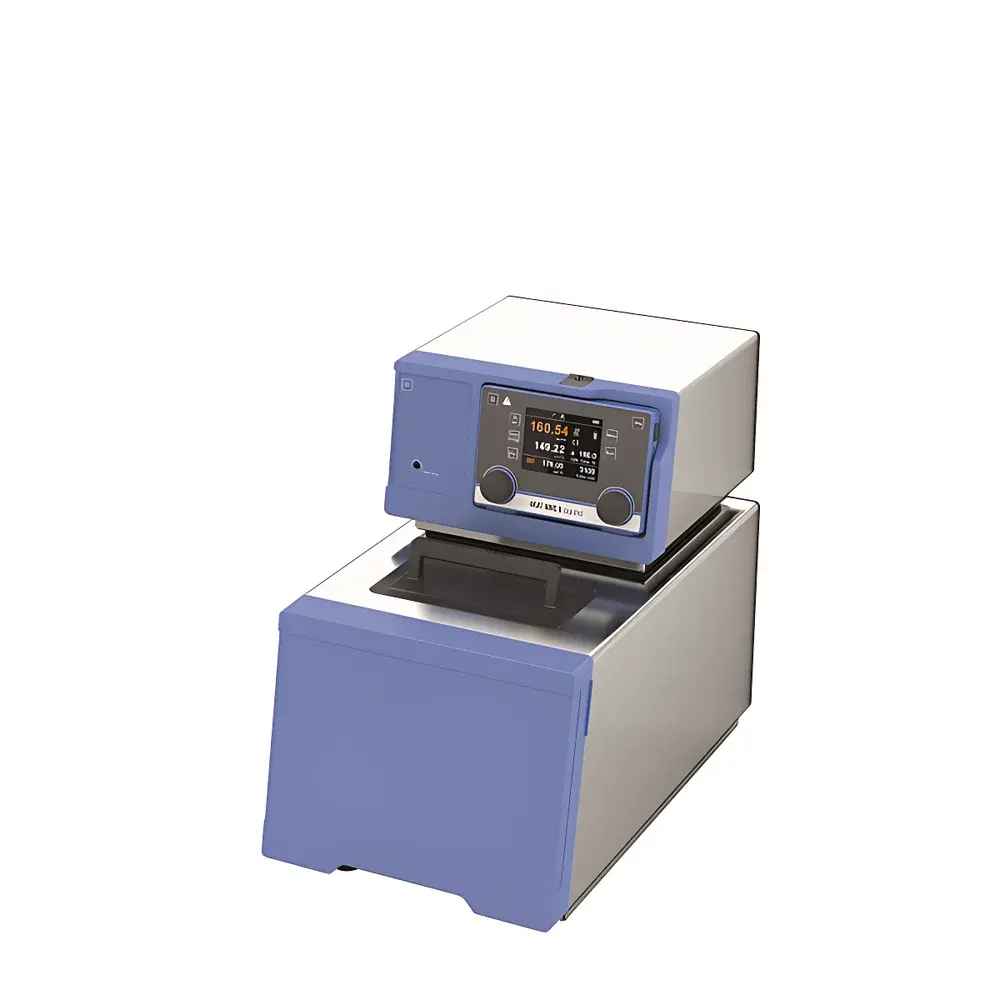

| Model | HBC 5 control |
| Instrument Type | Water/Oil Bath Circulator |
| Circulation Mode | Internal & External |
| Temperature Control | Heating-Only |
| Bath Volume | 4.5–6.5 L |
| Temperature Range | 10–250 °C |
| Temperature Stability | ±0.01 K |
| Input Power | 2650 W |
| Supply Voltage | 230 V |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Compact Immersion Circulator |
| Model | ICC control eco 18 c |
| Bath Volume | 18 L |
| Temperature Range | Ambient +10 °C to 150 °C |
| Temperature Stability | ±0.01 °C |
| Heating Power | 2100 W |
| Input Voltage | 230 V AC, 50/60 Hz |
| External Circulation | Yes |
| Internal Circulation | Yes |
| Heating-Only Operation | Yes |
| Pump Flow Rate (adjustable) | Up to 18 L/min at 0 bar pressure |
| Max. Pump Pressure | 0.3 bar (at zero flow) |
| Bath Opening Dimensions | 245 × 305 mm (max. 286 × 325 mm) |
| Immersion Depth Range | 85–125 mm |
| IP Rating | IP21 |
| Compliance | DIN 12876 Class III, DIN EN 60529, CE |
| Interfaces | RS232, USB |
| Safety Features | Dual PT100/PT1000 temperature sensors, adjustable safety cutoff (0–160 °C), visual & audible alarms, overpressure protection, secondary thermal protection |
| Calibration Support | Yes |
| Continuous Duty Cycle | 100% |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Weight | 3.75 kg |
| Dimensions (unit only) | 145 × 340 × 200 mm |
| Overall System Footprint (with bath) | 338 × 584 × 349 mm |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Type | Heating and Cooling Circulating Bath |

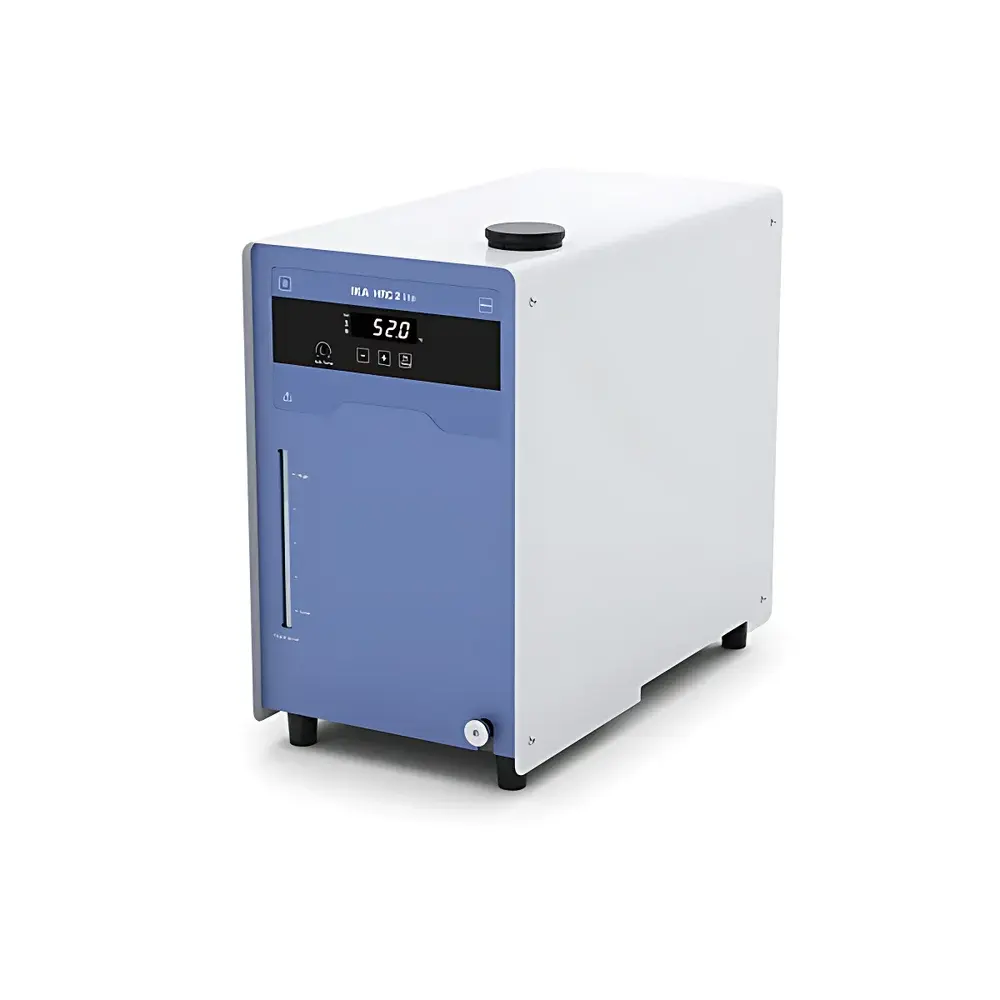

| Model | HRC 2 lite |
| Bath Volume | 3.5 L |
| Temperature Range | –10 to 100 °C |
| Temperature Stability | ±0.1 K (per DIN 12876, at +70 °C and –10 °C) |
| Pump Type | Pressure/Suction Circulation Pump |
| Max. Pump Pressure | 0.35 bar |
| Max. Flow Rate | 18 L/min (at 0 bar backpressure) |
| Heating Power | 1000 W |
| Cooling Capacity | 400 W (@ 20 °C), 350 W (@ 10 °C), 250 W (@ 0 °C), 100 W (@ –10 °C) |
| Refrigerant | R290 (propane, natural hydrocarbon) |
| Refrigerant Charge | 72 g |
| Max. Refrigerant Pressure | 21 bar |
| Control Sensor | PT1000 (dual: operational + safety) |
| Temperature Display | LED, resolution 0.1 K |
| Safety Features | Adjustable overtemperature/undertemperature cutoff (0–110 °C), visual & audible alarms |
| Compliant with | DIN 12876 Class II, DIN EN 60529 IP21, CE, RoHS |
| Power Supply | 230 V, 50/60 Hz |
| Input Power | 1250 W |
| Noise Level | 51 dB(A) |
| Dimensions (W×D×H) | 225 × 385 × 430 mm |
| Weight | 24.9 kg |
| Ambient Operating Conditions | 5–32 °C, ≤80 % RH |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |

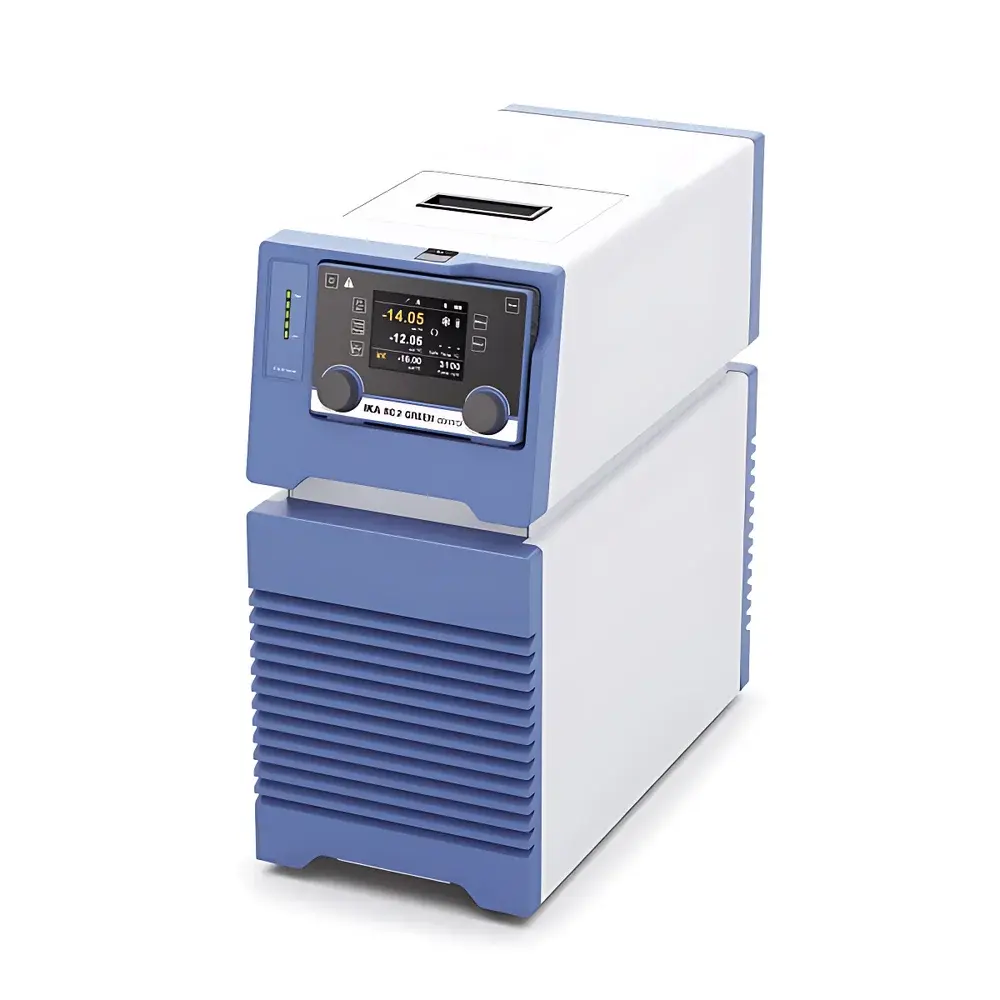

| Type | RC 2 green control |
| Instrument Category | Circulating Chiller/Heater |
| Circulation Mode | Internal & External |
| Temperature Control | Refrigeration & Heating |
| Bath Volume | 4 L |
| Temperature Range | −30 °C to Room Temperature (up to 70 °C with optional heater module) |
| Temperature Stability | ±0.15 K (DIN 12876, @ −10 °C) |
| Refrigerant | R290 (propane, A3 class, low-GWP) |
| Cooling Power | 800 W (@ 20 °C), 90 W (@ −30 °C) |
| Pump | Speed-controlled PEEK diaphragm pump, max. pressure 0.5 bar, max. flow 21 L/min |
| Interface | RS232 & USB |
| Wireless Controller (WiCo) | 10 programmable protocols, up to 10 segments each |
| External PT100 Input | LEMO connector |
| Calibration | 3-point internal & external sensor calibration |
| Protection Rating | IP21 |
| Dimensions (W×D×H) | 220 × 475 × 525 mm |
| Weight | 26.5 kg |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Product Type | Immersion Circulator (DIN 12876 Class III, FL-rated) |

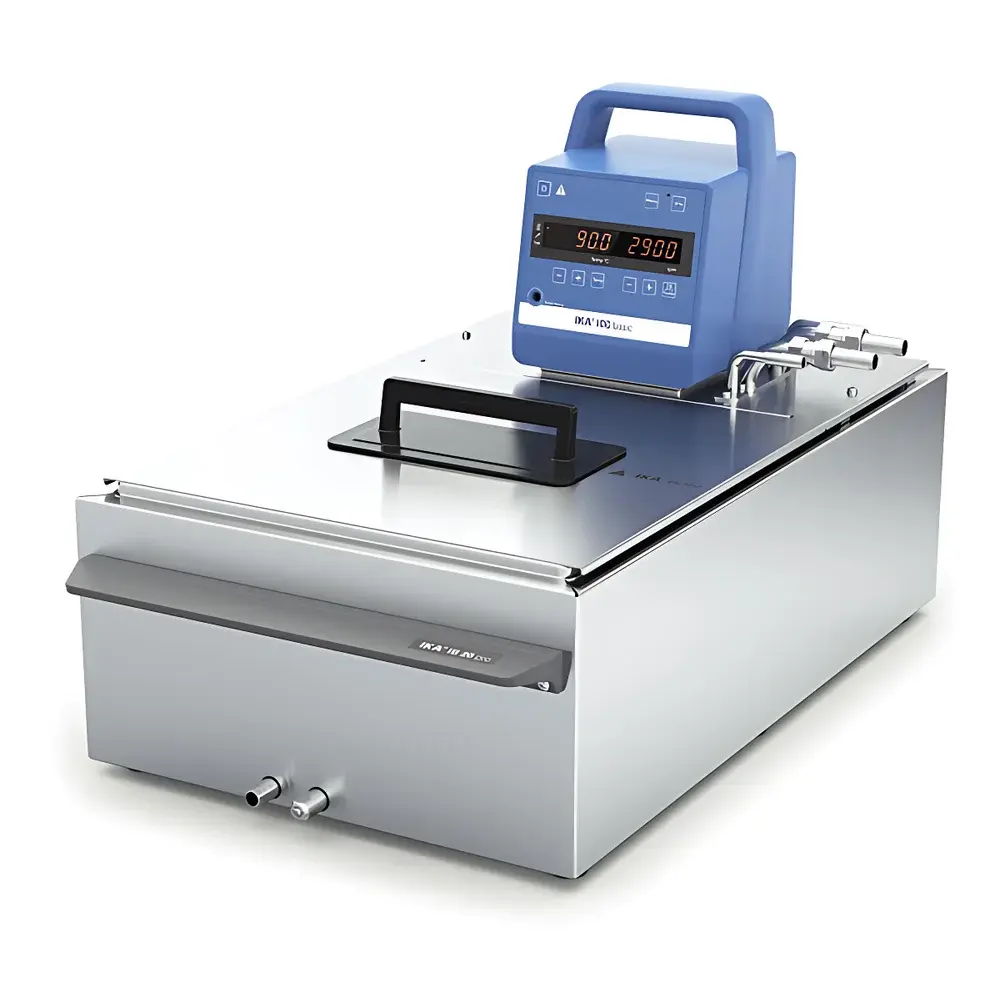

| Model | ICC basic pro 20 c |
| Bath Volume | 20 L |
| Temperature Range | RT + 10 °C to 150 °C (with external cooling: down to –20 °C) |
| Temperature Stability | ±0.02 K |
| Heating Power | 2000 W |
| Total Input Power | 2100 W |
| Pump Flow Rate (adjustable) | up to 18 L/min at 0 bar backpressure |
| Max. Pressure | 0.3 bar (at zero flow) |
| Suction Pressure | 0.2 bar (at zero flow) |
| Temperature Sensor | PT100 (working), PT1000 (safety) |
| Display Resolution | 0.1 K |
| Safety Features | Adjustable overtemperature cutoff (0–160 °C), dual-level protection, overvoltage protection, visual & audible alarms |
| Communication Interfaces | RS232, USB |
| Protection Rating | IP21 |
| Dimensions (unit only) | 145 × 340 × 200 mm |
| Weight | 18.18 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Compliance | DIN 12876, DIN EN 60529, CE |
Show next
