| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Model | A10 Basic |
| Instrument Type | Batch Grinder |
| Sample Type | Soft, brittle, fibrous, and elastic materials |
| Maximum Feed Size | < 6 mm |
| Final Particle Size | < 40 µm (typical), down to ≤10 µm under optimized conditions |
| Batch Capacity | Up to 50 mL |
| Grinding Mechanism | High-speed shear and impact |
| Motor Output Power | 240 W |
| Input Power | 300 W |
| Max. Speed | 25,000 rpm (±500 rpm) |
| Peripheral Speed | 73 m/s |
| Grinding Chamber Material | Stainless Steel 1.4301 |
| Cutting Tool Material | Stainless Steel 1.4034 |
| Cooling Options | Integrated water-cooling jacket + optional dry-ice cooling |
| Duty Cycle | 5 min ON / 10 min OFF |
| Dimensions (W × H × D) | 130 × 250 × 145 mm |
| Weight | 3.13 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80 % RH |
| Protection Class | IP41 (DIN EN 60529) |
| Electrical Supply | 220–240 V, 50/60 Hz |
| Compliance | CE, RoHS, IEC 61000-6-3/-4 |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Benchtop Microfine Grinder |
| Model | MF 10 basic |
| Input Power | 1000 W |
| Output Power | 500 W |
| Speed Range | 3000–6500 rpm |
| Max. Feed Size | <15 mm |
| Final Particle Size | 0.01–0.5 mm (typical output ≤0.25 mm with appropriate sieve) |
| Continuous Operation Time | up to 120 min |
| Cooling | Optional dry ice cooling in grinding chamber |
| Dimensions (W×D×H) | 320 × 380 × 300 mm |
| Weight | 9.7 kg |
| Ambient Operating Temperature | 5–40 °C |
| Relative Humidity Limit | ≤80 % RH |
| Protection Class | IP22 (DIN EN 60529) |
| Voltage/Frequency | 230 V / 50 Hz or 115 V / 60 Hz |
| Grinding Principle | High-speed shear and impact |
| Material Contact Parts | Stainless steel (AISI 304) |
| Sieve & Grinding Head | Sold separately |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | Batch-Processing Tube Mill Grinder |
| Model | Tube Mill 100 control |
| Sample Type | Soft to moderately hard, brittle, dry materials (max. 5 Mohs hardness) |
| Max. Feed Size | 10 mm |
| Final Particle Size | <10 µm (down to 0.01 mm) |
| Batch Volume | Up to 100 mL (MT 100 cup) |
| Operating Speed Range | 5,000–25,000 rpm (±2% deviation) |
| Motor Output Power | 80 W |
| Max. Peripheral Speed | 65 m/s |
| Cooling | Optional dry ice cooling in grinding chamber |
| Display | Multilingual OLED with error code logging |
| Control Interface | Touch keypad + USB port for parameter export and firmware updates |
| Safety | Interlocked lid switch (operation only when closed), IP30 rating per DIN EN 60529 |
| Dimensions (W×D×H) | 180 × 212 × 300 mm |
| Weight | 2.8 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Voltage/Frequency | 100–240 V, 50/60 Hz |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | Tube Mill control |
| Instrument Type | Grinder |
| Sample Applicability | Hard Samples |
| Output Particle Size | 0.01–0.5 mm |
| Feed Particle Size | <10 mm |
| Final Output Particle Size | <100 µm |
| Batch Capacity | 40 mL |
| Grinding Media | Included Grinding Media |

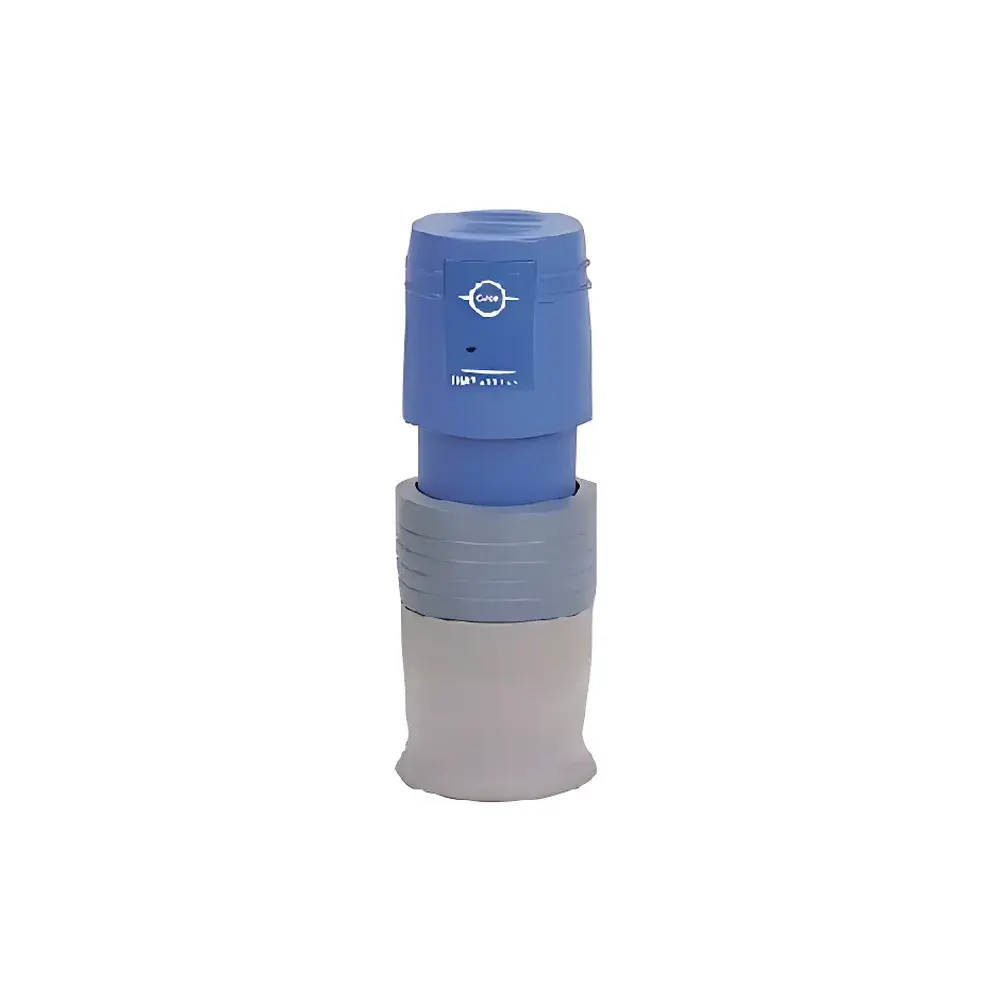

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | A 11 basic Analytical Mill |
| Instrument Type | Analytical Grinder |
| Sample Applicability | Hard and brittle materials (up to 6 Mohs hardness) |
| Feed Particle Size | ≤ 10 mm |
| Output Particle Size | 1–100 µm |
| Final Fineness | < 0.01 mm |
| Batch Volume | 80 mL (standard), optional 250 mL |
| Grinding Mechanism | Impact and shear |
| Motor Input Power | 160 W |
| Motor Output Power | 100 W |
| Max. Speed | 28,000 rpm |
| Max. Peripheral Speed | 53 m/s |
| Grinding Chamber Material | Stainless steel 1.4571 (AISI 316L) and Tefcel® (ETFE reinforced with glass fiber) |
| Cooling Options | Dry ice or liquid nitrogen compatible |
| Duty Cycle | 1 min ON / 10 min OFF |
| Dimensions (W × H × D) | 85 × 240 × 85 mm |
| Weight | 1.5 kg |
| Ambient Temperature Range | 5–40 °C |
| Relative Humidity Limit | ≤ 80 % |
| Protection Class | IP 43 |
| Voltage | 220–240 V / 100–115 V |
| Frequency | 50/60 Hz |

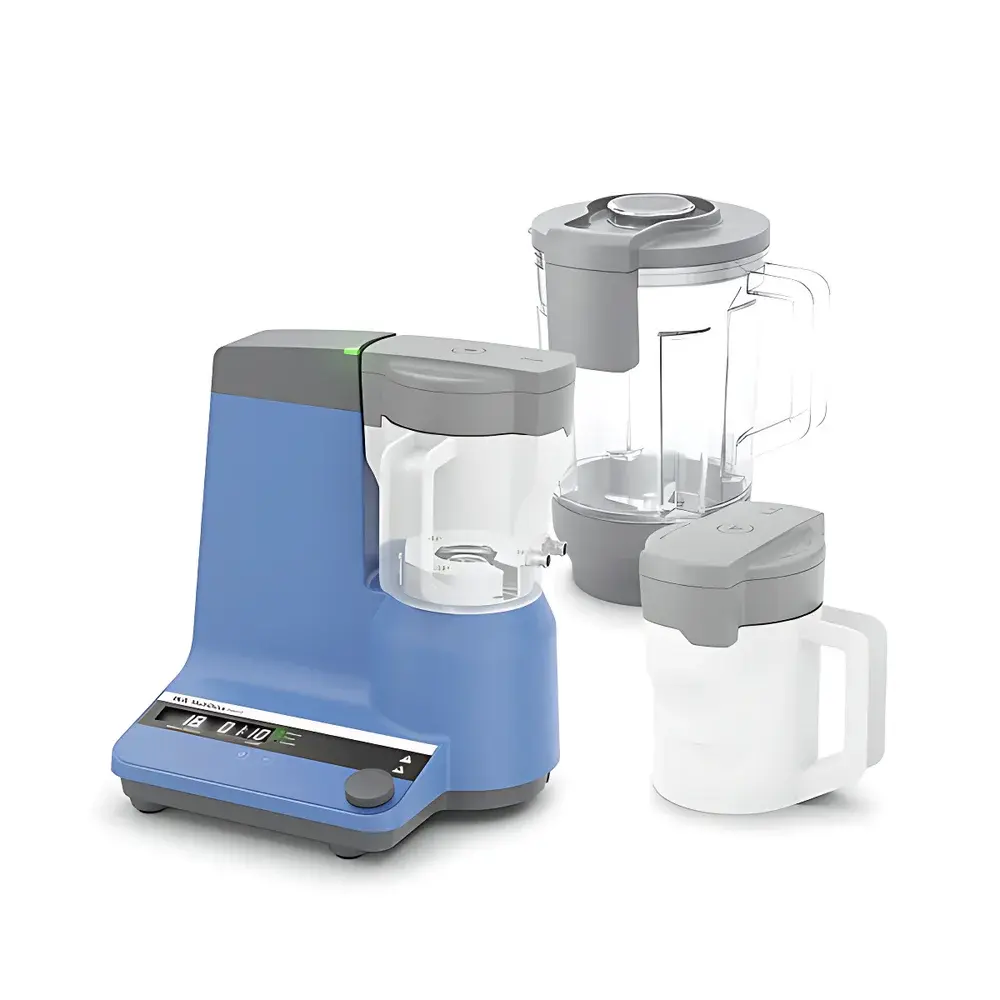

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Model | MultiDrive Basic |
| Type | High-Speed Rotational Grinder |
| Sample Suitability | Hard, brittle, fibrous, and soft materials |
| Max. Feed Size | < 7 mm |
| Final Particle Size | ≤ 0.01 mm (10 µm) |
| Batch Capacity | 2000 mL |
| Drive Power | 1000 W (input), 800 W (output) |
| Speed Range | 3,000 – 20,000 rpm |
| Speed Accuracy | ±5% |
| Cooling | Integrated water-jacketed grinding chamber (dry-ice compatible) |
| Grinding Chamber Material | Stainless steel 1.4301 |
| Cutting Tools | Stainless steel 1.4034 |
| Duty Cycle | 5 min ON / 10 min OFF |
| Dimensions (W × D × H) | 300 × 450 × 250 mm |
| Weight | 8.5 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Protection Class | IP31 (DIN EN 60529) |
| Electrical Supply | 230 V / 50–60 Hz (also compatible with 100–120 V variants) |
| USB Interface | Yes (for parameter export and documentation) |

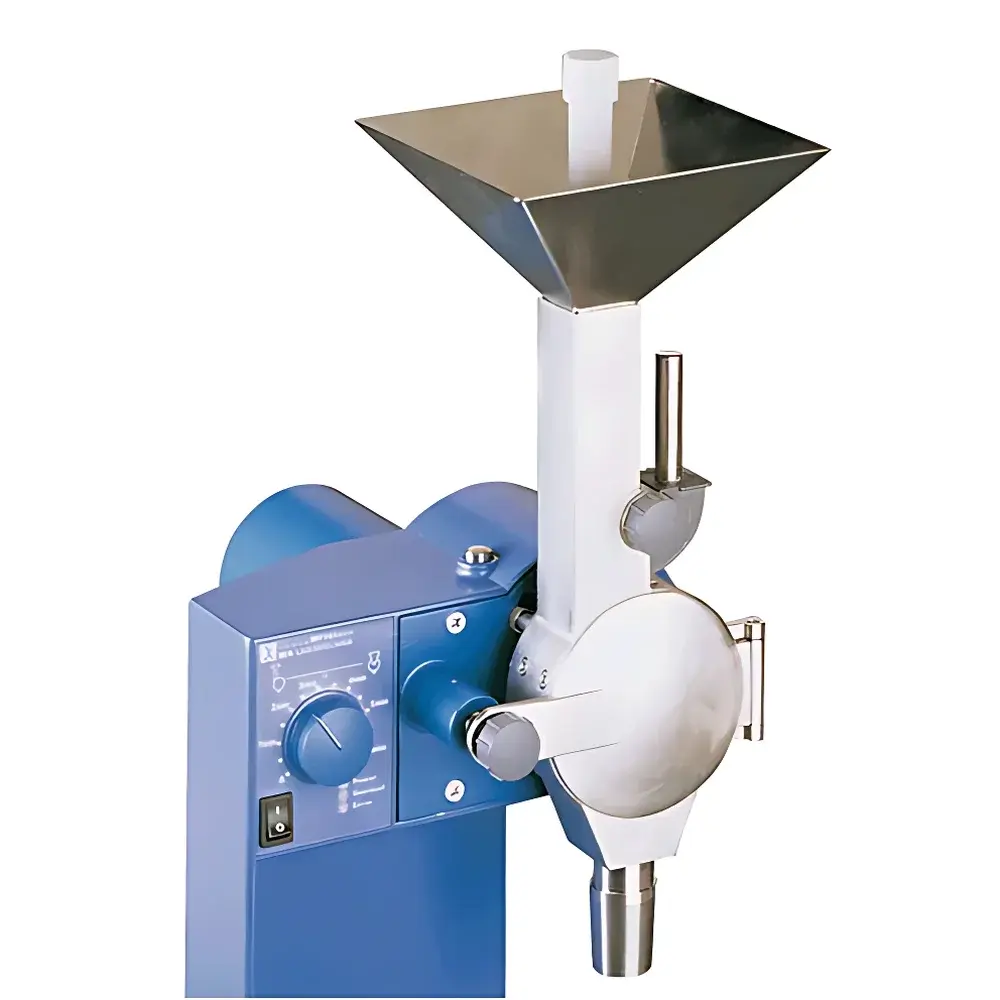

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | MF 10.1 Cutting-Grinding Head |
| Instrument Type | Laboratory Grinder |
| Sample Applicability | Rigid, fibrous, and low-density materials (e.g., paper, vegetables, plastics) |
| Feed Particle Size | <15 mm |
| Discharge Particle Size | 0.01–0.5 mm (adjustable via interchangeable sieves) |
| Final Output Particle Size | <0.25 mm |
| Grinding Chamber Material | Stainless Steel 1.4308 (AISI 304 equivalent) |
| Maximum Peripheral Speed | 24.5 m/s |
| Cooling Option | Dry ice cooling compatible in grinding chamber |
| Dimensions (W×H×D) | 320 × 560 × 300 mm |
| Weight | 2.633 kg |

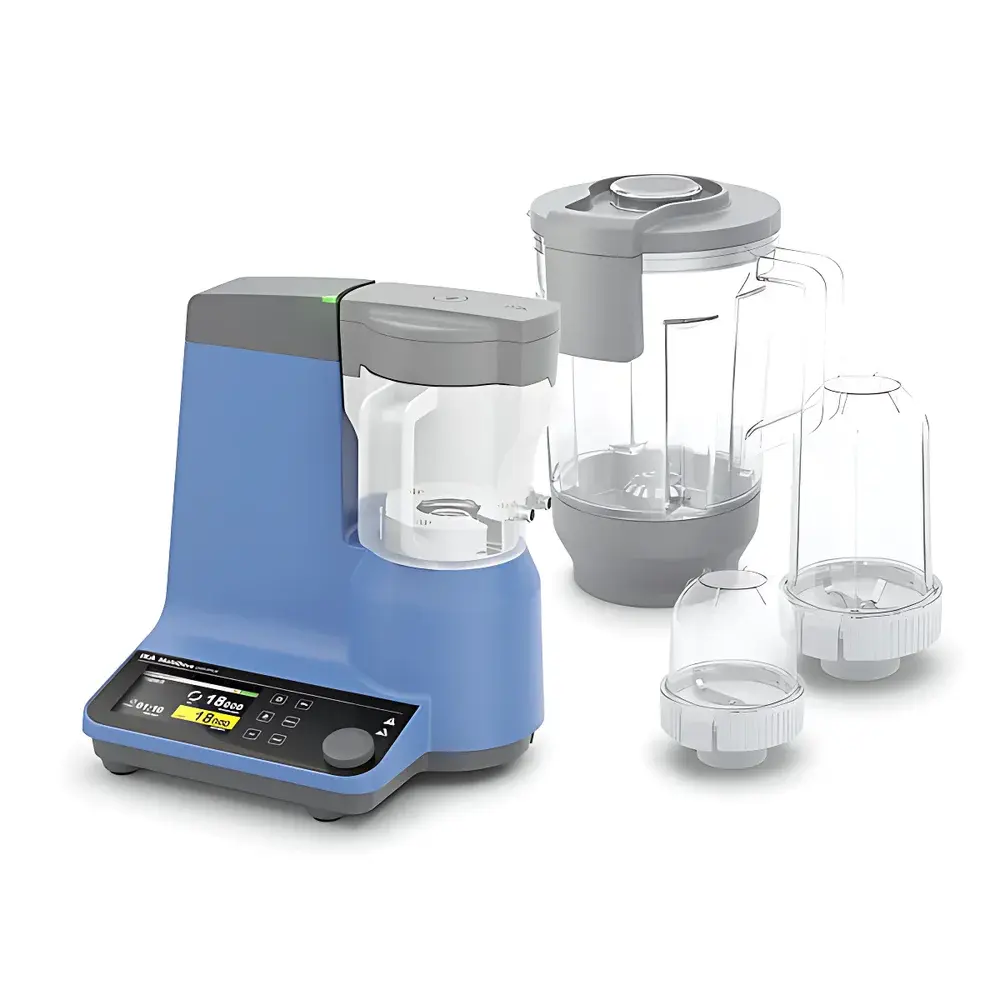

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | Benchtop Grinder |
| Model | MultiDrive Control |
| Speed Range | 3,000–20,000 rpm |
| Motor Output Power | 800 W |
| Max. Batch Volume | 2,000 mL |
| Max. Feed Particle Size | <7 mm |
| Final Particle Size | <0.01 mm |
| Grinding Principle | Shear and Impact |
| Cooling | Integrated Jacketed Grinding Chamber (Water or Dry Ice Compatible) |
| Temperature Monitoring | Yes (with RFID Cup Recognition) |
| Built-in Weighing Function | Yes |
| Display | TFT Touchscreen |
| Connectivity | USB + Bluetooth |
| Protection Rating | IP31 |
| Dimensions (W×D×H) | 300 × 450 × 250 mm |
| Weight | 8.5 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Compliance | DIN EN 60529, CE, RoHS |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | M 20 Universal Mill |
| Instrument Type | Grinder |
| Sample Applicability | Hard, brittle materials |
| Feed Particle Size | < 7 mm |
| Output Particle Size | 1–80 µm |
| Batch Grinding Capacity | 250 mL |
| Grinding Media | Stainless steel cutting head (1.4034) and grinding chamber (1.4301) |
| Motor Input Power | 450 W |
| Motor Output Power | 225 W |
| Max. Speed | 20,000 rpm |
| Max. Peripheral Speed | 72 m/s |
| Max. Feed Hardness | 5 Mohs |
| Operating Cycle | 7 min ON / 10 min OFF |
| Cooling | Water-jacketed chamber (external coolant connection) or dry ice cooling |
| Dimensions (W × H × D) | 170 × 350 × 170 mm |
| Weight | 6.6 kg |
| Ambient Temperature Range | 5–40 °C |
| Relative Humidity Limit | ≤ 80 % |
| Protection Class | IP 21 (DIN EN 60529) |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Total Input Power | 550 W |

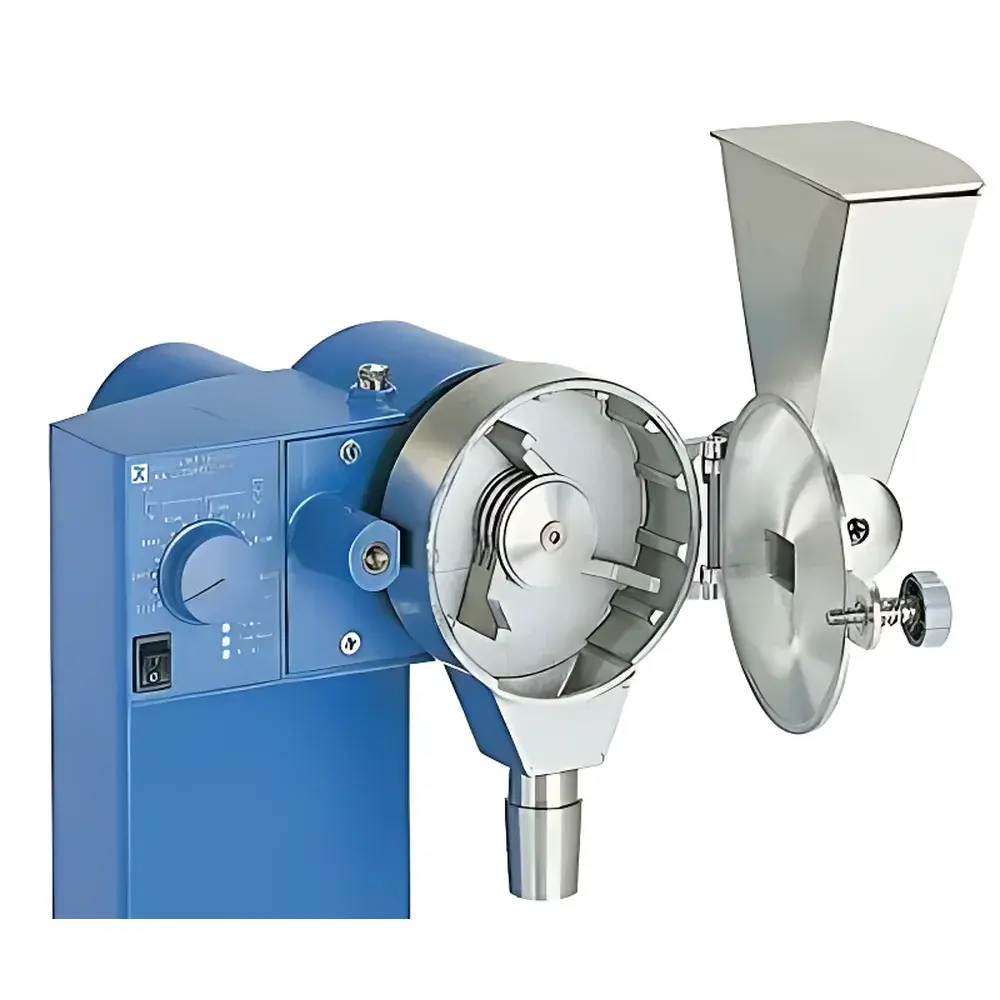

| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Type | Impact Grinding Head for Laboratory Milling Systems |
| Model | MF 10.2 |
| Application | Dry grinding of brittle, hard materials (e.g., minerals, construction aggregates) |
| Max. Feed Hardness | 6 Mohs |
| Max. Feed Size | <10 mm |
| Output Particle Size Range | 0.01–0.5 mm (screen-dependent) |
| Typical Final Output Size | <0.25 mm (with standard 0.25 mm sieve) |
| Grinding Chamber Material | Stainless Steel 1.4308 (AISI 304 equivalent) |
| Max. Peripheral Speed | 34 m/s |
| Cooling Option | Dry ice cooling compatible |
| Dimensions (W × D × H) | 320 × 450 × 300 mm |
| Weight | 2.942 kg |
| Compliance | CE-marked, designed per EN 61000-6-2/6-4 and EN 60204-1 |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Batch Grinder |
| Model | A 10 basic |
| Sample Type | Hard, brittle, soft, and fibrous materials |
| Feed Particle Size | ≤ 6 mm |
| Output Particle Size | 125–250 µm |
| Maximum Batch Volume | 50 mL |
| Grinding Mechanism | Shear and impact |
| Motor Input Power | 300 W |
| Motor Output Power | 240 W |
| Max. Speed | 25,000 rpm ±500 rpm |
| Peripheral Speed | 73 m/s |
| Max. Feed Hardness | 5 Mohs |
| Grinding Chamber Material | Stainless steel 1.4301 |
| Cutting/Impact Tool Material | Stainless steel 1.4034 |
| Cooling Options | Water-cooled chamber, dry ice cooling, liquid nitrogen cooling |
| Duty Cycle | 5 min ON / 10 min OFF |
| Dimensions (W × H × D) | 130 × 250 × 145 mm |
| Weight | 2.9 kg |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| Protection Rating | IP 41 |
| Electrical Supply | 220–240 V, 50/60 Hz |
| Interface | None |
