| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |

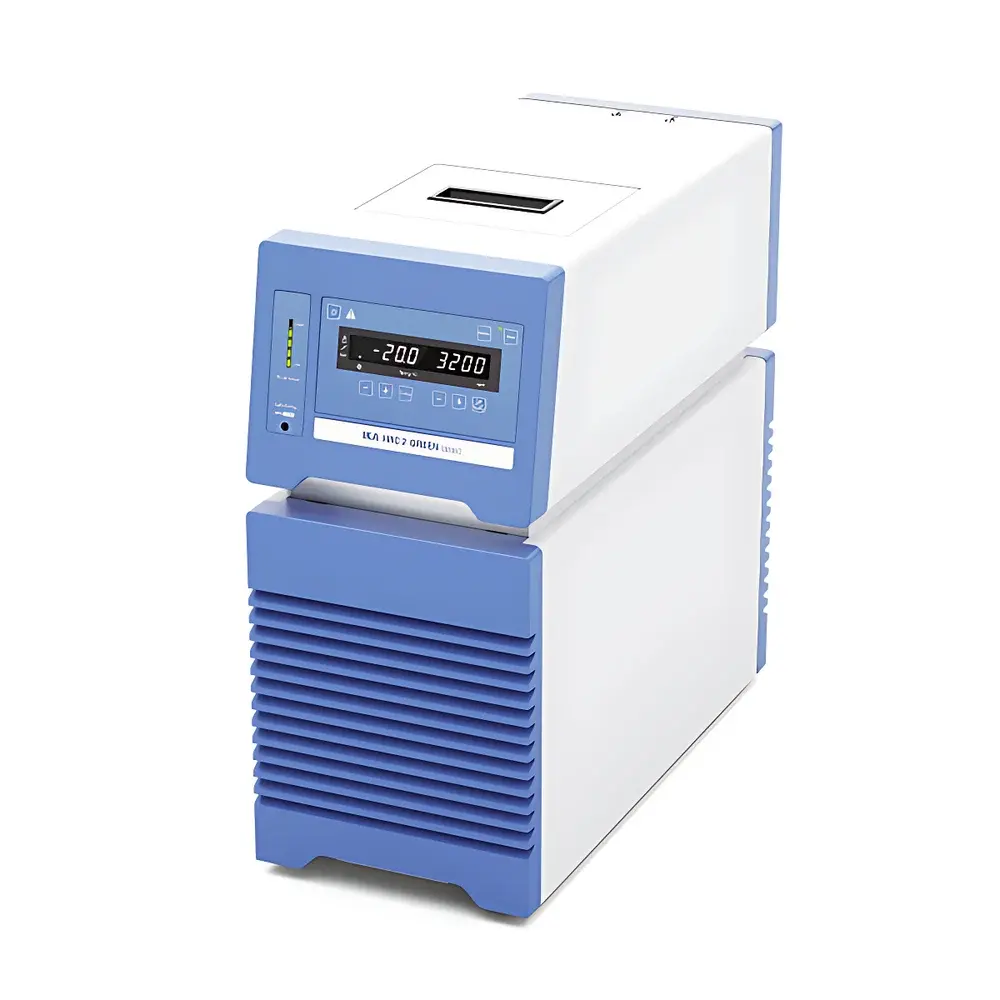

| Model | HRC2 green basic |
| Temperature Range | −30 °C to +100 °C |
| Temperature Stability | ±0.051 K (DIN 12876, @+70 °C and @−10 °C) |
| Heating Power | 1500 W (230 V) |
| Cooling Capacity | 620 W (@20 °C), 600 W (@10 °C), 480 W (@0 °C), 350 W (@−10 °C), 200 W (@−20 °C), 80 W (@−30 °C) |
| Refrigerant | R290 (propane), GWP ≈ 3 |
| Pump Type | Dual-mode PEEK diaphragm pump (pressure/suction), 0–4000 rpm continuous adjustment |
| Max. Pressure | 0.5 bar |
| Max. Suction | 0.25 bar |
| Max. Flow Rate | 21 L/min (at 0 bar backpressure) |
| Bath Volume | 1.4–4.0 L |
| Safety Class | DIN 12876 Class III (FL), for flammable and non-flammable liquids |
| Protection Rating | IP21 |
| Interface | RS232, Micro-USB |
| Dimensions (W×D×H) | 220 × 480 × 525 mm |
| Weight | 26 kg |
| Ambient Operating Conditions | 5–32 °C, ≤80 % RH |
| Noise Emission | 58 dB(A) |
| Certifications | CE, compliant with EN 61010-1, EN 61326-1 |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |

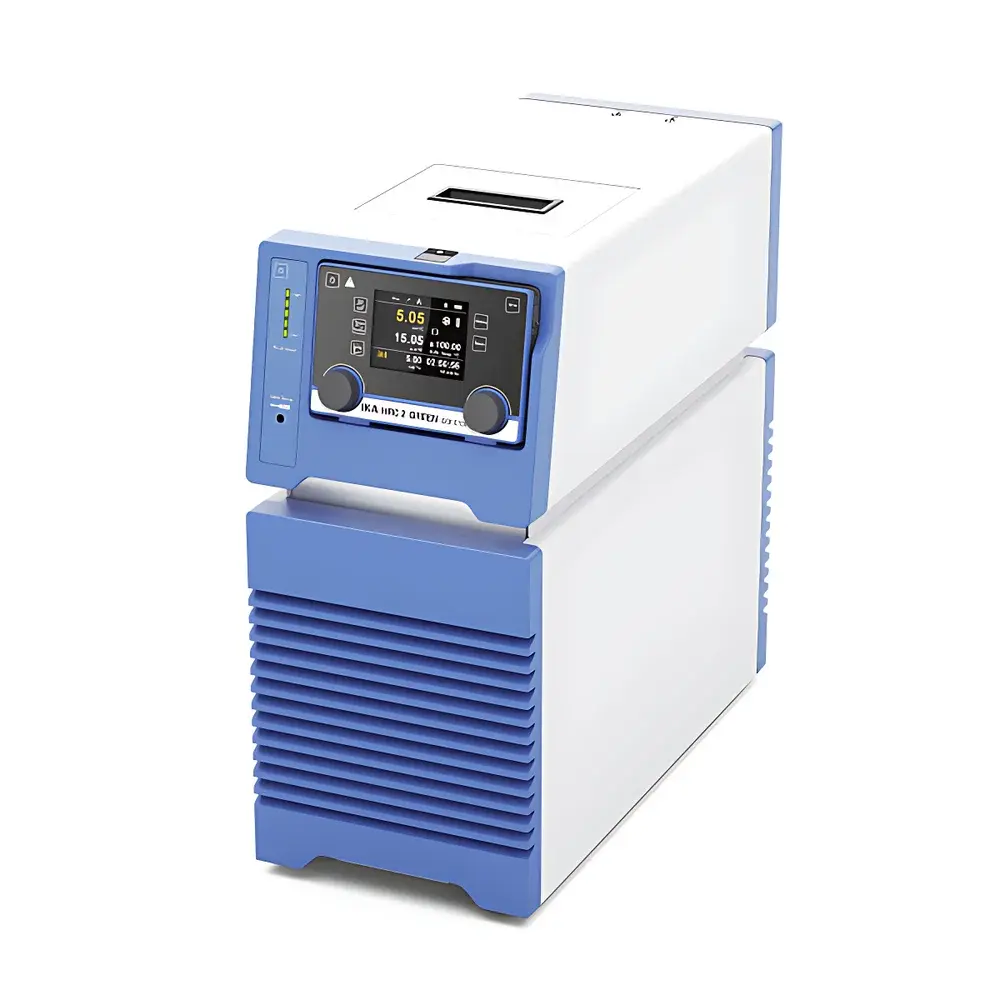

| Type | HRC2 green control |
| Temperature Range | −30 °C to +100 °C |
| Internal Temp Stability (@+70 °C, water) | ±0.05 K |
| Heating Power | 1500 W (230 V) |
| Cooling Capacity | 620 W (@20 °C), 600 W (@10 °C), 480 W (@0 °C), 350 W (@−10 °C), 200 W (@−20 °C), 80 W (@−30 °C) |
| Refrigerant | R290 (79 g, GWP < 3) |
| Max Pressure | 21 bar |
| Pump Type | Variable-speed PEEK pressure/suction pump |
| Flow Rate | 0–21 L/min (adjustable, 2000–4000 rpm) |
| Max Pressure at Zero Flow | 0.5 bar |
| Bath Volume | 1.4–4.0 L |
| Display | LED, resolution 0.01 K |
| External PT100 Sensor Input | Yes |
| Safety Features | Dual PT100/PT1000 sensors, adjustable safety cutoff (0–110 °C), overpressure protection, secondary safety circuit, audible/visual alarms |
| Compliance | DIN 12876 Class III, DIN EN 60751 Class A (PT100), IP21, CE, RoHS |
| Interfaces | RS232, Micro-USB, analog output (0–10 V), digital alarm outputs (30 V AC/DC, 1 A), solenoid valve output (24 V DC, 0.8 A), 5 V DC auxiliary input |
| Noise Level | 58 dB(A) |
| Dimensions (W×D×H) | 220 × 480 × 525 mm |
| Weight | 26.5 kg |
| Ambient Operating Conditions | 5–32 °C, ≤80 % RH |
