| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Product Type | Vacuum Controller for Laboratory Vacuum Systems |

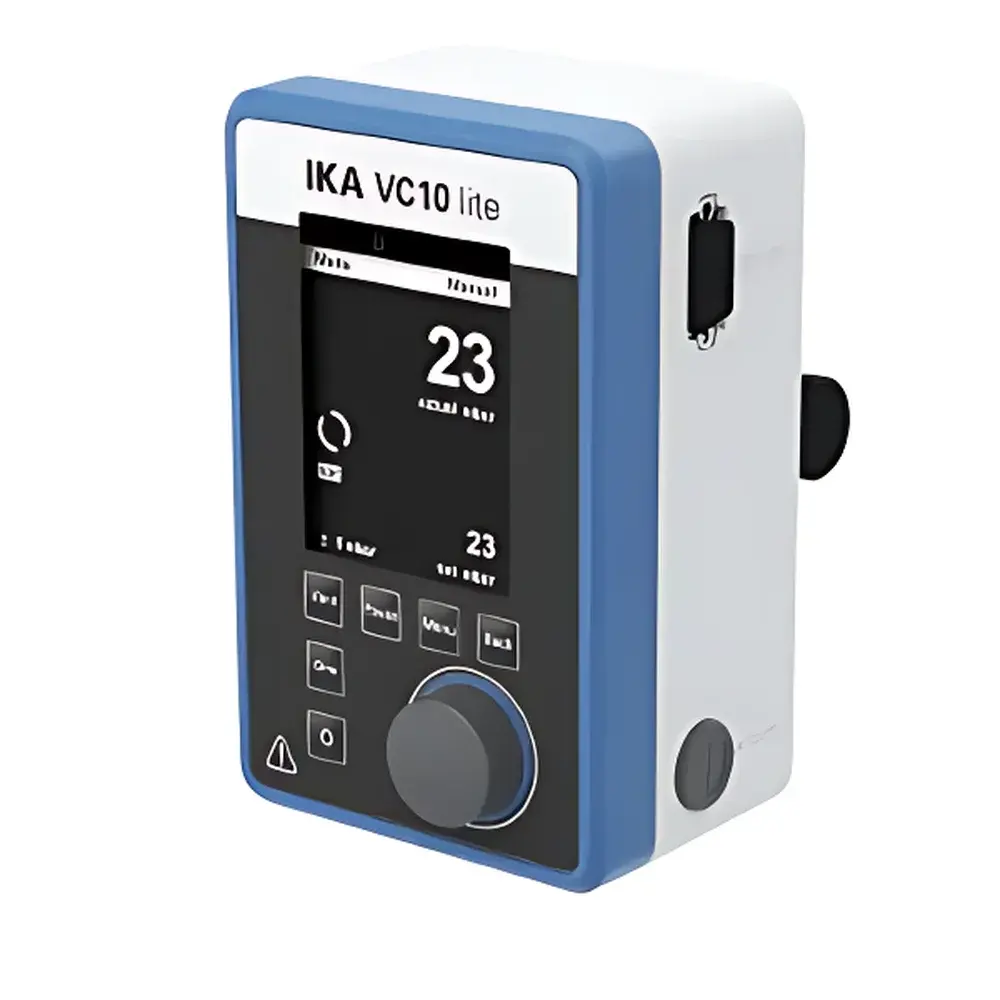

| Model | VC 10 lite |
| Control Interface | Manual + Programmable (10 user-defined programs, 10-step pressure/time profiles) |
| Pressure Range (absolute) | 1–1100 mbar |
| Pressure Accuracy | ±1 mbar |
| Sensor Type | Ceramic Al₂O₃ capacitive pressure sensor |
| Display | TFT screen with selectable units (mbar, hPa, mmHg, Torr) |
| Communication | USB (Type A to Micro-B, 2 m), RS 232 |
| Chiller Control Output | Yes (24 V DC, 1 A) |
| Solvent Database | Integrated |
| Auto-Cleaning Function | Yes |
| Vent Valve | Integrated, inert gas purging capability |
| VENT Key | Dedicated anti-bumping safety function |
| Vacuum Leakage Test | Built-in diagnostic routine |
| Enclosure Rating | IP20 (DIN EN 60529) |
| Operating Ambient | 5–40 °C, ≤80 % RH |
| Dimensions (W×H×D) | 95 × 150 × 110 mm |
| Weight | 1.284 kg |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max. Input Power | 24 W |
| Standby Power | 2 W |
| Materials in Contact | Al₂O₃, PTFE, FPM, PPS |
| Housing Material | PBT |
| Mounting | 16 mm clamp bracket |
| Compliance | CE, RoHS, EMC Directive 2014/30/EU |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | Oil-Free Diaphragm Pump |
| Pumping Speed | 1 m³/h (16.67 L/min at 50/60 Hz) |
| Ultimate Pressure (without gas ballast) | 9 mbar |
| Operating Input Pressure Range | 10–1030 mbar |
| Speed Range | 285–1100 rpm |
| Rated Speed | 1100 rpm |
| Noise Level (low vacuum) | 54 dB(A) |
| Dimensions (W×D×H) | 115 × 292 × 280 mm |
| Weight | 8.5 kg |
| Power Supply | 100–240 V, 50/60 Hz |
| Rated Power Consumption | 120 W |
| Standby Power | 1.5 W |
| Enclosure Protection | IP20 (DIN EN 60529) |
| Wetted Materials | Al₂O₃, PTFE, FFKM (FFPM), PPS, NBR |
| Housing Material | Cast aluminum with thermoplastic polymer coating |
| Ambient Temperature Range | 5–40 °C |
| Max. Relative Humidity | 80% @ ≤31 °C, linearly decreasing to 50% @ 40 °C |
| Interfaces | USB-C, Analog Input (0–10 V) |
| Display | LED line display |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Works GmbH & Co. KG |
| Type | Oil-Free Diaphragm Vacuum Pump |
| Pumping Speed | 1.32 m³/h (22 L/min) |
| Ultimate Vacuum | 2 mbar |
| Dimensions | 270 × 435 × 500 mm |
| Weight | 11.5 kg |
| Motor Power | 140 W |
| Pressure Sensor | Ceramic Al₂O₃, Range 1–1030 mbar, Accuracy ±1 mbar |
| Control Interface | TFT Display, Rotary Knob, RS232 & USB |
| Inlet/Outlet Port | 8 mm |
| IP Rating | IP20 |
| Operating Temperature | 5–40 °C |
| Relative Humidity | ≤80 % RH |
| Noise Level | 54 dB(A) |
| Materials in Contact | PTFE, FPM, PPS, Al₂O₃ |
| Compliance | DIN EN 60529, CE, RoHS |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | Oil-Free Diaphragm Pump |
| Ultimate Vacuum (without gas ballast) | 8 mbar |
| Ultimate Vacuum (with gas ballast) | 15 mbar |
| Pumping Speed | 1.7 m³/h (28.3 L/min) |
| Inlet/Outlet Port Diameter | 10 mm |
| Motor Power | 180 W |
| Dimensions (W × D × H) | 245 × 155 × 320 mm |
| Weight | 11.5 kg |
| Operating Temperature Range | 10–40 °C |
| Relative Humidity Limit | ≤80 % RH |
| Protection Rating | IP54 |
| Noise Level at Low Vacuum | 65 dB(A) |
| Speed Range | 1380–1680 rpm |
| Rated Speed | 1380 rpm |
| Min. Input Pressure | 7 mbar |
| Max. Input Pressure | 1050 mbar |
| Gas Ballast Valve | Yes |
| Material of Gas-Contact Parts | PTFE or PTFE-composite |
| Compliance | DIN EN 60529, CE, RoHS |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA Werke GmbH & Co. KG |
| Type | Oil-Free Diaphragm Vacuum Pump |

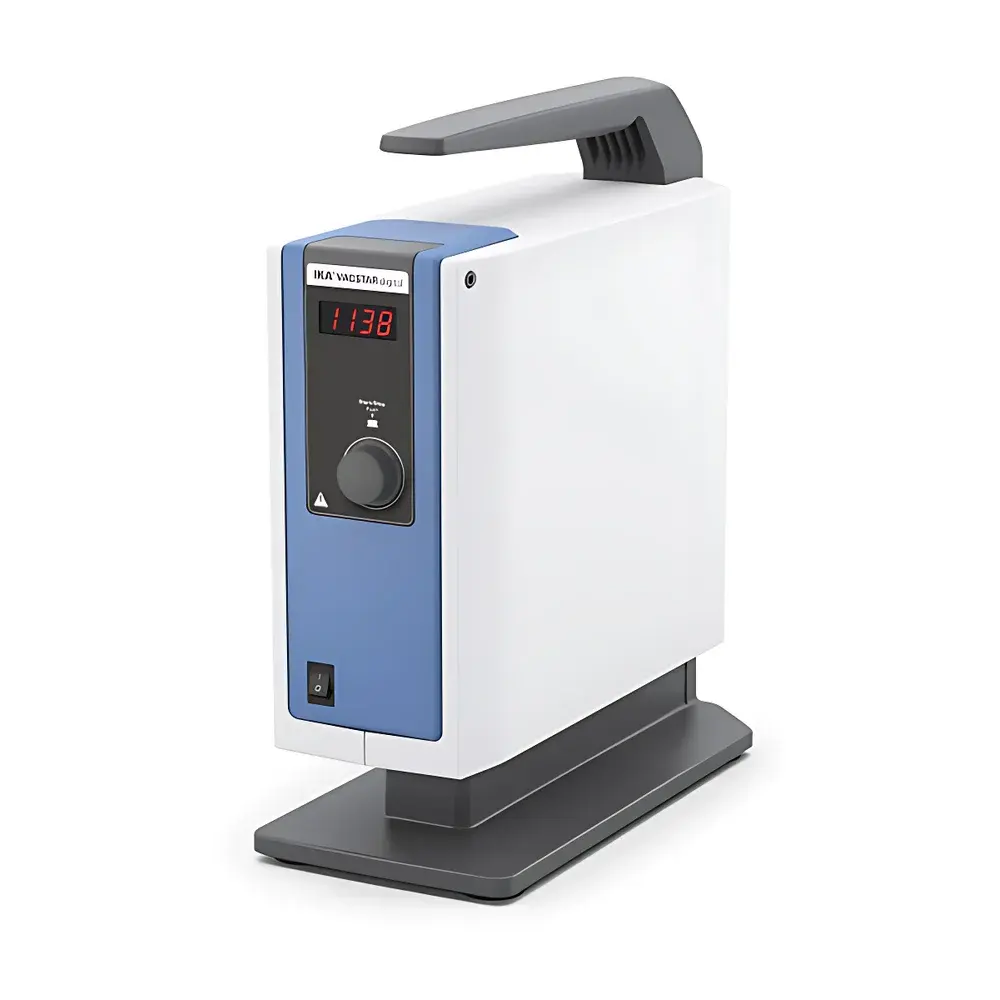

| Model | VACSTAR digital |
| Pumping Speed | 1.32 m³/h (22 L/min) |
| Ultimate Vacuum | 2 mbar (without gas ballast) |
| Dimensions (W × D × H) | 150 × 375 × 370 mm |
| Weight | 11.5 kg |
| Motor Power | 130 W |
| Noise Level | 54 dB(A) at low vacuum |
| Speed Range | 285–1200 rpm |
| Inlet/Outlet Port Diameter | 8 mm |
| Enclosure Rating | IP20 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Interface | RS232 and USB |
| Operating Temperature | 5–40 °C |
| Max. Relative Humidity | 80 % (non-condensing) |
| Materials in Contact | Al₂O₃, PTFE, FFKM (FFPM), PPS, NBR |
| Control Modes | Manual, Auto, %-based, Program |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |

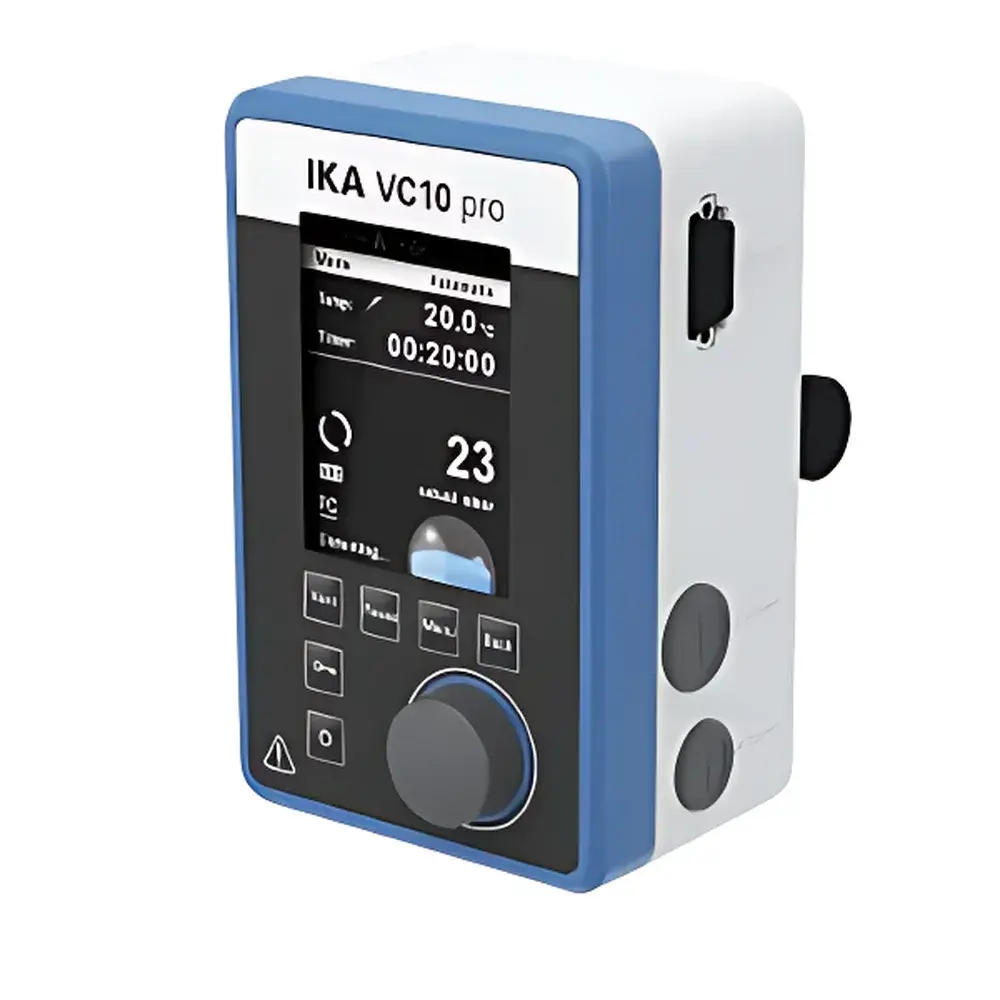

| Model | VC 10 pro |
| Instrument Type | Vacuum Controller |
| Product Type | Oil-Free Pump Controller |
| External Dimensions | 95 × 150 × 110 mm |
| Weight | 1.5 kg |
| Pressure Measurement Range (Absolute) | 1–1100 mbar |
| Pressure Display Accuracy | ±1 mbar |
| Temperature Input Support | PT1000 sensor (−10 to 200 °C, accuracy ±1 K) |
| Control Modes | Automatic, Manual, Pump %, Program (10 programs × 10 segments) |
| Communication Interfaces | RS232, USB |
| Chiller Control | Yes |
| Vacuum Leakage Test Function | Yes |
| Enclosure Rating | IP20 |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max Input Power | 24 W |
| Standby Power | 2 W |
| Material Contacting Media | Al₂O₃, PTFE, FPM, PPS |
| Housing Material | PBT |
| Brand | IKA |
|---|---|
| Origin | Germany |
| Manufacturer | IKA-Werke GmbH & Co. KG |
| Type | Oil-Free Diaphragm Pump |
| Pumping Speed | 1 m³/h (16.67 L/min) |
| Ultimate Pressure (without gas ballast) | 9 mbar |
| Operating Speed Range | 285–1100 rpm |
| Noise Level at Low Vacuum | 54 dB(A) |
| Dimensions (W×D×H) | 115 × 292 × 280 mm |
| Weight | 8.5 kg |
| Power Input | 120 W (100–240 V, 50/60 Hz) |
| Standby Power | 1.5 W |
| Enclosure Rating | IP20 |
| Materials in Contact | Al₂O₃, PTFE, FFKM (FFPM), PPS, NBR |
| USB-C Interface | Yes |
| Analog Input | Yes |
| Ambient Temperature Range | 5–40 °C |
| Max. Relative Humidity | 80% @ 31 °C (linearly decreasing to 50% @ 40 °C) |
