| Brand | Meridion |
|---|---|
| Origin | Germany |

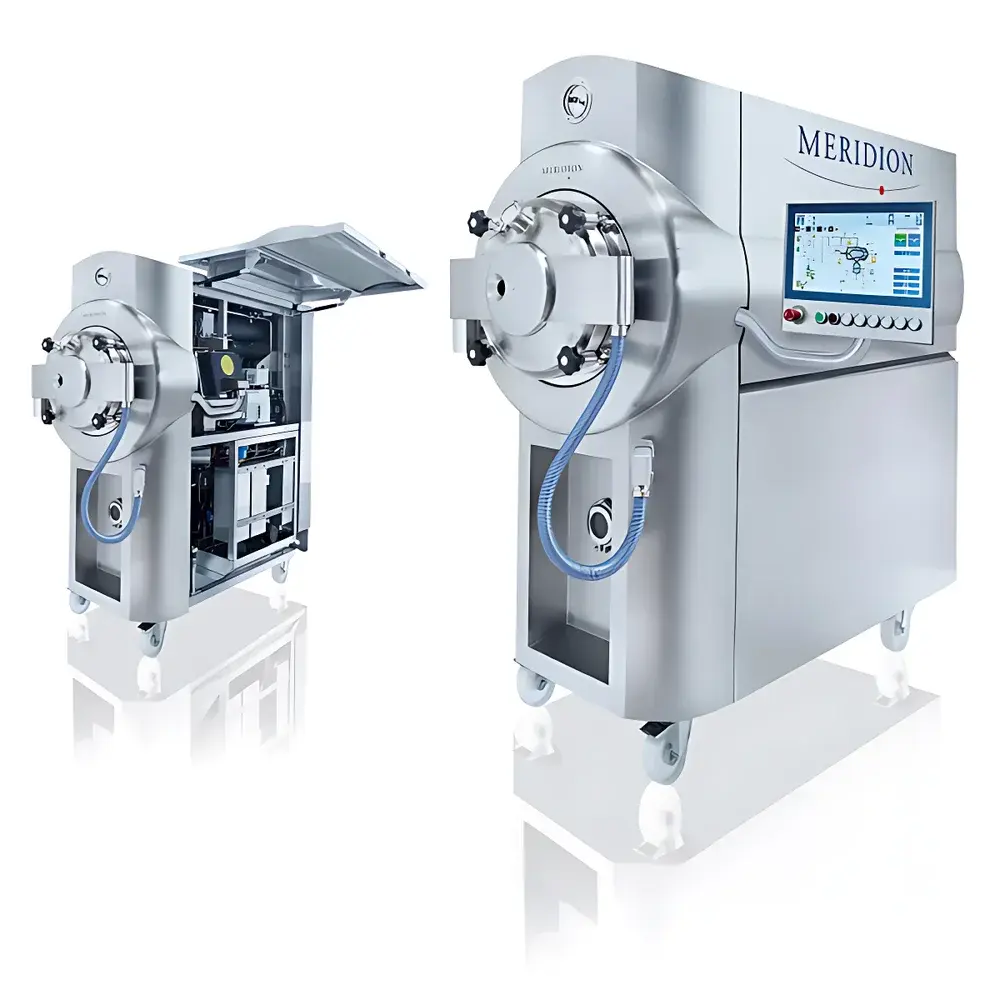

| Model | LyoMotion LAB |
| Type | Dynamic Spray Freeze-Drying System (Rotating Drum Configuration) |
| Application | Laboratory-Scale Pharmaceutical & Biotech R&D |
| Vacuum Level | < 0.1 mbar |
| Condensation Capacity (24h) | < 5 kg |
| Chamber Volume | 0.3–2 L |
| Overall Dimensions | 790 × 2200 × 1990 mm |
| Weight | 950 kg |
| Power Supply | 230 V, 3 kW |
| Compressed Air Consumption | 5 m³/h @ 6 bar |
| Cooling Water Consumption | 5 L/min |
| Condenser Temperature | –75 °C |
| Drum Temperature Range | –50 °C to +50 °C |
| Control System | HMI-based PLC with Touchscreen Interface |
| Brand | Meridion |
|---|---|
| Origin | Germany |
| Model | Continuous Spray Freeze-Drying System |
| Application | Laboratory-scale R&D to Pilot/Pharmaceutical Production (up to 20 kg/batch) |
| Vacuum Level | < 10 Pa (typical operating range for primary drying) |
| Condenser Capacity | ≥ 5 kg/24 h (standard configuration) |
| Overall Dimensions (L×W×H) | 2200 × 1800 × 2600 mm |
| Cooling Medium | Liquid nitrogen or closed-loop cryogenic refrigerant system |
| Particle Size Range | 200–800 µm (narrow distribution, CV < 15%) |
| Drying Time Reduction | Up to 50% vs. conventional shelf-based lyophilization |
| Brand | Meridion |
|---|---|
| Origin | Germany |
| Model | SprayCon LAB |
| Type | Spray-based Cryogenic Freeze Dryer |
| Application | Laboratory-scale Microsphere Production |
| Droplet Size Range | 200–800 µm |
| Spray Feed Rate | 300–1500 mL/h |
| Cooling Medium | Liquid Nitrogen (LN₂) |
| LN₂ Consumption | 40–60 L/h |
| Compressed Air | 20–30 m³/h at 6 bar |
| Power Supply | 230 V, 3 kW |
| Dimensions | 1100 × 1200 × 2650 mm |
| Weight | 1150 kg |
