| Brand | FBF |
|---|---|
| Origin | Italy |
| Model | FBF7075 |
| Flow Rate | 8,000 L/h (fixed), variable via VFD option |
| Primary Homogenization Pressure | up to 250 bar (adjustable) |
| Secondary Homogenization Pressure | up to 50 bar (adjustable) |
| Maximum Sample Viscosity | 500 cP |
| Max. Inlet Particle Size | 500 µm |
| Max. Operating Temperature | 90 °C |
| Cleaning-in-Place (CIP) Time | 30 min |
| Sterilization-in-Place (SIP) Temperature | up to 145 °C |
| Cooling Water Requirement | 90–120 L/h at 2–6 bar |
| Main Motor | 75 kW, IP55 |
| Dimensions | 150 × 210 × 150 cm |
| Weight | 2500 kg |
| Power Supply | 380 V / 50 Hz |

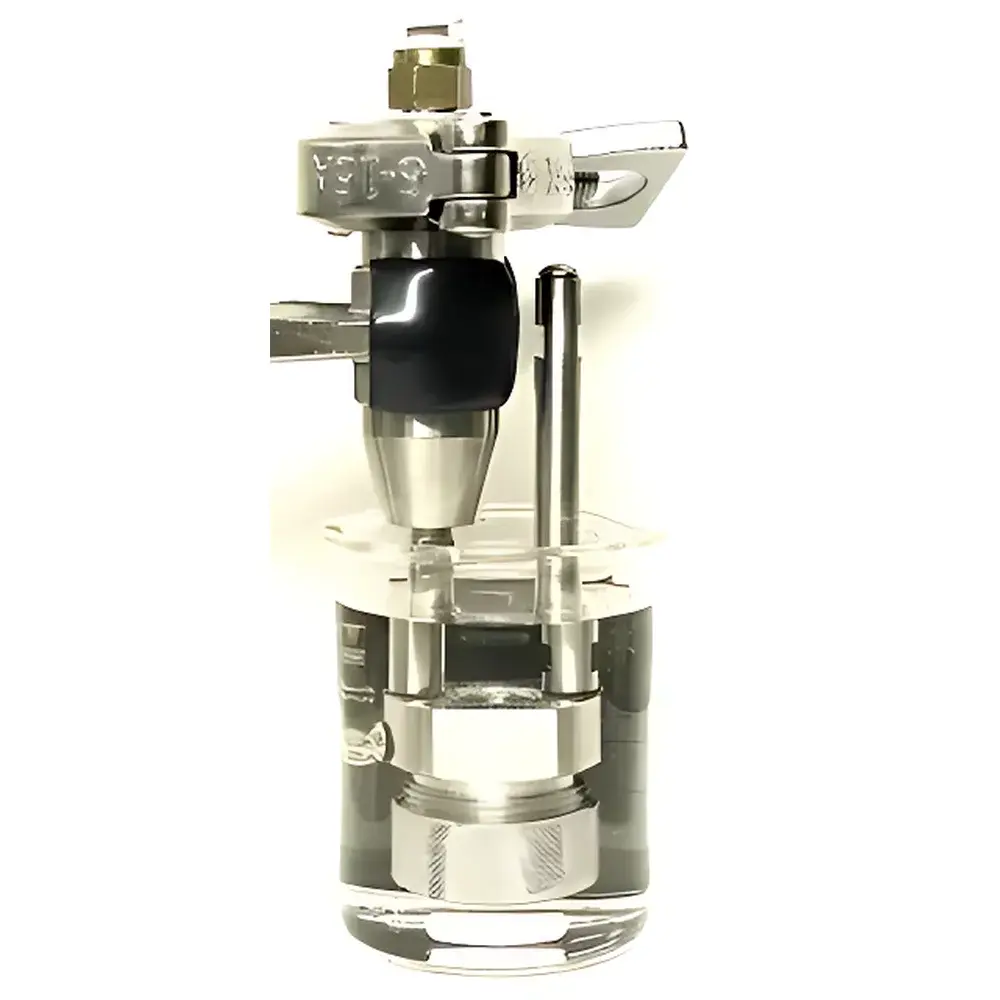

| Brand | SPG |
|---|---|
| Origin | Japan |
| Model | MG-20 |
| Max Operating Pressure | 500 kPa |
| SPG Membrane Dimensions | Φ10 × L20 mm |
| Effective Membrane Length | 10 mm |
| Minimum Applicable Pore Size | 0.3 µm |
| Continuous Phase Volume | 50–200 mL |
| Dispersed Phase Volume | 3–10 mL |
| Brand | FBF |
|---|---|
| Origin | Italy |
| Model | FBF3011 |
| Flow Rate | 1200 L/h (fixed), variable via VFD option |
| Primary Homogenization Pressure | up to 250 bar (adjustable) |
| Secondary Homogenization Pressure | up to 50 bar (adjustable) |
| Maximum Sample Viscosity | 500 cP |
| Max. Inlet Particle Size | 500 µm |
| Max. Operating Temperature | 90 °C |
| Cleaning Temperature | up to 90 °C |
| Sterilization Temperature | up to 145 °C |
| Cooling Water Requirement | 60–70 L/h at 2–6 bar |
| Main Motor | 11 kW, IP55, 380 V / 50 Hz |
| Lubrication System | Integrated oil pump (0.37 kW, IP55) |
| Dimensions (W×D×H) | 100 × 130 × 100 cm |
| Weight | 470 kg |
| Brand | FBF |
|---|---|
| Origin | Italy |
| Model | FBF1002 |
| Flow Rate | 60–2000 L/h |
| Operating Pressure | 100–600 bar |
| Primary Homogenization Pressure | ≤300 bar (adjustable) |
| Secondary Homogenization Pressure | ≤50 bar (optional, hydraulically controlled) |
| Pump Type | Dual-plunger positive displacement pump |
| Plunger Diameter | 20 mm |
| Speed | 136 rpm |
| Max. Viscosity | 500 cP |
| Max. Inlet Particle Size | 500 µm |
| Max. Fluid Temperature | 90 °C |
| Cleaning Temperature | ≤90 °C |
| Sterilization Temperature | ≤145 °C |
| Cooling Water Requirement | 50–60 L/h at 2–6 bar |
| Air Supply | >3 bar, 0.3 L/min |
| Motor | 2.2 kW, IP55, 380 V / 50 Hz |
| Power Consumption | 3.0 kW |
| Dimensions (W×D×H) | 58 × 85 × 77 cm |
| Weight | 170 kg |
| Lubrication System | Integrated oil pump (0.37 kW, IP55) |
| Brand | SPG |
|---|---|
| Origin | Japan |
| Model | KH-125 |
| SPG Membrane Dimensions | Ø10 × L125 mm (Effective Length: 105 mm) |
| Pore Size Range | ≥0.1 µm |
| Max Operating Pressure | 900 kPa |
| Continuous Phase Volume Capacity | 300 mL to several liters |
| Dispersed Phase Volume Capacity | 100 mL to several liters |
| Brand | SPG |
|---|---|
| Origin | Japan |
| Model | MN-20 |
| Membrane Dimensions | Φ10 × L20 mm |
| Effective Membrane Length | 10 mm |
| Applicable Pore Size | ≥ 0.3 µm |
| Max Operating Pressure | 300 kPa |
| Continuous Phase Volume | 8–200 mL |
| Dispersed Phase Volume | 2–10 mL |
| Brand | FBF |
|---|---|
| Origin | Italy |
| Model | FBF2003 |
| Flow Rate | 150 L/h (fixed), variable via VFD option |
| Primary Homogenization Pressure | up to 350 bar (adjustable) |
| Secondary Homogenization Pressure | up to 50 bar (optional) |
| Plunger Diameter | 20 mm |
| Plunger Speed | 136 rpm |
| Max. Sample Viscosity | 500 cP |
| Max. Inlet Particle Size | 500 µm |
| Max. Operating Temperature | 90 °C |
| Cleaning-in-Place (CIP) Time | 30 min |
| Sterilization-in-Place (SIP) Temperature | up to 145 °C |
| Cooling Water Requirement | 2–6 bar, 350 L/h |
| Lubrication System | Integrated oil pump (0.37 kW, IP55) |
| Main Motor | 2.2 kW, IP55 |
| Power Supply | 3.0 kW, 380 V / 50 Hz |
| Dimensions (W×D×H) | 85 × 115 × 92 cm |
| Weight | 360 kg |
| Brand | FBF |
|---|---|
| Origin | Italy |
| Model | FBF9160 |
| Flow Rate | 40,000–160,000 L/h |
| Operating Pressure | 100–600 bar |
| Primary Homogenization Pressure | ≤250 bar (adjustable) |
| Secondary Homogenization Pressure | ≤50 bar (adjustable) |
| Pump Type | Triplex Plunger Pump |
| Plunger Diameter | 83 mm |
| Speed | 176 rpm |
| Max. Viscosity | 500 cP |
| Max. Inlet Particle Size | 500 µm |
| Max. Product Temperature | 90 °C |
| Cleaning-in-Place (CIP) Time | 30 min |
| Sterilization-in-Place (SIP) Temp. | up to 145 °C |
| Motor Power | 160 kW |
| Dimensions | 190 × 260 × 180 cm |
| Weight | 5,500 kg |
