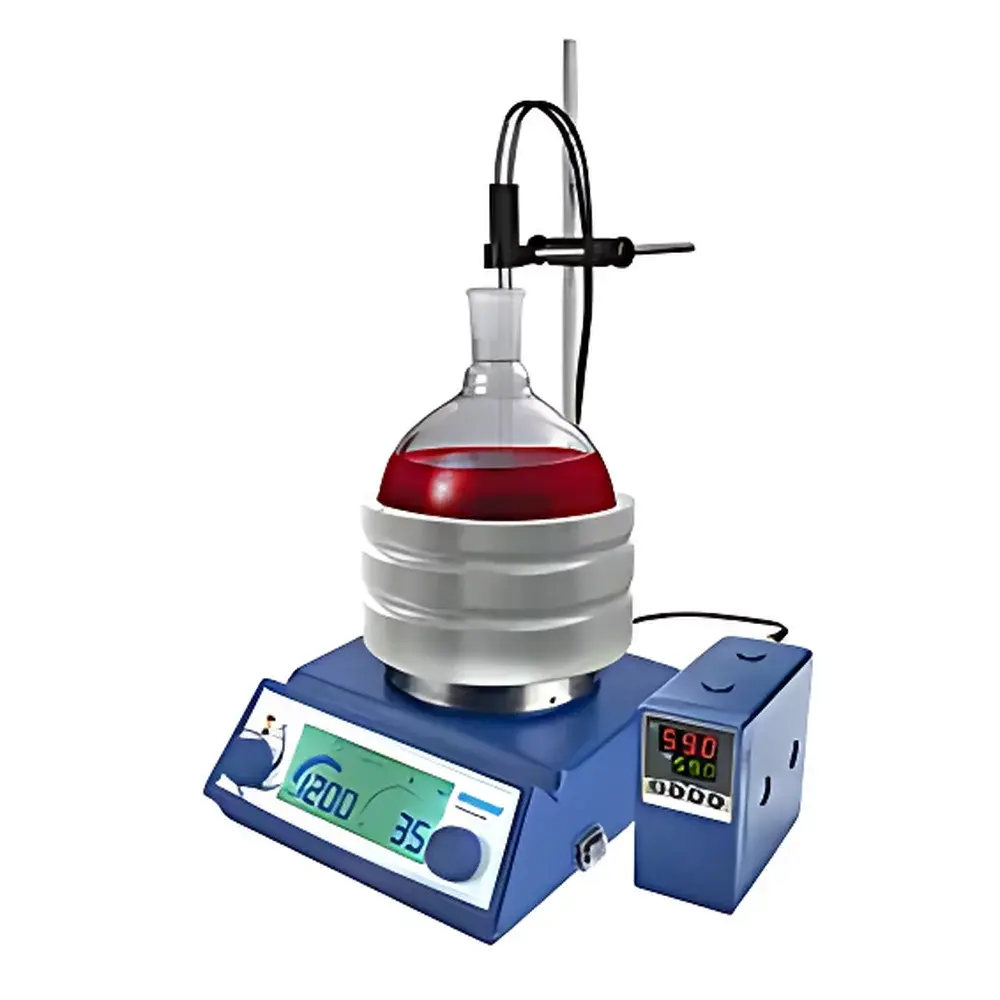

WIGGENS LIMITROL Upper-Limit Temperature Controller

Overview

The WIGGENS LIMITROL Upper-Limit Temperature Controller is a dedicated, fail-safe thermal protection device engineered for integration into laboratory heating systems—particularly electric hotplates, heating mantles, block digesters, and other conductive or convective heating platforms used in sample preparation and digestion workflows. Unlike primary temperature controllers that regulate process temperature dynamically, the LIMITROL functions exclusively as an independent, hardwired safety interlock. It operates on a simple yet robust principle: continuous monitoring of real-time temperature via a J-type thermocouple, with immediate power interruption to the downstream heater if the user-defined upper threshold is exceeded. This dual-control architecture—primary regulation plus independent overtemperature cutoff—aligns with internationally recognized laboratory safety standards (e.g., IEC 61010-1, EN 61010-2-010) for equipment used in hazardous thermal environments. The device does not replace the main controller; rather, it adds a mandatory layer of redundancy, ensuring that failure modes such as PID runaway, sensor drift, relay welding, or software fault cannot result in uncontrolled thermal escalation.

Key Features

• Failsafe latching design: Power remains de-energized until manually reset—eliminating automatic restart after fault clearance.
• Dedicated J-type thermocouple input with 6-inch immersion probe included—optimized for direct contact with heating blocks or vessel walls.
• Setpoint adjustment in discrete 20 °C increments across 0–750 °C range—providing intuitive, tamper-resistant configuration suitable for SOP-driven labs.
• Low-power controller electronics (4 W standby consumption) with integrated LED status display and illuminated power switch for clear operational visibility.
• Industrial-grade terminal block interface: Three-wire load connection (L/N/PE) and three-wire mains input—ensuring compliance with grounding requirements for Class I appliances.
• Robust ABS housing with IP20-rated enclosure—designed for benchtop use in controlled laboratory environments per ISO/IEC 17025 infrastructure guidelines.

Sample Compatibility & Compliance

The LIMITROL is compatible with any heating device operating within its electrical rating (≤5 A / 2,400 W at 240 V AC) and requiring external thermocouple-based overtemperature protection. It is routinely deployed with WIGGENS and third-party electric hotplates, graphite digestion blocks, ceramic heating plates, and reflux setups used in EPA Method 3050B, ASTM D5291, and ISO 11885 sample digestion protocols. Its CE marking confirms conformity with the EU Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU). While the unit itself does not carry GLP/GMP validation documentation, its deterministic mechanical-electrical behavior supports IQ/OQ validation protocols when installed as part of a documented thermal safety subsystem.

Software & Data Management

The LIMITROL is a hardware-only safety device with no embedded firmware, network interface, or data logging capability. This analog-electromechanical architecture ensures zero risk of software corruption, firmware vulnerability, or time-dependent calibration drift—critical attributes for audit-ready safety instrumentation. All operational states (power on/off, trip event, reset status) are conveyed via front-panel LEDs and physical switch position. For laboratories subject to FDA 21 CFR Part 11 or ISO/IEC 17025 requirements, the absence of digital control simplifies validation: only installation qualification (IQ) and operational qualification (OQ) of the physical installation—including wiring integrity, ground continuity, and trip point verification—are required. No software validation (PQ) is applicable.

Applications

• Safety-critical digestion of environmental soil/sediment samples under acidic reflux conditions (e.g., HNO₃/HF/HClO₄ mixtures).
• Controlled thermal decomposition of polymer composites prior to elemental analysis by ICP-OES or ICP-MS.
• Prevention of glassware fracture during prolonged heating of volatile organic solvents on hotplates.
• Protection of calibrated reference materials during ashing or calcination procedures in gravimetric analysis.
• Integration into custom-built digestion stations where OEM controllers lack certified overtemperature cut-off functionality.

FAQ

Does the LIMITROL replace my existing hotplate controller?
No—it operates in series with your primary controller as a redundant safety layer. Your main controller regulates temperature; the LIMITROL only interrupts power upon overtemperature fault.
Can I use a different thermocouple type?
No—the input circuitry is calibrated exclusively for J-type thermocouples. Use of K-, T-, or E-type probes will result in inaccurate temperature reading and potential failure to trip at setpoint.
Is calibration traceable to NIST or DAkkS standards?
The LIMITROL is not a measuring instrument but a safety switch. Its setpoint accuracy (±3% of full scale) is verified at factory against certified reference junctions; field recalibration is neither supported nor required.
What happens during a power outage?
The latching relay resets upon loss of mains power. After restoration, the unit remains de-energized until manually reset—ensuring no unintended heater activation.
Can it be mounted inside an equipment cabinet?
Yes, provided minimum ventilation clearance (10 mm on all sides) is maintained and ambient temperature remains below 40 °C. Mounting must preserve access to the reset button and thermocouple port.
