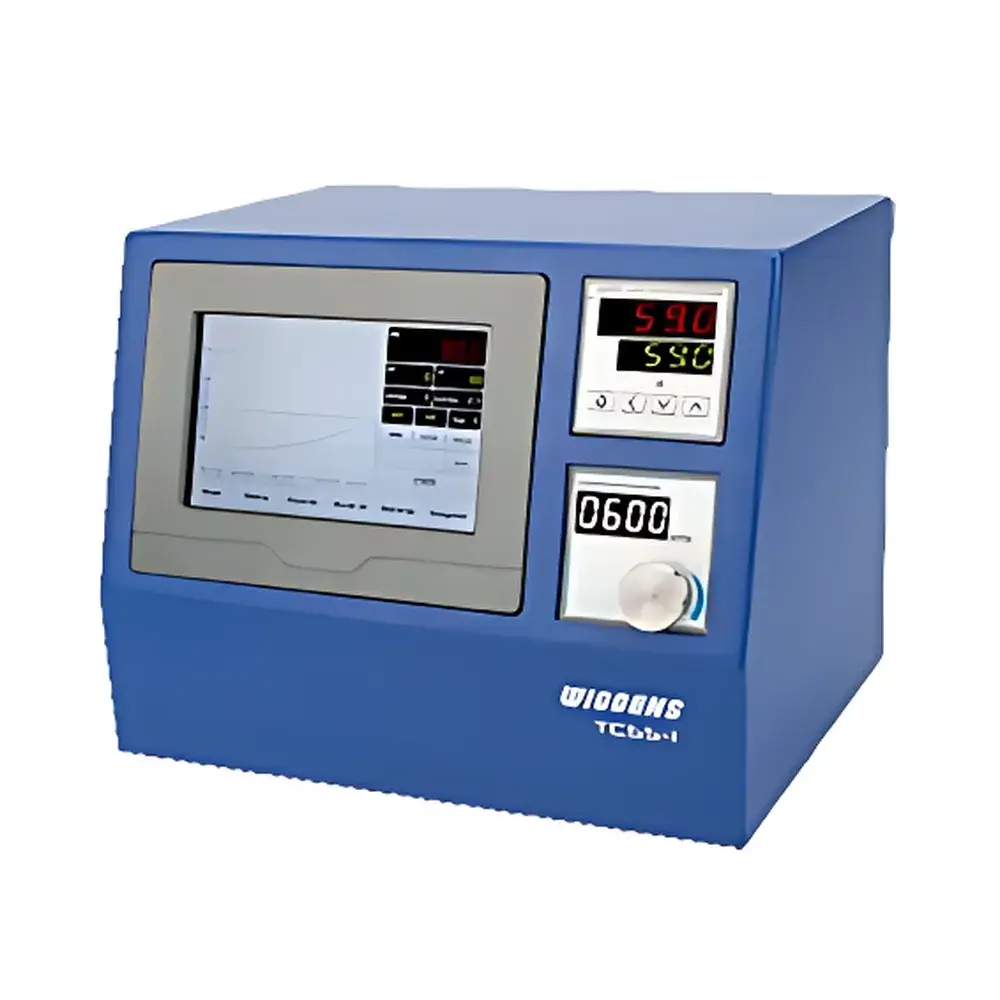

WIGGENS TCSS Programmable Intelligent Temperature & Stirring Controller
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | TCSS |
| Display | 5" TFT Touchscreen |
| Control Functions | Heating, Cooling, Programmable Temperature Ramp/Soak, Stirring Speed Control, Safety Over-Temperature Protection |
| Communication Interfaces | RS485, RS232, Ethernet, USB-A |
| Alarm Output | Yes |
| Sensor Requirement | Dual Pt100 or Thermocouple (Type K/J) |
| Optional Accessories | Heating Jackets (Stirring-Integrated), Top-Mount Stirrers (WB2000-C, WB1800-D, WB1800-C/WB1800-EC), WH260 Series Refrigerated Circulators, Solenoid Valve (220 V AC, for cooling activation) |
| Compliance | CE, RoHS, IEC 61000-6-3/-6-4 |
Overview
The WIGGENS TCSS Programmable Intelligent Temperature & Stirring Controller is an integrated laboratory control system engineered for precise, synchronized regulation of temperature and mechanical agitation in reaction vessels, jacketed reactors, and benchtop synthesis setups. Unlike standalone thermostats or stirrers, the TCSS implements a dual-loop control architecture: one closed-loop PID algorithm governs thermal dynamics via external heating/cooling sources (e.g., heating jackets, refrigerated circulators), while a second independent loop manages stirring motor speed—ensuring consistent shear input across variable viscosity profiles. Its 5″ high-resolution TFT touchscreen provides real-time visualization of setpoints, actual values, ramp/soak programs, and alarm status, with intuitive drag-and-drop program editing. Designed for reproducible process execution in R&D, QC, and pilot-scale applications, the TCSS supports fully automated multi-step protocols—including sequential heating-cooling-stirring sequences—making it suitable for crystallization studies, polymerization kinetics, enzymatic assays, and stability testing under controlled hydrodynamic conditions.
Key Features
- 5-inch capacitive TFT touchscreen with graphical interface for program creation, real-time monitoring, and event logging
- Dual-sensor input support (two Pt100 RTDs or thermocouples) enabling differential temperature measurement and redundancy-critical applications
- Simultaneous, decoupled control of temperature (±0.1 °C typical stability) and stirring speed (0–1200 rpm, depending on connected drive)
- Programmable temperature profiles with up to 32 segments per program, including ramp rates (0.1–10 °C/min), soak durations (1 s–999 h), and conditional triggers
- Integrated safety layer: hardware-based over-temperature cutoff (independent of main controller), configurable alarm thresholds, and fault-state latching
- Industrial-grade communication suite: RS232 and RS485 (Modbus RTU) for legacy device integration; Ethernet (TCP/IP) and USB-A for direct PC connection, firmware updates, and data export
- Modular accessory compatibility: seamless pairing with WIGGENS heating jackets (including stirring-integrated models), top-mounted stirrers (WB2000-C, WB1800-D series), and WH260 refrigerated circulators via digital command protocols
Sample Compatibility & Compliance
The TCSS controller is compatible with a wide range of sample containers—from standard Erlenmeyer flasks and round-bottom flasks to jacketed glass reactors (up to 5 L volume) and stainless-steel vessels. When paired with appropriate heating/cooling peripherals (e.g., Pt100-equipped heating jackets or WH260-series circulators), it maintains thermal uniformity within ±0.3 °C across vessel walls under dynamic stirring. The unit complies with EU directives CE (2014/30/EU EMC, 2014/35/EU LVD) and RoHS 2011/65/EU. Its electromagnetic compatibility meets IEC 61000-6-3 (emission) and IEC 61000-6-4 (industrial immunity) standards. For regulated environments, audit-trail-capable data logging (via optional software) supports alignment with GLP and GMP documentation requirements; however, native 21 CFR Part 11 compliance requires validated third-party software integration and user-defined access controls.
Software & Data Management
The TCSS operates autonomously without host software but includes native support for WIGGENS’ TCSS Control Suite (Windows/macOS), which enables remote configuration, real-time graphing of temperature/stirring profiles, and CSV-based data export. Logged parameters include timestamp, setpoint, measured temperature (sensor A/B), stirring speed, output power %, and alarm events. All logs are time-stamped with internal RTC (battery-backed) and support manual or automatic export via USB-A or Ethernet. Firmware updates are performed via USB stick or network push, with checksum verification and rollback capability. For enterprise integration, Modbus TCP mapping allows bidirectional parameter exchange with SCADA or LIMS platforms—supporting centralized monitoring of multiple TCSS units in shared lab infrastructure.
Applications
- Kinetic studies requiring precise thermal ramping concurrent with defined shear rates (e.g., hydrolysis, condensation, crosslinking reactions)
- Cooling crystallization processes where nucleation onset and crystal growth rate depend on both temperature gradient and local mixing intensity
- Enzyme activity assays under controlled thermal and rheological conditions to isolate cofactor-dependent behavior
- Stability testing of emulsions, suspensions, and colloidal dispersions under accelerated aging protocols
- Calibration validation of other temperature-sensitive instruments using traceable Pt100 references
- Teaching laboratories: demonstration of coupled transport phenomena (heat + momentum transfer) in undergraduate physical chemistry and chemical engineering courses
FAQ
Does the TCSS require two temperature sensors to operate?
Yes—models TCSS, PL524 Pre, and PL524 Pro mandate dual sensor inputs for primary control and safety redundancy. PL524 Lite and PC524 support single-sensor operation.
Can the TCSS directly drive a refrigerated circulator?
It does not supply power to cooling devices but sends digital ON/OFF or analog 0–10 V control signals to compatible circulators (e.g., WH260 series) via RS485 or relay outputs when equipped with optional solenoid valve modules.
Is Ethernet connectivity supported out-of-the-box?
Yes—10/100BASE-TX Ethernet is built-in and configured via DHCP or static IP assignment through the touchscreen interface.
What stirring equipment is certified for use with the TCSS?
WIGGENS WB2000-C, WB1800-D, WB1800-C, and WB1800-EC top-mounted stirrers are fully interoperable; stirring-integrated heating jackets (e.g., Type-1 configuration) are also validated for synchronized control.
How is calibration traceability maintained?
The TCSS accepts NIST-traceable Pt100 probes (IEC 60751 Class A); field calibration of input channels is performed using certified reference sources and documented per ISO/IEC 17025 guidelines.
