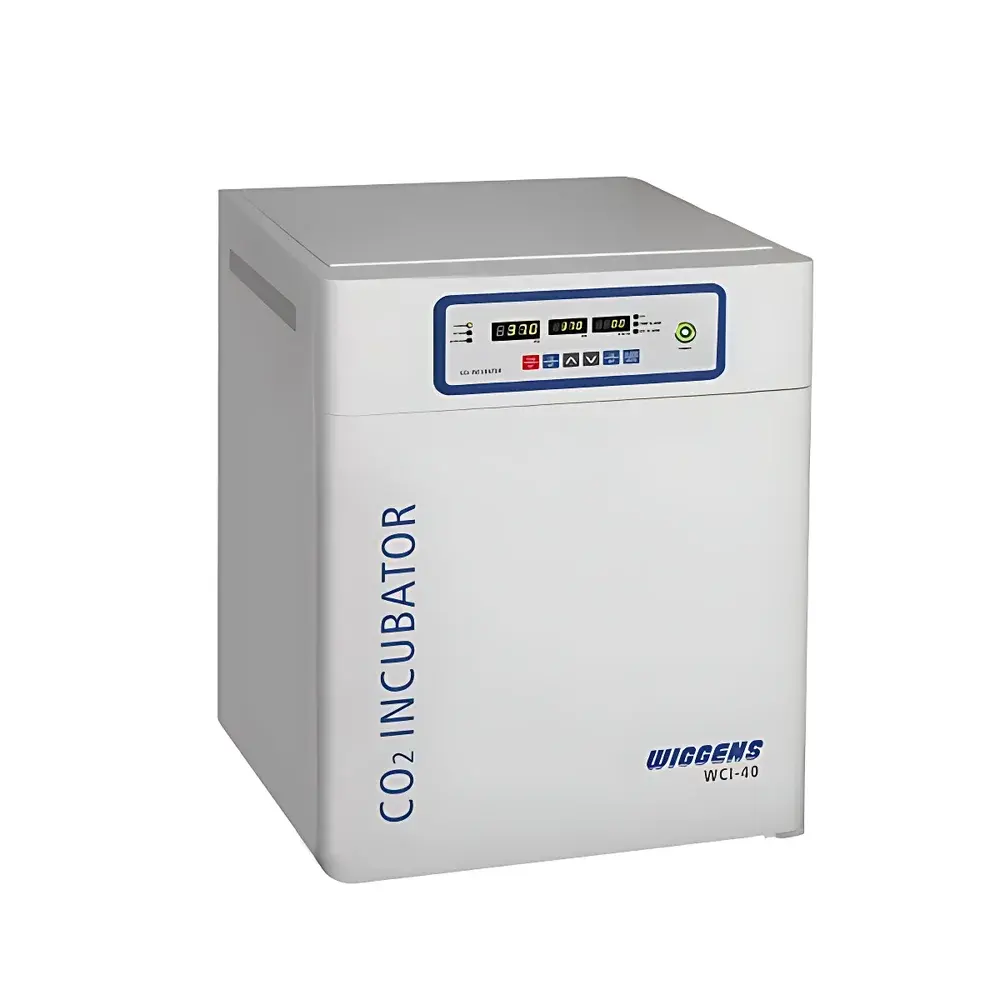

WIGGENS WCI-40G GMP-Compliant CO₂ Incubator

Overview

The WIGGENS WCI-40G is a precision-engineered, GMP-compliant CO₂ incubator designed for reliable, traceable, and contamination-controlled cell culture in regulated life science environments. It operates on a dual-sensor feedback control system—combining infrared (IR) CO₂ sensing with high-stability Pt100 temperature probes—to maintain tight setpoint adherence across the entire 40 L stainless-steel chamber. The unit employs natural convection airflow architecture with pre-heated, humidified air distribution to ensure uniform thermal and gaseous conditions without turbulent shear stress on sensitive monolayer cultures. Its design complies with core requirements of EU Annex 1, FDA 21 CFR Part 11 (when paired with compliant software), and ISO 13485-aligned manufacturing practices. The WCI-40G is intended for use in quality control laboratories, biopharmaceutical process development, and GLP-compliant preclinical research where audit-ready documentation, environmental consistency, and material compatibility are non-negotiable.

Key Features

• Electropolished 316L stainless-steel inner chamber with fully radiused corners (R ≥ 5 mm) to eliminate microbial harborage and support validated cleaning protocols using ethanol, hydrogen peroxide vapor (HPV), or quaternary ammonium disinfectants.
• GMP-oriented hardware architecture: All critical parameters—including CO₂ concentration (0–20 %), temperature (ambient +5 °C to 50 °C), and relative humidity (up to 95 % RH, non-condensing)—are continuously monitored and logged with timestamped data integrity.
• Integrated HEPA filtration (ISO Class 5 equivalent) on recirculated air path, combined with UV-C sterilization cycle (254 nm, programmable duration) for routine decontamination between runs.
• Microprocessor-based controller with password-protected access levels (Operator, Supervisor, Administrator) and configurable alarm thresholds for out-of-specification events (e.g., CO₂ deviation > ±0.2 %, temperature drift > ±0.5 °C for >2 min).
• Calibration traceability: Factory-calibrated sensors include NIST-traceable certificates; user-accessible calibration ports allow periodic verification without disassembly.

Sample Compatibility & Compliance

The WCI-40G accommodates standard T-25, T-75, and multi-well plates (6–96-well) on its two standard stainless-steel shelves (load capacity: 15 kg/shelf). Optional reinforced shelves (up to four total) support heavier configurations including roller bottles and custom bioreactor modules. All internal surfaces meet USP extractables testing criteria for pharmaceutical-grade materials. The incubator conforms to IEC 61010-1:2010 for laboratory equipment safety and EN 61326-1:2013 for electromagnetic compatibility. It supports qualification protocols (IQ/OQ/PQ) per ASTM E2500-13 and is compatible with third-party validation packages for FDA-submitted bioprocess workflows.

Software & Data Management

Data logging is performed internally at 1-minute intervals and stored for ≥30 days (configurable up to 90 days). Export is supported via USB 2.0 interface in CSV format, retaining full metadata (sensor ID, firmware version, operator tag, event flags). When connected to WIGGENS’ optional LabLink™ Suite (v3.2+), the WCI-40G enables remote monitoring, electronic signature capture, and 21 CFR Part 11-compliant audit trails—including immutable records of parameter changes, door openings, alarm acknowledgments, and calibration events. All data files are SHA-256 hashed and time-stamped by an internal real-time clock synchronized to NTP servers.

Applications

• Primary and immortalized mammalian cell culture under physiologically relevant CO₂ (5 %) and temperature (37 °C) conditions.
• Stem cell expansion and differentiation assays requiring low thermal gradient (<±0.3 °C) and minimal vibration transmission.
• Microbial culture of fastidious organisms (e.g., Helicobacter pylori, Neisseria gonorrhoeae) demanding precise gas-phase control.
• Supporting raw material testing and stability studies per ICH Q5C guidelines in QC labs operating under GMP Annex 1.
• Integration into automated cell therapy workflows via Modbus RTU or Ethernet/IP communication interfaces (optional add-on).

FAQ

Does the WCI-40G support dry-heat sterilization?
No—the WCI-40G is not rated for dry-heat cycles. For terminal sterilization, users must rely on validated HPV decontamination or autoclave-compatible accessories. Larger models (e.g., WCI-650G/850G) offer optional dry-heat variants.
Is CO₂ sensor calibration required annually?
Yes—WIGGENS recommends annual recalibration using certified gas standards (e.g., 5.00 ±0.05 % CO₂ in N₂). The IR sensor retains linearity over 24 months under typical lab usage but requires verification per ISO/IEC 17025 internal quality procedures.
Can the incubator operate at elevated CO₂ concentrations (e.g., 10 %)?
Yes—setpoints are adjustable from 0 to 20 % CO₂ with resolution of 0.1 %. However, extended operation above 10 % requires review of media buffering capacity and potential acidosis effects on culture viability.
What is the recovery time after a 30-second door opening at 37 °C / 5 % CO₂?
Temperature recovers to ±0.3 °C within ≤65 seconds; CO₂ concentration returns to setpoint tolerance (±0.2 %) in ≤120 seconds, verified per ASTM F2657-22 test methodology.
Are shelf positions adjustable without tools?
Yes—shelves slide on corrosion-resistant rails and lock into pre-machined notches at 25 mm vertical increments. No tools or fasteners are needed for reconfiguration.
