| Brand | hte |
|---|---|
| Origin | Germany |
| Product Type | Lab-scale High-Throughput Sintering Reactor |
| Configuration | 4×36 or 2×25 Independent Sample Channels |
| Crucible Capacity | Customizable (e.g., 36 × 10 g) |
| Max Operating Temperature | 1050 °C |
| Atmosphere Control | Oxidizing (O₂), Reducing (e.g., Syngas), Inert (N₂/Ar) |
| Temperature Gradient Resolution | ±0.5 °C per Zone |
| Heating/Cooling Rate Control | Programmable (0.1–20 °C/min) |
| Gas Flow Precision | ±1% FS Mass Flow Control |
| Data Acquisition | Real-time T, P, gas composition, dwell time, ramp profiles |
| Compliance | GLP-ready architecture, FDA 21 CFR Part 11–compatible audit trail (via hteControl v5.2) |
| Brand | HTE |
|---|---|
| Origin | Germany |

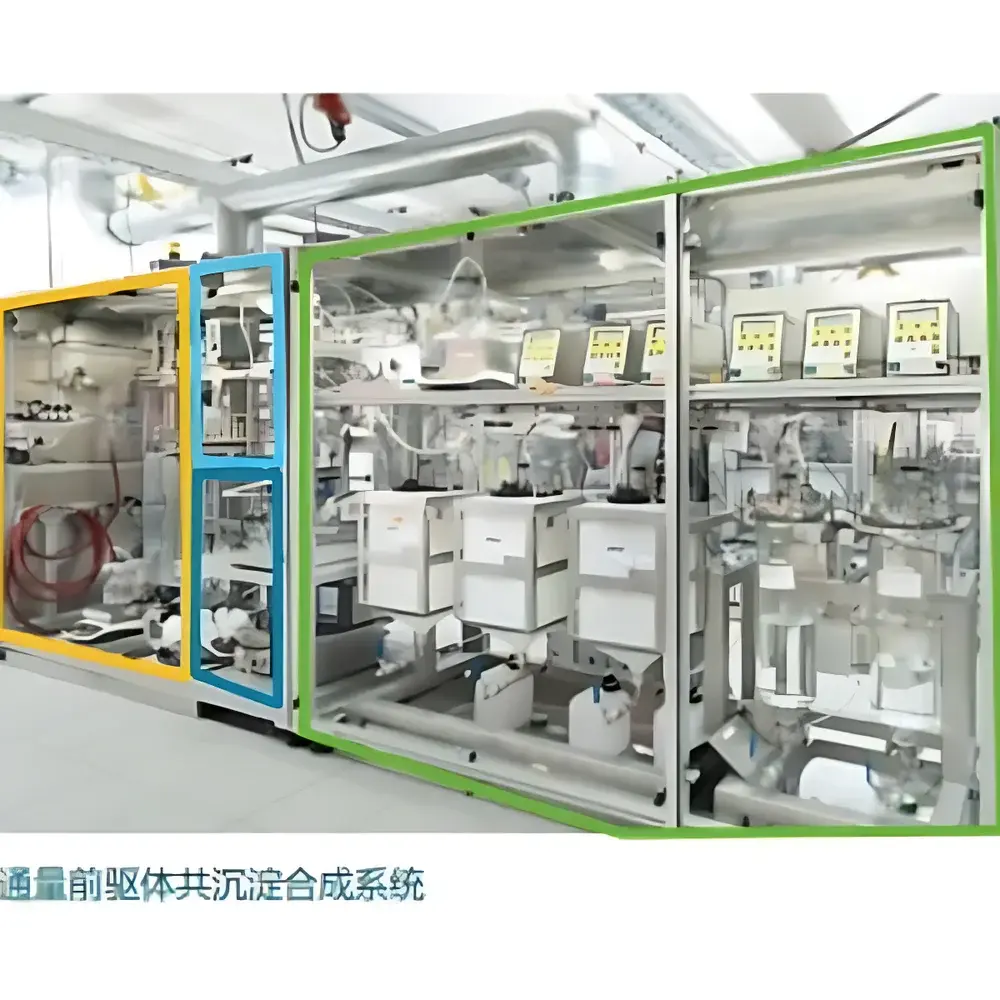

| Type | High-Throughput Co-Precipitation Reactor System for Battery Cathode Precursor Synthesis |
| Reactor Volume | 2 L or 10 L (customizable) |
| Operation Modes | Continuous, Batch with Concentrator, Heavy-Duty Batch with Concentrator |
| Max Operating Temperature | 70 °C at Ambient Pressure |
| Feed Types | Aqueous Metal Salt Solutions, Precipitants, Dopants, Dry Powders |
| Integrated Sensors | Real-time pH Monitoring, In-line Particle Size Measurement (e.g., laser diffraction), Automated Liquid Sampling |
| Software Suite | hteControl (experiment automation & data acquisition), Custom GUI, GLP-compliant audit trail |
| Compliance | Designed for ISO/IEC 17025-aligned R&D environments |
| Safety | Lab-in-Lab containment architecture with redundant safety sensors, 24/7 unattended operation certified |
| Material Output per Run | 1–5 kg of precursor (e.g., NMC, LFP, Prussian Blue analogues) |
| Scalability | Process parameters validated from lab-scale to pilot-scale with <±5% deviation in PSD and stoichiometry |
