| Brand | Galvanic |
|---|---|
| Origin | USA |

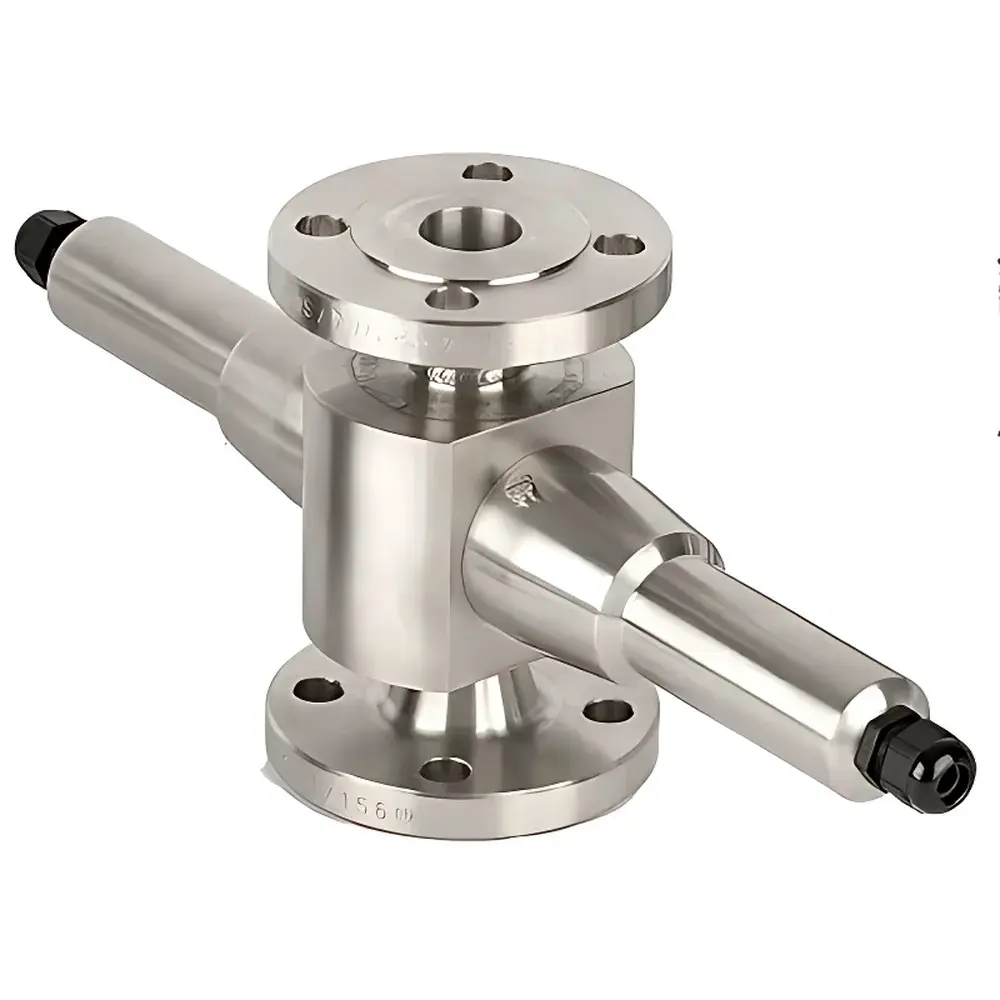

| Model | Monitek MoniSpec-AD |
| Measurement Principle | Dual-Wavelength Absorption Photometry |
| Housing Material | 1.4571 (316L Stainless Steel) |
| Enclosure Rating | NEMA 4X (IP66) |
| Process Connections | DIN, ANSI, SMS, NPT, APV, TH, Tri-Clover |
| Path Length Options | 10–150 mm (1/2"–6") |
| Max Operating Pressure | 15 bar at ambient temperature |
| Max Operating Temperature | 140 °C |
| Fiber Optic Cable Length | Up to 100 m |
| Spectral Range | 390–850 nm |
| Hazardous Area Certification | Class I Div. 1 |
| Compatible Transmitter | Monitek Messenger |
| Measurement Range | Up to 4 Absorbance Units (AU) |
| Accuracy | ±0.5% of reading |
| Repeatability | ±1% |
| Calibration Interval | 12 months |
| Optional Features | Pneumatic cleaning jet |
| Compliant Standards | APHA/Hazen, ASTM D1209, ASTM D1500, ISO 6271, EBC 201, Lovibond |
| Brand | GALVANIC |
|---|---|
| Origin | USA |
| Model | MoniSpec Colorimeter |
| Optical Principle | Dual-channel absorbance and turbidity detection with 12° forward scatter or 90° side scatter geometry |
| Wavelength Range | 380–1100 nm (xenon lamp) |
| Measurement Range | 0–0.1 AU to 0–5 AU |
| IP Rating | IP65 / NEMA 4X |
| Hazardous Area Certification | ATEX Ex d IIC/T6 (Zone 1 & 2 not applicable) |
| Flow Cell Materials | Stainless steel (optional Ti, PTFE) |
| Window Material | Sapphire (optional borosilicate glass, PMMA) |
| Seal Material | FKM (optional FFKM, EPDM, silicone) |
| Process Connections | DIN, ANSI, NPT |
| Max Sensors per Transmitter | 4 |
| Output Units | NTU, JTU, AU, EBC, ppm, g/L, %TS, Hazen, ASTM, Saybolt |
| Data Logging | 8,000 points with backup restore |
| Communication | RS-232C / RS-485 (Modbus RTU) |
| Cleaning | CIP-compatible, optional spray nozzle |
| Calibration/Maintenance Interval | Up to 24 months (application-dependent) |
