| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

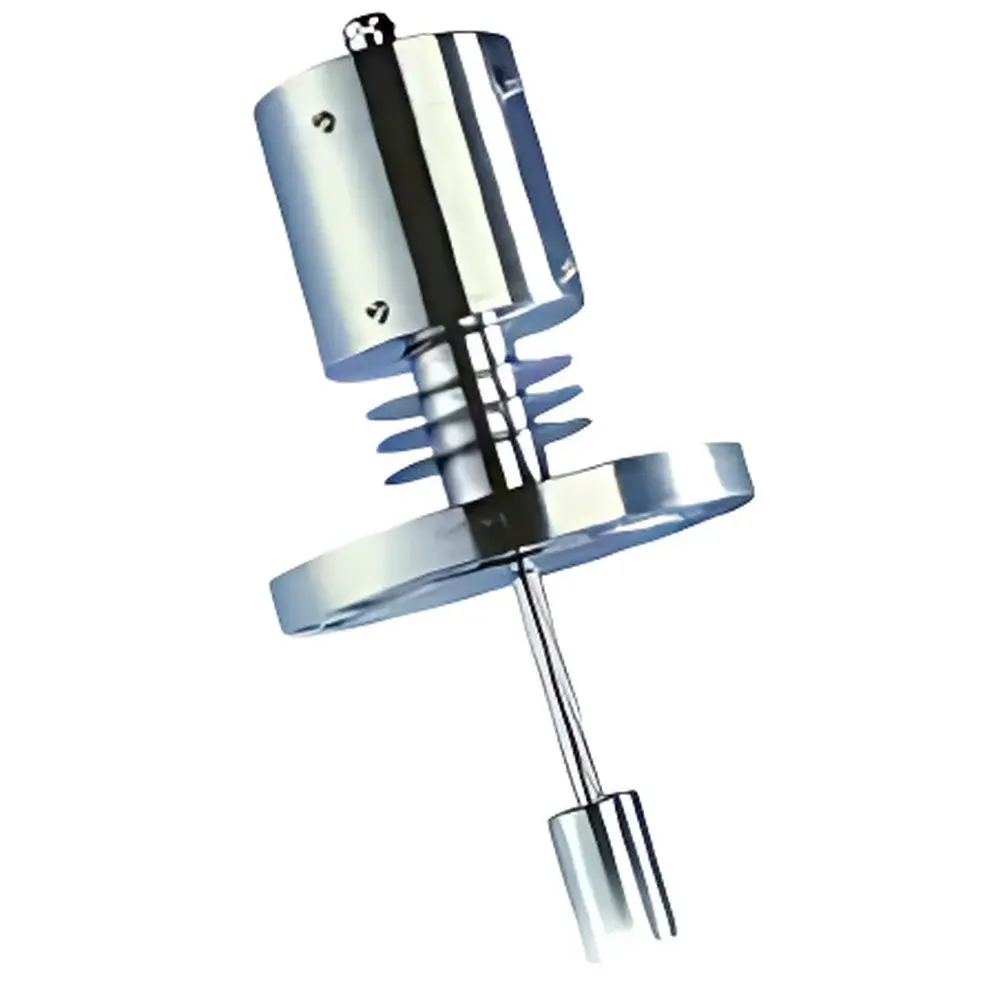

| Model | ViscoLiner |
| Price Range | USD 14,000 – 70,000 |
| Measurement Range | 0.1–1,000,000 cP |
| Temperature Range | −40 °C to +450 °C |
| Max Pressure Rating | 350 bar |
| Repeatability | ±0.25% |
| Accuracy | ±2% |
| Response Time | 1 s |
| Integrated Temperature Sensor | PT100 RTD |
| Temperature Compensation | Yes |
| Flow-Immune Measurement Principle | Vibrational Resonance |
| Brand | Galvanic |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

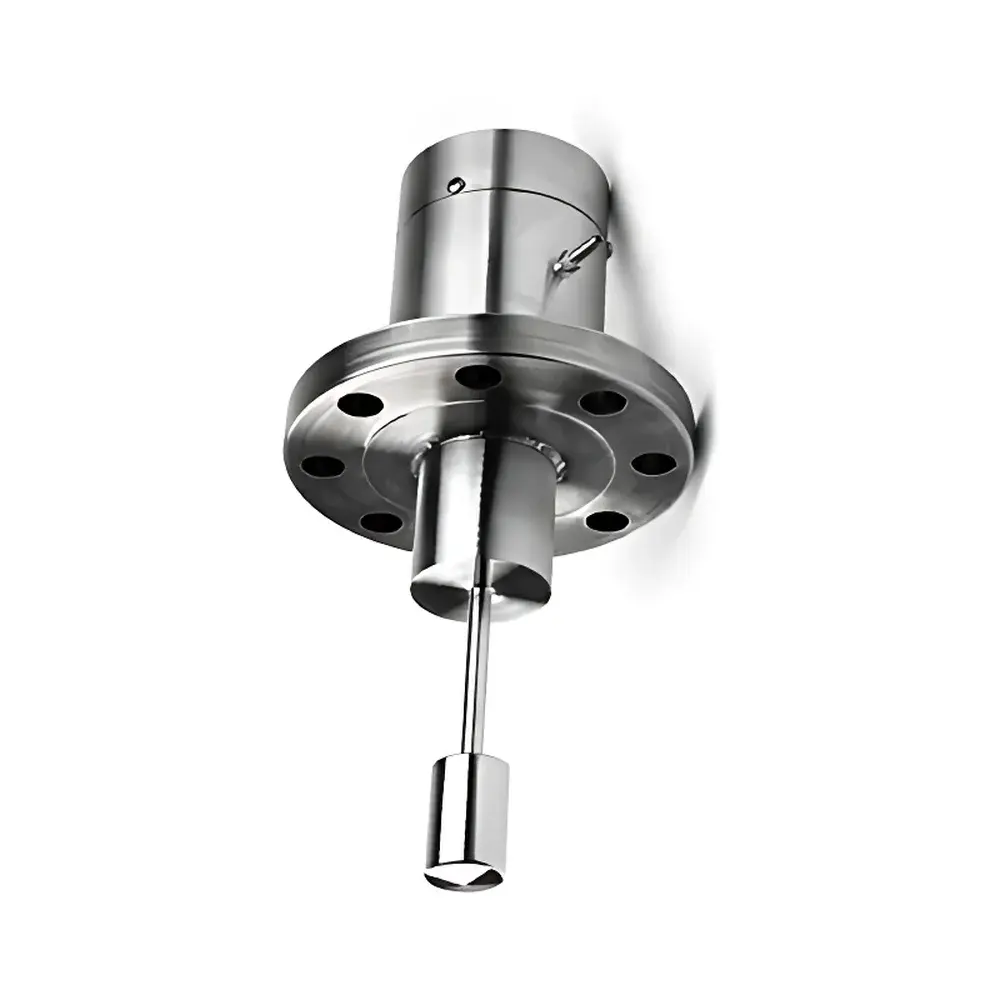

| Model | ViscoSite (Nametre) |
| Price Range | USD 14,000 – 70,000 |
| Measurement Principle | Torque-based Micro-Oscillation Rheometry |
| Probe Types | LV, MV, HV, XV (XV only for VL800) |
| Viscosity Range | 0.1–5,000,000 cP (customizable beyond) |
| Calibration | NIST-traceable Newtonian fluids pre-calibrated at factory |
| Accuracy | ±1% of reading |
| Repeatability | ±0.25% of reading |
| Linearity | ±1% |
| Operating Temperature (Process) | –40 to 450 °C (with optional cooling jacket) |
| Internal Probe Temp Range | –40 to 200 °C |
| Max Flow Velocity | 2 m/s |
| Vibration Frequency | Up to 700 Hz |
| Probe Materials | 316L stainless steel, NEMA 4X-rated housing |
| Process Connection | ANSI 3" 300#, DN80 PN40 flange |
| Cable | MIL-SPEC, up to 1000 m |
