| Brand | Galvanic |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Monitek Turbidimeter |
| Configuration | Online Process Turbidimeter |
| Measurement Range | 0–8000 mg/L (as SiO₂) |
| Resolution | 0.1 mg/L |
| Operating Ambient Temperature | −10 °C to +50 °C |
| Accuracy | ±1 % of reading |
| Optical Principle | 12° forward scatter detection |
| Wavelength Range | 390–900 nm |
| Repeatability | ±1 % |
| Process Connection | DN25–DN125 (½″–5″) |
| Max Process Pressure | PN16 / ANSI Class 150 |
| Max Process Temperature | 140 °C |
| Sensor Housing Material | 316L stainless steel (Ti, Mn-Co alloy optional) |
| Window Material | Sapphire or metal-backed glass |
| Gasket Options | FKM (FFKM, EPDM, silicone available) |
| Enclosure Rating | IP65 / NEMA 4X |
| Cleaning | Optional integrated spray nozzle |
| Sterilization | CIP-compatible |
| Hazardous Area Certification | ATEX Zone 1 or Zone 2 |
| Power Supply | 90–260 VAC, 50–60 Hz (24 VAC/DC optional) |
| Power Consumption | ≤50 VA |
| Analog Outputs | Up to 4 × 4–20 mA (isolated) |
| Digital Interface | RS-232C / RS-485 Modbus RTU (optional) |
| Relay Outputs | 4 programmable relays (48 V / 2 A) |
| Digital Inputs | 4 × 5 V (optional) |
| Brand | Galvanic |
|---|---|
| Origin | USA |
| Type | In-line Process Turbidimeter |

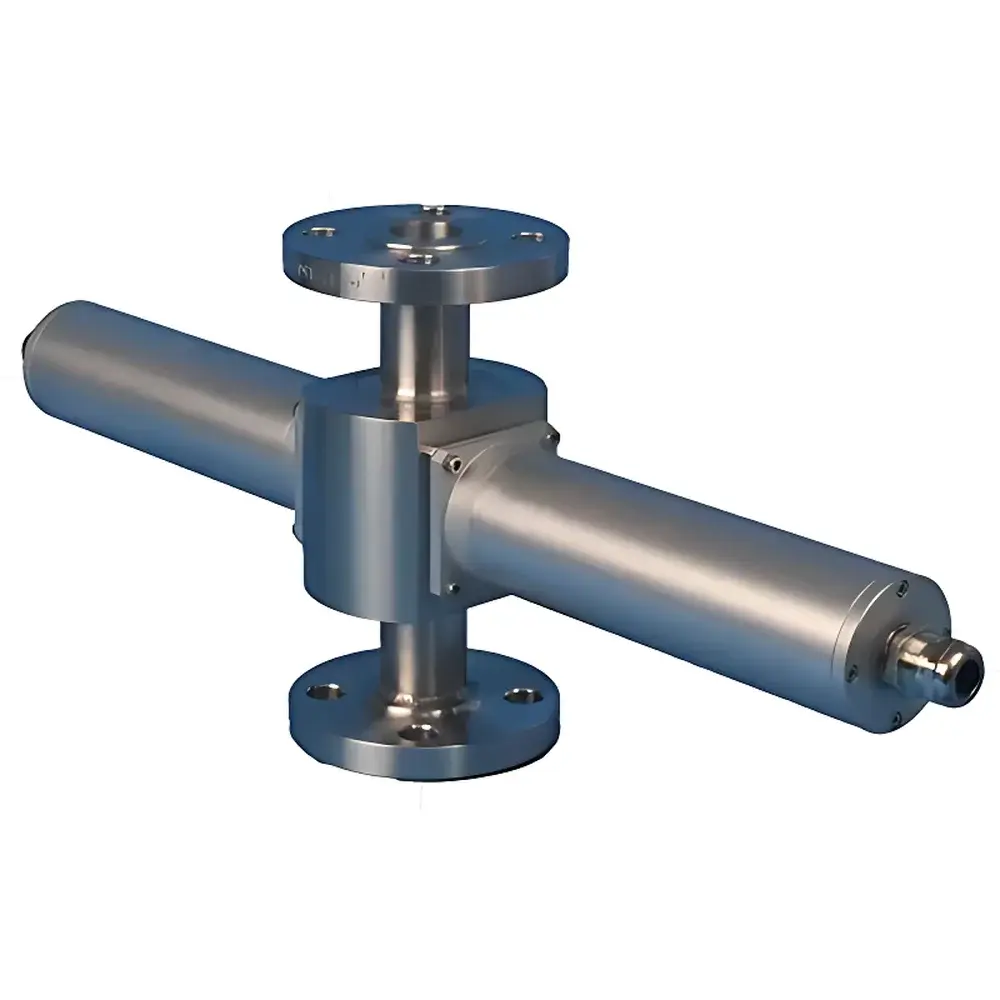

| Model | MoniTurb-F |
| Measurement Range | 0–500 NTU |
| Resolution | ±2% of full scale |
| Accuracy | ±0.5% of full scale |
| Operating Ambient Temperature | −10 °C to +60 °C |
| Process Temperature | up to 140 °C |
| Process Pressure | up to 220 psi (15 bar) at ambient temperature |
| Wetted Materials | 316L stainless steel (1.4404) standard, customizable |
| Optical Path Length | pipe-diameter-dependent |
| Cable Length | up to 100 m |
| Enclosure Rating | NEMA 4X / IP66 |
| Hazardous Area Options | Class I, Div. 1 |
| Output Interface | Compatible with Monitek® Messenger transmitter |
| Detection Principle | 12° forward scatter photometry |
| Optional Configurations | MoniTurb-S (90° side scatter), MoniTurb-FS (dual-angle scatter) |
| Calibration Interval | 12 months |
| Color Compensation | Yes |
| Optional Air/Water Jet Cleaning System | Available |
| Process Connections | DIN, ANSI, SMS, NPT, APV, TH, Tri-Clamp |
| Units Supported | NTU, JTU, AU, EBC, ppm, g/L, % concentration |
| Brand | GALVANIC |
|---|---|
| Origin | USA |

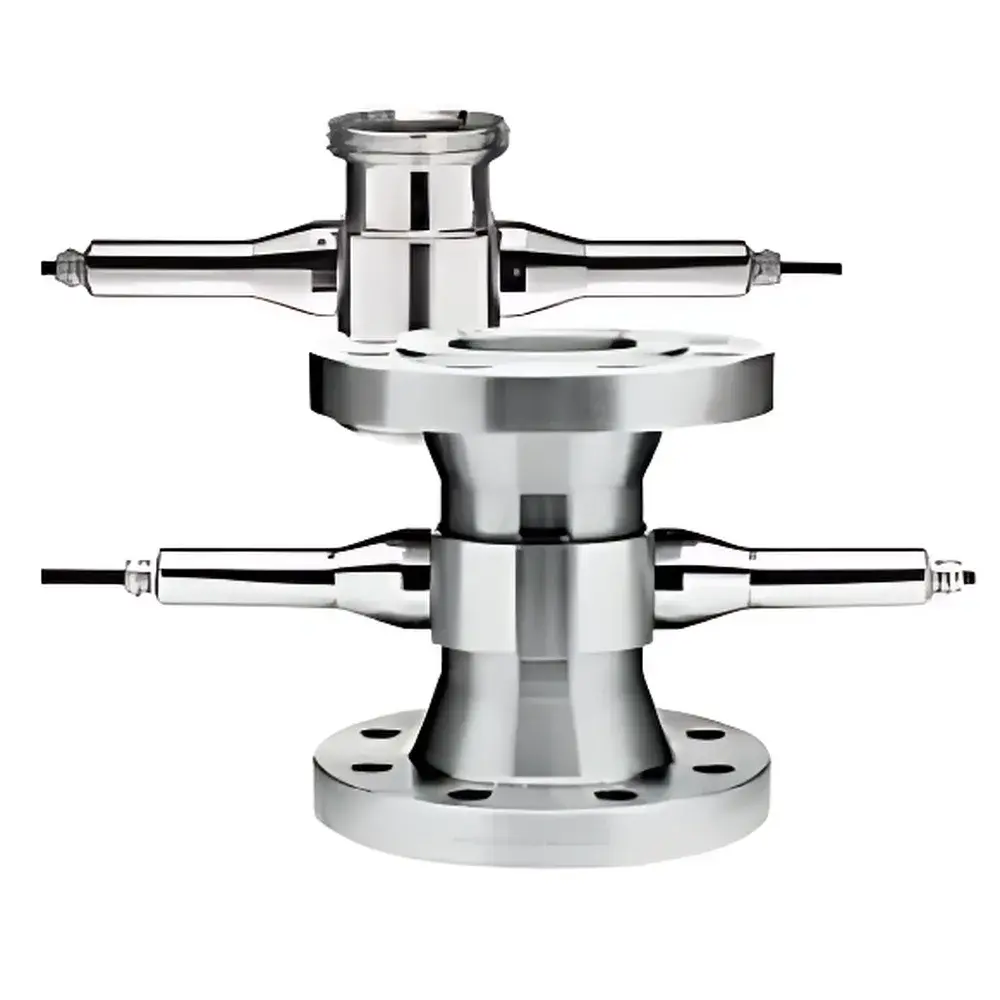

| Model | Monitek-MoniTurb |
| Type | Online Turbidimeter |
| Measurement Range | 0–500 NTU |
| Resolution | 0.1 NTU |
| Operating Temperature | −10°C to 50°C |
| Accuracy | ±1% |
| Protection Rating | IP65 / NEMA 4X |
| Hazardous Area Certification | ATEX Ex d IIC/T6 |
| Light Source | Gas-filled lamp (380–1100 nm), ~2-year lifetime |
| Flow Cell Material | Stainless steel (optional Ti, PTFE) |
| Viewing Window | Sapphire (optional borosilicate, acrylic) |
| Seals | FKM (optional FFKM, EPDM, silicone) |
| Process Connections | DIN, ANSI, NPT |
| Scattering Angles | 12° forward scatter and 90° side scatter |
| Data Logging Capacity | 8,000 entries |
| Communication | RS-232C / RS-485 (Modbus RTU) |
| Programmable Units | NTU, JTU, AU, EBC, ppm, g/L, %TS, Hazen, ASTM, Saybolt |
| Cleaning | CIP-compatible, optional spray nozzle |
| Calibration/Maintenance Interval | Up to 24 months (application-dependent) |
| Brand | Galvanic |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |

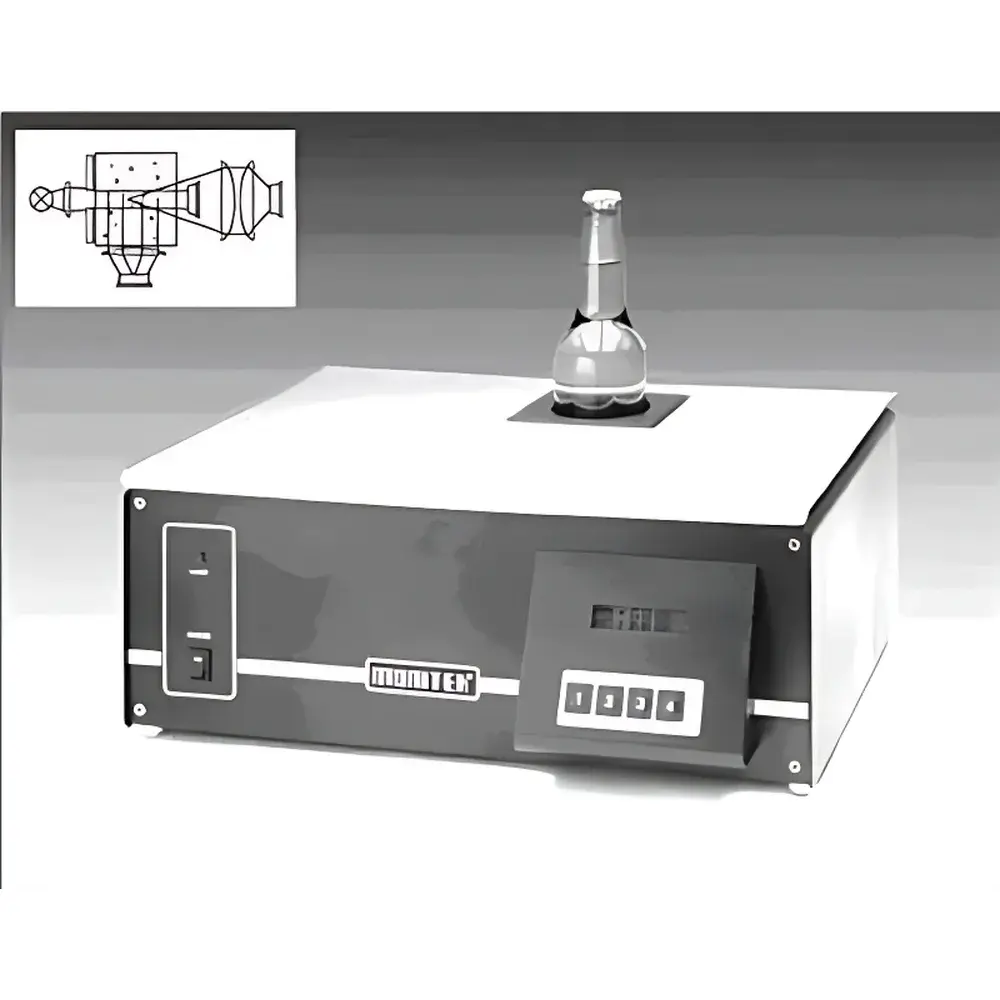

| Form Factor | Benchtop/Laboratory |
| Measurement Ranges | 0–250 EBC (90° side scatter), 0–80 EBC (12° forward scatter) |
| Resolution | 0.01 EBC (sensitivity), 0.05 NTU (display resolution) |
| Operating Temperature | 0–30 °C |
| Accuracy | <2% of reading |
| Repeatability | <1% (with standardized cuvettes) |
| Power Supply | 230 V AC (115 V AC optional) |
| Power Consumption | 60 VA |
| Dimensions | 450 × 300 × 300 mm |
| Weight | 9 kg |
| Measurement Time | ~17 s |
| Interface | RS-232 |
| Cuvette Rotation | Motorized, 360° continuous |
| Automatic Surface Defect Compensation | Yes |
| Color Compensation Algorithm | Embedded |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |

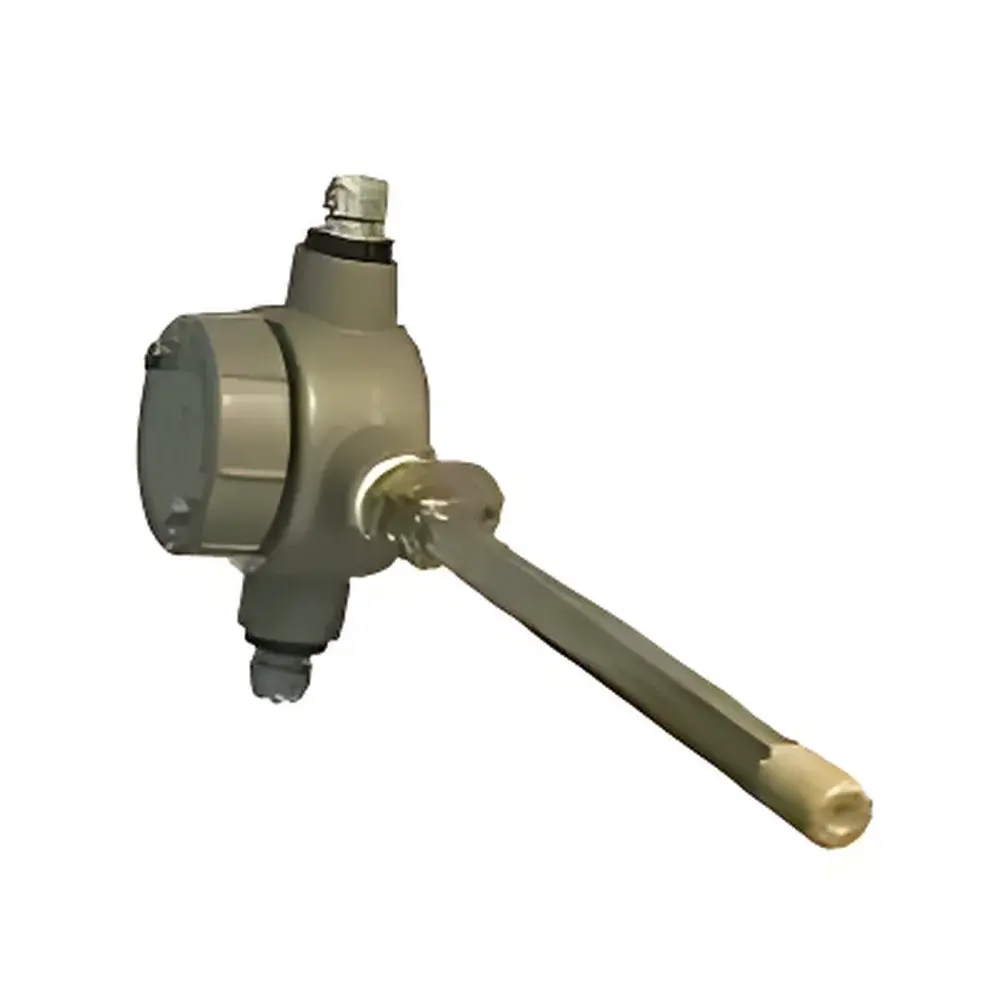

| Model | AS3 |
| Price | Upon Request |
| Operating Pressure | Up to 20 bar |
| Sensor Max Temp | 90°C (110°C with air cooling) |
| Hazardous Area Options | ATEX Zone 1 & Zone 2 / UL Class I Div 1 |
| Sensor Length | ~300 mm (custom lengths available) |
| Measurement Range | 0–5 NTU to 0–5,000 NTU |
| Accuracy | ±1% of reading |
| Transducer Frequencies | 5 MHz and 15 MHz |
| Enclosure Rating | NEMA 4X / IP65 |
| Process Integration | Ball-valve-mounted insertion probe |
| Compatibility | AT3 interface |
