| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-504 |
| Instrument Type | Conventional High-Performance Liquid Chromatograph |
| Flow Rate Range | 0.001–10.000 mL/min |
| Maximum Pressure | 40 MPa |
| Autosampler Capacity | 60 positions × 1.5 mL vials or 96 positions × 0.5 mL vials |
| Injection Volume Range | 0.1–999.9 µL |
| Column Oven Temperature Range | 4–100 °C |
| UV/Vis Wavelength Range | 190–800 nm |
| Data Acquisition Rate | 10 Hz |
| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-150 |
| Instrument Type | Laboratory |
| Pump Pressure Range | 0–40 MPa |
| Flow Rate Range | 0.000–10.000 mL/min |
| Eluent Flow Rate Range | 0.000–10.000 mL/min |
| Maximum Operating Pressure | 35 MPa |
| Operating Temperature Range | 5–35 °C |
| Temperature Reproducibility | ±0.01 °C |
| Eluent Concentration Range | Application-dependent (compatible with common carbonate/bicarbonate, hydroxide, methanesulfonic acid, and other IC eluents) |
| Brand | Labomatic |
|---|---|
| Origin | Switzerland |
| Model | LHP3000 / LMP3000 |
| Instrument Type | High-Pressure Preparative LC System |
| Pump Flow Range | 0.2–1640 mL/min |
| Max Pressure | 600 bar (HDK-51) to 150 bar (HDK-1640) |
| Flow Stability | RSD < 0.1% |
| Piston Stroke | 3.2–17.1 mm |
| Piston Frequency | 0–200 cycles/min |
| Wetted Materials | Sapphire, Ruby, Zirconia Ceramic, PEEK, 1.4435 Stainless Steel |
| Power Supply | 110 / 230 V, 50 / 60 Hz, 1200 VA |
| Dimensions (Controller) | 316 × 142 × 400 mm (W × H × D) |
| Dimensions (Pump Unit) | 316 × 198 × 400 mm |
| Interface Options | 1/4″, 1/8″, 1/16″ |

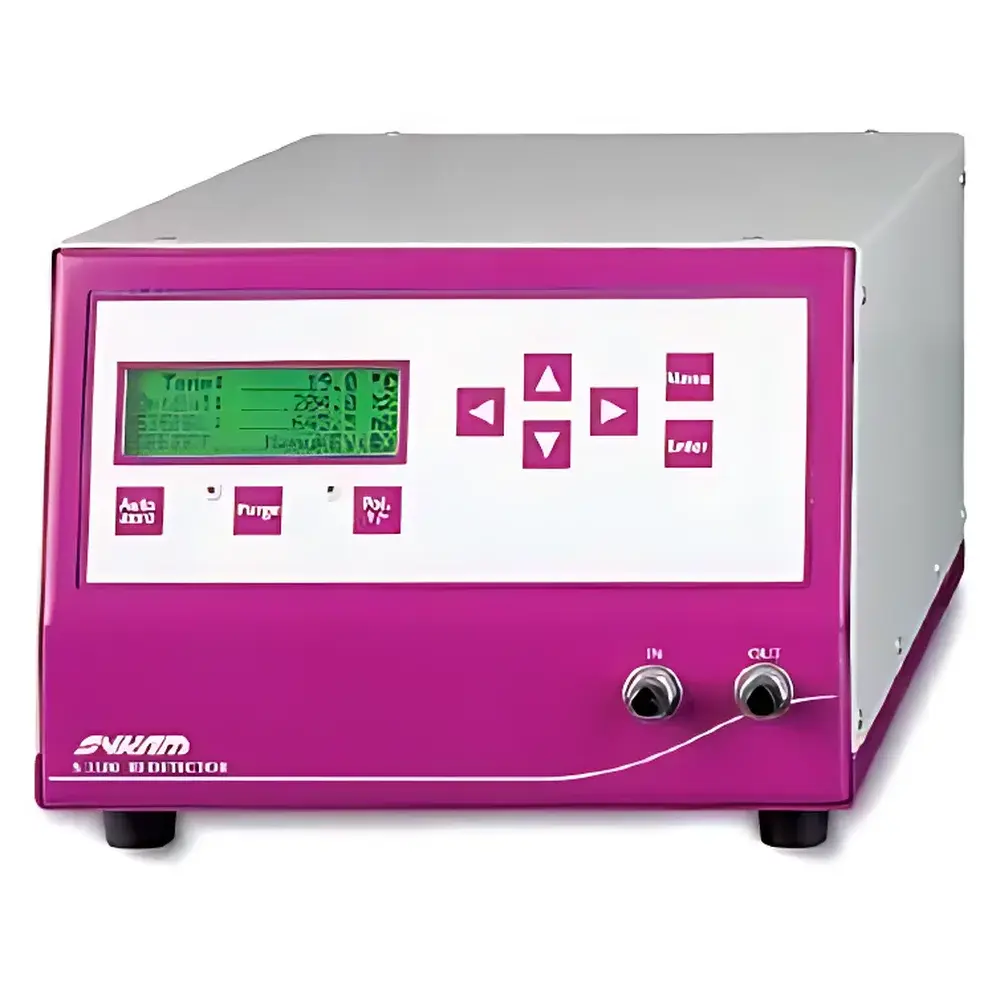

| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-3580 |
| Refractive Index Range | 1.00–1.75 RIU |
| Flow Rate Range | 0.2–3.0 mL/min (analytical/micro), 1.0–50 mL/min (semi-preparative) |
| Linear Range | 0–500, 0–1,000, or 0–20,000 µRIU |
| Noise Level | 5×10⁻⁹ to 10×10⁻⁸ RIU |
| Drift | <1 mV/h (at 1.0 mL/min, H₂O) |
| Cell Volume | 4 µL, 7 µL, or 9 µL |
| Cell Angle | 45° or 5° |
| Maximum Pressure Rating | 6 kg/cm² |
| Dead Volume | 6 µL, 24 µL, or 88/353 µL |
| Temperature Control | Ambient, 35–55 °C (1 °C increments) |
| Response Time Options | 0 s (real-time), 0.4 s, 0.8 s, 1.2 s |
| Output | ±1 V analog |
| Interface Frequency | 1 Hz or 10 Hz |
| Housing Dimensions | 220 × 350 × 155 mm |
| Weight | ~11 kg |
| Brand | Labomatic |
|---|---|
| Origin | Switzerland |
| Model | LH3000 |
| Instrument Type | HPLC Autosampler |
| X-axis Travel Range | 160–2800 mm (customizable) |
| Y-axis Travel Range | 70–670 mm (single arm) |
| Z-axis Height Range | 130–780 mm (fixed base height), max vertical stroke: 400 mm |
| Compliance | Designed for GLP/GMP environments |
| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-3115 |
| Detection Principle | Bipolar Pulsed Electrode Conductivity Measurement |
| Measuring Range | 0.05–10,000 µS |
| Rise Time | 0–10 s |
| Cell Volume | 0.2 µL |
| Temperature Control Range | Ambient to 85 °C |
| Temperature Stability | ±0.01 °C |
| Signal Offset Adjustment | 0–20% of full scale |
| Digital Signal Smoothing | Enabled |
| Auto-zero Function | Supported |
| External Control Interface | Analog (0–10 V) and RS232 |
| Dimensions | 330 × 220 × 160 mm |
| Weight | ~8 kg |
| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-433D |
| Instrument Type | Post-column Derivatization Amino Acid Analyzer |
| Pump Flow Rate | 0.000–9.999 mL/min |
| Maximum Pump Pressure | 40 MPa (400 bar, 6000 psi) |
| Autosampler Injection Volume | 1–500 µL |
| Autosampler Temperature Control | +4 °C to 70 °C (electronic thermostating) |
| Post-column Reactor Temperature Range | Ambient to 180 °C (temperature stability ±0.1 °C) |
| Detection Wavelengths | Simultaneous dual-wavelength detection at 570 nm and 440 nm |
| Flow Cell Volume | 8 µL |

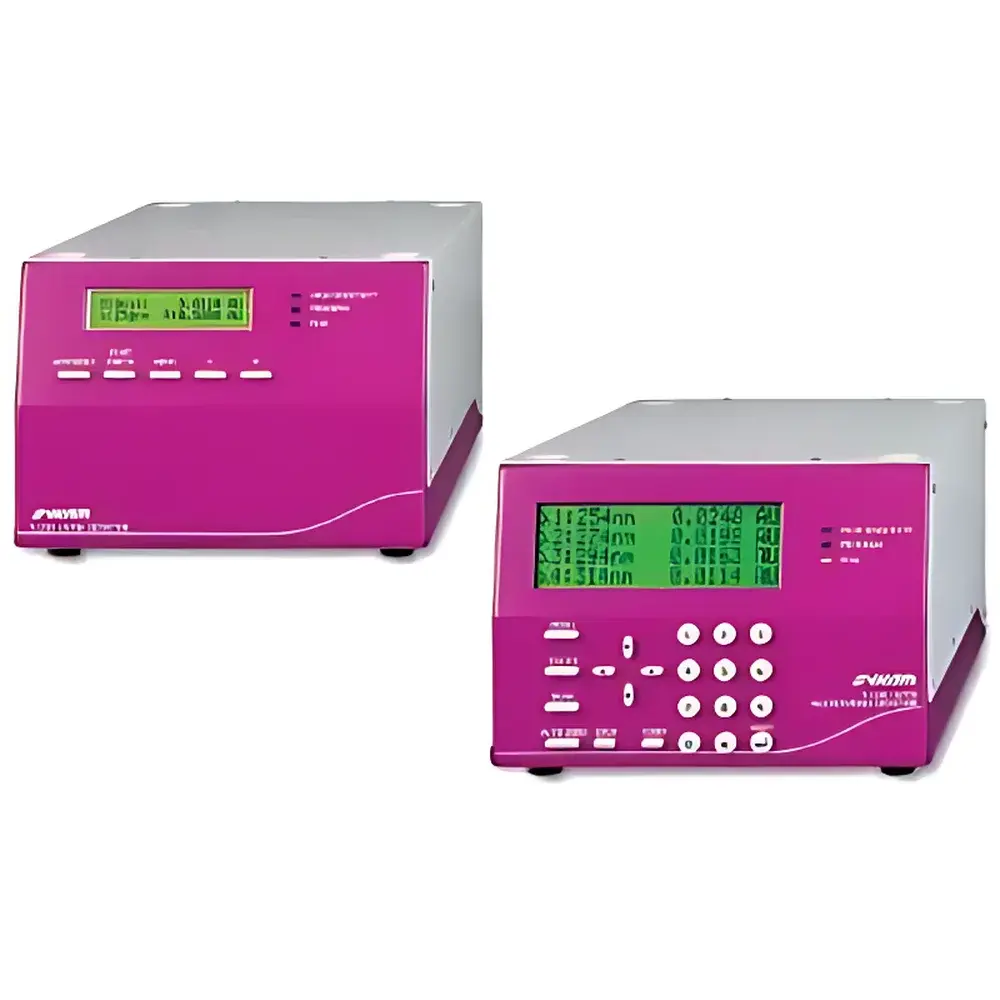

| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-3210, S-3210S, S-3210DAD, S-3240, S-3240DAD |
| Wavelength Range | 190–720 nm |
| Spectral Bandwidth | 6 nm (2 nm per diode) |
| Noise | ±1.5 × 10⁻⁵ AU |
| Drift | 5 × 10⁻⁵ AU/h |
| Wavelength Accuracy | ±0.5 nm |
| Absorbance Range | 0.0005–2.0 AU (full scale, 8 selectable ranges) |
| Flow Cell | PEEK, 10 mm path length, 12 µL volume |
| Scan Speed | 0.1 s for full 190–720 nm spectrum |
| Analog Outputs | 4 channels (0–1.0 V, full-scale matched to absorbance range) |
| Interface | RS232 |
| Detector Type | Diode Array Detector (DAD) or Programmable Single-Channel UV-Vis |
| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S-501 |
| Instrument Type | Conventional High-Performance Liquid Chromatograph |
| Flow Rate Range | 0.001–10.000 mL/min |
| Maximum Pressure | 40 MPa |
| Autosampler Capacity | 120 positions |
| Injection Volume Range | 0.1–999.9 µL |
| Column Oven Temperature Range | 4–100 °C |
| UV/Vis Wavelength Range | 190–800 nm |
| Data Acquisition Rate | 10 Hz |
| Brand | Sykam |
|---|---|
| Origin | Germany |
| Model | S5200 |
| Instrument Type | HPLC Autosampler |
| Sample Capacity | 120 vials (2 × 60-position trays) |
| Standard Loop Volume | 20 µL (exchangeable) |
| Precision | RSD < 0.5% (fixed-volume mode) |
| Carryover | < 0.01% (low-pressure wash) |
| Programmable Wash Protocol | Yes |
| Control Interface | Analog signal or RS-232 digital |
| Dimensions | 415 × 300 × 445 mm |
| Weight | ~20 kg |
| Brand | Labomatic |
|---|---|
| Origin | Switzerland |
| Type | Dynamic Axial Compression (DAC) System |
| Construction Material | Borosilicate Glass |
| Max Operating Pressure | 65 bar (940 psi) |
| Piston Adjustment Range | 150 mm |
| Column Diameter Options | 8 sizes (28–300 mm) |
| Column Length Options | 3 standard lengths |
| Seal Design | Spring-loaded elastomeric seals |
| Sample Distribution | Optimized distributor for improved packing reproducibility |
| Compatibility | Biocompatible inert materials |
| Modular Conduit System | Shared tubing manifold for multi-column operation |
| Packing Tool Kits | Available for all AMC column diameters |
| Regulatory Context | Designed for GLP-compliant preparative chromatography workflows |
