| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

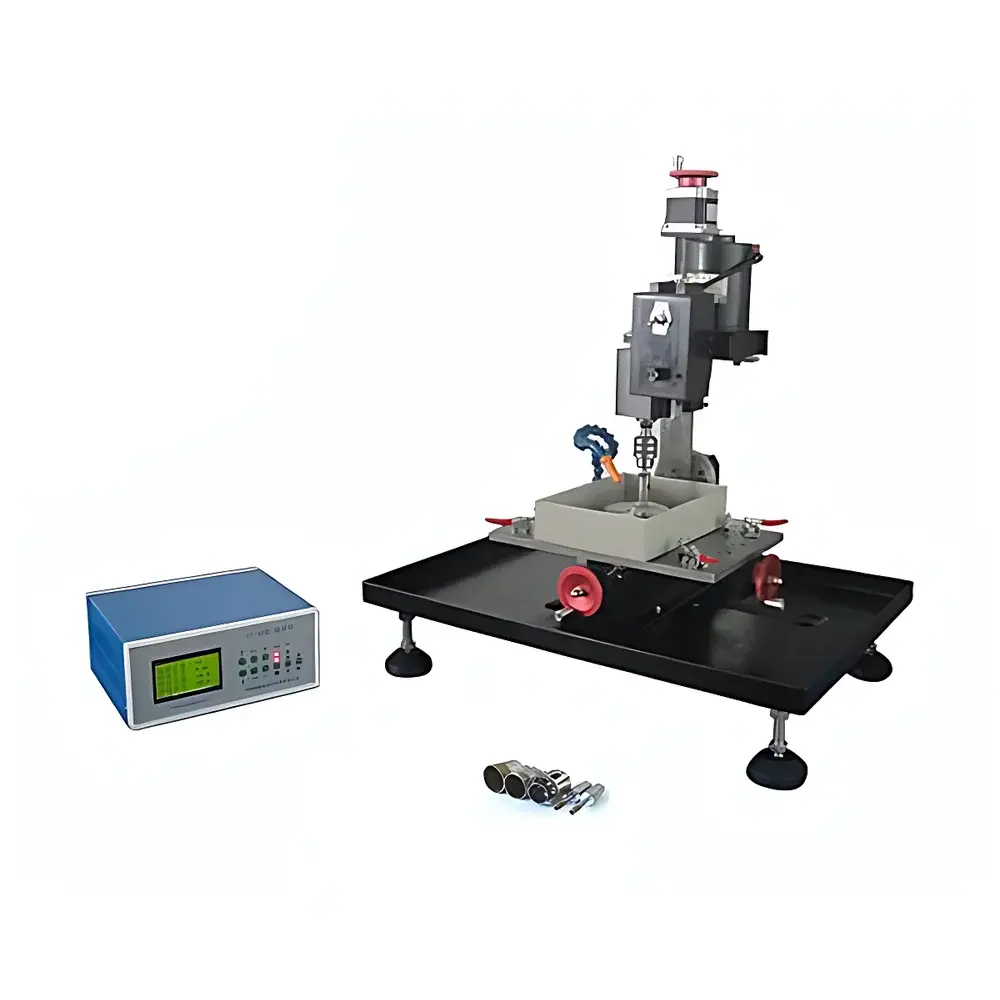

| Model | QY-30 |
| Pricing | Upon Request |
| Input Voltage | AC 220 V, 50 Hz |
| Drive Power | 120 W |
| Spindle Speed Range | 70–2750 rpm |
| Z-Axis Travel | 100 mm (stepper motor-driven) |
| X/Y-Axis Travel | 200 mm × 80 mm (manual) |
| Quick Clamp Holding Force | 27 kgf |
| Sample Stage Dimensions | 300 mm × 100 mm × 10 mm |
| Stage Insert Plate | 180 mm × 75 mm × 5 mm |
| Standard Core Bit Internal Diameter | Ø30 mm |
| Overall Dimensions | 580 mm × 445 mm × 620 mm |
| Ambient Operating Conditions | ≤1000 m altitude, 10–40 °C, 45–65 %RH |
| Cooling | Integrated water circulation tray with inlet/outlet ports |
| Ventilation | Required |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments |
| Key | Origin: Liaoning, China |
|---|---|
| Manufacturer Type | Distributor |
| Country of Origin | China |

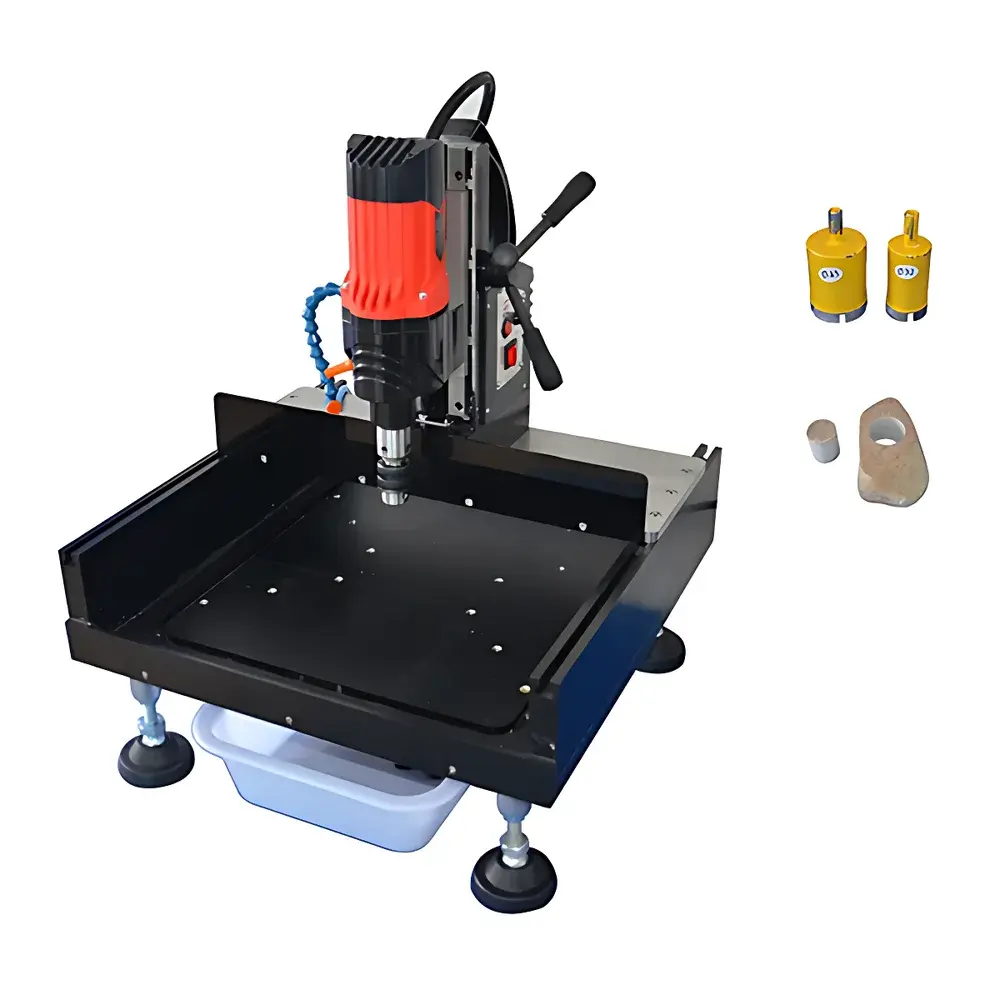

| Model | SYJ-80QY |
| Price | Upon Request |
| Motor Power | 1600 W |
| Voltage/Frequency | AC 220 V / 50 Hz |
| Spindle Speed Range | 0–650 rpm |
| Standard Core Diameters | Ø32 mm, Ø45 mm |
| Max. Sampling Depth | 50 mm |
| Max. Sample Stage Size | 300 × 300 mm |
| Dimensions (L×W×H) | 500 × 512 × 750 mm |
| Cooling System | Integrated water-cooled feed |
| Operating Environment | ≤1000 m altitude, 10–40 °C ambient, 45–65 %RH |
| Water Supply | Required (inlet & drain) |
| Electrical Supply | AC 220 V / 50 Hz |
| Ventilation | Required |
| Footprint Requirement | 700 × 700 × 700 mm |
| Brand | KJ GROUP (Shenyang Kejing) |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MSK-ESC-R2R |
| Pricing | Upon Request |
| Electrode Configuration | Linear 5-needle spinneret |
| Coating Width | 160 mm |
| Substrate Travel Speed | 2.2–117.2 mm/s |
| Heating Platform Max Temp | 100 °C |
| Temperature Control Accuracy | ±1 °C (PID) |
| High-Voltage Output | 0–50 kV, max 1 mA |
| Needle OD | 0.9 mm |
| Needle ID | 0.6 mm |
| Needle Length | 12 mm |
| Needle Spacing | 25 mm |
| Needle-to-Heater Distance Range | 70–235 mm |
| Syringe Pump Flow Rate | 0.1–45 mm/min (linear displacement) |
| Syringe Volume | 250 mL |
| System Footprint | 805 × 435 × 565 mm (L×W×H) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | SYJ-50QY |
| Pricing | Upon Request |
| Max Sample Diameter | Ø90 mm × 2 mm |
| Vacuum Source | Clean Compressed Air (0.2–0.6 MPa) |
| Spindle Speed | 300–6500 rpm (recommended: 5000 rpm) |
| Feed Motor Speed | 0.5–7.5 rpm |
| Feed Rate | 0.014–0.23 mm/s |
| Sample Thickness Range | 0.3–1 mm |
| Operating Environment | 25 °C ±15 °C, ≤85% RH (non-condensing), Altitude <1000 m |
| Cooling | Adjustable Water-Based Coolant Flow |
| Dimensions (W×D×H) | 470 mm × 700 mm × 1100 mm |
| Weight | 40 kg |
| Required Utilities | AC 220 V, 50 Hz |
| Water Connection | Inlet & Drain Required |
| Ventilation | Mandatory |
| Workbench Minimum | 600 mm × 850 mm × 700 mm |
