| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PCE-6 |
| RF Frequency | 3.0 MHz (±1%) |
| Output Power | 7.2 W / 10.2 W / 29.6 W (3-step manual adjustment) |
| Chamber Dimensions | Ø160 mm × 190 mm |
| Chamber Volume | ≈3.8 L |
| Chamber Material | High-purity fused quartz |
| Vacuum Pump | Direct-coupled dual-stage rotary vane pump, 120 L/min |
| Ultimate Vacuum | ≤50 mtorr |
| Gas Inlets | 3 independent mass-flow-controlled ports (6 mm Swagelok® compression fittings) |
| Gas Compatibility | O₂, N₂, Ar, H₂, air, and custom gas mixtures |
| Control Interface | Manual tactile panel with real-time digital display of power, time, and vacuum level |
| Overall Dimensions | 400 mm × 300 mm × 300 mm |
| Net Weight | 10.2 kg |
| Input Power | AC 220 V, 50/60 Hz |
| Total System Power Consumption | <600 W |
| Vacuum Pump Power | <500 W |
| Sealing | Aluminum folding flange with Ø45 mm quartz viewport |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

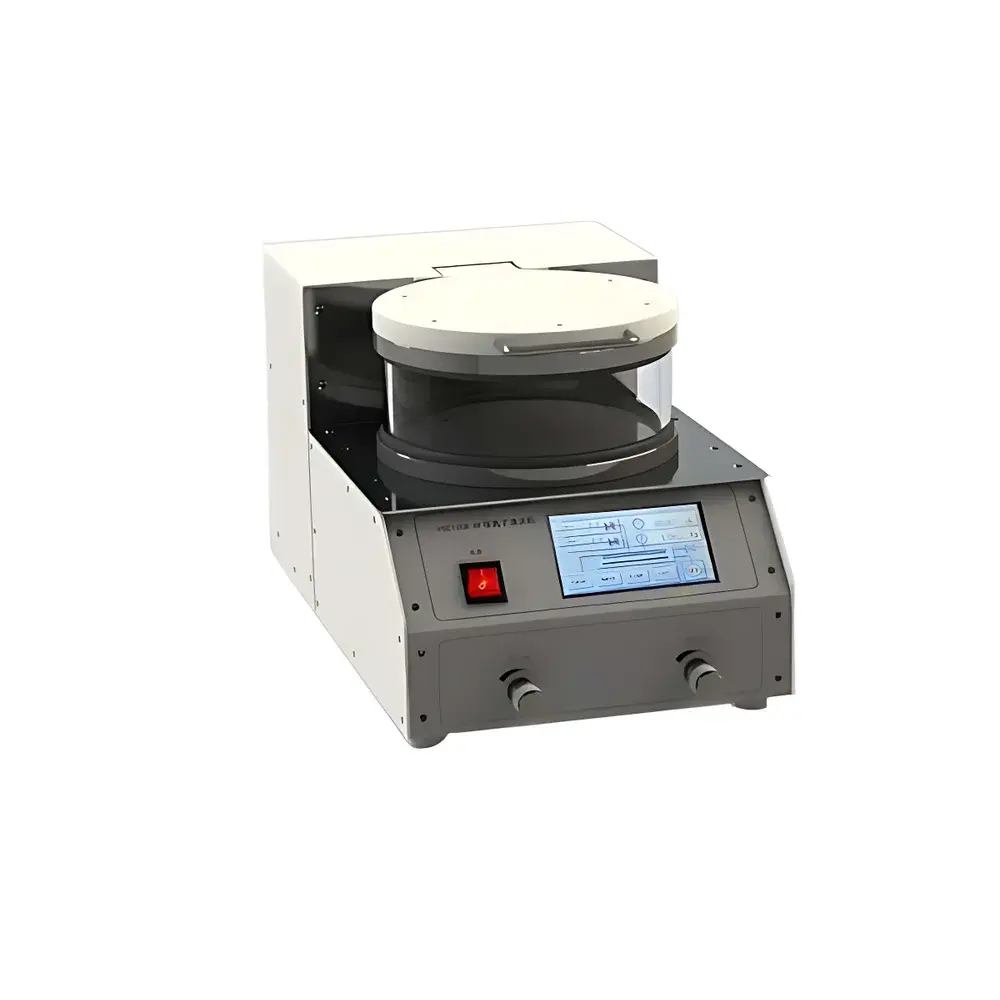

| Model | PCE-6V |
| Instrument Type | Domestic RF Plasma Cleaner |
| RF Frequency | 13.56 MHz |
| RF Power Output | 100 W |
| Total System Power Consumption | <500 W (including vacuum pump) |
| Chamber Dimensions | Ø165 mm × 55 mm |
| Chamber Material | Fused Quartz |
| Vacuum Interface | Ø12 mm |
| Ultimate Vacuum | 0.1 Pa |
| Operating Vacuum Range | 60–500 Pa |
| Gas Inlets | 2 channels (optional flow controllers) |
| Electrode Diameter | Ø120 mm |
| Sample Stage | Ø150 mm (effective Ø140 mm) |
| Stage-to-Electrode Gap | Adjustable from 15 to 50 mm |
| Optional Heated Stage | Ø100 mm, 200–500 °C |
| Cooling Water Pressure Requirement | 0.2–0.4 kPa |
| Ambient Operating Conditions | 5–35 °C, RH <80% non-condensing, altitude ≤2000 m |
| Dimensions (W×D×H) | 245 mm × 235 mm × 460 mm |
| Weight | 20 kg (excluding vacuum pump) |
| Brand | KJ GROUP |
|---|---|
| Model | PCE-8 |
| Type | Benchtop RF Plasma Surface Treater |
| RF Frequency | 13.56 MHz |
| Max RF Power | 100 W (continuously adjustable) |
| Plasma Chamber | High-purity quartz tube, Ø8.2" ID × 12" L (Ø208 mm × 305 mm), aluminum folding flange with Ø60 mm viewport |
| Ultimate Vacuum | 50 mtorr |
| Pumping System | Direct-coupled dual-stage rotary vane pump (240 L/min) |
| Gas Compatibility | N₂, O₂, Ar, H₂, air, and custom gas mixtures |
| Mass Flow Control | 0–500 sccm (digital MFC integrated) |
| Control Interface | 6" color touchscreen (power, time, gas flow, pump activation) |
| Dimensions (W×D×H) | 620 × 450 × 600 mm |
| Total Power Consumption | <600 W |
| Input Voltage | AC 220 V |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GSL1100X-PJF |
| Instrument Type | Atmospheric-Pressure Plasma Jet System |
| Input Voltage | 110/220 V, 50/60 Hz |
| Power Consumption | <1000 W |
| RF Output Frequency | 20–23 kHz |
| Gas Supply Pressure | ≥0.275 MPa |
| Operating Plasma Pressure | 0.048–0.068 MPa |
| Nozzle Options | Ø10–12 mm circular or 15–18 mm rectangular |
| Dimensions (W×D×H) | 500 × 380 × 210 mm |
| Weight | 10 kg |
| Ambient Operating Conditions | ≤42 °C, ≤40 % RH, non-flammable atmosphere |
| Certifications | CE compliant |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Model | PCE-3 |
| RF Frequency | 13.56 MHz |
| Maximum RF Power | 18 W (adjustable in three steps: 6.8 W / 10.5 W / 18 W) |
| Chamber Dimensions | Ø75 mm × 165 mm |
| Chamber Material | Heat-resistant borosilicate glass |
| Gas Inlet | Single-channel, compatible with air, O₂, Ar, N₂, or custom gas mixtures |
| Vacuum Requirement | ≥160 L/min pumping speed, ultimate pressure ≤0.27 mbar (200 mtorr) |
| Input Voltage | 110 V / 220 V, 50 Hz / 60 Hz |
| Device Dimensions | 200 mm × 250 mm × 210 mm |
| Net Weight | 8 kg (excluding vacuum pump) |
| Control Mode | Fully automatic microprocessor-based operation |
| Safety Compliance | CE-marked design |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Model | GSL-1100X-PJF-A |
| RF Frequency | 20–23 kHz |
| Maximum Power | 1000 VA |
| Overall Dimensions | 550 mm (W) × 650 mm (D) × 920 mm (H) |
| Chamber Internal Volume | 380 mm (W) × 210 mm (H) × 500 mm (D) |
| Chamber Material | Stainless Steel |
| Operating Gases | 2 (configurable) |
| Control Method | Manual (X/Y panel control |
| Input Voltage | AC 220 V, 50 Hz |
| Gas Supply Pressure | 0.5–0.7 bar (adjustable) |
| Pressure Protection Range | 0.4–0.8 bar |
| Nozzle Width | Round nozzle: 10–12 mm |
| Flat nozzle | 15–18 mm |
| Weight | 17 kg |
