| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Region of Origin | Domestic (China) |
| Model | STX-202B |
| Pricing | Upon Request |
| Power Supply | AC 220 V, 50 Hz, 10 A |
| Total Power Consumption | 120 W (excluding air compressor) |
| Frame Material | Aluminum Alloy with Sheet Metal Enclosure |
| Diamond Wire Length | ≤45 m |
| Diamond Wire Diameter | ≤0.45 mm |
| Wire Tensioning Method | Adjustable Pneumatic Tensioning |
| Spindle Motion | Reciprocating Rotation |
| Spindle Speed | 2–300 rpm (adjustable) |
| Z-Axis Travel | ≤60 mm |
| Y-Axis Travel | ≤50 mm |
| Sample Stage | Manual 2D Fixture — Horizontal Rotation: 0–360°, Tilt Angle: ±15° |
| Maximum Distance Between Guide Wheels (inner) | 96 mm |
| Max. Workpiece Dimensions | Φ50 × 50 mm |
| Specimen Holder Size (L×W×H) | 80 × 51 × 12 mm |
| Max. Cutting Depth | ≤50 mm |
| Control System | Integrated PLC + 7-inch Touchscreen HMI |
| Real-time Video Monitoring | Built-in 7-inch Display |
| Machine Dimensions (L×W×H) | 730 × 680 × 970 mm |
| Net Weight | 130 kg |
| Operating Environment | 0–45 °C, 10–85% RH (non-condensing) |
| Cooling Requirement | Cutting Oil (recommended) |
| Compressed Air Supply | ≥0.6 MPa |
| Minimum Bench Load Capacity | 150 kg |
| Recommended Bench | Solid Cement Table (800 × 700 × 500 mm) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Low-Speed Metallographic Cutting Machine |
| Model | SYJ-100D |
| Power Supply | 220 V, 50 Hz |
| Rotational Speed Range | 1–190 rpm |
| Feed Rate | 0.05–40 mm/min |
| Z-Axis Travel | 1–100 mm |
| Z-Axis Return Speed | 1–100 mm/min |
| Maximum Workpiece Dimensions | 100 × 100 × 100 mm (cube) or Ø100 mm (cylinder) |
| Dimensions (W × D × H) | 800 × 800 × 700 mm |
| Net Weight | ~115 kg |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | SYJ-1000 |
| Price | Upon Request |
| Power Supply | AC 220 V, 50 Hz |
| Main Spindle Speed Range | 50–1500 rpm (infinitely variable) |
| Maximum Cutting Depth | ≈50 mm |
| Feed Positioning Accuracy | 0.01 mm |
| Dimensions (W×D×H) | 410 × 330 × 290 mm |
| Weight | 39 kg |
| Standard Blade | Ø150 mm (with arbor sizes Ø12.7 mm, blade thickness 0.6 mm) |
| Compatible Blade Diameters | Ø100 mm, Ø150 mm, Ø200 mm |
| Cooling System | Integrated recirculating water reservoir with splash-fed coolant delivery |
| Operating Environment | 10–40 °C, 45–65 % RH |
| Required Workbench | ≥600 × 600 × 700 mm, load capacity ≥50 kg |
| Safety Features | Mechanical cutting limit stop, blade guard, emergency stop circuit |
| Compliance | Designed to meet general laboratory safety standards per IEC 61010-1 |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SYJ-40 |
| Instrument Type | Abrasive Wheel Cutting Machine |
| Power Supply | AC 100–240 V, 50/60 Hz, 10 A (with DC24V/11.67A adapter) |
| Total Power Consumption | 100 W |
| Motor | DC24V, 90 W, 5.2 A, max 2500 rpm |
| Effective Spindle Speed Range | 650–2500 rpm |
| Blade Diameter | Ø100 mm |
| Maximum Sample Cross-Section | 25 mm × 40 mm |
| Dimensions (L×W×H) | 390 × 285 × 290 mm |
| Weight | 7 kg |
| Operating Environment | 0–45 °C, 10–85% RH (non-condensing) |
| Safety Compliance | Grounded three-pin AC input required |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | STX-610B |
| Instrument Type | Precision Diamond Wire Saw |
| Total Power | 500 W |
| Diamond Wire Length | ≤150 m |
| Wire Diameter | φ0.25–0.45 mm |
| Wire Tensioning | Adjustable Pneumatic Tension (0.1–0.4 MPa) |
| Cutting Mode | Reciprocating Rotation |
| Wire Speed | 0–8 m/s (adjustable) |
| Y-Axis Travel | ≤180 mm |
| Z-Axis Travel | ≤160 mm |
| Positioning Resolution (Y/Z) | 0.01 mm |
| Sample Mounting Stage | Manual 2D Rotary Table (0–360° horizontal, ±10° tilt) |
| Max Sample Size | Φ150 mm × 150 mm |
| Max Load Capacity | ≤5 kg |
| Guide Wheel Spacing (inner) | ≤180 mm |
| Control System | PLC + 7-inch Touchscreen HMI |
| Safety Features | Over-travel protection (spool, Y/Z axes), wire-break auto-stop, emergency stop switch |
| Frame Material | Aluminum Extrusion + Acrylic Transparent Enclosure |
| Dimensions (L×W×H) | 780 × 900 × 1580 mm |
| Net Weight | ≈225 kg |
| Power Supply | AC 220 V, 50 Hz, 10 A (with grounding) |
| Operating Environment | 0–45 °C, 10–85 % RH (non-condensing) |
| coolant (recommended | dedicated cutting oil) required |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SYJ-50 |
| Instrument Type | Abrasive Wheel Cutting Machine |
| Power Supply | 3-phase AC 380 V, 50 Hz |
| Total Power | 1.2 kW |
| Spindle Speed | 2800 rpm |
| Motor | 3-phase AC induction motor, 1.1 kW |
| Max. Specimen Size | Ø50 mm × 50 mm |
| Clamp Opening | ≥50 mm |
| Blade Dimensions | Ø250 mm × Ø25.4 mm or Ø32 mm × 2 mm |
| Machine Dimensions (L×W×H) | 750 × 620 × 650 mm (980 mm with cover open) |
| Weight | ≈85 kg |
| Operating Environment | 0–45 °C, 10–85% RH (non-condensing) |
| Cooling | Integrated dual-nozzle water cooling system |
| Safety Features | Polycarbonate observation window, full enclosure guard, internal LED illumination, stainless steel worktable |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | STX-610 |
| Instrument Type | Precision Diamond Wire Cutting System |
| Power Consumption | 500 W |
| Input Voltage | AC 220 V, 50 Hz, 10 A |
| Diamond Wire Length | ≤150 m |
| Wire Diameter | φ0.25–0.45 mm |
| Wire Tensioning | Pneumatic, Adjustable (0.1–0.4 MPa) |
| Wire Speed | 0–8 m/s (variable via AC frequency inverter) |
| Y-Axis Travel | ≤180 mm |
| Z-Axis Travel | ≤160 mm |
| Positioning Resolution (Y/Z) | 0.01 mm |
| Sample Max. Dimensions | Φ150 mm × 150 mm |
| Guiding Pulley Span (inner) | ≤180 mm |
| Worktable Load Capacity | ≤5 kg |
| Rotary Sample Stage | Manual, 360° horizontal rotation ±10° tilt |
| Frame Material | Anodized Aluminum Extrusion |
| Overall Dimensions (L×W×H) | 740 × 800 × 1580 mm |
| Net Weight | ≈190 kg |
| Environmental Requirements | 0–45 °C, 10–85 % RH (non-condensing) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Category | Domestic |
| Model | STX-1203B |
| Instrument Type | Precision Diamond Wire Saw |
| Cutting Wire Speed | 0–15 m/s |
| Max. Workpiece Diameter & Length | Φ300 × 300 mm |
| Z/Y-Axis Travel | ≤300 mm each |
| Positioning Accuracy (Z/Y/R) | 0.01 mm |
| Wire Tensioning | Pneumatic (0–1 MPa) |
| Wire Length | ≤150 m |
| Wire Diameter | ≤0.45 mm |
| Worktable Load Capacity | ≤20 kg |
| Power Supply | AC 220 V / 50 Hz |
| Total Power Consumption | ~620 W |
| Net Weight | ~340 kg |
| Dimensions (L×W×H) | 1120 × 960 × 1820 mm |
| Environmental Requirements | Altitude <1000 m, Temp. 10–40 °C, RH 45–65 % |
| Safety Features | Wire-break auto-stop, emergency stop, acrylic safety enclosure |
| Control System | PLC + 7-inch touchscreen HMI |
| Motor Configuration | 370 W AC frequency inverter motor (main drive), precision stepper motors (Y/Z/R axes) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | STX-200QX |
| Instrument Category | Precision Diamond Wire Cutting System |
| X-Axis Travel | 400 mm |
| Y-Axis Travel | 400 mm |
| Max. Cutting Thickness | 100 mm |
| Positioning Accuracy | 0.01 mm |
| Wire Speed | 0–15 m/s |
| X/Y Axis Feed Rate | 0.06–6 mm/min |
| Worktable Dimensions | 500 × 600 mm |
| Max. Sample Dimensions | 400 × 400 × 100 mm |
| Wire Tensioning Method | Pneumatic Tensioning |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | STX-50QX |
| Instrument Category | Precision Diamond Wire Cutting System |
| X-Axis Travel | 100 mm |
| Y-Axis Travel | 150 mm |
| Max. Cutting Thickness | 50 mm |
| Positioning Accuracy | 0.01 mm |
| Wire Speed | 0–15 m/s |
| X/Y Axis Feed Rate | 0.06–6 mm/min |
| Worktable Dimensions | 140 × 275 mm |
| Max. Sample Size | 100 × 150 × 50 mm |
| Wire Tensioning | Motorized Automatic Tensioning |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Model | STX-202A |
| Instrument Type | Precision Diamond Wire Saw |
| Frame Material | Aluminum Alloy |
| Power Supply | AC 220 V, 50 Hz, 10 A |
| Total Power | 100 W |
| Wire Length | ≤20 m |
| Wire Diameter | ≤0.45 mm |
| Wire Tensioning | Spring-loaded mechanical tensioner |
| Spindle Rotation Mode | Reciprocating |
| Spindle Speed | 2–260 rpm (adjustable) |
| Cutting Speed | 0.05–40 mm/min |
| Return Speed | 1–40 mm/min |
| Z-axis Stroke | ≤60 mm |
| Y-axis Stroke | ≤50 mm |
| Sample Holder Rotation | Horizontal 0–360°, Tilt ±15° |
| Max Wheel Inner Distance | 95 mm |
| Max Workpiece Size | Φ50 × 50 mm |
| Specimen Block Dimensions | 80 × 51 × 12 mm |
| Max Cutting Depth | ≤50 mm |
| Control System | PLC + 7-inch Touchscreen HMI |
| Operating Temp/Humidity | 0–45 °C, 10–85% RH (non-condensing) |
| Dimensions (W×D×H) | 414 × 500 × 810 mm |
| Weight | ~40 kg |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Model | STX-1203 |
| Instrument Type | Precision Diamond Wire Saw |
| Power Supply | AC 220 V, 50 Hz |
| Max. Power Consumption | <475 W |
| Main Motor | 250 W AC Variable-Frequency Motor |
| Wire Feed Speed | 0–8 m/s (adjustable, digital display) |
| Max. Wire Length | ≤150 m |
| Max. Wire Diameter | ≤0.45 mm |
| Y-Axis Travel | ≤300 mm (digital readout, resolution 0.01 mm) |
| Z-Axis Travel | ≤300 mm (digital readout, resolution 0.01 mm) |
| Rotary Stage Range | 0–360° (resolution 0.01°, repeatability <0.032°) |
| Max. Sample Dimensions | Ø300 mm × 300 mm |
| Tension System | Pneumatic (0–1 MPa adjustable) |
| Safety Features | Wire-break auto-stop, emergency stop switch |
| Operating Environment | Altitude <1000 m, Temp. 10–40 °C, RH 45–65 % |
| Footprint | 1200 mm × 1100 mm × 1800 mm (clearance required) |
| Net Weight | ~200 kg |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Category | Domestic |
| Model | STX-100QX |
| Instrument Type | Precision Diamond Wire Cutting System |
| X-Axis Travel | 200 mm |
| Y-Axis Travel | 280 mm |
| Max. Cutting Thickness | 120 mm |
| Positioning Accuracy | 0.01 mm |
| Wire Speed | 0–15 m/s |
| X/Y Feed Rate | 0.06–6 mm/min |
| Worktable Dimensions | 220 × 450 mm |
| Max. Sample Dimensions | 200 × 280 × 120 mm |
| Wire Tensioning Method | Pneumatic Tensioning |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |

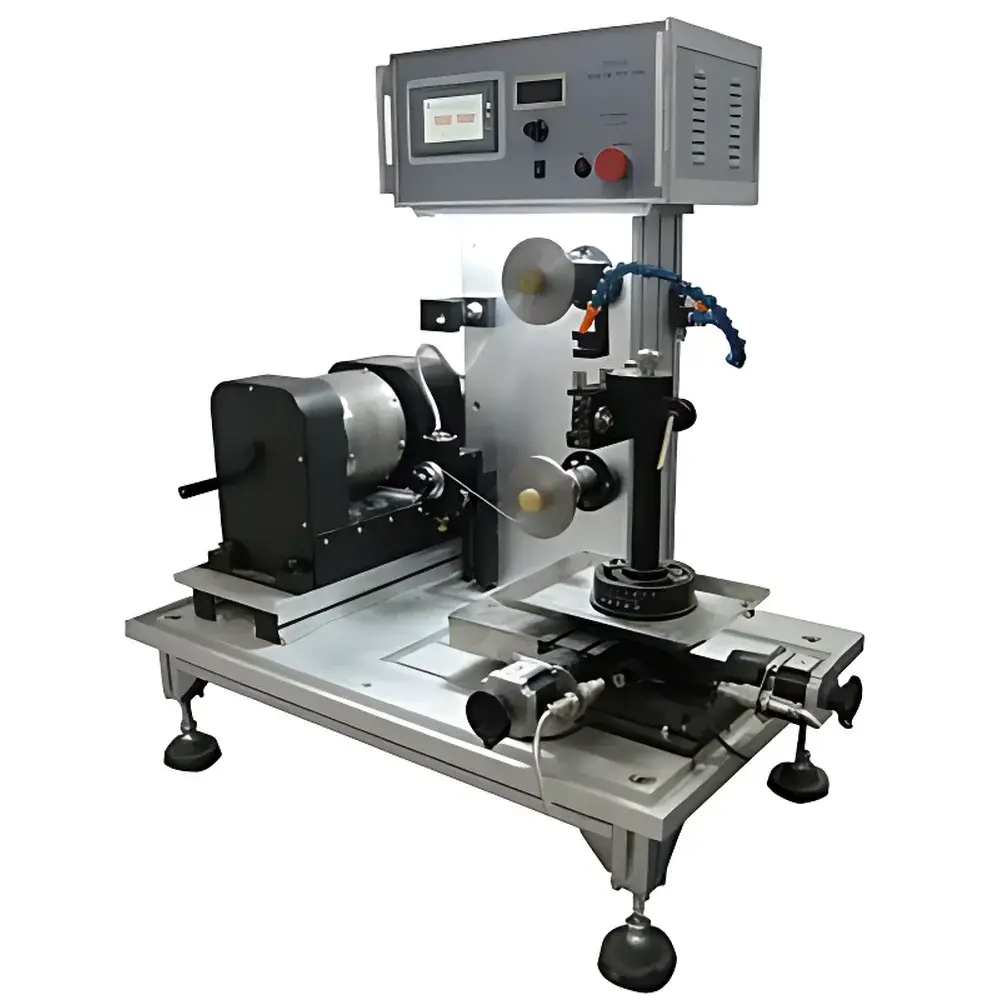

| Model | STX-402 |
| Instrument Type | Precision Diamond Wire Saw |
| Power Supply | AC 220 V, 50 Hz |
| Max. Power Consumption | < 250 W |
| Total Wire Length | 100 m |
| Adjustable Wire Speed | 0–2 m/s |
| X-Axis Travel Range | 1–110 mm |
| Y-Axis Travel Range | 0.01–110 mm |
| Positioning Resolution (X/Y) | 0.01 mm |
| Angular Accuracy of 2D Adjustable Fixture | ±10′ |
| Max. Sample Dimensions | Ø100 mm × 100 mm |
| Machine Dimensions (W×D×H) | 810 × 700 × 910 mm |
| Net Weight | 110 kg |
| Operating Environment | Altitude < 1000 m |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

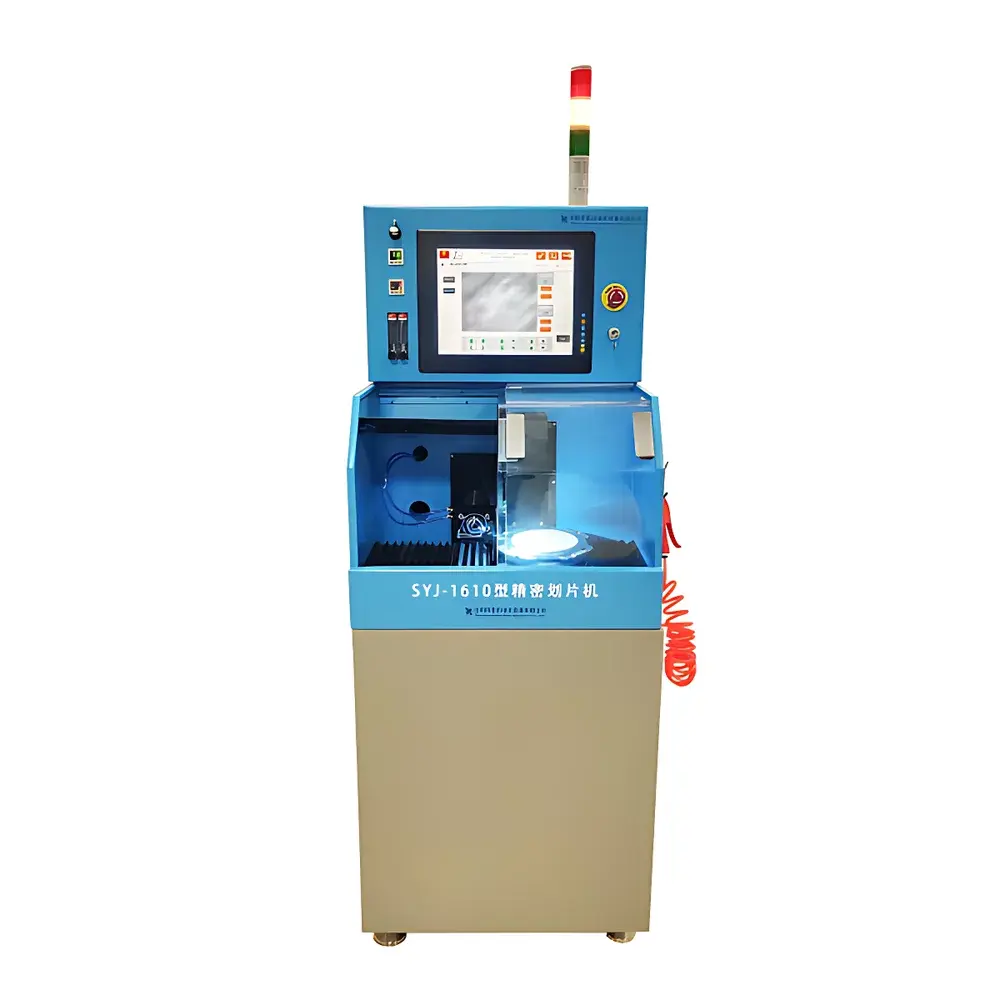

| Model | SYJ-1610 |
| Instrument Type | Precision Dicing Saw |
| Power Supply | 220 VAC ±10%, Single-phase |
| Rated Power | 3.0 kW |
| Spindle Speed Range | 3,000–50,000 rpm |
| Spindle Output Power | 1.5 kW |
| X-axis Travel | 240 mm |
| X-axis Speed | 0–400 mm/s |
| Y-axis Travel | 165 mm |
| Y-axis Step Accuracy | 0.003 mm per 5 mm |
| Y-axis Full-range Positioning Error | ≤0.005 mm over 160 mm |
| Z-axis Stroke | 30 mm |
| Z-axis Repeatability | ±0.001 mm |
| Compatible Blade Diameter | φ50–φ60 mm |
| θ-axis Drive | Direct-Drive (DD) Motor |
| θ-axis Rotation Range | 320° |
| θ-axis Angular Resolution | 1 arcsecond |
| Illumination | LED Ring Light + Coaxial Illumination |
| Imaging System | Industrial CCD Camera |
| Display | 15″ Industrial-grade Color LCD Touchscreen |
| Control Architecture | PC-based with Embedded Windows XP |
| Workpiece Capacity | Ø150 mm (6″) Circular Chuck or 160 × 160 mm Square Stage |
| Dimensions (W×D×H) | 675 × 885 × 1665 mm |
| Net Weight | 500 kg |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Model | STX-201 |
| Instrument Type | Precision Diamond Wire Cutting Machine |
| Wire Speed | 0–3.9 m/s |
| Spindle Speed | 0–900 rpm (effective range: 30–900 rpm) |
| Horizontal Feed Travel | ≤50 mm |
| Feed Resolution | 0.01 mm |
| Rotation Stage | 0–360° (graduation: 10′), Tilt: ±15° (graduation: 5′) |
| Max. Sample Thickness | ≤52 mm |
| Stage Dimensions | 80 × 51 mm |
| Power Supply | AC 110–230 V, 50 Hz, 10 A |
| Motor Power | 50 W |
| Dimensions (W×D×H) | 761 × 295 × 373 mm |
| Weight | 25 kg |
| Operating Environment | 0–45 °C, 10–85 % RH (non-condensing), vibration- and corrosion-free |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SYJ-400 |
| Instrument Type | Precision CNC Cutting Machine |
| Control Options | Microcontroller-based Panel or PC-based MTICUT Software (Windows OS, USB interface) |
| Motor Type | High-torque AC Brushless Motor |
| Spindle Speed | 0–3000 rpm, infinitely variable |
| Spindle Power | 180 W |
| X-axis Travel | 210 mm |
| Y-axis Travel | 110 mm |
| Z-axis Travel | 90 mm |
| Max Cutting Depth | 50 mm |
| Positioning Accuracy (X/Y/Z) | 0.01 mm |
| Rotary Stage Range | 360° ±0.5° |
| Sample Stage Dimensions | 80 mm × 25.4 mm |
| Compatible Blade Diameters | Ø100 mm / Ø150 mm (Hub ID: Ø12.7 mm) |
| Cooling | External Circulating Water System (Adjustable Flow via Needle Valve) |
| Enclosure | Integrated Splash Guard |
| Dimensions (W×D×H) | 580 mm × 560 mm × 660 mm |
| Weight | ≈39 kg |
| Operating Environment | 0–45 °C, 10–85% RH (non-condensing) |
| Power Supply | AC220 V, 50 Hz (standard) |
| Required Infrastructure | Tap water inlet & drain outlet |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | SYJ-D2000 |
| Instrument Type | Precision Diamond Band Saw |
| Power Supply | 110/220 V, 50/60 Hz |
| Input Power | 120 W |
| Blade Circumference | 945 mm |
| Kerf Width | <1 mm |
| Max. Cutting Thickness | <30 mm |
| Worktable Dimensions | 300 × 250 mm |
| Unit Dimensions | 380 × 270 × 560 mm |
| Net Weight | 11.5 kg |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Precision Diamond Wire Saw |
| Diamond Wire Length | ≤150 m |
| Wire Diameter | φ0.25–0.45 mm |
| Wire Tensioning | Adjustable Pneumatic Tension (0.1–0.4 MPa) |
| Main Spindle Drive | AC Frequency-Controlled Motor + Reducer |
| Spindle Linear Speed | 5–8 m/s (adjustable) |
| Z-Axis Travel | ≤160 mm |
| Y-Axis Travel | ≤180 mm |
| Positioning Accuracy (X/Y/Z) | 0.01 mm |
| Rotational Stage | Manual 0–360° or Motorized ±10°/±15° |
| Max. Workpiece Size | Φ150 mm × 150 mm |
| Worktable Load Capacity | ≤10 kg (STX-604/605A), ≤5 kg (STX-605B) |
| Control System | PLC + 4.3″ or 7″ Touchscreen HMI |
| Safety Features | Wire Break Detection, Bobbin Overtravel Stop, Emergency Stop |
| Power Supply | AC 220 V, 50 Hz, 10 A |
| Total Power Consumption | 350–370 W |
| Ambient Operating Conditions | 0–45 °C, 10–85 % RH (non-condensing) |
| Compressed Air Requirement | ≥0.6 MPa |
| Coolant Required | Yes (cutting oil recommended) |
| Dimensions (L×W×H) | 640×700×1450 mm to 720×1030×1800 mm |
| Net Weight | 170–310 kg |
| Brand | KJ Group |
|---|---|
| Origin | Liaoning, China |

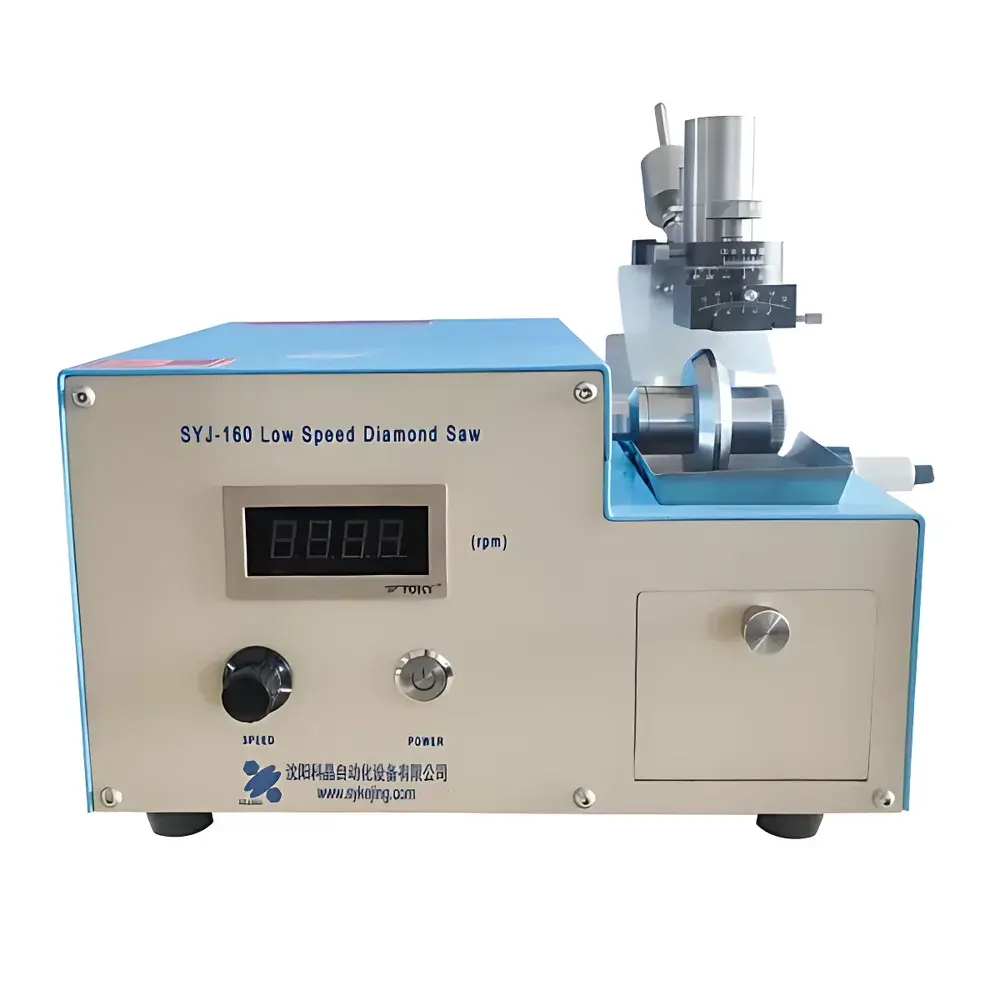

| Model | SYJ-160 |
| Instrument Type | Precision Low-Speed Diamond Saw |
| Motor Power | 90 W |
| Drive Voltage | DC 24 V, 6.67 A |
| Speed Range | 25–600 rpm (infinitely variable) |
| Digital Micrometer Resolution | 0.001 mm |
| Maximum Feed Travel | 50 mm |
| Fine Adjustment Stroke | 25 mm |
| Blade Diameter | Φ150 × Φ12.7 mm |
| Max Cutting Depth | 50 mm |
| Rotary Stage | 360° horizontal rotation, ±15° tilt |
| Sample Holder Dimensions | 25 × 50 mm |
| Vise Jaw Opening | 25 mm |
| Dimensions (W×D×H) | 410 × 350 × 350 mm |
| Weight | 15 kg |
| Operating Ambient | 0–45 °C, 10–85% RH (non-condensing) |
| Power Input | AC 100–240 V, 50/60 Hz, 10 A (with grounded outlet) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Domestic |
| Model | SYJ-D4000 |
| Pricing | Upon Request |
| Instrument Type | Precision Cutting Machine |
| Blade Linear Speed | >600 m/min |
| Max. Cutting Thickness | 100 mm |
| Min. Manual Curved-Cut Radius | 10 mm |
| Max. Manual Span Distance | 320 mm |
| Kerf Width | <1.2 mm |
| X-Axis Travel Range | ≥140 mm |
| X-Axis Feed Resolution | 0.01 mm |
| Y-Axis Travel Range | ≥140 mm |
| Cut Count Setting Range | 1–99 cycles |
| Feed Rate Range | 0.01–40 mm/min |
| Dimensions (W×D×H) | 410 × 580 × 950 mm |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SYJ-200 |
| Instrument Type | Precision Cutting Machine |
| Main Spindle Speed | 300–3500 rpm |
| Saw Blade Diameter | Ø200 mm |
| Max. Cutting Travel | X-axis 80 mm, Y-axis 105 mm (theoretical max. cut depth 50 mm) |
| Control System | PLC-based automated control |
| Display | Full-color TFT touchscreen interface |
| Drive System | Stepper motor-driven X/Y axes |
| Cooling | Integrated recirculating coolant system (deionized water or purified water compatible) |
| Power Supply | AC 220 V, 50 Hz, 650 W |
| Dimensions (W×D×H) | 734 × 540 × 480 mm |
| Weight | 72 kg |
| Environmental Requirements | Altitude ≤1000 m |
| Compliance | Designed in accordance with EN 61000-6-2 (EMC Immunity) and EN 61000-6-4 (EMC Emission) |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SYJ-2WQG |
| Instrument Type | Benchtop Abrasive Wheel Cutting Machine |
| Power Supply | AC 220 V, 50 Hz |
| Rated Power | 250 W |
| No-Load Speed | 3700 rpm |
| Kerf Width | 1.2 mm |
| Dimensions (L×W×H) | 280 × 280 × 200 mm |
| Net Weight | 5 kg |
| Standard Blade | HSS Circular Blade, Ø100 mm × 0.5 mm |
| Optional Accessories | Ultra-Thin Blades for Specialized Materials |
| Brand | KJ GROUP |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | STX-4001 |
| Instrument Type | Precision Diamond Wire Saw |
| Cutting Wire Speed | 0–5 m/s (adjustable) |
| Max. Wire Length | ≤400 m |
| Max. Wire Diameter | ≤0.65 mm |
| Z-Axis Travel | ≤1 m |
| Y-Axis Travel | ≤1 m |
| Y-Axis Feed | Manual (micrometer-controlled) |
| Tensioning System | Pneumatic (0–1 MPa adjustable) |
| Max. Workpiece Dimensions | Φ1 m × 1 m |
| Worktable Size | 1200 mm × 1000 mm |
| Worktable Load Capacity | 1.5 t (max) |
| Machine Dimensions (L×W×H) | 2850 × 1850 × 3350 mm |
| Net Weight | ≈2.5 t |
| Power Supply | AC 220 V / 50 Hz |
| Total Power Consumption | ≈6 kW |
| Safety Features | Wire-break auto-stop, wrap-angle protection |
| Control System | PLC + 10.1″ touchscreen HMI |
| Display | Digital real-time feedback |
| Ambient Requirements | Altitude <1000 m |
| Compliance | Designed per IEC 61000-6-2/6-4 EMC standards |
Show next
