| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Type | Imported |
| Models | Eco-Mini, Eco-Maxi |
| Pricing | Upon Request |
| Gel Dimensions (Eco-Mini) | 9.4 × 8.0 cm |
| Gel Dimensions (Eco-Maxi) | 19.4 × 18.5 cm |
| Glass Plate Dimensions (Eco-Mini) | 11.0 × 10.0 cm |
| Glass Plate Dimensions (Eco-Maxi) | 21.0 × 20.0 cm |
| Max. Gels per Run | 2 |
| Comb Thickness Options | 0.75 mm, 1.0 mm, 1.5 mm |
| Comb Tooth Counts | 9–30 (Eco-Mini), 12–60 (Eco-Maxi) |
| Sample Capacity | Up to 30 wells (Eco-Mini), up to 60 wells (Eco-Maxi) |
| Well Volume Range | 15–165 µL |
| Buffer Volume (Eco-Mini) | 1580 mL (electrophoresis), 2180 mL (blotting) |
| Buffer Volume (Eco-Maxi) | 5400 mL (electrophoresis), 6100 mL (blotting) |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Category | Imported |

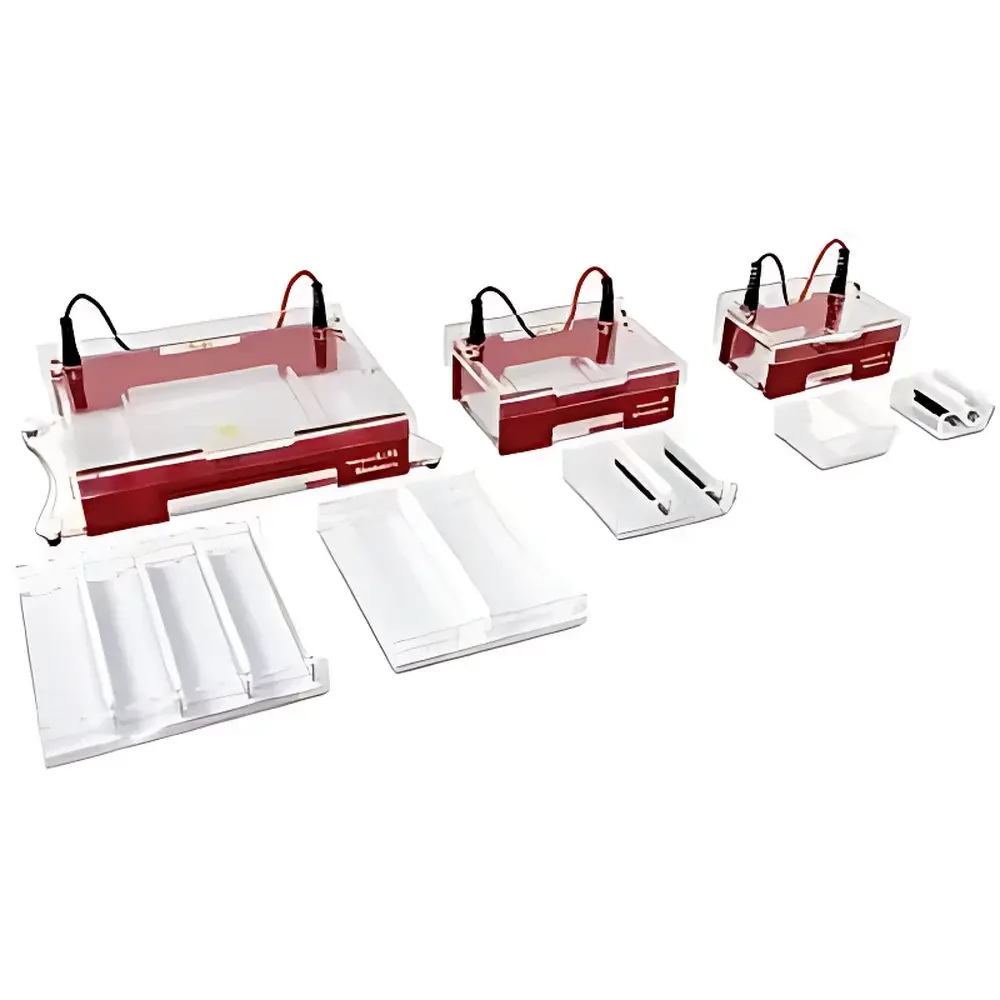

| Models | Compact XS, Compact S, Compact M, Compact L, Compact XL |
| Pricing | Upon Request |
| Brand | Analytik Jena |
|---|---|
| Origin | USA |
| Manufacturer | Analytik Jena |
| Country of Origin | Imported |
| Model | UVP GelSolo |
| Pricing | Available Upon Request |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena GmbH |
| Product Type | Imported Instrument |
| Model | Scandrop |
| Price | Upon Request |
| Optical Principle | Diode Array Spectrophotometry |
| Wavelength Range | 190–720 nm |
| Wavelength Accuracy | ±0.5 nm |
| Photometric Stability | 0.002 A/h |
| Photometric Range | 0.02–300 A (equivalent to 10 mm pathlength) |
| Photometric Accuracy | ±0.02 A (UV), ±0.01 A (VIS) |
| Measurement Time | 1 s per full spectrum |
| Sample Volume (CHIPCUVETTE) | 0.3–4 µL |
| CHIPCUVETTE Pathlengths | 0.1 mm or 1.0 mm |
| Cuvette Mode Sample Volume | ≥1.7 mL |
| Cuvette Pathlength | 10 mm |
| Interfaces | USB, RS-232 |
| Dimensions (W×H×D) | 240 × 170 × 200 mm |
| Weight | 5 kg |
| Brand | Analytik Jena |
|---|---|
| Origin | USA |
| Manufacturer | UVP (a brand of Analytik Jena) |
| Model | UVP GelStudio PLUS Touch |
| Detection Modes | UV transillumination (302 nm), White light reflection, RGB fluorescence excitation (470/530/630 nm), Optional eLite full-spectrum LED excitation (365–740 nm) |
| Camera | Scientific-grade cooled CCD sensor with 16-bit digitization |
| Lens | Motorized f/1.4 macro lens with auto-focus and zoom |
| Safety | Interlocked UV chamber with automatic lamp shutoff, CE/UL certified |
| Compliance | Meets ISO 9001 manufacturing standards |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | ScanDrop2 |
| Pricing | Available Upon Request |
| Brand | Analytik Jena |
|---|---|
| Origin | USA |
| Manufacturer | Analytik Jena GmbH |
| Model | UVP ChemStudio Touch |
| CCD Resolution | 8.1 MP (3296 × 2472) |
| CCD Cooling | −57 °C |
| Touchscreen | 15.6″ Full-Color Capacitive Display |
| Light Sources | LED, Xenon Broadband Lamp, Dual-NIR Lasers (700/800 nm) |
| Filter Capacity | 21 Position Motorized Filter Wheel |
| Binning Options | 1×1 to 8×8 |
| Max Effective Resolution | 16.2 MP |
| Supported Imaging Modes | UV Transillumination, Fluorescence (RGB & NIR), Chemiluminescence, 2D DIGE, In Vivo Plant & Animal Imaging |
| Image Formats | JPG, BMP, TIFF, GIF, TGA, PNG, AVI |
| UV Transilluminator | Long-Life Cold-Cathode Fluorescent Lamp (20-Year Lifetime) |
