| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | Biometra TRobot II |
| Instrument Type | Fast-cycle PCR System |
| Sample Throughput | 96-well or 384-well format |
| Heating Rate | 5 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.5 °C |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | qTOWER3 G IVD |
| Pricing | Available Upon Request |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena GmbH |
| Product Type | Gradient PCR Instrument |
| Sample Capacity | 96-well format |
| Heating Rate | 4 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.2 °C |
| Gradient Configuration | 12-column linear or randomized gradient profiles |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

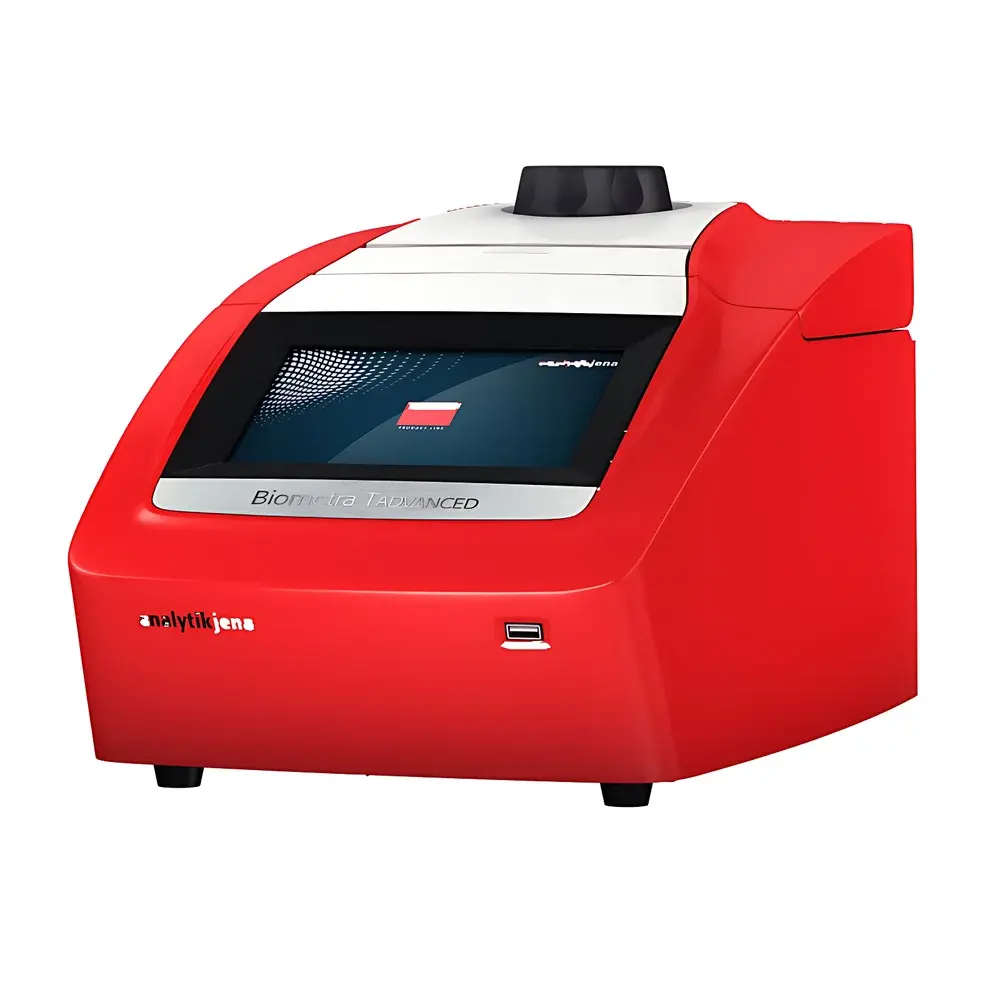

| Model | Biometra TAdvanced 96SG |
| Pricing | Upon Request |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Type | Fast PCR Cycler |
| Sample Capacity | 96-well (0.2 mL tubes, 96-well plates, or 12×8 strip tubes) |
| Max Heating Rate | 6.0 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Uniformity | ±0.2 °C |
| Gradient Span | 0.1–30.0 °C (linear, per column) |
| Gradient Range | 20–99 °C |
| Block Temp Range | 3–99 °C |
| Lid Temp Range | 30–110 °C |
| Display | 7″ capacitive color touchscreen |
| Noise Level | ≤45 dB(A) |
| Power Consumption | 850 W |
| Dimensions (W×H×D) | 277 × 264 × 457 mm |
| Weight | 15 kg |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Type | Imported |
| Model | qTOWER 2.2 |
| Price | Upon Request |
| Optical Channels | 6 simultaneous detection channels |
| Excitation Sources | 3 high-intensity LEDs (blue, red, white) |
| Detection Technology | Channel-type photomultiplier tube (CPM) |
| Filter Configurations | 10 interchangeable Ex/Em filter sets |
| Sensitivity | 1 nM FAM in 30 µL reaction volume |
| Sample Capacity | 96-well format |
| Max Ramp Rates | 5.5 °C/s (heating), 4.0 °C/s (cooling) |
| Temperature Uniformity | ±0.2 °C at 95 °C |
| Temperature Accuracy | ±0.1 °C |
| Gradient Range | Up to 40 °C |
| Thermal Lid | 110 °C with SPS (Sample Protection System) and auto-adjusting pressure (up to 10 kg/plate) |
| Software | qPCRsoft v4.x for absolute/relative quantification, ΔΔCt, allelic discrimination, PCR efficiency analysis, and FRET applications |
| Interface | USB 2.0 |
| Dimensions (W×H×D) | 275 × 585 × 275 mm |
| Weight | ~25 kg |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Sample Capacity | 96-well format |
| Maximum Heating Rate | 8 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Excitation Source | 7 high-intensity solid-state LEDs (UV–NIR spectrum) |
| Detection Technology | 8-channel fiber-optic scanning with PMT detector |
| Detection Channels | Configurable 1–6 channels, including dedicated UV and protein-melting filter sets |
| Linear Temperature Gradient | 12-column gradient (spanning up to 40 °C) |
| Thermal Block Material | Gold-plated pure silver |
| Software | qPCRsoft v5.x (MIQE-compliant reporting, audit trail, CFR Part 11-ready configuration options) |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena GmbH |
| Product Type | Fast PCR Thermal Cycler |
| Model | Biometra TAdvanced 96 SG |
| Sample Capacity | 96-well format (standard 96-well plates, 0.2 mL tubes, or 8-tube strips) |
| Max Heating Rate | 8 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Uniformity | ±0.15 °C |
| Gradient Span | up to 40 °C across 12 columns |
| Gradient Modes | Linear and Random |
| Block Material | Gold-plated pure silver thermal block |
| Heat Lid | High-Performance Smart Lid (HPSL), pressure-regulated, max lid temperature 110 °C |
| User Management | Three-tier Advanced User Management (AUM) with password protection |
| Software Interface | Dual-view program editor (tabular & graphical), intelligent protocol builder, preloaded templates |
| Compliance Features | Built-in self-diagnostic suite with audit-trail-capable log storage, GLP-compliant operation |
| Operating Noise | ≤45 dB(A) |
| Cooling Method | Bottom-intake / rear-exhaust airflow design |
| Touchscreen | Full-color capacitive touchscreen, glove-compatible |
| Brand | analytikjena |
|---|---|
| Origin | Germany |
| Manufacturer | analytikjena GmbH |
| Type | Real-Time Fluorescence Quantitative PCR Instrument |
| Sample Capacity | 384-well format |
| Heating Rate | 4 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Optical Channels | 4–6 configurable |
| Excitation/Detection Filter Sets | 12 interchangeable combinations including FRET-mismatched and protein melting-specific configurations |
| Light Source | RGBW high-intensity LEDs (blue, green, red, white) |
| Detector | High-sensitivity photomultiplier tube (PMT) |
| Detection Method | 16-channel fiber-optic scanning system |
| Dynamic Range | 10 orders of magnitude |
| Reaction Volume | 2–30 µL |
| Heat Lid Temperature Range | 30–110 °C with auto-adjusting contact pressure up to 30 kg/plate |
| Software | Free lifetime-upgradable analysis suite supporting absolute quantification, dual-standard-curve relative quantification, ddCt with amplification efficiency correction, melting curve analysis, SNP/allele discrimination, endpoint analysis, and efficiency calculation |
| Acoustic Noise Level | ≤45 dB(A) |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Type | Imported Instrument |
| Model | Biometra TRIO 48 |
| Sample Throughput | 144 wells (3 × 48-well blocks) |
| Heating Rate | 5 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Block Uniformity | ±0.2 °C across block |
| Display | 7-inch full-color capacitive touchscreen |
| Power Recovery | Auto-resume after power interruption |
| Tube Compatibility | Standard 0.2 mL tubes and 8-tube strips |
| Cooling Method | Passive air cooling with bottom intake / rear exhaust airflow |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |

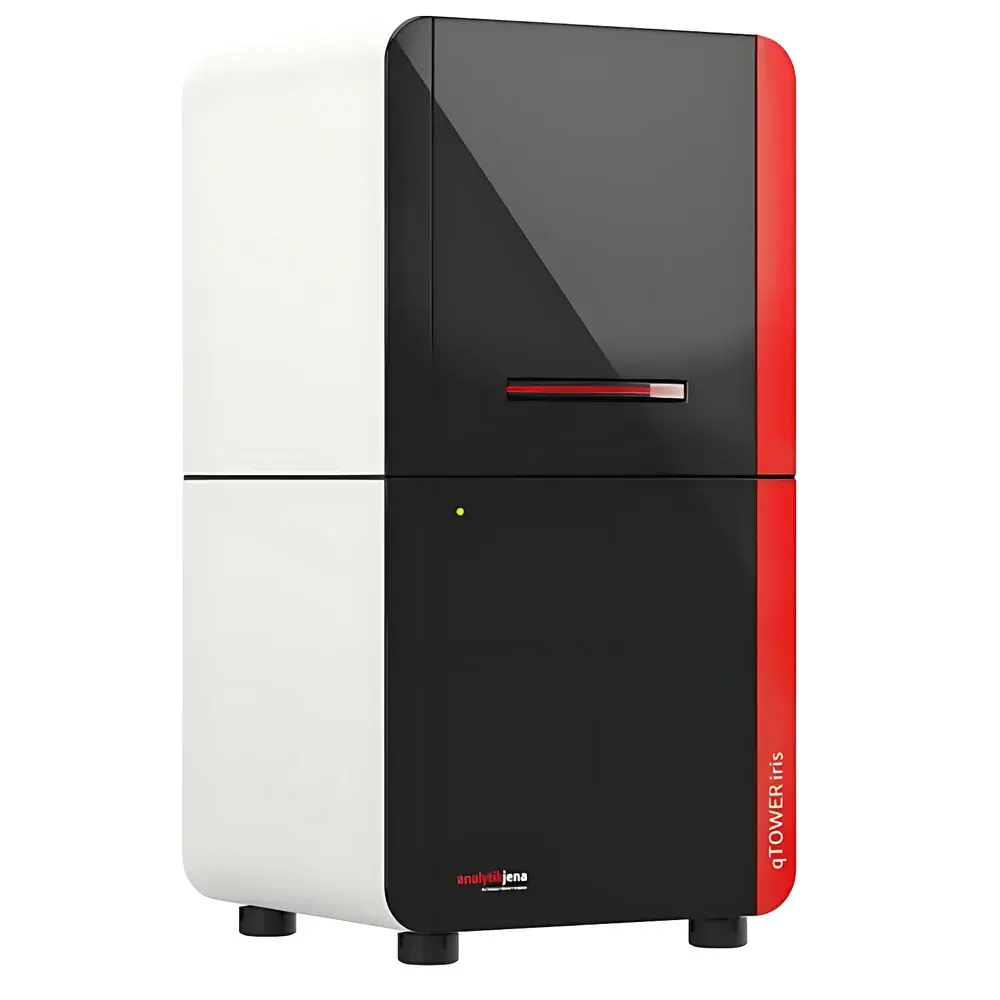

| Model | qTOWERiris |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Sample Capacity | 96-well format |
| Heating Rate | 8 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Brand | analytikjena |
|---|---|
| Origin | Germany |
| Manufacturer | analytikjena GmbH & Co. KG |
| Model | qTOWER 2.0 |
| Optical Channels | Up to 6 (configurable 1–6) |
| Excitation/Emission Filter Sets | 10 interchangeable Ex/Em combinations including FRET-mismatched pairs |
| Light Source | Triple high-efficiency LEDs (blue, red, white) |
| Detector | Channel-type photomultiplier tube (CPM) |
| Scanning Method | 8-channel fiber-optic scanning |
| Temperature Uniformity | < ±0.15 °C at 55 °C |
| Temperature Accuracy | ±0.1 °C at 72 °C |
| Max Heating Rate | 5.5 °C/s (adjustable 0.1–5.5 °C/s) |
| Max Cooling Rate | 4.0 °C/s (adjustable 0.1–4.0 °C/s) |
| Sample Capacity | 96-well plate, 0.2 mL tubes or 8-tube strips |
| Reaction Volume | 10–60 µL |
| Thermal Block | Gold-plated pure silver Peltier module |
| Hot Lid | 110 °C max, auto-pressure regulation up to 10 kg/plate |
| Detection Sensitivity | Single-copy DNA detection |
| Software | qPCRsoft v4.x with absolute quantification, melt curve analysis, relative quantification (ΔΔCt), allelic discrimination (SNP), expression ratio analysis, and GLP-compliant audit trail |
| Compliance | Designed for ISO/IEC 17025, CLIA, and FDA 21 CFR Part 11 environments (audit trail, electronic signature, user access control) |
| Brand | analytikjena |
|---|---|
| Origin | Germany |
| Manufacturer | analytikjena GmbH & Co. KG |

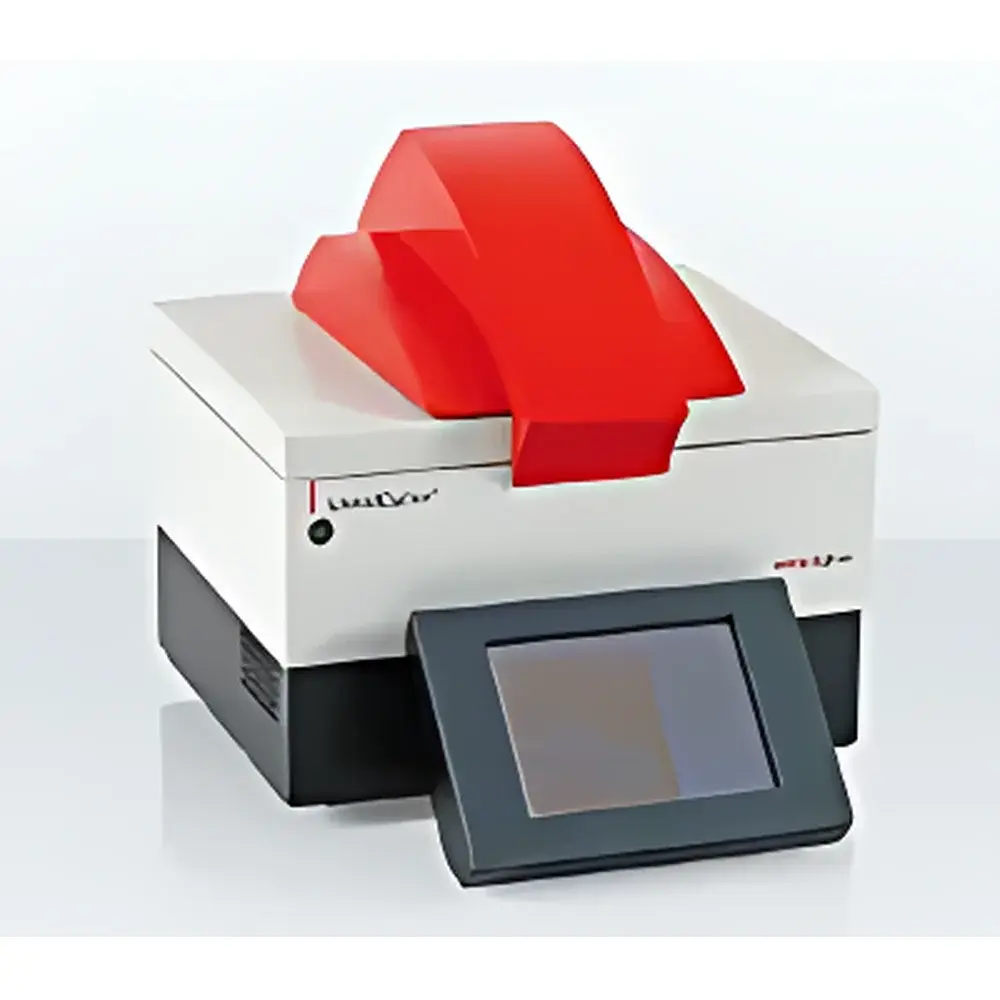

| Model | SpeedCycler2 |
| Module Options | 96-well LPR (20 µL), 96-well SPR (0.2 mL), 96-well SP (0.2 mL) |
| Max Heating Rate | 15 °C/s (LPR module) |
| Max Cooling Rate | 10 °C/s (LPR module) |
| Temperature Range | 4–105 °C |
| Temperature Accuracy | < ±0.2 °C at 72 °C |
| Temperature Uniformity | < ±0.3 °C at 72 °C |
| Heat Lid Temp | up to 120 °C |
| Control Interface | HID-Pro 320 5.7" color touchscreen or PC via Windows CE-based software |
| Program Storage | 500 protocols on device |
| Dimensions (W×H×D) | 280 × 290 × 250 mm |
| Weight | 12 kg |
| Brand | analytikjena |
|---|---|
| Origin | Germany |
| Manufacturer | analytikjena GmbH & Co. KG |
| Type | Real-Time Fluorescence Quantitative PCR Instrument |
| Sample Capacity | 96-well format |
| Heating Rate | 8 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Optical Channels | 4–6 configurable |
| Excitation/Detection Filter Sets | 12 interchangeable combinations (including FRET-mismatched and protein melting-specific configurations) |
| Light Source | RGBW high-intensity LEDs (blue, green, red, white) |
| Detector | High-sensitivity photomultiplier tube (PMT) |
| Detection Method | 8-channel fiber-optic scanning system |
| Dynamic Range | 10 orders of magnitude |
| Sample Volume Range | 5–100 µL |
| Sample Block Material | Gold-plated pure silver thermal block |
| Lid Temperature Range | 30–110 °C with auto-adjusting contact pressure (up to 30 kg/plate) |
| Software | Free lifetime-upgradable qPCR analysis suite supporting absolute quantification, dual-standard-curve relative quantification, ΔΔCt with amplification efficiency correction, melting curve analysis, allelic discrimination/SNP genotyping, endpoint analysis, and efficiency calculation |
| Acoustic Noise Level | ≤45 dB(A) |
| Compliance | Designed and manufactured in accordance with ISO 13485, CE-IVD (where applicable), and GLP/GMP-aligned documentation practices |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena AG |
| Product Type | Gradient PCR Instrument |
| Model | Biometra TAdvanced Twin 48G |
| Sample Capacity | 48 × 2 wells (dual independent blocks) |
| Heating Rate | 5.2 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Inter-well Temperature Uniformity | ±0.2 °C |
| Gradient Range | Linear gradient across 8 rows (LGT) |
| Thermal Sensor | PT100 (Swiss-made, 25-year heritage) |
| Noise Level | ≤45 dB(A) |
| Lid Pressure Control | High-Performance Smart Lid (HPSL) with clutch-based constant-force mechanism |
| User Management | Three-tier Advanced User Management (AUM) with password protection and role-specific permissions |
| Software Features | Intelligent Protocol Assistant (IPA), built-in self-diagnostic suite (thermal ramping, lid function, gradient validation), glove-compatible capacitive touchscreen display |
| Brand | analytikjena |
|---|---|
| Origin | Germany |
| Manufacturer | analytikjena GmbH |
| Type | Real-Time Fluorescence Quantitative PCR Instrument |
| Sample Capacity | 384-well |
| Heating Rate | 4 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
| Optical Channels | Up to 6 independent excitation/emission channels |
| Light Source | 7 high-intensity, long-life LEDs (UV–NIR spectrum) |
| Detector | High-sensitivity photomultiplier tube (PMT) |
| Scanning Method | 16-channel fiber-optic simultaneous detection |
| Detection Sensitivity | Single-copy DNA template resolution |
| Dynamic Range | 10 logs |
| Gradient Function | 24-column linear temperature gradient |
| Thermal Block | Peltier-based, corrosion-resistant |
| Lid Temperature | Up to 110 °C with auto-adjusting pressure (max. 30 kg/plate) |
| Software | qPCR analysis suite compliant with MIQE guidelines |
| Connectivity | USB, LIMS-compatible |
| Noise Level | ≤60 dB(A) |
| Brand | Analytik Jena |
|---|---|
| Origin | Germany |
| Manufacturer | Analytik Jena GmbH |
| Product Category | Imported Instrument |
| Model | Biometra TAdvanced 384G |
| Throughput | 384-well format |
| Heating Rate | 4 °C/s |
| Temperature Accuracy | ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.15 °C |
