| Brand | Kaige |
|---|---|
| Origin | Germany |
| Model | MeltFloW |
| Temperature Range | Up to 400 °C (optional 450 °C) |
| Load Capacity | Up to 21.6 kg |
| Compliance | DIN EN ISO 1133, ASTM D 1238, BS 2782 Method A |
| Output Unit | g/10 min |
| Control System | Microprocessor-based PID temperature controller |
| Optional Features | Inert gas purge, pneumatic nozzle cleaning, mechanical piston lift, linear column displacement sensor (50-point resolution), k-BASA/k-BASE software suite |

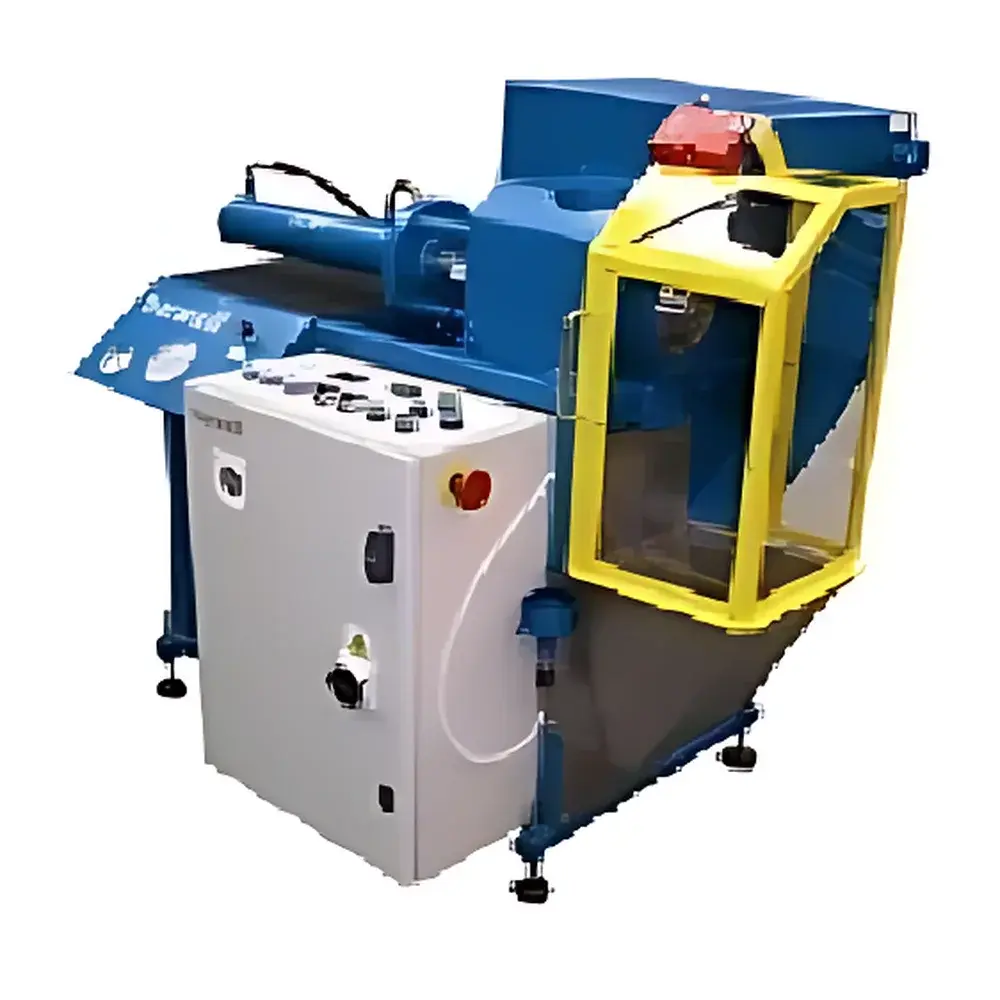

| Brand | Barwell |
|---|---|
| Origin | United Kingdom |
| Model | ECO / ECO PLUS |
| Operating Pressure (Standard) | 210 bar (3000 psi) |
| Operating Pressure (ECO PLUS) | 240 bar (3500 psi) |
| Max. Output | 20–700 kg/h |
| Feed Capacity | 1–80 L |
| Die Head Options | GP (General Purpose), SH (Special High-precision) |
| Cutting Speed | Up to 800 rpm (ECO PLUS), 400 rpm (standard) |
| Weight Accuracy | ±1% |
| Touchscreen Interface | 8" colour (ECO PLUS), optional on ECO |
| Data Storage | 1000 recipes (USB flash memory) |
| Compliance | Designed for GLP/GMP-aligned rubber compounding environments |
| Brand | Kegel |
|---|---|
| Origin | Germany |
| Model | HDT Vicat 4U |
| Temperature Range | 5°C above ambient to 285°C |
| Temperature Stability | ±0.2°C to ±0.3°C (100–250°C) |
| Heating Rates | 50°C/h ±5°C/h and 120°C/h ±10°C/h |
| Temperature Sensor | Calibrated Pt100 per test station |
| Displacement Resolution | 0.01 mm (LVDT) |
| Test Stations | Up to 4 |
| Cooling Method | Water-cooled |
| Power Supply | 230 V, 50 Hz, ~3 kW |
| Dimensions (W×H×D) | 1020 × 690 × 520 mm |
| Weight | ~75 kg |
| Software | k-BASE for Windows |
| Compliance | ISO 75-1/2, ISO 306, ASTM D648, D1525, E77, E608, E644, E1137, DIN 43760, 53460, 53461/87, UNI 5641, 5462, BSI 2782, AFNOR NT T51-005/T51.021, UNE 53075/53118 |
| Brand | Barwell |
|---|---|
| Origin | United Kingdom |
| Model | Curve / Flat / Bowl |
| Dimensions (L×W×H) | 1000×1900×2580 mm (Curve), 1000×870×2800 mm (Flat), 1960×2250×2930 mm (Bowl) |
| Inlet Height | 320 mm |
| Stroke Length | 36.6 mm (Curve), 41 mm (Flat), 40 mm (Bowl) |
| Stroke Width | 233 mm (Curve), 205 mm (Flat), 265 mm (Bowl) |
| Stroke Pitch | 110 mm (Curve), 100 mm (Flat), 120 mm (Bowl) |
| Motor Power | 2 × 750 W |
| Vibration Frequency | 30–50 Hz |
| Air-Cooling Nozzles | Yes |
| Polycarbonate Cover | No (Curve), Yes (Flat), No (Bowl) |
| Brand | Farrel |
|---|---|
| Origin | USA |
| Model | MM 150×300 FF |
| Roll Diameter | 150 mm |
| Roll Length | 330 mm |
| High-Speed Roll Max Speed | 27.4 rpm |
| Low-Speed Roll Max Speed | 20 rpm |
| Speed Ratio | 1:1.4 (fixed) |
| Roll Gap Adjustment Range | 0–10 mm |
| Adjustment Precision | ±0.1 mm |
| Roll Surface Treatment | Hardened, quenched & ground |
| Roll Cooling/Heating | Drilled rolls with rotary unions |
| Drive System | AC variable-frequency motor |
| Safety Compliance | EU Machinery Directive 2006/42/EC |
| Overload Protection | Mechanical torque-limiting clutch |
| Emergency Stop | Dual-channel safety brake system |
| Vibration Isolation | Integrated anti-vibration mounts |
| Brand | ELASTOCON |
|---|---|
| Origin | Sweden |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | EE 03 |
| Pricing | Available Upon Request |
| Standard Compliance | ISO 1853 |
| Measurement Range | 10⁻¹ to 10⁸ Ω·m |
| Electrode Configuration | Fixed Electrode Head with Integrated High-Sensitivity Ammeter and Selectable Voltmeter Modules |
| Brand | Bonnot |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Catalyst Extruder |
| Pricing | Available Upon Request |

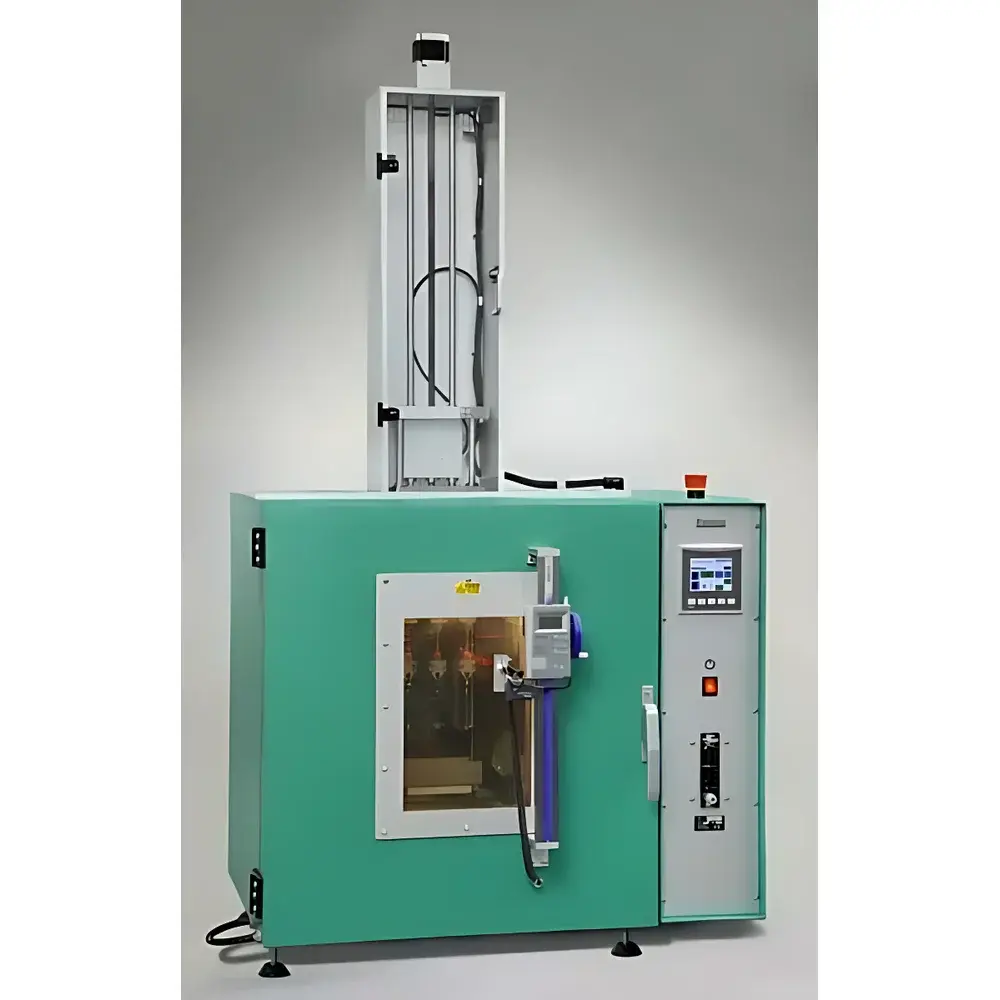

| Brand | Elastocon |
|---|---|
| Origin | Sweden |
| Model | EB 16-II |
| Temperature Range | 40–250 °C |
| Temperature Accuracy | ±0.5 °C (40–100 °C), ±1.0 °C (101–200 °C), ±2.0 °C (201–250 °C) |
| Temperature Uniformity | ±0.25 °C (spatial & temporal) |
| Airflow Velocity | <0.001 m/s |
| Chamber Volume | 60 L |
| Sample Positions | 4 |
| Internal Dimensions (W×D×H) | 450 × 450 × 300 mm |
| External Dimensions (W×D×H) | 820 × 680 × 1460 mm |
| Weight | ~120 kg |
| Power Supply | 220–240 V, 1-phase, 50 Hz |
| Heating Power | 2200 W |
| Illumination | 10 W, 24 V halogen lamp |
| Temperature Sensor | Pt 100, 1/3 DIN class |
| Brand | Elastocon |
|---|---|
| Origin | Sweden |
| Model | EB01 |
| Temperature Range (Standard) | +40 to +200 °C |
| Temperature Range (HT Variant) | +40 to +300 °C |
| Chamber Configuration | 4-unit or 6-unit modular design |
| Control Architecture | PLC-based with individual unit PID temperature control (EB19/EB20) or shared temperature control (EB01-II/EB01-IIHT) |
| User Interface | Full-color capacitive touchscreen HMI |
| Safety & Monitoring | Low-surface-temperature enclosure, integrated alarm history log, user-definable test name labeling per chamber, adjustable countdown timers per unit |
| Thermal Efficiency | Enhanced insulation reducing standby power consumption by ≥25% vs. prior generation |
| Brand | Kage |
|---|---|
| Origin | Germany |
| Model | PETFlow |
| Standards Compliance | EN ISO 1133 (Methods A/B), ASTM D1238 (Methods A/B) |
| Measurement Modes | MFR (g/10 min), MVR (cm³/10 min), Intrinsic Viscosity (IV, dL/g) |
| Temperature Range | Up to 400 °C |
| Software | K-BASE (Windows-based, GLP-compliant control and calculation platform) |
| Sample Types | PET flakes and pellets |
| Regulatory Context | Supports audit-ready data management per FDA 21 CFR Part 11 requirements (electronic signatures, user access control, change tracking) |
| Brand | Farrel |
|---|---|
| Origin | USA |
| Model | FMP-50 |
| Theoretical Capacity | 22,730 kg/h |
| Application | Polymer Melt Metering & Pressurization in Continuous Processing Lines |
| Compliance | Designed for ISO 9001-certified extrusion and compounding systems |
| Configuration | Gear-type positive displacement pump with hardened steel gears and precision-machined housing |
| Brand | Barwell |
|---|---|
| Origin | United Kingdom |
| Model | BCP-250 |
| Feed Capacity | 40 L |
| Max Output | 450 kg/h |
| Plunger Diameter | 250 mm |
| Max Mold Diameter | 190 mm |
| Max Preform Weight | 2000 g |
| Operating Pressure | 210 bar (3000 psi) |
| Machine Dimensions (L×W×H) | 4340 × 1100 × 1730 mm |
| Weight | 3800 kg |
| Total Power | 22 kW |
| Hydraulic Oil Tank | 200 L |
| Air Supply | 6–10 bar |
| Cooling Water Flow | 35 L/min at 25 °C |
| Control Interface | 5.6″ TFT Color Touchscreen (Bilingual: English/Chinese) |
| Cutting Speed | Up to 400 RPM (Infinitely Variable via Inverter) |
| Brand | Barwell |
|---|---|
| Origin | United Kingdom |
| Model | BPP-70 / BPP-180 / BPP-320 / BPP-550 / BPP-1200 |
| Max. Production Capacity | 70 kg/h (BPP-70) |
| Max. Gear Pump Operating Pressure | 350 bar |
| Gear Pump Speed Range | 55 rpm (BPP-70) |
| Screw Diameter | 50 mm |
| Screw L/D Ratio | 10:1 |
| Temperature Control Zones | 4 |
| Weight Accuracy | ±1% |
| Cut-off Knife Speed Range | 50–500 rpm |
| Max. Die Size | 48 mm |
| Brand | Elastocon |
|---|---|
| Origin | Sweden |
| Model | EB03 |
| Temperature Range (Heating Bath) | 40–130 °C |
| Temperature Range (Cooling Bath) | 20–80 °C |
| Temperature Accuracy | ±0.5 °C (both baths) |
| Dimensions (W×D×H, mm) | 955 × 435 × 585 |
| Weight | ~57 kg |
| Power Supply | 220–240 V, 1-phase, 50 Hz |
| Power Consumption | 2100 W |
| Cooling Water Flow Rate | 0.1–1.0 L/min (inlet ≤18 °C) |
| Optional Integrated Peltier Cooling Unit (EB03C variant) | 200 W |
| Compliance | ISO 6452, ASTM D5393 |
| Construction | Stainless steel and painted steel bath chambers |
| Brand | Farrel |
|---|---|
| Origin | USA |
| Model | BR1600 |
| Chamber Net Volume | 160 L |
| Fill Factor | 75% (at 1.0 g/cm³ density: ~120 kg batch) |
| Rotor Type | Tangential ST™/NST™ Four-Wing Design |
| Temperature Control | Closed-Loop Water-Cooled Chamber & Rotors |
| Optional Features | Hydraulic Ram Loader, Hardened Wear-Resistant Surfaces, Customized Rotor Geometry |
| Compliance | Designed to meet ASTM D3418, ISO 6502, and rubber compounding process validation requirements for R&D and pilot-scale GLP environments |
| Brand | ELASTOCON |
|---|---|
| Origin | Sweden |
| Model | EB 18-II-3 |
| Temperature Range | +40 to +200 °C (HT option: +300 °C) |
| Temperature Stability | ±0.5 °C (40–200 °C), ±1.0 °C (201–300 °C) |
| Temperature Uniformity | ±0.25 °C |
| Temperature Sensor | Pt 100, 1/3 DIN |
| Number of Test Stations | 3 |
| Force Range (Compression) | 0–1000 N (optional: 100 / 500 / 1500 N) |
| Force Resolution | 0.1 N (compression), 0.01 N (tension) |
| Force Accuracy | ±0.2 N (typical, depending on range) |
| Displacement Resolution | 0.0001 mm |
| Displacement Accuracy | ±0.003 mm |
| Crosshead Speed | 0.1–200 mm/min |
| Platen Diameter | 50 mm |
| Airflow Velocity | <0.001 m/s |
| Air Exchange Rate | 3–20 cycles/hour |
| Power Supply | 220–240 V / 1 / 50 Hz or 110–120 V / 1 / 60 Hz |
| Power Consumption | 900 W |
| Dimensions (W×D×H) | 1170 × 500 × 1220 mm |
| Weight | 151 kg |
| Compliance Standards | ISO 188 Method A, ISO 3384-1, ISO 6914, ISO 899 |
| Brand | Farrel |
|---|---|
| Origin | USA |
| Model | 9UM |
| Type | Continuous Twin-Screw Mixer for Rubber & Thermoplastic Compounding |
| Feed Capacity | 400–40,000 kg/h |
| Rotor Configuration | Co-rotating, Intermeshing Twin-Screw |
| L/D Ratio (LCM variants) | 10:1 |
| Control System | PLC with HMI Touchscreen Interface |
| Modular Design | Yes |
| Compliance | Designed for ASTM D3765, ISO 252, and ISO 1133-compliant compound development workflows |
| Integration Ready | Compatible with Farrel FMP™ Melt Pumps and Underwater Pelletizing Systems |
| Key | Brand: Wickert |
|---|---|
| Origin | Germany |
| Model | WLP S Series |
| Compliance | GB/T 6038, ISO 2393, ASTM D3182 |
| Type | Laboratory-scale hydraulic平板 vulcanizer for rubber sample curing |
| Brand | Elastocon |
|---|---|
| Model | EP 02 |
| Type | Pneumatic Laboratory Sample Preparation Machine |
| Cutting Force | 18 kN (max 25 kN) |
| Operating Pressure | 6 bar (max 8 bar) |
| Stroke | 25 mm |
| Height Adjustment Range | 50 mm |
| Die Height Compatibility | 25–65 mm |
| Base Plate Dimensions | 200 × 200 mm |
| Overall Dimensions (W × D × H) | 360 × 420 × 400 mm |
| Weight | 62 kg |
| Construction Materials | Anodized Aluminum and Galvanized Steel |
| Safety | Dual-Hand Operation + Emergency Stop Button |
| Accessories | EP 02.01 Cutting Pad (200 × 200 mm) |
| Brand | ELASTOCON |
|---|---|
| Origin | Sweden |
| Model | EB 24 |
| Temperature-Controlled Aging Chamber Base | EB 10-II |
| Air Exchange Rate | 14 cycles/hour |
| Viewing Window Dimensions | 370 × 300 mm |
| Specimen Capacity | 10 strips (25 × 100 mm) suspended via hooks |
| Load Application | Dual standard weights (1.3 kg and 2.3 kg) |
| Digital Measurement System | Laser-guided linear scale with 0.01 mm resolution |
| Maximum Elongation Range | 300 mm |
| Data Interface | RS-232 or USB to PC |
| Output Format | Raw displacement values exportable to CSV/Excel for creep strain calculation and time-dependent curve fitting |
| Brand | ALPHA (USA) |
|---|---|
| Origin | USA |
| Model | Premier MDR |
| Compliance | ASTM D5289, ISO 6520, DIN 53529 |
| Oscillation Frequency | 100 CPM (1.677 Hz) |
| Oscillation Amplitude | ±0.2°, ±0.5°, ±1.0°, ±3.0° (standard ±0.5°) |
| Temperature Range | 40–230 °C (100–446 °F) |
| Torque Range | 0.01–225 dN·m |
| Cavity Volume | ~1.43 cm³ (87.5 mm³ nominal |
| recommended sample volume | 1.84 cm³ / 112.5 mm³) |
| Pressure Channel | 0–8300 kPa (0–1200 psi) |
| Power Supply | 100–130 VAC ±10%, 60 ±3 Hz, 10 A or 200–260 VAC ±10%, 50 ±3 Hz, 5 A |
| Automation Options | 5-position manual test station or 16–144-position automated sample handling system |
| Software | Ultima Enterprise Pathfinder (Eclipse optional) |
| Brand | Alpha |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | disperGRADER |
| Price | Upon Request |
| Power Supply | 80–250 VAC, 47–63 Hz, 2 A |
| Dimensions (H×W×D) | 279.4 × 165.1 × 540 mm |
| Weight | 10.21 kg |
| Monitor | External (not included) |
| Computer Interface | Parallel port, IBM PC-compatible with Windows OS, min. display resolution 800×600 |
| Field of View (100×) | 4 mm × 3.5 mm |
| Field of View (30×) | 9 mm × 5 mm |
| Minimum Sample Size (100×) | 4.5 mm × 4 mm |
| Minimum Sample Size (30×) | 10 mm × 8 mm |
| Optional Accessories | External flatbed scanner, uncured sample cutter, uncured sample compression press |
| Brand | Alpha |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Premier RPA |
| Pricing | Upon Request |
| Brand | Elastocon |
|---|---|
| Origin | Sweden |
| Model | EB 02 |
| Force Range (Compression) | 500 / 1000 / 2000 N (Standard: 1000 N) |
| Force Range (Tension) | 100 N |
| Force Accuracy | ±0.1% of full scale |
| Force Resolution (Compression) | 0.05 / 0.1 / 0.2 N |
| Force Resolution (Tension) | 0.01 N |
| Dimensions (Ø × H) | 120 × 450 mm |
| Weight | 4.5 kg |
| Construction Material | Stainless steel |
| Temperature Sensor | Pt 100, 1/3 DIN class |
| Temperature Range | Up to 200 °C (HT version: up to 300 °C) |
Show next
