| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | C10988MA-01 |
| Spectral Range | 340–750 nm |
| Detector Type | CMOS Image Sensor |
| Optical Resolution (FWHM, max) | 14 nm |
| Pixel Count | 256 pixels |
| Stray Light | ≤ –25 dB (max) |
| Dimensions | 27.6 × 13.0 × 16.8 mm |
| Weight | 9 g |
| Operating Temperature | 25 °C (typ.) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | TG Series |
| Spectral Range | 900–1700 nm |
| Detector | InGaAs linear array |
| Pixel Count | 512 pixels |
| Spectral Resolution (FWHM, max) | 7 nm |
| A/D Resolution | 16 bits |
| Cooling | Uncooled |
| Interface | USB 2.0 |
| Power Supply | Bus-powered via USB |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | OPAL-Luxe C16736-01 |
| Spectral Range | 200–900 nm |
| Optical Resolution | ≤0.9 nm (typ. 0.85 nm) |
| Dynamic Range | 2,500,000:1 |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | RC Series |
| Spectral Range | 640–1050 nm |
| Detector Type | InGaAs-enhanced CMOS linear image sensor |
| Optical Resolution (FWHM, max) | 8 nm |
| Pixel Count | 256 pixels |
| Cooling | Uncooled |
| Operating Temperature | 25 °C (typ.) |
| Interface | Analog video output (composite CVBS) |
| Stray Light | <0.1% (typ., at 650 nm relative to peak) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model Series | TM Series |
| Spectral Range | 320–1000 nm (Visible to Near-Infrared) |
| Detector Type | Back-Illuminated CCD |
| Spectral Resolution (FWHM, max) | 1 nm |
| A/D Conversion | 16-bit |
| Interface | USB 1.1 |
| Pixel Count | 2048 |
| Operating Temperature | 25 °C (typ.) |
| Cooling | Uncooled |
| Dynamic Range | >5000:1 (typ.) |
| Signal-to-Noise Ratio | >450:1 (at full well, 1 s integration) |
| Stray Light | <0.05% (600 nm, relative to peak) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C11482GA |
| Spectral Range | 900–1700 nm |
| Detector Type | InGaAs linear array |
| Pixel Count | 512 pixels |
| Spectral Resolution (FWHM, max) | 7 nm |
| A/D Resolution | 16 bits |
| Cooling | Uncooled |
| Interface | USB 2.0 |
| Grating Type | Quartz transmission grating |
| Power Supply | Bus-powered via USB |
| Wavelength Calibration | Factory-stored in onboard memory |
| Dimensions | Compact housing (exact mm dimensions available in datasheet) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model Series | TM / RC / TG / MS |
| Detector Type | InGaAs |
| Spectral Range | 200–2550 nm (model-dependent) |
| Optical Resolution (FWHM) | 1–20 nm (model-dependent) |
| Cooling | Thermoelectric (TE) or uncooled |
| Dynamic Range | >5,000:1 (typical, model- and integration-time-dependent) |
| Signal-to-Noise Ratio | Up to 10,000:1 (peak, with TE cooling and optimal integration) |
| Stray Light | <0.05% (typical, at 600 nm relative to peak) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Model | C10494-01 |
| Spectral Range | 200 nm to 950 nm |
| Detector Type | BT-CCD linear array sensor |
| Optical Resolution | 3 nm (FWHM) |
| Pixel Count | 2048 ch |
| Pixel Size | 12 µm × 972 µm |
| Read Noise | 100 electrons |
| Dark Current | 100 electrons/scan (at 25 °C, 100 µs integration) |
| Integration Time | 100 µs to 1 s |
| A/D Resolution | 12 bit |
| Optical Design | Czerny-Turner |
| f-number | f/4 |
| Fiber Type | Quartz optical fiber |
| Fiber Length | 1.5 m |
| Interface | Camera Link / USB 2.0 |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |

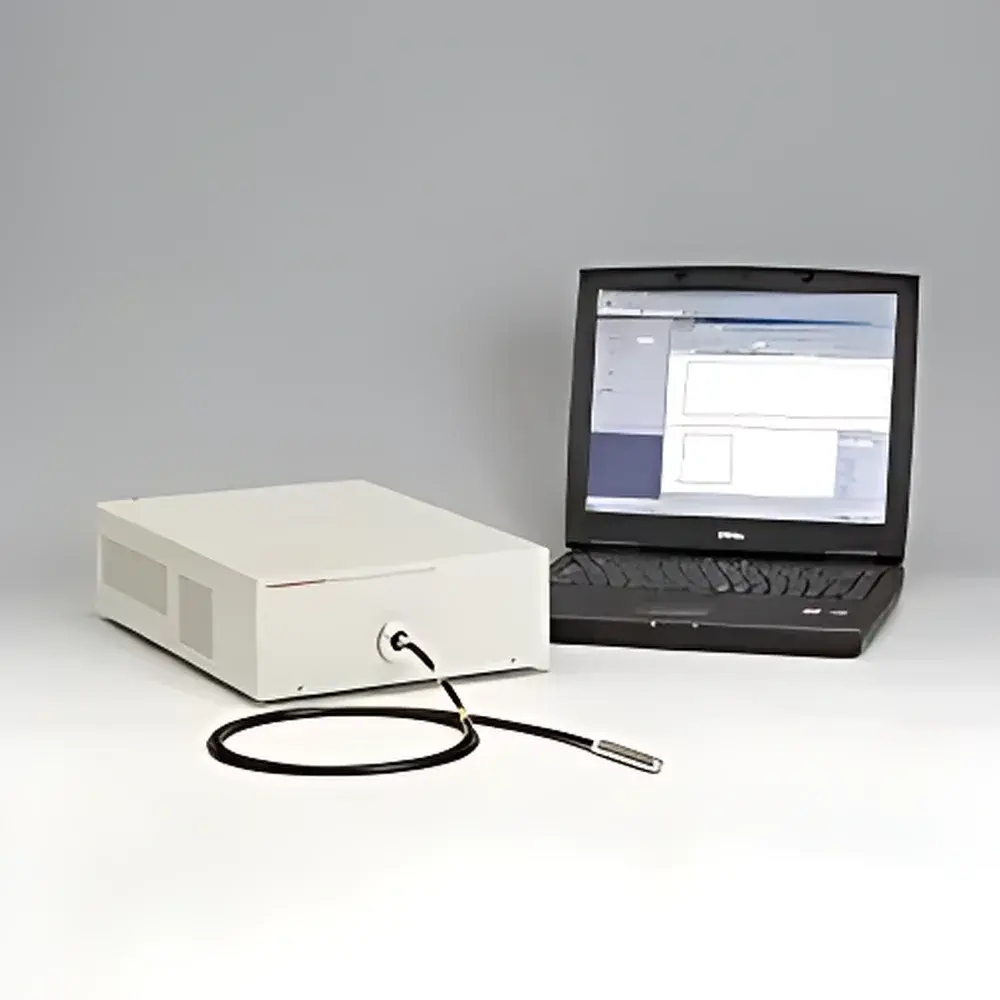

| Model | PMA-12 Series |
| Spectral Range | 200 nm to 950 nm |
| Detector Type | Back-Thinned CCD Linear Array |
| Optical Design | Czerny-Turner |
| F-number | f/4 |
| Spectral Resolution | < 2 nm (verified with Hg/Ar emission lines) |
| Pixel Count | 1024 channels |
| Pixel Size | 24 µm |
| Active Sensor Area | 2.928 mm |
| Cooling Temperature | −15 °C |
| Read Noise | 16 electrons (rms) |
| Dark Current | 75 electrons/scan (at −15 °C, 20 ms integration) |
| Integration Time | 19 ms to 64 s |
| A/D Resolution | 16-bit |
| Input Fiber | Bundled fiber, φ1 mm core, φ12 mm stainless-steel sheath, 1.5 m length |
| Fiber Coupling | SMA 905 connector |
| Trigger Interface | TTL-compatible, high-impedance input |
| Data Interface | USB 2.0 |
| Power Supply | AC 100–240 V, 50/60 Hz |
