| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported Scientific Imaging Device |
| Model | C11254-10B |
| Sensor | Dual ER-150 Interline CCD |
| Effective Pixels | 1280 × 960 × 2 |
| Pixel Size | 6.45 µm × 6.45 µm |
| Full Well Capacity | 18,000 e⁻ (typ.) |
| Read Noise | 8 e⁻ rms (typ.) |
| Frame Rate | 11.2 fps (1×1 binning) up to 50.5 fps (8×8 binning) |
| Exposure Time | 117 µs – 60 s |
| Cooling | Thermoelectric + Forced Air, −10 °C (ambient +20 °C) |
| Dark Current | 0.01 e⁻/pixel/s (−10 °C) |
| Dynamic Range | 2250:1 (typ.) |
| A/D Resolution | 12-bit |
| Interface | IEEE 1394b (IIDC v1.32) |
| Mount | 2/3″ C-mount (flange back 48 mm) |
| Spectral Response | 350–1100 nm (peak QE >70% at ~600 nm) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C9750 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported |
| Model | C12741-11 |
| Price | Upon Request |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Size | 20 µm (H) × 20 µm (V) |
| Active Area | 12.8 mm (H) × 10.24 mm (V) |
| Full Well Capacity | 300,000 e⁻ |
| Cooling Method | Peltier (Forced Air: −60 °C |
| Water Cooling | −70 °C) |
| Readout Speed | 7.2 fps |
| Read Noise (rms, typical) | 500 e⁻ |
| Dark Current (typical) | 300 e⁻/pix/s (−60 °C, air-cooled) |
| Digital Output | 16-bit |
| Exposure Time | 138.5 ms – 10 s (rolling shutter) |
| Trigger Modes | Edge, Level, Start |
| Delay | 0–10 s (10 µs step) |
| Trigger I/O | SMA / CameraLink interface |
| Pixel Binning | 2×2, 4×4 |
| Interface | CameraLink Base Configuration |
| Lens Mount | C-mount |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | ~150 VA |
| Operating Temp. | 10–40 °C |
| Humidity | 30–80% RH (non-condensing, forced-air mode) |
| Storage Temp. | −10–50 °C |
| Humidity | ≤90% RH (non-fogging) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C10990 |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | C10000-801 |
| Price Range | USD 14,000 – 70,000 |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model Series | C9750, C10650, C10800, C12200 Line-Scan X-ray Cameras |
| Pricing | Available upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Category | Imported Instrument |
| Model | C9100-23B |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported OEM Instrument |
| Model | C12741-03-02 |
| Price Range | USD 13,500 – 68,000 (FOB Yokohama) |
| Resolution | 640 × 512 pixels |
| Active Area | 12.8 mm (H) × 10.24 mm (V) |
| Pixel Pitch | 20 µm (H) × 20 µm (V) |
| Cooling | Peltier-cooled to +10 °C (ambient +25 °C) |
| Frame Rate | 59.774 fps |
| Bit Depth | 14-bit digital output |
| Exposure Time | 16.7 ms – 1 s |
| Interface | USB 3.0 (Micro-B), SMA trigger input |
| Lens Mount | C-mount |
| Power Supply | DC +12 V, ~16 W |
| Operating Temperature | 0 °C to +40 °C |
| Humidity | 30–80% RH (non-condensing) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported Scientific sCMOS Camera |
| Model | C15440-20UP |
| Resolution | 2304 (H) × 2304 (V), 5.3 MP |
| Pixel Size | 6.5 µm × 6.5 µm |
| Sensor Format | 15 mm × 15 mm |
| Readout Speed | 89.1 fps @ full resolution (16-bit, Fast Scan mode) |
| Read Noise | 0.7 e⁻ rms (Ultra-Quiet Scan mode, typical) |
| Dynamic Range | 21,400:1 (typical) |
| Quantum Efficiency | 95% @ 550 nm |
| Bit Depth | 16/12/8-bit selectable |
| Interface | USB 3.2 Gen 1 & CoaXPress 2.0 (CXP-6) |
| Cooling | Thermoelectric (−15 °C stabilized, ΔT ≈ 35 °C below ambient) |
| Shutter Modes | Global and Rolling |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | C10990-942 |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | C10990-90 |
| Pricing | Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |

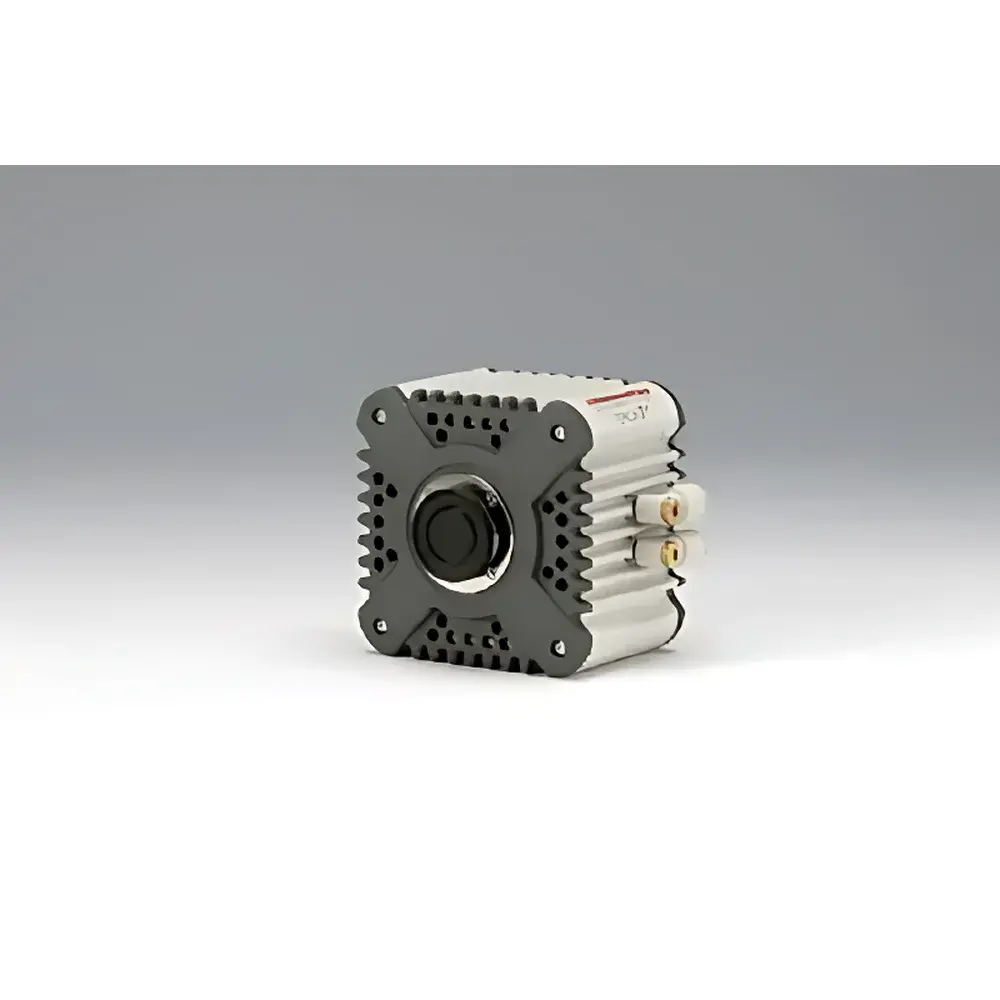

| Model | C10600-10B |
| Price | Upon Request |
| Quantum Efficiency Peak | >70% |
| Spectral Response Range | 300–1100 nm |
| Cooling Method | Dual-mode (Air/Water) |
| Sensor Temperature | −35°C (Air-cooled) / −40°C (Water-cooled, at 20°C coolant temp) |
| Dark Current | 0.0005 e⁻/pixel/s @ −40°C |
| Pixel Count | 1344 × 1024 |
| Pixel Size | 6.45 × 6.45 µm |
| Active Area | 8.67 × 6.60 mm |
| Read Noise | 6 e⁻ (Normal mode) / 10 e⁻ (High-speed mode) |
| Full Well Capacity | 18,000 e⁻ (Normal) / 36,000 e⁻ (High Dynamic Range mode) |
| Dynamic Range | 3000:1 |
| Exposure Time | 10 µs – 4200 s |
| A/D Resolution | 12-bit or 16-bit selectable |
| Binning Modes | 2×2, 4×4, 8×8 |
| Subarray Imaging | Supported |
| Illumination Modes | Low-light / High-light |
| Analog Gain | Up to 10× |
| Analog Offset Adjustment | Supported |
| Trigger Modes | Edge, Level, Synchronous Readout, Start |
| Lens Mount | C-mount |
| Interface Standard | IEEE 1394b-2002 (FireWire 800) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C8000-30 |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Category | Imported |
| Model | C16741-40U |
| Price | Upon Request |
| Effective Pixels | 1280 (H) × 1024 (V) |
| Pixel Size | 5 µm (H) × 5 µm (V) |
| Effective Area | 6.40 mm (H) × 5.12 mm (V) |
| Readout Speed | 71.53 fps |
| Exposure Time | 20.46 µs to 1 s (step size: 13.09 µs) |
| Cooling Method | Forced-air / natural convection with Peltier thermoelectric cooler |
| Sensor Operating Temperature | +15 °C ±0.5 °C (forced-air mode, ambient +25 °C ±3 °C) or +20 °C ±0.5 °C (natural convection mode, ambient +25 °C ±3 °C) |
| External Trigger Modes | Edge-trigger, level-trigger, start-trigger |
| Trigger Input Connector | SMA |
| Trigger Delay Range | 0 µs to 10 s (1 µs step) |
| Image Processing Functions | Background subtraction, shading correction |
| Interface | USB 3.1 Gen 1 (USB Type-C connector) |
| ADC Resolution | 12-bit / 8-bit selectable |
| Lens Mount | C-mount |
| Power Supply | DC +12 V |
| Power Consumption | ~15 W |
| Operating Temperature | 0 °C to +35 °C |
| Storage Temperature | −10 °C to +50 °C |
| Operating Humidity | 30% to 80% RH (non-condensing) |
| Storage Humidity | ≤90% RH (non-condensing) |
| Spectral Response Range | 400 nm to 1700 nm |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | C15333-10E04-02 |
| Effective Pixels | 1024 (H) × 1 (V) |
| Pixel Size | 12.5 µm (H) × 12.5 µm (V) |
| Spectral Range | 950–1700 nm |
| Max Line Rate | 40 kHz (internal trigger), 20 kHz (edge trigger) |
| Output Bit Depth | 14-bit |
| Interface | Gigabit Ethernet |
| Exposure Time | 21 µs to 1 s |
| Power Supply | DC 12 V |
| Max Power Consumption | 6 W |
| Operating Temperature | 0–40 °C |
| Humidity Range (Operating) | 30–80% RH (non-condensing) |
| Lens Mount | C-mount |
| Trigger Inputs | SMA or 12-pin Hirose connector |
| Onboard Image Processing | Background subtraction, real-time shading correction, pixel inversion |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Product Type | Imported Industrial X-ray Imaging Camera |
| Model | H8953-30 |
| Image Resolution | 20 Lp/mm (typ.) |
| Pixel Size | 5.86 × 5.86 µm (H × V) |
| Effective Field of View | 20 × 12.5 mm |
| Sensor Format | 1/1.2" Global Shutter CMOS |
| Active Pixels | 1936 × 1216 |
| Bit Depth | 8/10/12-bit selectable |
| Max Frame Rate | 165.5 fps |
| Power Input | PoCL (12 ± 10% V, 2.76 W) or 4-pin connector (12–24 ± 10% V) |
| Operating Temperature | +10 to +40 °C |
| Humidity | <60% RH (non-condensing) |
| Scintillator | CsI(Tl) deposited on carbon-fiber reinforced polymer (CFRP) entrance window |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ORCA-03G / ORCA-05G |
| Pricing | Available Upon Request |
| Imaging Sensor | Interline Transfer CCD with Microlens Array |
| Spectral Range | 200–1100 nm (UV to NIR) |
| Resolution | 1344 × 1024 pixels |
| Pixel Size | 6.45 µm × 6.45 µm |
| Active Area | 8.67 mm × 6.60 mm |
| Frame Rate | 8.9 fps (full frame, binning off) |
| Peak Quantum Efficiency | 70% @ ~600 nm |
| Cooling | Thermoelectrically cooled to −10 °C (ORCA-03G) |
| Dark Current | 0.1 e⁻/pixel/s (−10 °C, ORCA-03G) |
| Read Noise | 6–8 e⁻ rms (ORCA-03G), 10 e⁻ rms (ORCA-05G) |
| Exposure Time | 10 µs – 10 s (ORCA-03G), 10 µs – 1 s (ORCA-05G) |
| A/D Conversion | 12-bit |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C10800 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported Board-Level Camera |
| Model | C11440-52U |
| Sensor | FL-400 Scientific CMOS |
| Resolution | 2048 × 2048 (4.0 MP) |
| Pixel Size | 6.5 µm × 6.5 µm |
| Effective Area | 13.312 mm × 13.312 mm |
| Full Well Capacity | 30,000 e⁻ (typ.) |
| Readout Speed | 30 fps (full frame) to 25,655 fps (512 × 8 ROI) |
| Read Noise | 2.3 e⁻ rms / 1.6 e⁻ median |
| Quantum Efficiency | >70% at 600 nm |
| Dynamic Range | 18,000:1 |
| Exposure Time | 1 ms – 30 s (recommended ≤100 ms) |
| Interface | USB 3.0 |
| Mount | C-mount |
| Power Supply | DC 12 V, 1 A |
| Operating Temperature | 0 °C to +40 °C (optimal ≤+35 °C) |
| Storage Temperature | −10 °C to +50 °C |
| Humidity | ≤70% RH (operating), ≤90% RH (storage), non-condensing |
| Trigger Modes | Edge, Level, Sync-Readout, Start |
| Programmable Outputs | 3 timing outputs + exposure sync + trigger-ready + fixed-level output |
| Onboard Binning | 2×2, 4×4 |
| Subarray Readout | Centered ROI support |
| A/D Conversion | 16-bit |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C9750-27FCC / C9750-27FCD |
| Pricing | Available upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C8000-30 |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Cooled Interline CCD Camera |
| Model | C10600-10B |
| Sensor | Hamamatsu ER-150 |
| Resolution | 1344 × 1024 pixels |
| Pixel Size | 6.45 µm × 6.45 µm |
| Full-Well Capacity | 18,000 e⁻ (standard), 36,000 e⁻ (HDR mode) |
| Read Noise | 6 e⁻ rms (standard scan), 10 e⁻ rms (fast scan) |
| Quantum Efficiency | >70% peak (visible–NIR), 56% @ 670 nm |
| Dark Current | 0.0005 e⁻/pixel/s @ −40 °C |
| Cooling | Thermoelectric (Peltier), air-cooled to −35 °C, water-cooled to −40 °C |
| Frame Rate | 16.2 fps (full frame, standard scan), up to 115.1 fps (8×8 binning + subarray) |
| Dynamic Range | 3000:1 (standard), 6000:1 (HDR mode) |
| Analog Gain | Up to 10× |
| Interface | IEEE 1394b (FireWire 800) |
| ADC | 16-bit |
| Lens Mount | C-mount |
| Power | AC 100–240 V, 50/60 Hz, ~60 W |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Product Type | Back-illuminated TDI CCD Imaging Camera |
| Model | C10000-201 |
| Sensor Format | 2048 × 128 pixels |
| Pixel Size | 12 µm × 12 µm |
| Effective Area | 24.58 mm × 1.536 mm |
| TDI Line Rate | 0.45 kHz to 50 kHz |
| Readout Modes | TDI or Frame Readout |
| TDI Transfer Direction | Bidirectional |
| Overflow Protection | Lateral overflow drain (100×) |
| Output Channels | 4-tap (512 × 4) |
| Pixel Clock Rate | 30 MHz/pixel |
| Full Well Capacity | 100,000 e⁻ (typ.) |
| Read Noise | 130 e⁻ rms (typ.) |
| Dynamic Range | 770:1 |
| Analog Gain | 1×–10× (16 steps) |
| A/D Resolution | 8-bit or 12-bit selectable |
| Interface | Camera Link (Medium Configuration) |
| Power Supply | DC +15 V & +5 V |
| Power Consumption | 20 W |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | −10 °C to +50 °C |
| Relative Humidity | ≤70 % non-condensing |
| Lens Mount | F-mount |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Optical Imaging Instrument |
| Model | C10000-701B |
| Pricing | Upon Request |
Show next
