| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | J13550-09D |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | F1094-01 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | A13331-18-2 |
| Pricing | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Product Type | Imported Mass Spectrometry Component |
| Model | A13331-3-1 |
| Pricing | Available upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | F12396-11 |
| Pricing | Available Upon Request |
| Shape | Rectangular |
| Construction | Demountable Type |
| MCP Stages | Dual (2-Stage) |
| Overall Dimensions | 52 × 72 mm |
| Active Area Diameter | 42 mm |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | C14051-15 |
| Input Voltage Range | +11 V to +16 V DC |
| Max. Output Voltage | −10 kV |
| Max. Output Current | 0.2 mA |
| Guaranteed Output Range | −2000 V to −10000 V |
| Line Regulation | ±0.1 % (over input voltage variation from +11 V to +16 V) |
| Load Regulation | ±0.1 % |
| Ripple & Noise | ≤0.1 mV RMS |
| Operating Temperature | −10 °C to +60 °C |
| Tempco | ±0.01 %/°C |
| Storage Temperature | −20 °C to +70 °C |
| Storage Humidity | <80 % RH (non-condensing) |
| Dimensions (W × H × D) | 98 mm × 25 mm × 45 mm |
| Weight | 160 g |
| Form Factor | Compact OEM Module |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | F14844 |
| Pricing | Available Upon Request |
| Effective Diameter | 14.5 mm |
| Overall Diameter | 32 mm |
| Configuration | Demountable Dual-Stage MCP |
| Electrode Architecture | Grid-Anode Triode Structure |
| Vacuum Interface | Non-Flanged (User-Integrated Mounting) |
| Temporal Response | Fast (Sub-Nanosecond Rise Time) |
| Operating Pressure Range | Up to 1 Pa (Maintains Stable Dark Current vs. High-Vacuum Baseline) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | R4-9 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | F9890-12 |
| Pricing | Available Upon Request |
| MCP Configuration | Dual-stage (2-stage) |
| Effective Active Area | Ø27 mm |
| Overall Diameter | Ø81 mm |
| Geometry | Circular, Removable Mounting Design |
| Application | Time-of-Flight Mass Spectrometry (TOF-MS) Detector Assembly |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | R4146-10 |
| Pricing | Available Upon Request |
| Dynode Stages | 18 |
| Dynode Structure | Linear Focused |
| Dynode Material | Cu-BeO (Copper-Beryllium Oxide) |
| Input Aperture | 8 × 1 mm |
| Operating Voltage | 1800 V (Total Supply) |
| Typical Gain | 1.0 × 10⁷ |
| Rise Time (Typ.) | 3.5 ns |
| Anode-to-Dynode Capacitance | 4.0 pF |
| Anode-to-First-Dynode Voltage | 2500 V |
| Anode-to-Last-Dynode Voltage | 350 V |
| Average Anode Current | 10 µA |
| Required Operating Vacuum | ≤ 1 × 10⁻² Pa |
| Physical Thickness | 6 mm |
| Mounting Configuration | Stackable for Multi-Collector Mass Spectrometry Systems |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Product Type | Imported Mass Spectrometry Component |
| Model | A14111-3-3 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | L7293 / L13301 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model Numbers | A13331, A14111 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Product Type | Imported |
| Model | A14111-3-1 |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | F13446-11 |
| Voltage Range | −5 kV to +5 kV |
| Geometry | Circular, Removable |
| MCP Stages | Dual-stage (2-stage) |
| Outer Diameter | 50 mm |
| Active Area Diameter | 27 mm |
| Fast Time Response | Yes |
| Open Area Ratio (OAR) | Standard (optional funnel-type large-OAR variant available) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |

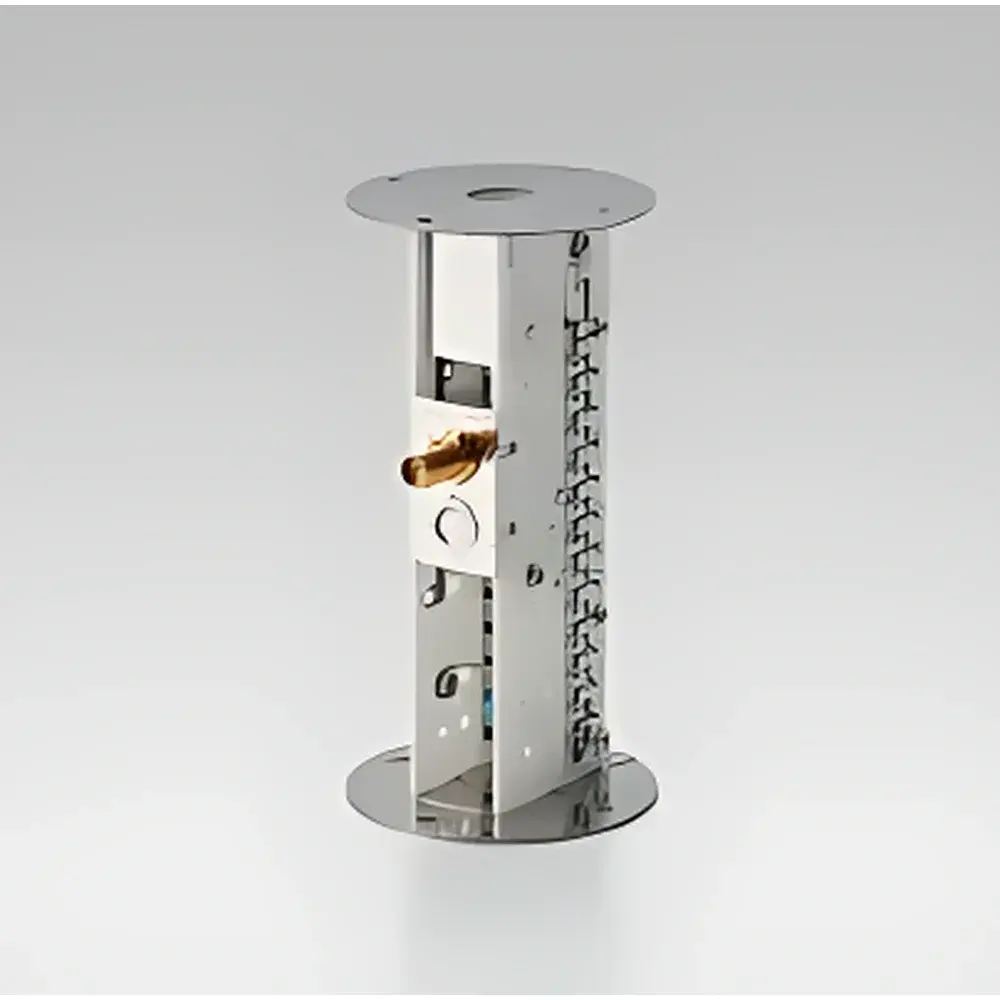

| Model | R13733 |
| Pricing | Available Upon Request |
| Dynode Stages | 18 |
| Dynode Structure | Linear Focused |
| Dynode Material | Al₂O₃ |
| Input Aperture Diameter | 11 mm |
| Operating Voltage | 2500 V |
| Typical Gain | 3.0 × 10⁷ |
| Typical Rise Time | 7.0 ns |
| Anode-to-Other-Dynodes Capacitance | 3.0 pF |
| Anode-to-First-Dynode Voltage | 0 V |
| Anode-to-Last-Dynode Voltage | 0 V |
| Maximum Average Anode Current | 10 µA |
| Required Operating Vacuum | ≤ 1 × 10⁻² Pa |
| Dimensions (L × W × H) | See mechanical drawing in datasheet |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |

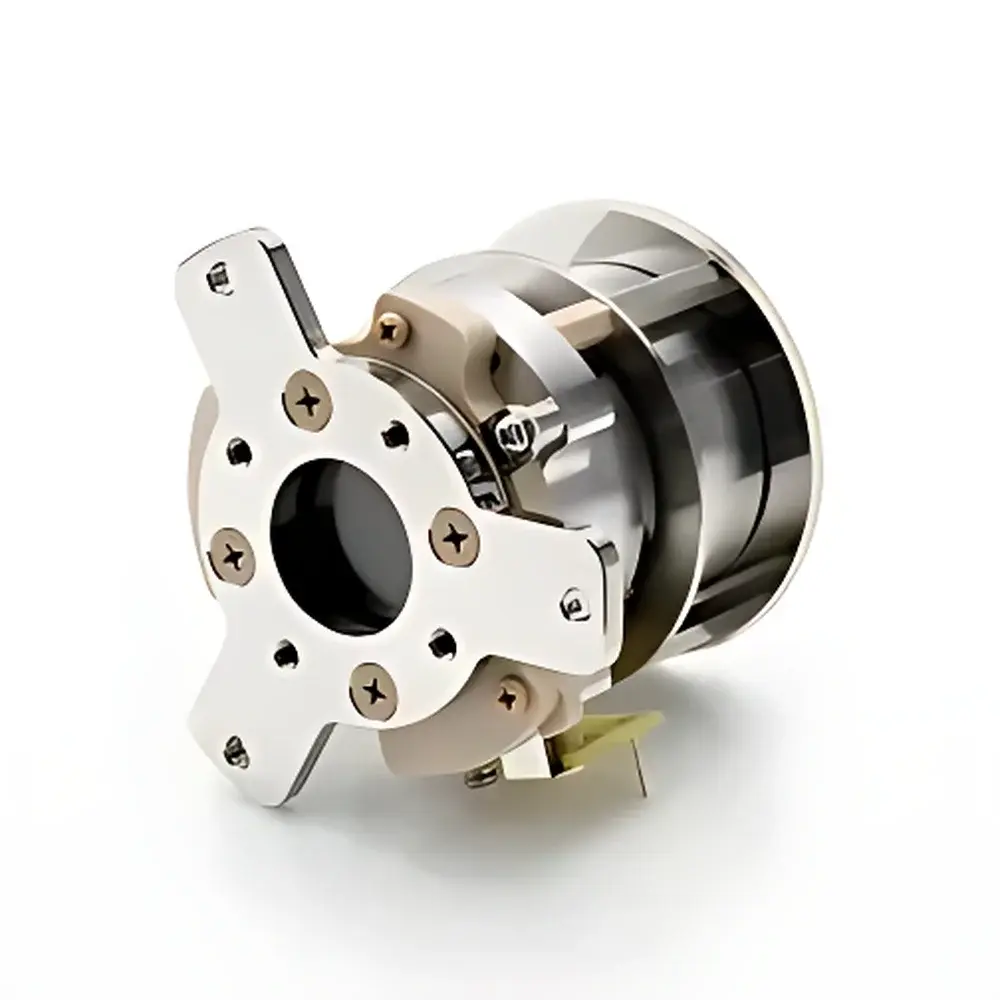

| Model | F14845-11 |
| Pricing | Upon Request |
