| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Optical Component |
| Model Series | G8931 |
| Component Type | Semiconductor Photodetector |
| Active Area Options | Ø0.04 mm, Ø0.2 mm |
| Spectral Response Range | 900–1700 nm |
| Typical Gain | 10–100 (bias-dependent) |
| Rise Time | <1 ns (depending on active area and bias) |
| Package Type | TO-8 or surface-mount ceramic package |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Optical Component |
| Model | S10124-1024Q-01 |
| Component Type | Optical Sensor Element |
| Spectral Response Range | 200–1000 nm |
| Active Area | 25.6 × 2.5 mm |
| Pixel Count | 1024 × 1 |
| Pixel Pitch | 25 µm |
| Pixel Height | 2500 µm |
| Maximum Line Rate | 243 lines/s |
| Readout Architecture | Current-Mode Output with Programmable Integration Time per Pixel |
| Window Material | Fused Quartz |
| Package | Ceramic |
| Recommended Driver ICs | C10808 / C10808-01 |
| Operating Temperature | Typical at Ta = 25 °C |
| Supply Voltage | Vdd = 5 V, Bias Voltages as Specified |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | S13360 |
| Component Category | Optical Component |
| Packaging | Surface-Mount (SMD) or Ceramic Dual-In-Line (CDIP), Configurable per Application |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | L10596 |
| Price | Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | S8550-02 |
| Component Category | Optical Component |
| Type | Short-Wavelength Silicon Avalanche Photodiode Array (4 × 8 pixels) |
| Active Area per Pixel | 1.6 × 1.6 mm |
| Package | Ceramic |
| Peak Wavelength (Typ.) | 600 nm |
| Spectral Response Range (Min.) | 320–1000 nm |
| Dark Current (Max.) | 10 nA |
| Cutoff Frequency (Typ.) | 250 MHz |
| Junction Capacitance (Typ.) | 9 pF |
| Breakdown Voltage (Typ.) | 400 V |
| Temperature Coefficient of Breakdown Voltage (Typ.) | 0.78 V/°C |
| Gain (Typ.) | 50 |
| Operating Temperature | −40 to +85 °C |
| Test Condition | Ta = 25 °C, unless otherwise specified |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | UV Gas Discharge Tube Sensor |
| Spectral Range | 185–260 nm |
| Cathode Material | Nickel (Ni) |
| Operating Voltage (Recommended) | 325 ± 25 V DC |
| Average Discharge Current (Recommended) | 0.3 mA |
| Minimum Arc-Extinguishing Time | 2 ms |
| Typical Sensitivity | 5000 counts/min |
| Maximum Background Count Rate | 10 counts/min |
| Average Lifetime | 10,000 h |
| Weight | ~1.5 g |
| Operating Temperature Range | −0.3 °C to +50 °C |
| Starting Discharge Voltage | 280 V DC |
| Sustaining Discharge Voltage | 240 V DC |
| Max. Peak Current | 30 mA |
| Max. Average Discharge Current | 1 mA |
| Max. Supply Voltage | 400 V DC |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | S4506 |
| Component Category | Optical Element |
| Output Type | Quadrature 2-phase (A/B), 90° phase shift |
| Package | Plastic DIP |
| Operating Temperature | −30 to +80 °C |
| Storage Temperature | −40 to +85 °C |
| Supply Voltage | 5 V (Vcc) |
| Logic Compatibility | TTL-level output |
| Photodetector Array | Integrated 4-element silicon photodiode array |
| Electrical Interface | Direct TTL connection without external amplification |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | J10919 |
| Component Type | Fiber-Coupled Aspheric Cylindrical Lens |
| Optical Function | Fast-Axis Collimation (FAC) for Semiconductor Laser Diodes |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | X15213-13 |
| Pricing | Upon Request |
| Pixel Pitch | 12.5 µm |
| Active Area | 15.9 × 12.8 mm |
| Resolution | 1272 × 1024 pixels (SXGA) |
| Fill Factor | 96% |
| Input Interface | DVI-D + USB-B (USB 2.0 High-Speed) |
| DVI Frame Rate | 60 Hz |
| Gray Levels | 256 (8-bit) |
| Rise Time | 10 ms |
| Fall Time | 25 ms |
| Operating Wavelength Range | 530–635 nm |
| Optical Efficiency | 97% (measured at λ = 532 nm) |
| Maximum Spatial Frequency | 40 lp/mm |
| Modulation Type | Reflective, Pure-Phase |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | X15213-15 |
| Pricing | Upon Request |
| Wavelength Range | 1550 ± 50 nm |
| Pixel Count | 1272 × 1024 |
| Pixel Pitch | 12.5 µm |
| Active Area | 15.9 × 12.8 mm |
| Fill Factor | 96% |
| DVI Interface | DVI-D |
| USB Interface | USB-B 2.0 High-Speed |
| Video Format | SXGA (1280 × 1024) |
| Frame Rate | 60 Hz |
| Gray Levels | 256 (8-bit) |
| Max Spatial Resolution | 40 lp/mm |
| Rise Time | 26 ms |
| Fall Time | 135 ms |
| Optical Efficiency | 97% (at λ = 1550 nm) |
| Operating Mode | Reflective Pure-Phase Modulation |
| Technology | Silicon-Based Liquid Crystal on Silicon (LCOS) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model Series | Phototube |
| Component Category | Optical Element |
| Compliance | RoHS-compliant, CE-marked for laboratory instrumentation use |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | Imported OEM Light Source Module |
| Model | L11317 |
| Light Source Type | Pulsed Xenon Lamp |
| Illumination Configuration | Internal Illumination |
| Arc Length | 3.0 mm |
| Spectral Transmission Range (Quartz Window) | 160–2000 nm |
| Spectral Transmission Range (UV-Glass Window) | 185–2000 nm |
| Spectral Transmission Range (Borosilicate Glass Window) | 280–2000 nm |
| Max. Repetition Rate | 200 Hz (dependent on operating conditions) |
| Max. Average Input Power | 5 W |
| Pulse-to-Pulse Stability (CV) | ≤0.4% (at ≥10 Hz, 5 W operation) |
| Lifetime | ≥1 × 10⁹ flashes (measured at 190–1100 nm, output decay to 50% of initial) |
| Operating Temperature | 0–+40 °C |
| Compliance | IEC/EN 61326-1 (EMC), IEC/EN 62471 (Photobiological Safety, Risk Group 3), IEC/EN 63000 (RoHS) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | X15213-19R |
| Pricing | Available upon Request |
| Pixel Pitch | 12.5 µm |
| Active Area | 15.9 × 12.8 mm |
| Resolution | 1272 × 1024 pixels (SXGA) |
| Fill Factor | 96% |
| DVI Interface | DVI-D |
| USB Interface | USB-B 2.0 High-Speed |
| DVI Frame Rate | 60 Hz |
| Input Gray Levels | 256 (8-bit) |
| Rise Time | 30 ms |
| Fall Time | 155 ms |
| Operating Wavelength Range | 1850–2050 nm |
| Peak Optical Efficiency | 97% (at λ = 1950 nm) |
| Maximum Spatial Frequency | 40 lp/mm |
| Modulation Type | Reflective Pure-Phase |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Optical Instrument |
| Model Series | Modular Light Source Family (S2D2, H2D2, L10671, L10290, OSG, VUV, RF Excimer, etc.) |
| Light Source Types | Deuterium, Tungsten-Halogen, Xenon Flash, UV-LED (365 nm / 385 nm), Electrodeless RF Excimer, Vacuum UV (VUV), Tunable Optical Spectrum Generator (OSG), THz Photoconductive Antenna Module |
| Illumination Mode | External (Free-Space or Fiber-Coupled) |
| Spectral Range | 115 nm – 1600 nm (depending on module) |
| Typical Lifetime | 10,000 – 20,000 h (UV-LED) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | HCL Series |
| Pricing | Available Upon Request |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Optical Component |
| Model | H10682-210 |
| Photocathode Type | Ultra Bialkali (UBA) |
| Photocathode Shape | Round |
| Photocathode Diameter | 8 mm |
| Spectral Range | 230–700 nm |
| Peak Wavelength | 400 nm |
| Dimensions (W×H×D) | 22.0 × 36.0 × 40.0 mm |
| Operating Voltage | +4.75 to +5.25 V DC |
| Max Input Voltage | +6 V |
| Max Input Current | 40 mA |
| Count Sensitivity (300 nm) | 3.9 × 10⁵ s⁻¹·pW⁻¹ |
| Count Sensitivity (400 nm) | 6.1 × 10⁵ s⁻¹·pW⁻¹ |
| Count Sensitivity (500 nm) | 4.6 × 10⁵ s⁻¹·pW⁻¹ |
| Count Sensitivity (600 nm) | 1.3 × 10⁵ s⁻¹·pW⁻¹ |
| Count Sensitivity (700 nm) | 9.1 × 10³ s⁻¹·pW⁻¹ |
| Maximum Count Rate | 5.0 × 10⁶ s⁻¹ |
| Dark Count Rate (Typ.) | 50 s⁻¹ |
| Dark Count Rate (Max) | 100 s⁻¹ |
| Pulse Pair Resolution | 20 ns |
| Output Pulse Width | 10 ns |
| Min Output Pulse Height | +2 V |
| Typ. Output Pulse Height | +2.2 V |
| Recommended Load Resistance | 50 Ω |
| Output Logic | Positive |
| Operating Temperature | +5 to +40 °C |
| Storage Temperature | −20 to +50 °C |
| Weight | 47 g |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer | Hamamatsu Photonics K.K. |
| Type | L11033 |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Illumination |
| Power | 150 W |
| Arc Length | 2 mm |
| Operating Current | 8.5 ± 0.5 A |
| Operating Voltage | 17 V DC |
| Window Material | Fused Silica |
| Spectral Range | 185–2000 nm |
| Output Drift (Typical) | ±0.5 %/h |
| Peak-to-Peak Output Ripple (Max) | 1 % |
| Guaranteed Lifetime | 3000 h |
| Average Lifetime | 4000 h |
| Orientation Tolerance | ±15° (Vertical or Horizontal) |
| Cooling Method | Natural Convection |
| Minimum Supply Voltage | 65 V DC |
| Ignition Voltage | 20 kV |
| Mass | 45 g |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | L8412 |
| Light Source Type | Infrared Laser Source |
| Illumination Mode | External Irradiation |
| Cooling Options | Peltier-based Open Heat Sink (OHS), Water-Cooled, Funryu™ Active Cooling System |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | X15213-15L |
| Pricing | Available upon Request |
| Pixel Pitch | 12.5 µm |
| Active Area | 15.9 × 12.8 mm |
| Resolution | 1272 × 1024 pixels (SXGA) |
| Fill Factor | 96% |
| Input Interface | DVI-D + USB-B (USB 2.0 High-Speed) |
| DVI Frame Rate | 60 Hz |
| Gray Levels | 256 (8-bit) |
| Maximum Spatial Resolution | 40 lp/mm |
| Rise Time | 26 ms |
| Fall Time | 135 ms |
| Operating Wavelength | 1550 ± 50 nm |
| Optical Efficiency | 97% (measured at λ = 1550 nm) |
| Modulation Type | Reflective Pure-Phase |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Imported |
| Model | X2D2 |
| Light Source Type | Continuous-wave Deuterium Arc Lamp |
| Illumination Mode | External Irradiation Configuration |
| Radiant Output Stability | <0.5% RMS over 8 hours |
| Typical Lifetime | ≥2,000 hours at rated current |
| Spectral Range | 190–400 nm (UV-Vis continuum) |
| UV Output Power (at 220 nm) | ≥1.2 mW/nm (collimated, 1 mrad divergence) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | L13651-01 / L13651-02 / L13651-03 / L13651-04 (Standard & SMA-Fiber-Adapted Variants) |
| Light Source Type | Pulsed Xenon Arc Lamp |
| Illumination Configuration | Internal Illumination |
| Spectral Range | 185–2500 nm (UV-Vis-NIR) |
| Arc Gap | 1.0 mm |
| Window Material | UV-Grade Fused Silica / MgF₂ (Model-Dependent) |
| Max. Repetition Rate | Up to 79 Hz (at 600 V, 0.141 µF) |
| Max. Average Power | 2.0 W |
| Pulse Energy Range | 1.6–25.4 mJ per flash |
| Output Stability | ≤2.0% CV (typ. 0.4% CV at ≥10 Hz) |
| Lifetime | ≥1 × 10⁹ flashes (to 50% radiant output @ 190–1100 nm) |
| Input Voltage | 4.75–5.5 V or 10.8–13.2 V DC |
| Trigger Signal | TTL-compatible rectangular pulse (≥10 µs width, 2.5–5 V) |
| EMC Compliance | IEC/EN 61326-1 (CISPR 11 Group 1 Class B) |
| Safety | IEC/EN 62471 Risk Group 3 |
| RoHS | IEC/EN 63000 |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Category | Imported Instrument |
| Model | X15213-05 |
| Pixel Pitch | 12.5 µm |
| Input Interface | DVI-D / USB-B (USB 2.0 High-Speed) |
| DVI Format | SXGA (1280 × 1024) |
| Frame Rate | 60 Hz |
| Gray Levels | 256 (8-bit) |
| Active Pixel Count | 1272 × 1024 |
| Active Area | 15.9 mm × 12.8 mm |
| Maximum Spatial Resolution | 40 lp/mm |
| Fill Factor | 96% |
| Rise Time | 10 ms |
| Fall Time | 20 ms |
| Operating Wavelength | 410 ± 10 nm |
| Optical Efficiency | 97% (measured at λ = 405 nm) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

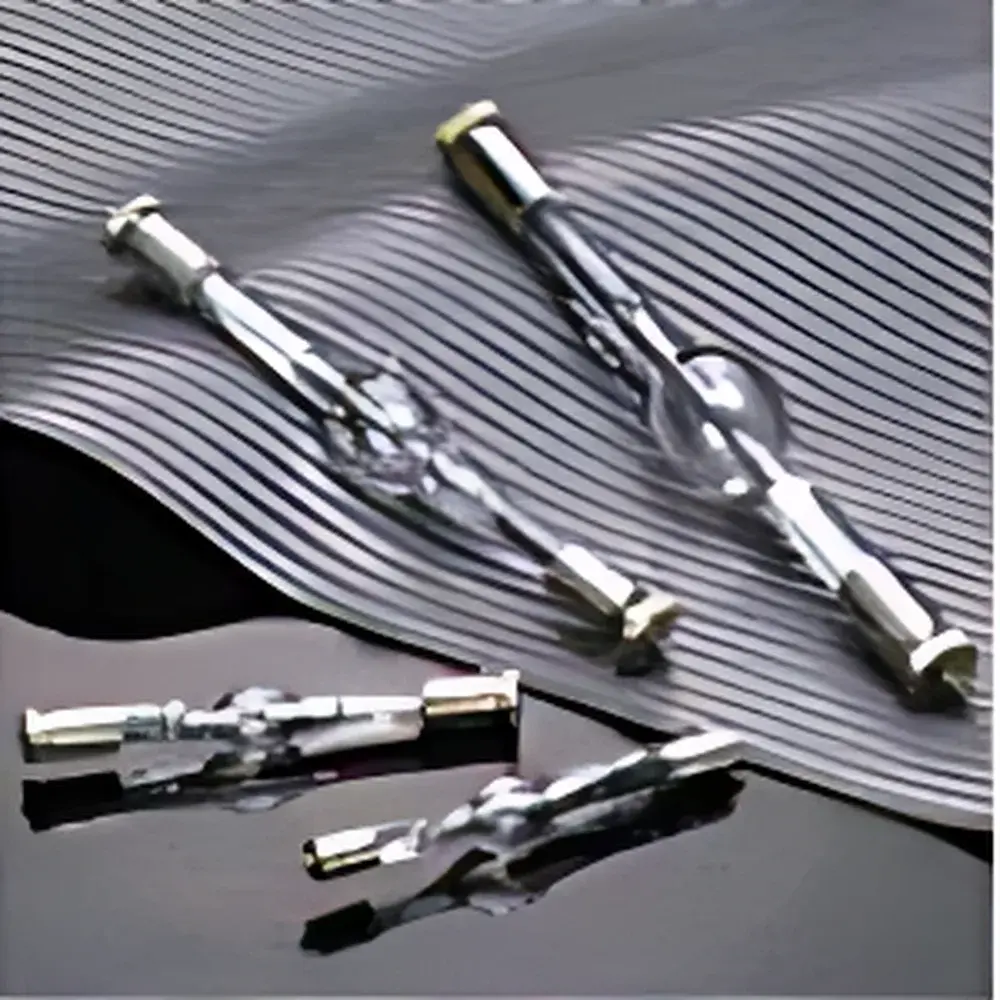

| Model | L2173 |
| Power Rating | 35 W |
| Spectral Range | 185–2000 nm (Fused Silica Window) |
| Operating Current | 3.5 ± 0.2 A DC |
| Operating Voltage | 11 V DC |
| Arc Length | 1.5 mm |
| Lamp Lifetime | ≥ 2,000 hours (typical, under recommended cooling and drive conditions) |
| Brand | Hamamatsu |
|---|---|
| Origin | Japan |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | X15213-03B |
| Pricing | Available upon Request |
Show next
