| Brand | Edmund Büehler |
|---|---|
| Origin | Germany |
| Model | IRB 6 Modular Infrared Heating System |
| Max. Temperature per Unit | 700 °C |
| Heating Power | 6 × 250 W (1200 W total) |
| Heating Area per Unit | 60 × 60 mm |
| Power Control | Continuous 0–100 % |
| Ambient Temperature Limit | 30 °C |
| Supply Voltage | 230 V, 50/60 Hz |
| Dimensions (W × D × H) | 697 × 305 × 122 mm |
| Weight | 9 kg |
| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | MAM-1 |
| Furnace Type | Crucible Arc Melter |
| Max Operating Temperature | 3500 °C |
| Power Supply | 230 V / 50–60 Hz, single-phase |
| Melting Capacity | 5–20 g |
| Arc Current Range | 5–200 A |
| Vacuum System | Integrated primary pump or turbomolecular pump (external) |
| Chamber Absolute Pressure | ≤1300 mbar abs. |
| Internal Chamber Dimensions (W×D×H) | 430 × 650 × 750 mm |
| Standard Crucibles | 1×Ø25 mm, 3×Ø8 mm, 1×8×30 mm |
| Optional Suction Casting Mold Diameters | Ø0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 8×1.5 mm |
| Suction Casting Max Temp | 1600 °C |
| Cooling | Water-cooled copper crucible & movable electrode |
| Atmosphere Control | High-purity argon (low-consumption design) |
| Safety Systems | Overtemperature protection, optical eye shielding, interlocked vacuum/argon valves, non-contact arc ignition |

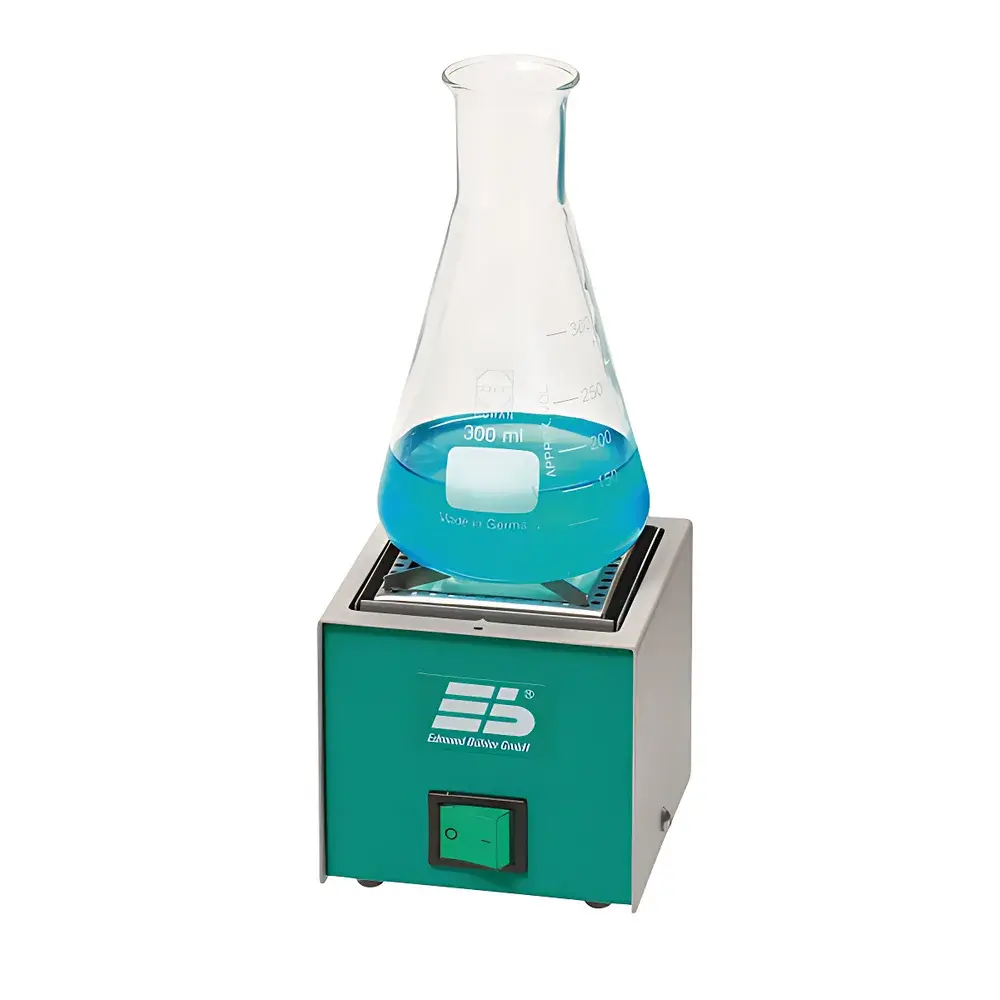

| Brand | Edmund Büehler |
|---|---|
| Origin | Germany |
| Model | IRB 1 |
| Max. Temperature | 700 °C |
| Heating Power | 250 W |
| Heating Area | 60 × 60 mm |
| Ambient Temperature Limit | 30 °C |
| Power Supply | 230 V, 50/60 Hz |
| Dimensions (W × D × H) | 100 × 105 × 105 mm |
| Weight | 0.7 kg |

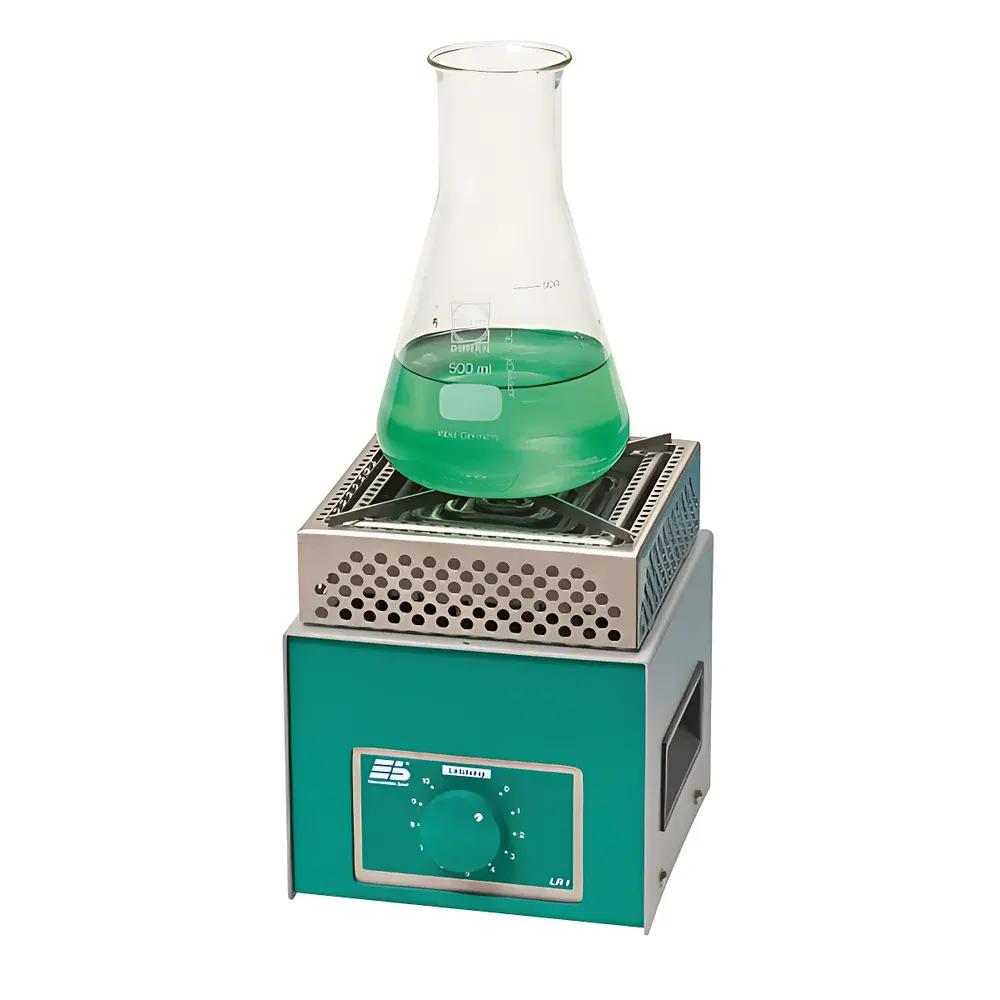

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | IRB 2 Infrared Heating Unit with Continuous Power Control |
| Max. Temperature | 900 °C |
| Heating Power | 800 W |
| Heating Area | 100 × 100 mm |
| Power Regulation | 0–100 % continuous (infinitely variable) |
| Max. Ambient Temperature | 30 °C |
| Supply Voltage | 230 V, 50/60 Hz (115 V version available on request) |
| Dimensions (W × D × H) | 150 × 150 × 170 mm |
| Weight | 2.5 kg |

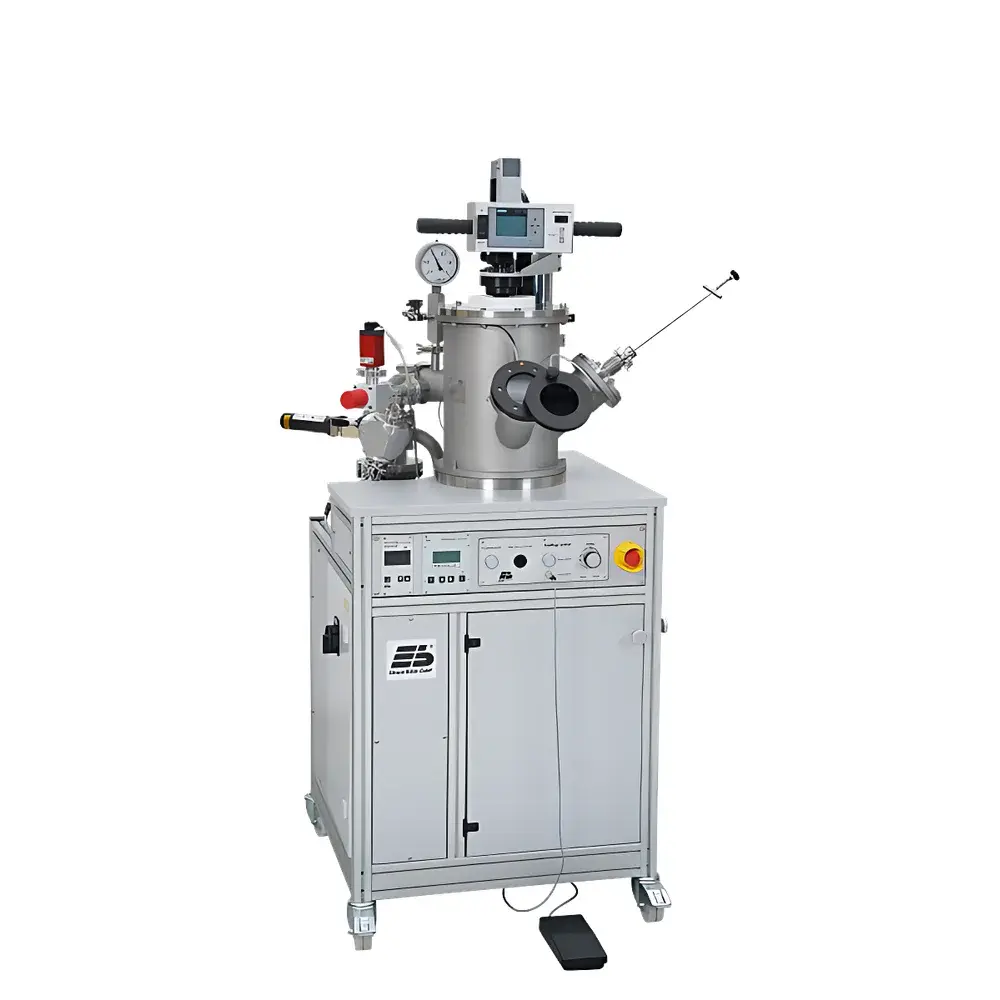

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Equipment Type | Water-Cooled Crucible Arc Melting Furnace |
| Maximum Melting Temperature | 3500 °C |
| Heating Method | Non-Contact DC Arc |
| Crucible Capacity | AM200 – up to 200 g |
| Vacuum System | Integrated High-Vacuum Pump with Absolute Pressure Measurement (1300 mbar abs.) |
| Power Supply | 400 V, 3-phase / 230 V, single-phase, 50/60 Hz |
| Generator Current Output | AM200 – up to 400 A or 800 A |
| Standard Crucibles | AM200 – 4×Ø19×5 mm, 2×Ø30×5 mm, 1×110×15×8 mm |
| Optional Casting Systems | Suction casting (Ø3 mm & Ø5 mm rods, 150 mm length) |
| Cooling | Active water-cooling for crucible, electrodes, and casting coil |
