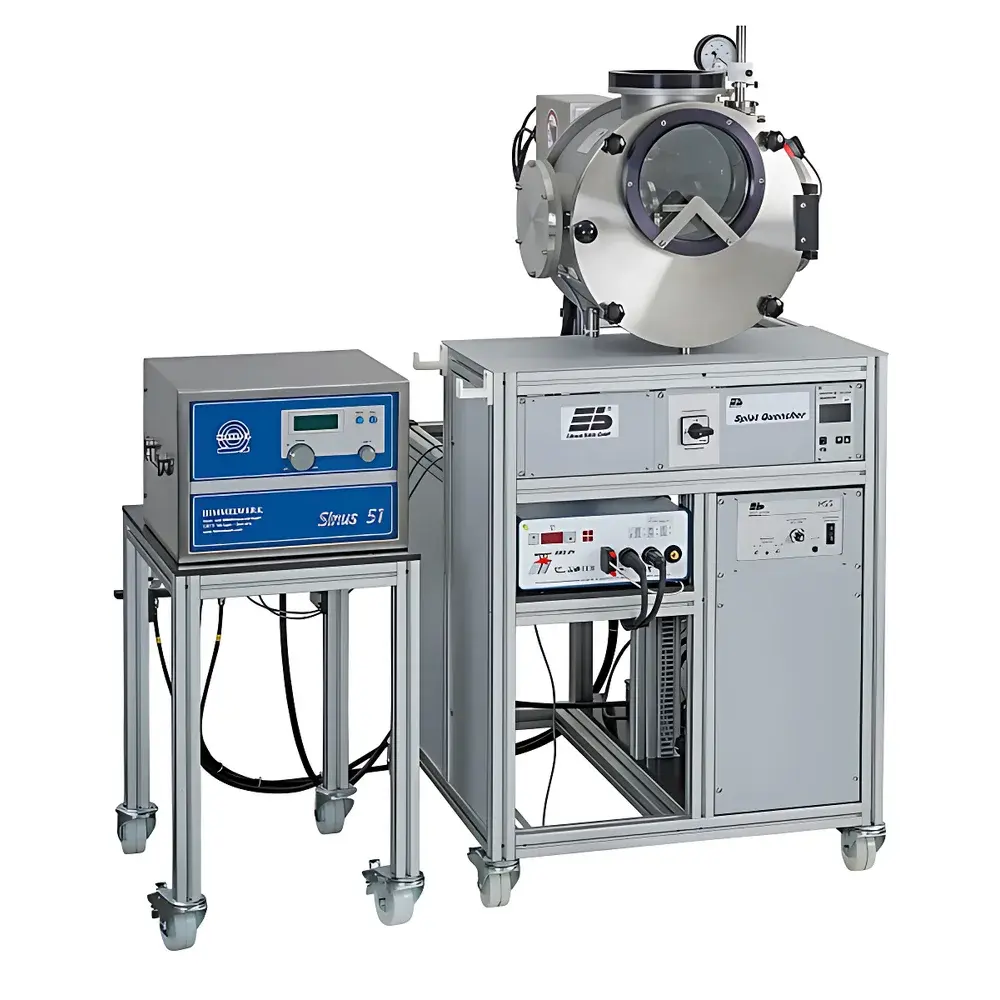

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | URQ |
| Maximum Temperature | up to 2500°C |
| Generator Power | 5 kW |
| Generator Frequency | 500 kHz – 1 MHz |
| Vacuum Level | < 10⁻² – 10⁻⁵ mbar |
| Cooling Rate | up to 10⁶ K/s |
| Sample Mass | 80–200 mg (customizable) |
| Splat Thickness | 20–100 µm |
| Splat Diameter | Ø 10–30 mm |
| Copper Piston Diameter | Ø 30 mm (optional: Ø 25 mm or Ø 35 mm) |
| Electrical Supply | 400 V, 3-phase, 50/60 Hz (RF generator) |
| Dimensions (W × H × D) | 850 × 1500 × 750 mm |

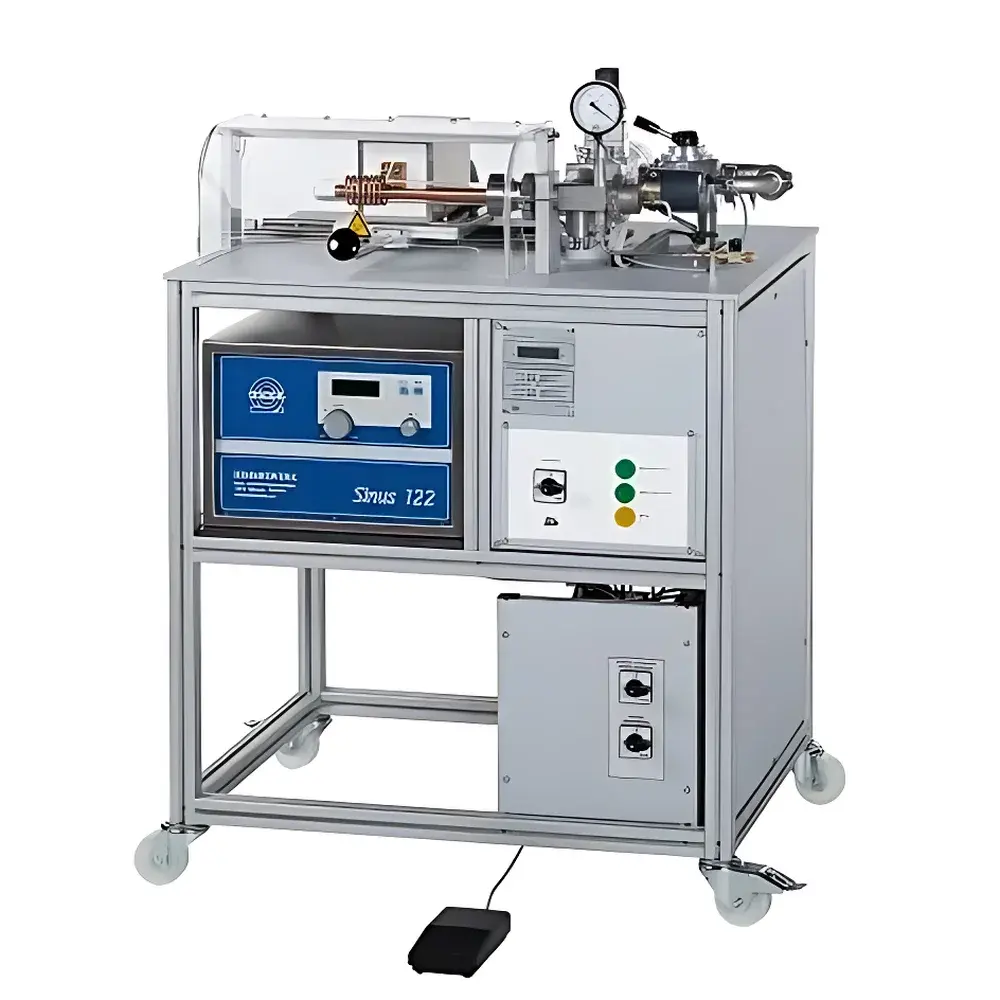

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | VIM-Cu Crucible Induction Melting Furnace |
| Maximum Sample Mass | 20 g |
| Maximum Melting Temperature | 1800 °C |
| Ultimate Vacuum | 10⁻³ mbar |
| Pumping Speed (at atmospheric pressure) | 2.5 m³/h |
| Time to Reach 10⁻³ mbar | ~8 min |
| Generator Power | 12 kW |
| Operating Frequency Range | 50–200 kHz |
| Input Voltage | 230 V / 50–60 Hz (1-phase) or 400 V / 50–60 Hz (3-phase) |
| Standard Copper Mold Dimensions (L × W × D) | 50 × 12 × 4.5 mm |
| Sample Cavity Dimensions (L × W × D) | 16 × 12 × 4.5 mm |
| Overall Footprint (W × D × H) | 880 × 900 × 1300 mm |

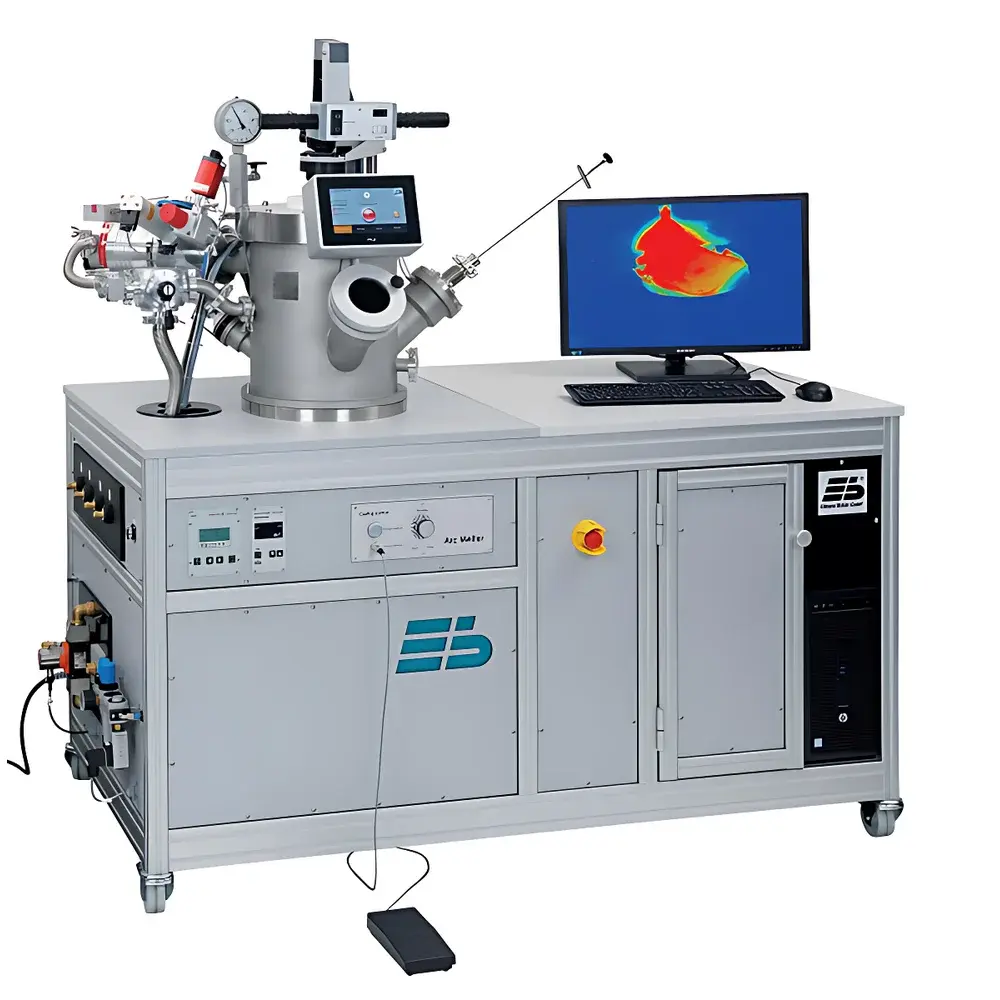

| Brand | Edmund Büehler |
|---|---|
| Origin | Germany |
| Model | AM C500 |
| Maximum Melting Capacity | 500 g |
| Maximum Casting Weight | 200 g |
| Melting Temperature | up to 3500 °C |
| Casting Temperature | up to 1800 °C |
| Vacuum Chamber | Water-Cooled Double-Walled High-Vacuum Chamber |
| Electrode | Motor-Driven Water-Cooled Tungsten Electrode |
| Control Interface | 5.8" PLC-Based Touchscreen Panel |
| Vacuum System | Integrated High-Vacuum Pumping & Pressure Monitoring |
| Optional Features | Suction Casting System (max. 148 mm billet length), In-Situ Sample Manipulator, Circulating Chiller, Real-Time Video Monitoring with Thermal State Color Coding, Automatic Vacuum/Atmosphere Cycling, Data Logging for Pressure, Current, and Voltage |
