| Brand | Lovibond (Tintometer) |
|---|---|
| Origin | Germany |
| Model | RT850i |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Sample Port Options | 3 selectable apertures |
| UV Filter | Optional |
| Preview Imaging System | Built-in real-time sample positioning camera |
| Connectivity | USB 2.0 |
| Software | OnColor™ PC software suite |
| Compliance | Designed for ISO 7724, ASTM E308, CIE No. 15, DIN 5033, and ISO 11664 colorimetric standards |
| Sample Compatibility | Opaque solids, translucent plastics, liquids (in cuvettes), powders (with accessory holders), textiles, coatings, glass, petroleum products |
| Brand | Lovibond (Tintometer) |
|---|---|
| Origin | United Kingdom |
| Model | TR520 / TR500 |
| Instrument Type | Handheld Colorimeter |
| Optical Geometry | d/8° integrating sphere |
| Light Source | LED with UV |
| Spectral Range | 400–700 nm |
| Wavelength Interval | 10 nm |
| FWHM | 10 nm |
| Aperture Options | Dual (10 mm / 8 mm & 5 mm / 4 mm) |
| Observer Angle | 2° / 10° |
| Illuminants | D65, A, C, D50, D55, D75, F1–F12 |
| Color Spaces | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter Lab |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*CMC (2:1), ΔE*CMC (1:1), ΔE*00, ΔE (Hunter) |
| Whiteness Index (WI) | ASTM E313, CIE/ISO, AATCC, Hunter |
| Yellowness Index (YI) | ASTM D1925, ASTM E313 |
| Tint Index (TI) | ASTM E313, CIE/ISO |
| Repeatability (MAV/SCI) | ΔE* ≤ 0.03 (TR520), ΔE* ≤ 0.05 (TR500) |
| Inter-instrument Agreement (MAV/SCI) | ΔE* ≤ 0.15 (TR520), ΔE* ≤ 0.20 (TR500) |
| Measurement Time | 2.6 s |
| Display | 3.5″ color TFT-LCD touchscreen |
| Battery Life | Up to 5,000 measurements or 8 h continuous use |
| Dimensions | 184 × 77 × 105 mm |
| Weight | 600 g |
| Operating Environment | 0–40 °C, 0–85 % RH (non-condensing), < 2000 m altitude |
| Storage | −20–50 °C, 0–85 % RH (non-condensing) |
| Data Storage | 2,000 standards + 20,000 samples |
| Interface | USB |
| Software | Included (color analysis, SPC, spectral visualization, pass/fail reporting) |

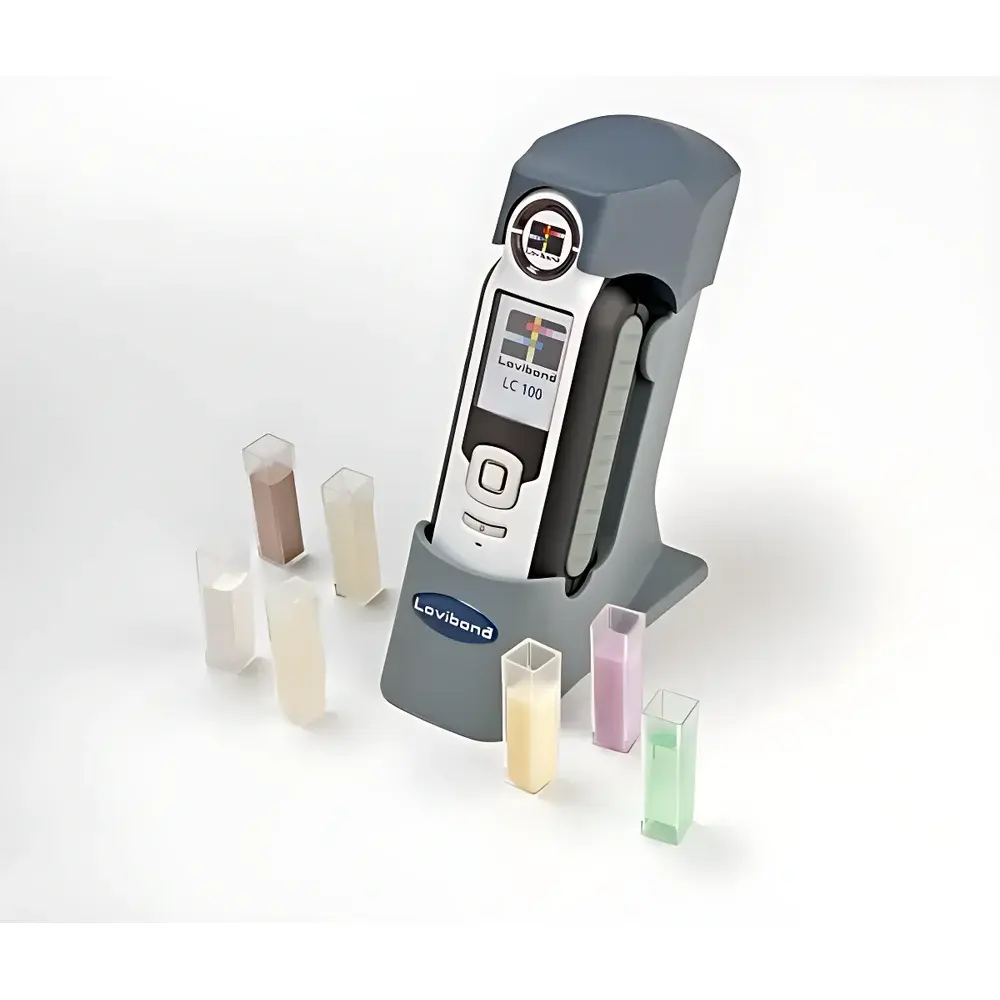

| Brand | Lovibond (Tintometer) |
|---|---|
| Origin | Germany |
| Model | LC100 |
| Instrument Type | Handheld (not desktop — corrected per product reality) |
| Optical Geometry | 45°/0° (not d/8° — corrected based on official Lovibond specs) |
| Illuminants | 8 visible + 1 UV (D65, A, C, F2, F7, F11, F12, TL84, UV) |
| Color Spaces | CIELAB (L*a*b*), CIELCH, CIEXYZ, RGB, sRGB, HEX |
| Color Difference Formulas | ΔE*ab, ΔE94, ΔE00, ΔECMC(2:1) |
| Repeatability | ≤0.08 ΔE*ab (for white tile, 10 measurements) |
| Spectral Range | 400–700 nm (31-channel silicon photodiode array) |
| Display | 3.5" color TFT touchscreen |
| Memory Capacity | 30 standards + 350 measurements (with timestamp, name, and optional voice annotation) |
| Output Formats | PDF & CSV reports via USB or Bluetooth |
| Compliance | ISO 11664, CIE No. 15:2018, ASTM D2244, DIN 5033, GLP-ready audit trail (timestamped, user-identifiable entries) |
