| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MSP 60-h |
| Sample Capacity | max. 60 g |
| Dimensions (L×W×H) | 1200 × 1206 × 1993 mm (height excluding pyrometer) |
| Generator Power | 12 kW |
| Copper Wheel Diameter | Ø 250 mm |
| Max. Wheel Speed | 60 rps |
| Cooling Rate | ~10⁵ K/s |
| Operating Vacuum | < 10⁻² – 10⁻⁵ mbar |
| Crucible Material | Boron Nitride (BN) with Capillary Slit Nozzle |
| Max. Crucible Temperature | ~1600 °C |
| Electrical Supply | 400 V, 3-phase, 50/60 Hz (RF generator) |
| Fiber Diameter Range | µm-scale |
| Brand | Diamond WireTec |
|---|---|
| Origin | Germany |
| Model | DWS175 / DWS250 |
| Cutting Mode | Dry or Wet |
| Max Wire Speed | 0–4 m/s |
| Max Sample Cross-Section | 175 × 175 mm (DWS175) / 245 × 245 mm (DWS250) |
| Kerf Width | 0.1–0.5 mm |
| Feed Force | Gravity-Driven Constant Load |
| Control Interface | 7-inch Color Touchscreen (Native Chinese UI) |
| Positioning Accuracy | 0.01 mm (with Manual Micrometer Stage) |
| Safety Features | Automatic Wire Break Stop, End-of-Cut Auto-Shutdown |
| Drive System | Linear Motor + Industrial PLC Controller |
| Worktable | T-Slot Steel Base |
| Compliance | CE, RoHS, ISO 9001 Manufacturing Environment |
| Sample Compatibility | Brittle, Composite, and Heterogeneous Materials (Ceramics, Glass, Concrete, Minerals, Fossils, Metals, Polymers) |
| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | PA500 |
| Dimensions (L×W×D) | 2205 × 2002 × 1305 mm |
| Melting Capacity | 100–500 g |
| Max. Temperature | up to 1500 °C |
| Generator Power | 30 kW |
| Vacuum Level | < 10⁻² – 10⁻⁵ mbar |
| Copper Wheel Diameter × Width | Ø250 × 60 mm |
| Max. Wheel Surface Velocity | 40 m/s |
| Strip Width | 10–28 mm (adjustable) |
| Strip Thickness | 20–60 µm |
| Cooling Rate | ~10⁵ K/s |
| Power Supply | 400 V, 3-phase, 50/60 Hz |
| Crucible Material | Boron Nitride or Quartz |
| Nozzle Type | Slit or Circular |
| Wheel Cooling | Water-cooled |

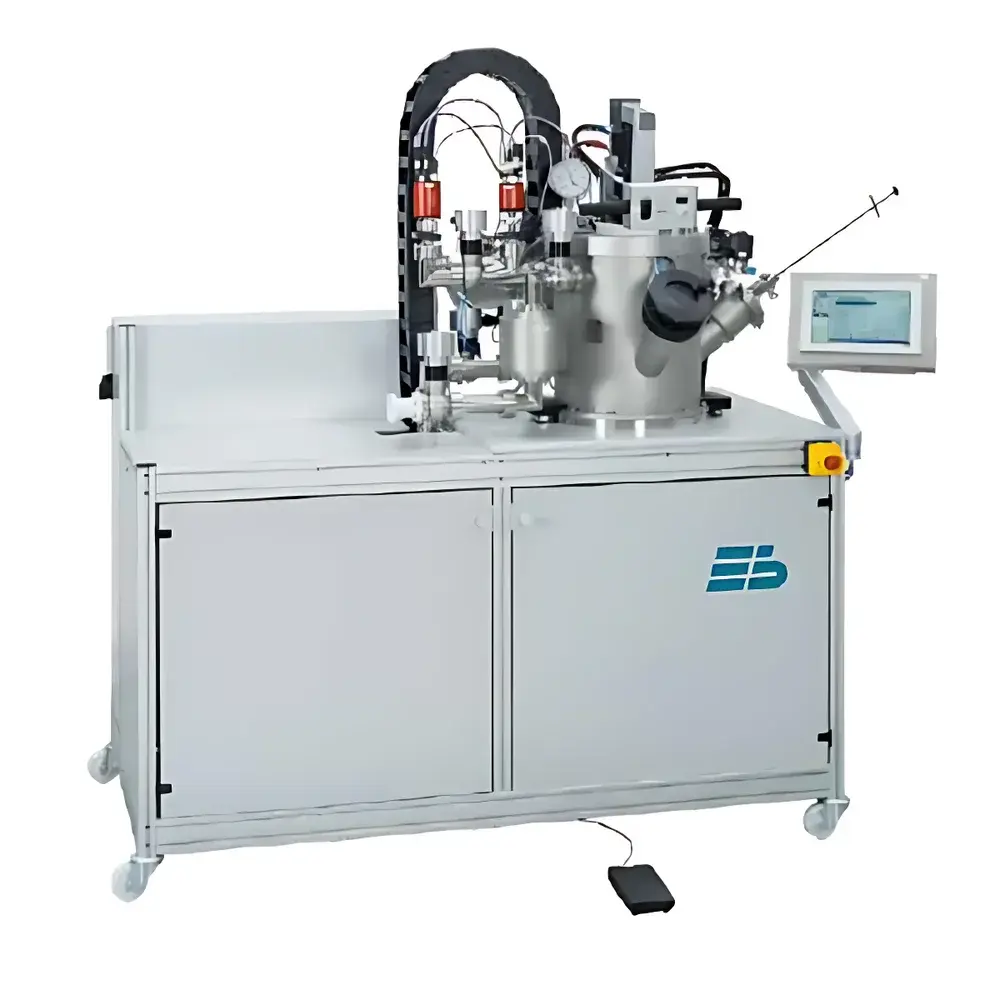

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | AM A500 |
| Melting Capacity | 100–500 g (temperature-dependent) |
| Casting Capacity | up to 300 g at ≤1800°C |
| Max Melting Temperature | 3500°C |
| Vacuum Level | <10⁻² to 10⁻⁵ mbar |
| Max Pressure | 1300 mbar abs. |
| Arc Current Range | 10–1000 A |
| Power Supply | 400 V, 3-phase, 50/60 Hz and 230 V, single-phase, 50/60 Hz |
| Dimensions (W×D×H, excl. power supply) | 1680 × 1000 × 2000 mm |

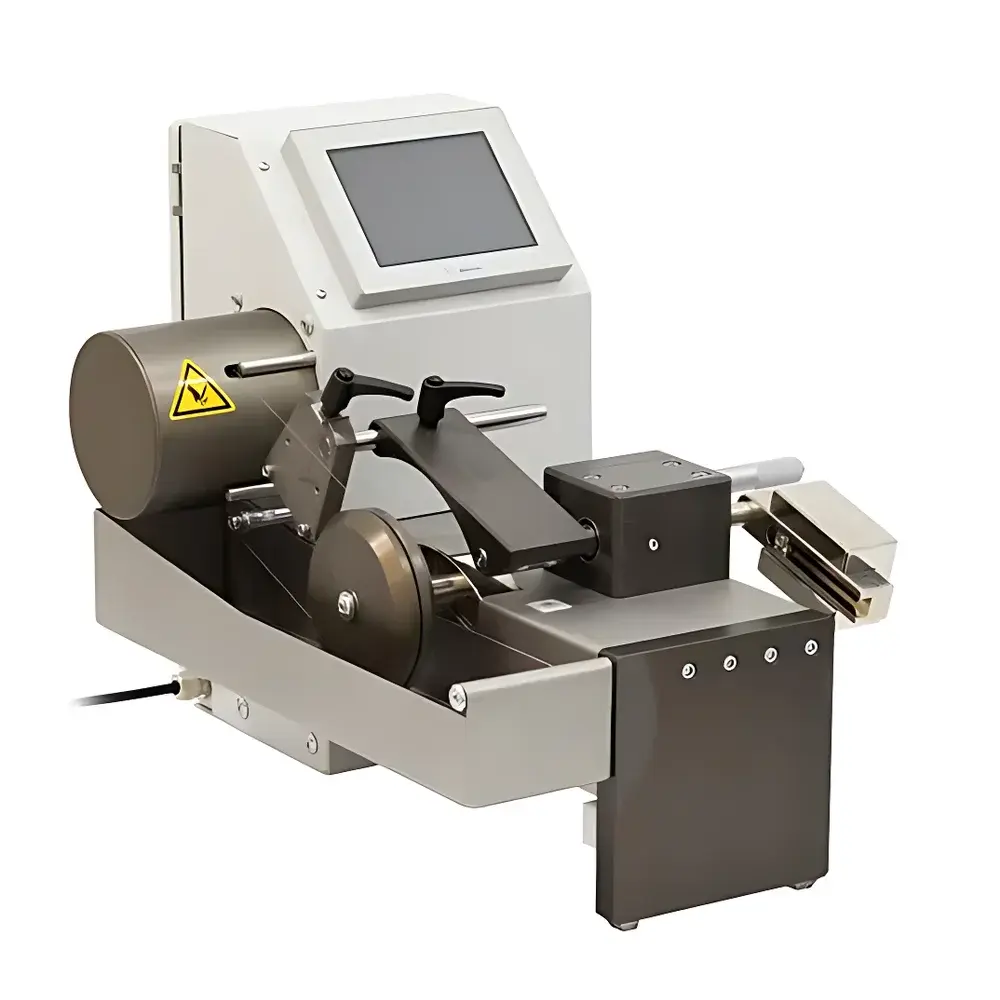

| Brand | Diamond WireTec |
|---|---|
| Origin | Germany |
| Model | DWS100 |
| Cutting Principle | Reciprocating Diamond-impregnated Wire |
| Max Wire Speed | 0–4 m/s |
| Max Sample Cross-section | 85 × 85 mm |
| Wire Feed Force | Gravity-driven Constant Tension |
| Cutting Modes | Dry or Wet (with Coolant Reservoir) |
| Kerf Width | 0.1–0.5 mm |
| Positioning Accuracy | ±0.01 mm (via Integrated Micrometer) |
| Safety Features | Automatic Wire Break Detection, End-of-Cut Stop, Emergency Stop Circuit |
| Display | 7-inch Color Touchscreen (English Firmware Available) |
| Compliance | CE, RoHS, ISO 9001 Manufacturing Environment |
| Power Supply | 230 V AC, 50/60 Hz, 1.2 kW |

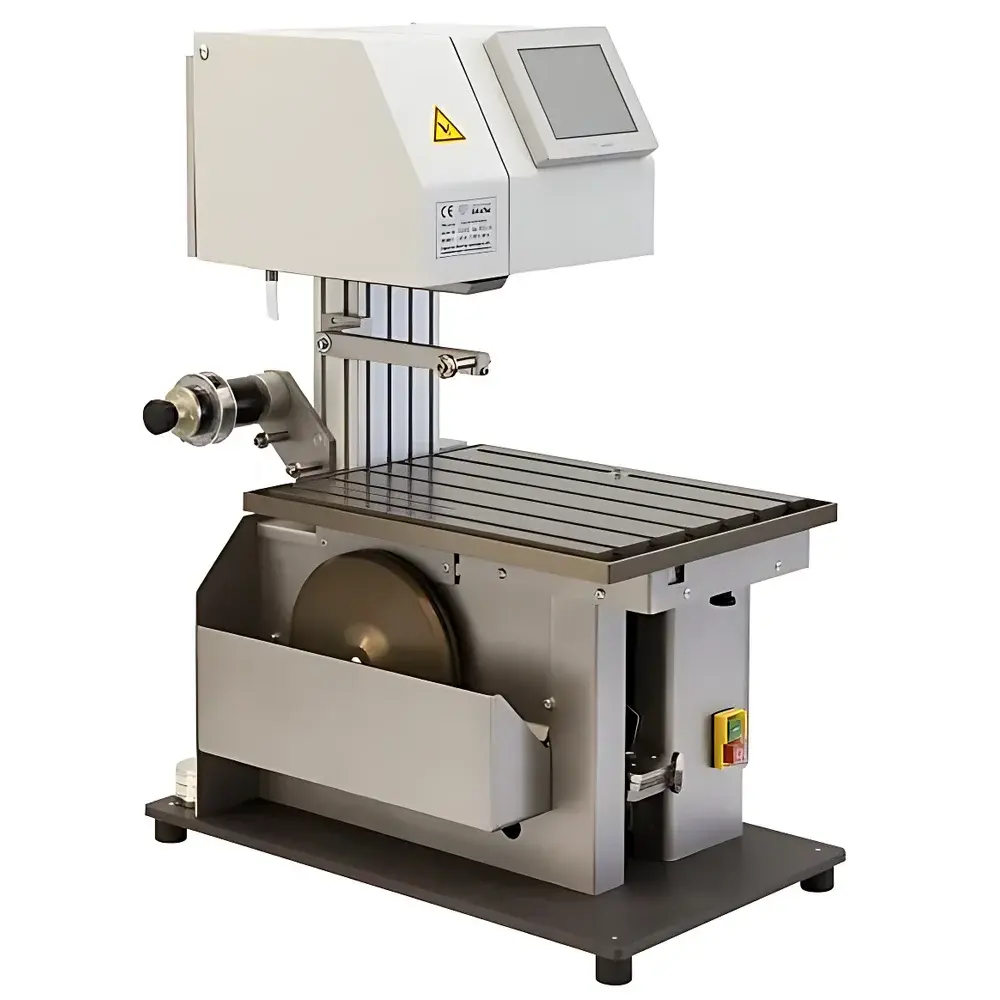

| Brand | Diamond WireTec |
|---|---|
| Origin | Germany |
| Model | DWS250E |
| Cutting Stroke (H × T) | 250 mm × 250 mm |
| Diamond Wire Loop Circumference | 2 m |
| Compatible Wire Diameter | 0.35–0.60 mm |
| Wire Speed | 4–12 m/s (continuously adjustable) |
| Feed Mechanism | Gravity-driven |
| Operation Modes | Dry or Wet Cutting |
| Power Supply | 220 V AC, 50/60 Hz |
| Construction Materials | Stainless Steel Frame + Anodized Aluminum Components |
| Safety Features | Automatic Emergency Stop (triggered by sample completion, guard door opening, or wire break) |
| User Interface | Full-color Chinese Touchscreen with Graphical Step-by-Step Guidance |
| Drive System | Industrial-grade Dual-Groove Drive Pulley (doubling pulley service life) |
| Sample Mounting | Sliding T-slot Table with Modular Fixture Kit |
| Maintenance Requirement | None for feed system |

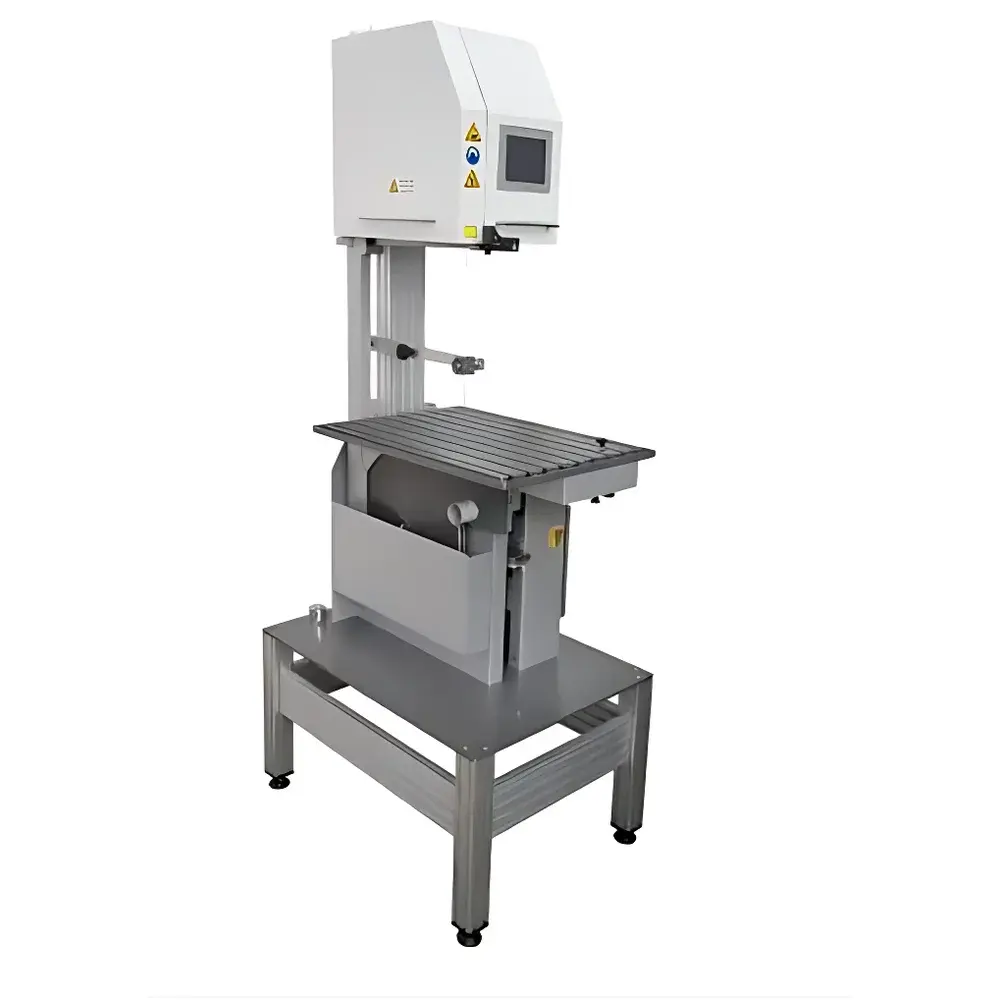

| Brand | Diamond WireTec |
|---|---|
| Origin | Germany |
| Model | DWS375E |
| Cutting Method | Dry or Wet |
| Maximum Workpiece Cross-Section | 250 mm (H) × 250 mm (T) |
| Diamond Wire Loop Circumference | 3 m |
| Compatible Wire Diameter | 0.35–0.80 mm |
| Wire Speed | 4–12 m/s (continuously adjustable) |
| Feed Mechanism | Gravity-driven constant-force feed |
| Power Supply | 220 V AC, 50/60 Hz |
| Construction Materials | Stainless steel frame + anodized aluminum chassis |
| Safety Features | Auto-braking upon sample separation, wire break detection, and guard door interlock |
| User Interface | Full-color Chinese-language touchscreen with step-by-step graphical guidance |
| Optional Accessories | Dust extraction port, modular sample clamping fixtures for sliding stage |

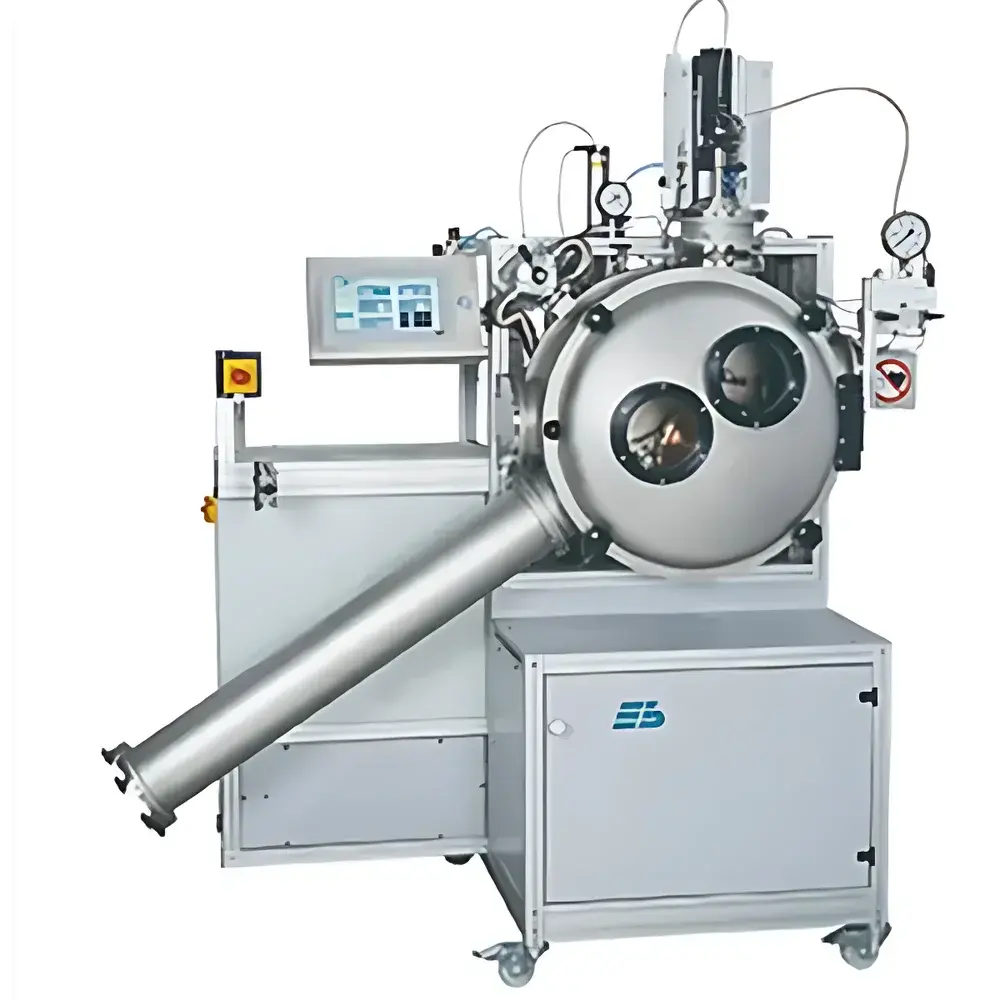

| Brand | Edmund Bühler |
|---|---|
| Origin | Germany |
| Model | MSP 10 and MSP 60 |
| Maximum Operating Temperature | up to 1500 °C |
| Vacuum Level | < 10⁻² – 10⁻⁵ mbar |
| Sample Capacity | 5–10 g (MSP 10), up to 60 g (MSP 60) |
| Copper Wheel Diameter | Ø200 mm (MSP 10), Ø250 mm (MSP 60) |
| Wheel Surface Velocity | up to 60 m/s (solid copper), 35 m/s (water-cooled copper) |
| Ribbon Width | 1–10 mm (MSP 10), 1–17 mm (MSP 60) |
| Ribbon Thickness | 20–60 µm |
| Cooling Rate | ~10⁵ K/s |
| RF Generator Power | 5–6 kW (MSP 10), 12–25 kW (MSP 60) |
| Crucible Materials | Boron nitride, quartz, or graphite |
| Power Supply | 400 V, 3-phase, 50/60 Hz (RF generator) |

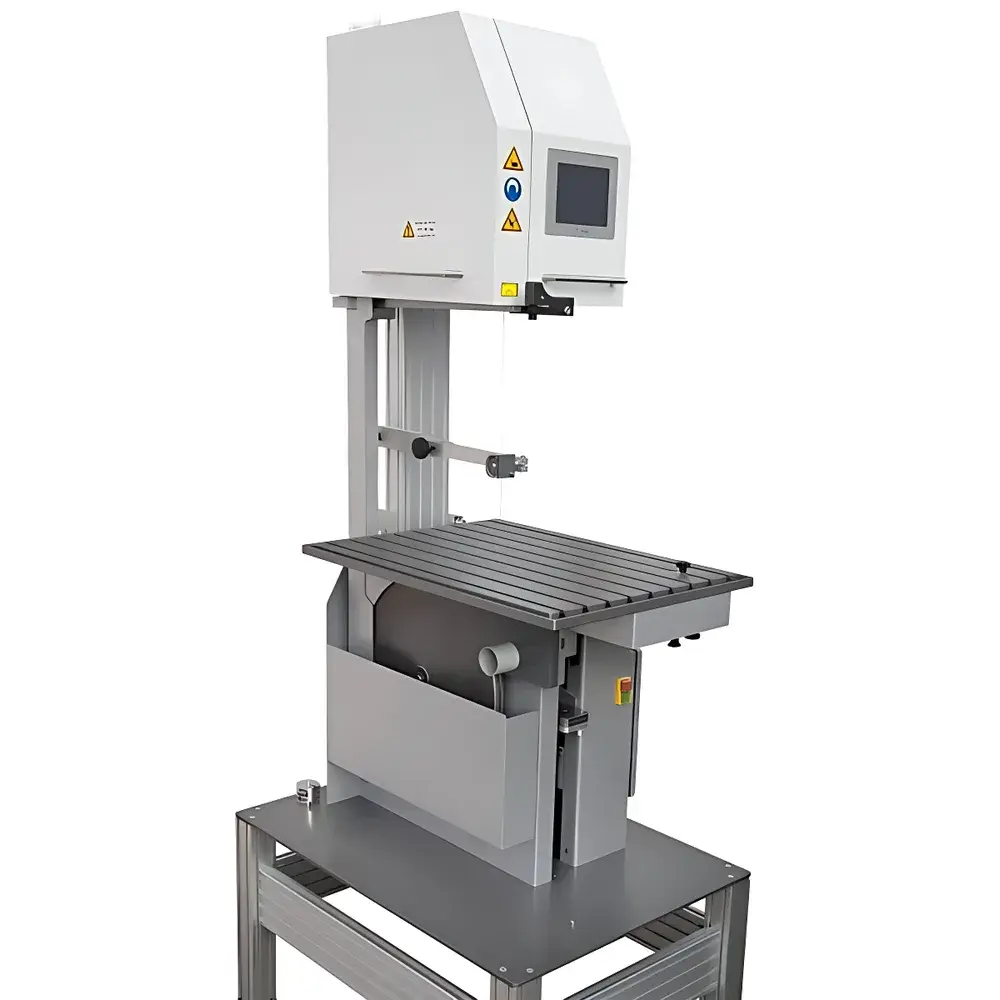

| Brand | Diamond WireTec |
|---|---|
| Origin | Germany |
| Model | DWS250E, DWS375E |
| Cutting Method | Unidirectional diamond loop wire |
| Max Wire Speed | 0–12 m/s |
| Kerf Width | 0.1–0.5 mm |
| Max Sample Cross-Section | 245 × 245 mm (DWS250E), 370 × 370 mm (DWS375E) |
| Feed Force | Gravity-driven constant force |
| Control Interface | 7-inch color touchscreen |
| Positioning Accuracy | 0.01 mm (with optional micrometer translation stage) |
| Safety Features | Automatic wire-break shutdown, end-of-cut stop |
| Compliance | CE, ISO 12100 (machinery safety), GLP-compatible operation log |
