| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKM-CH1GA |
| Price Range | USD 14,000–28,000 (FOB) |
| Temperature Range | 0–500 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Units | 1 |
| Maximum Reaction Volume | 1 L |
| Microwave Source | Solid-State, 0–1000 W at 2450 MHz |
| VSWR | ≤5 |
| Cavity Material | Welded Stainless Steel, Positive-Pressure Sealed, Top-Opening Design |
| Cavity Volume | 1 L Annular Single-Mode Chamber with PTFE Coating |
| Reaction Vessels | Helical Tubing (PTFE or Borosilicate Glass) |
| Temperature Sensing | Radial Infrared (0–500 °C), Axial Fiber-Optic (0–300 °C, Optional) |
| Control System | PLC-Based Intelligent Controller with Color Touchscreen |
| Data Logging | Real-Time Temperature/Power Curves, Multi-Protocol Memory, USB Export |
| Atmosphere Control | Inlet/Outlet Gas Ports for Inert, Reducing, or Oxidizing Environments |
| Dimensions (W×D×H) | 615 × 450 × 500 mm |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

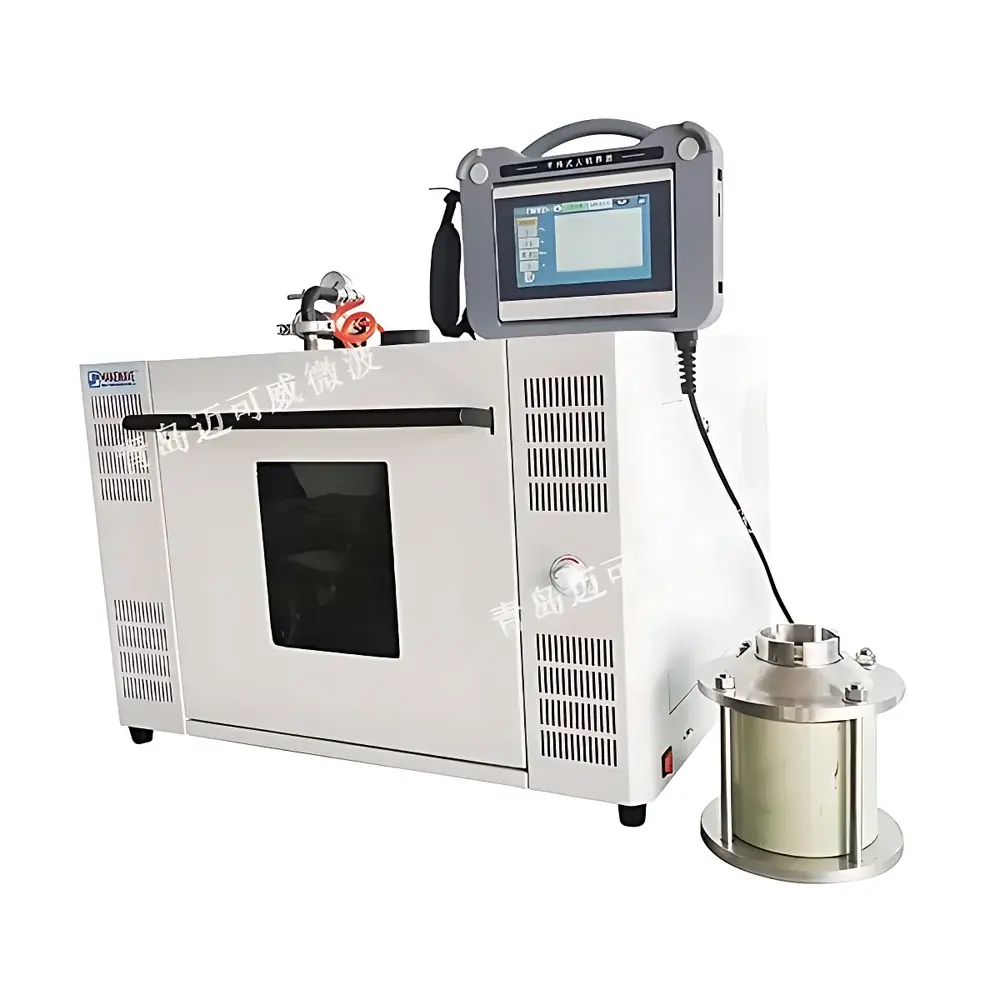

| Model | MKX-H2G1A |
| Price Range | USD 14,000 – 28,000 (FOB) |
| Temperature Range | 0–220 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Volume | 40 L (cavity capacity) |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 1600 W (continuous, non-pulsed output) |
| Safety Leakage | <5 mW/cm² |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 3000 W |
| Net Weight | 80 kg |
| Dimensions (W×H×D) | 782 × 610 × 523 mm |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

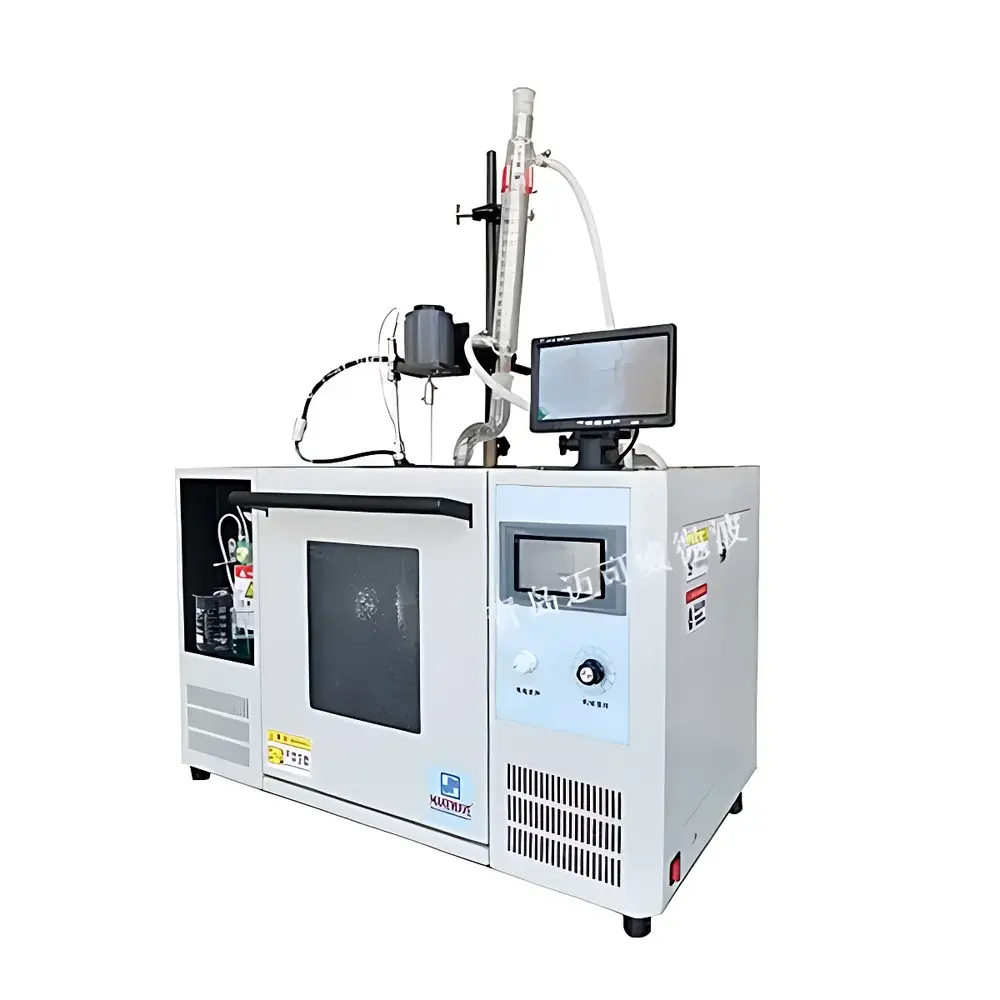

| Model | MKX-H1C1S |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Temperature Range | 0–300 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Vessel | Borosilicate Glass Three-Neck Round-Bottom Flask |
| Maximum Reaction Volume | 500 mL |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

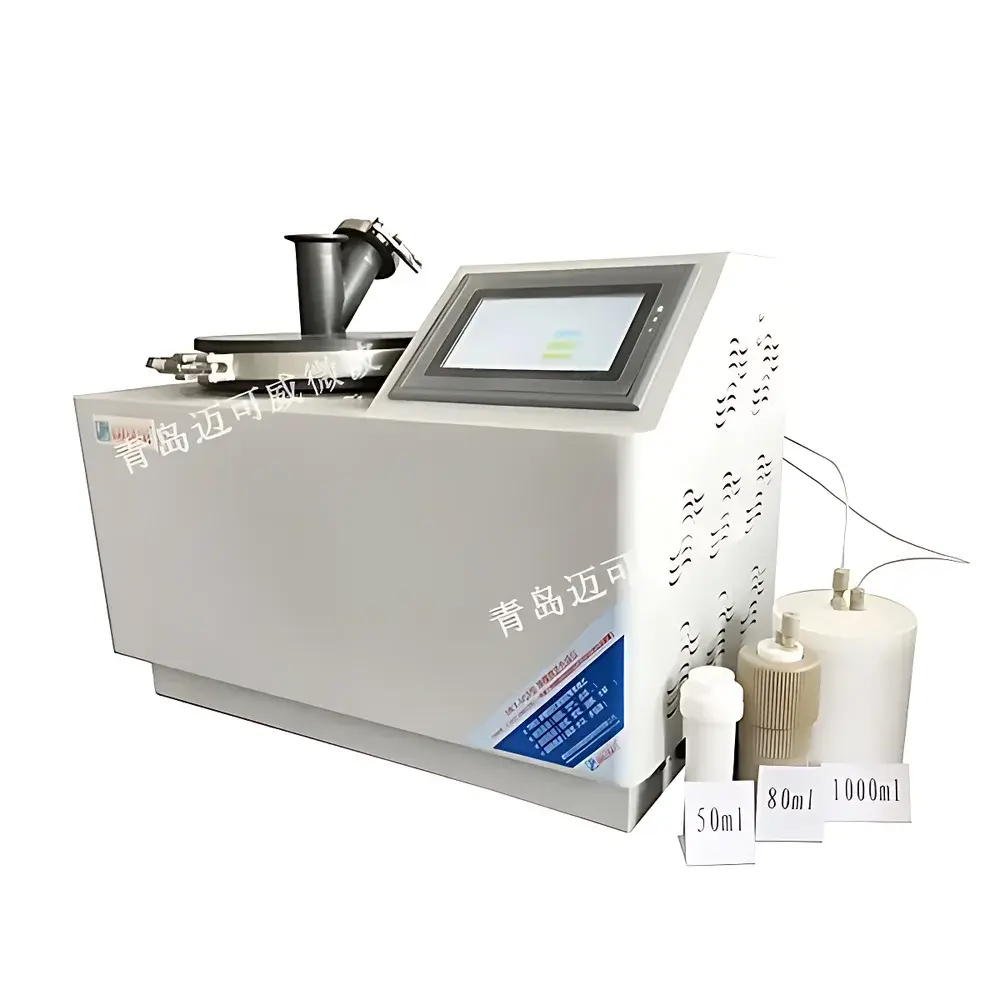

| Model | MKM-H1B |
| Price Range | USD 7,000–14,000 (FOB) |
| Temperature Range | 0–230 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Units | 1 |
| Reaction Vessel Capacity | 80–1000 mL |
| Maximum Pressure Rating | 3 MPa |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 500 W (continuous, non-pulsed output) |
| Cavity Material | 304 Stainless Steel with Multi-Layer PTFE Coating |
| Microwave Leakage | <5 mW/cm² |
| Safety Compliance | Meets GB 10436 & IEC 61000-4-3 |
| Quality Certification | ISO 9001 Certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

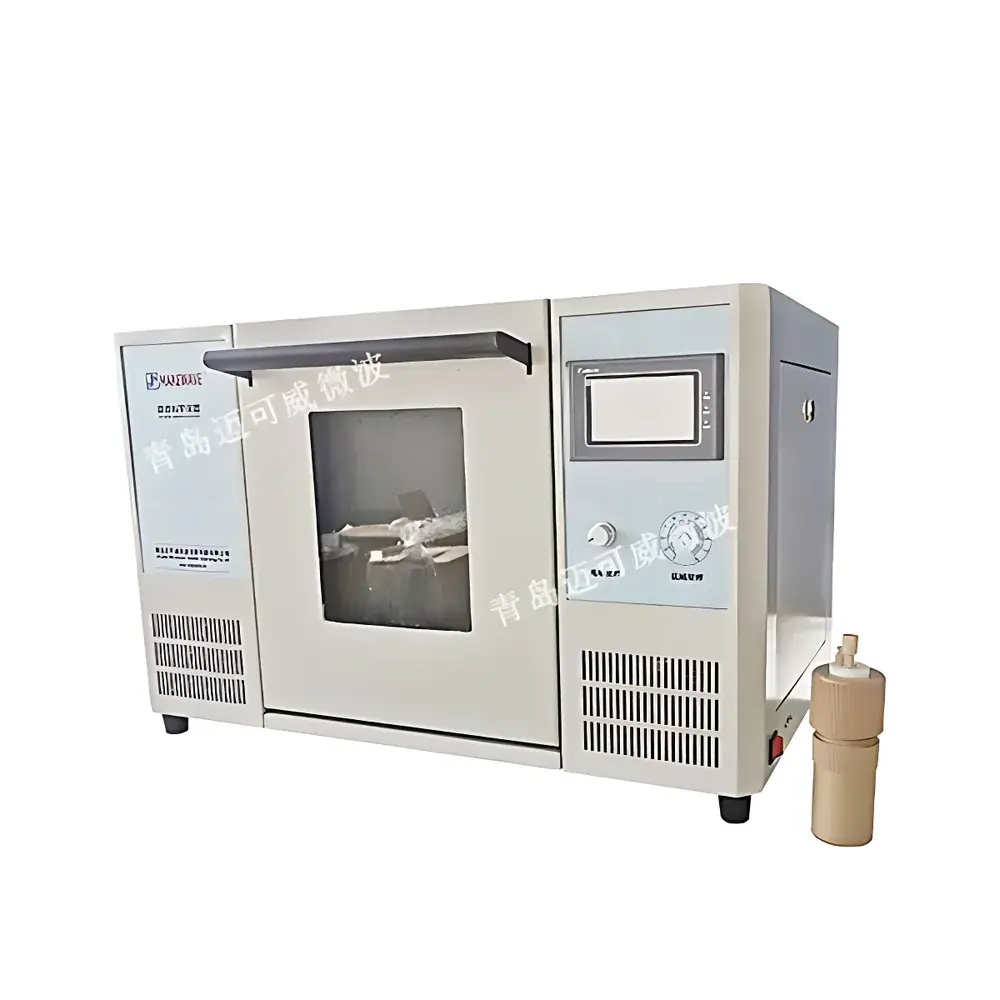

| Model | MKX-H1G1A |
| Temperature Range | 0–260 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Vessel Capacity | 80 mL |
| Number of Reaction Units | 1 |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 800 W (continuous, non-pulsed output) |
| Cavity Volume | ~20 L |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 1300 W |
| Net Weight | 65 kg |
| Dimensions (W×H×D) | 782 × 492 × 450 mm |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H1C1U |
| Temperature Range | 0–300 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Vessel | Three-Neck Round-Bottom Flask |
| Maximum Reaction Volume | 500 mL |
| Microwave Frequency | 2450 MHz |
| Microwave Power Output | 0–800 W (Continuously Adjustable, Non-Pulsed) |
| UV Wavelength | 254 nm |
| Cooling Requirement | External Chilled Water Circulation |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | ≤1500 W |
| Net Weight | 60 kg |
| Dimensions (W×H×D) | 782 × 492 × 450 mm (Main Unit), +500 mm Height for Optional UV Mounting Bracket |
