| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

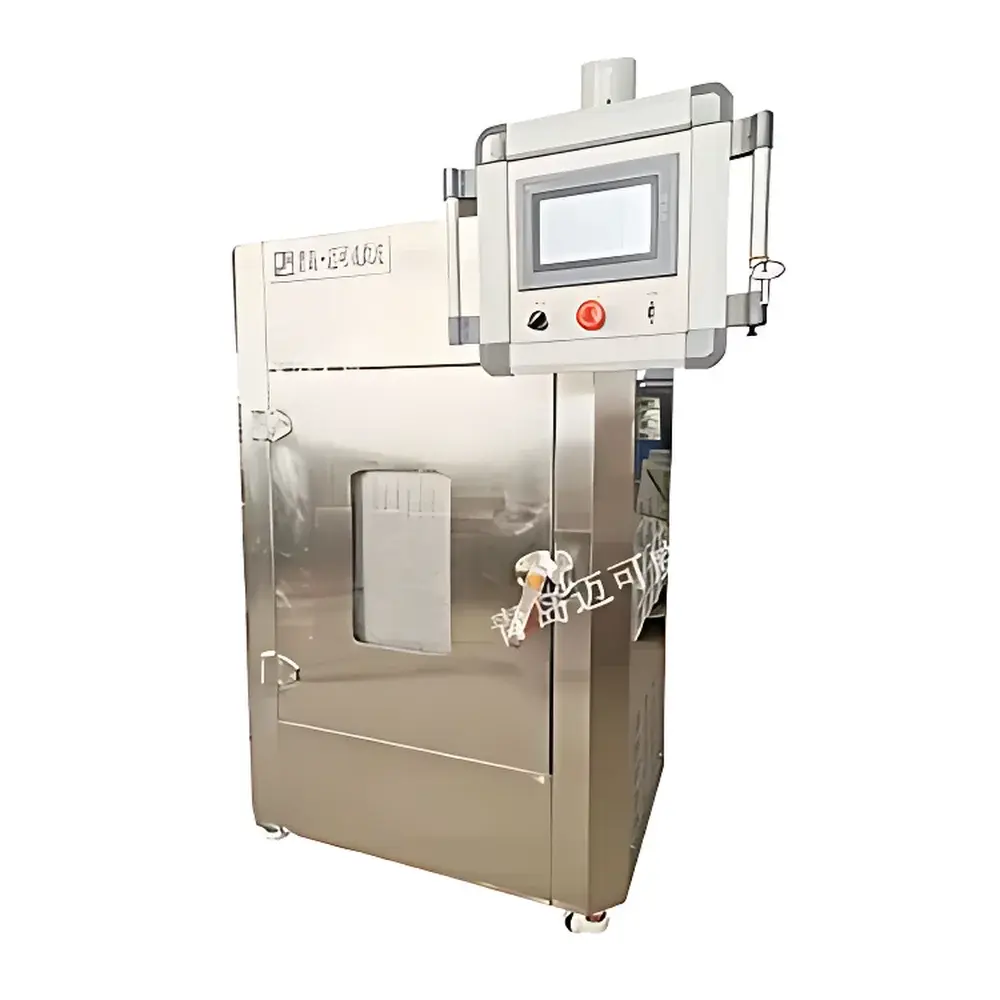

| Model | HXG-T225 |
| Instrument Type | High-Temperature Microwave Drying Oven |
| Temperature Range | 0–1200 °C (thermocouple) / 0–500 °C (infrared pyrometer) |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 1500 × 750 × 1640 mm |
| Internal Volume | 225 L |
| Chamber Material | AISI 304 Stainless Steel |
| Heating Method | 2450 MHz Microwave + Auxiliary Convection |
| Microwave Power Output | 0–4800 W (infinitely adjustable) |
| Electrical Input Power | 1000 W |
| Microwave Leakage | <5 mW/cm² (GB 10436-2008 compliant) |
| Airflow System | Adjustable axial-flow forced convection |
| Control System | PLC-based with color touchscreen interface |
| Tray Configuration | 1–4 removable perforated stainless steel shelves |
| Safety Features | Interlocked door switch, overtemperature cutoff, pressure-relief venting, explosion-resistant chamber design, EMI-shielded RF cavity |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

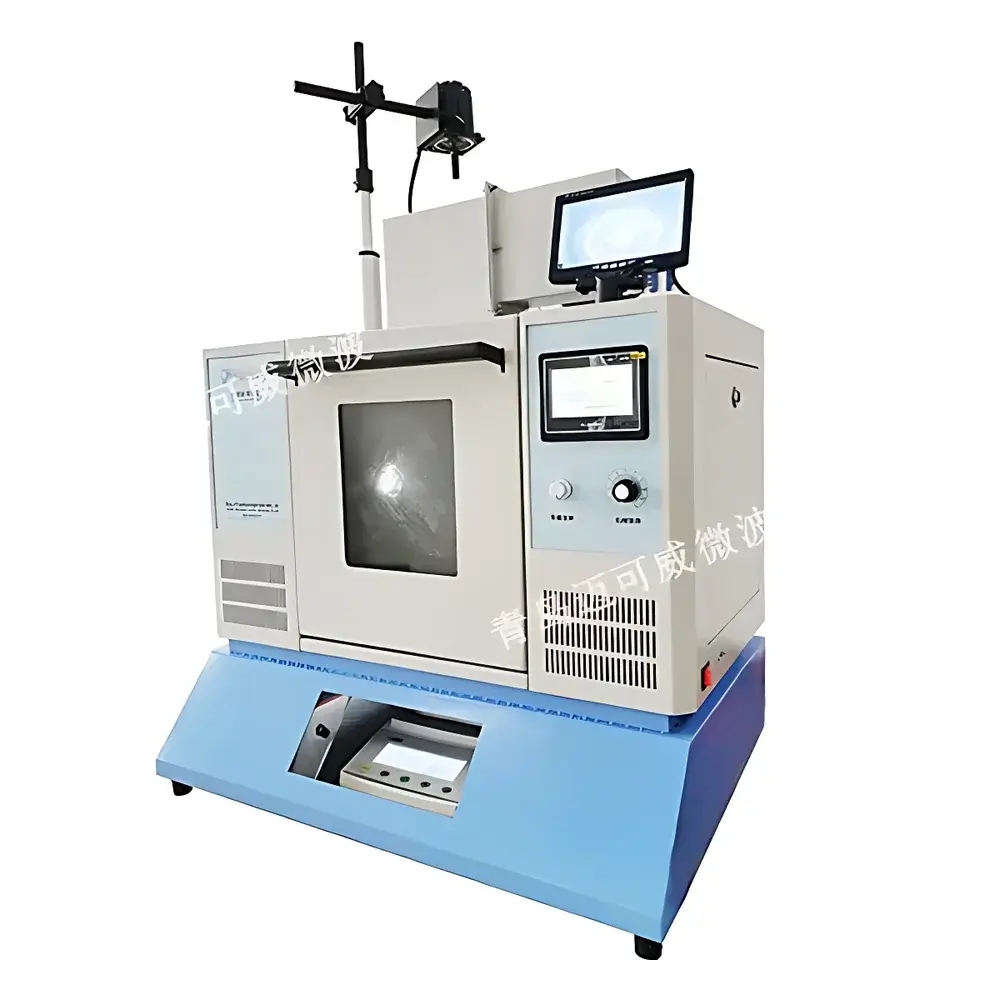

| Model | MKC-G1C1B |
| Instrument Type | High-Temperature Drying Oven |
| Temperature Range | 0–300 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 782 × 800 × 450 mm (W × H × D) |
| Cavity Material | 304 Stainless Steel, Seamless Welded Construction |
| Heating Method | Microwave Energy (2450 MHz) + Far-Infrared Radiant Heating |
| Microwave Output | 800 W, Continuous Non-Pulsed |
| Far-Infrared Power | 1500 W |
| Cavity Volume | ~20 L |
| Weighing Capacity | 1000 g |
| Weight Resolution | 0.01 g |
| Stirring Mechanism | Motorized Vertical Lift Stirrer (Φ100 mm Platform) |
| Safety Compliance | Microwave Leakage < 5 mW/cm² (IEC 61000-4-3 / GB 4706.21) |
| Control System | PLC-Based Touchscreen Interface with Data Logging |
| Power Supply | 220 V AC, 50 Hz |
| Total Power Consumption | 3000 W |
| Weight | 80 kg |
| Certification | ISO 9001 Certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKZ-G2A |
| Instrument Type | Vacuum Drying Oven |
| Temperature Range | Ambient to 100 °C (infrared non-contact measurement) |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 652 × 550 × 800 mm (W × H × D) |
| Internal Chamber Dimensions | 305 × 305 × 305 mm (W × H × D) |
| Chamber Material | AISI 304 Stainless Steel |
| Heating Method | 2450 MHz Microwave Energy |
| Microwave Power | 1600 W (industrial-grade variable-frequency generator) |
| Ultimate Vacuum | –0.099 MPa |
| Chamber Volume | 26 L |
| Power Supply | 220 VAC / 50 Hz |
| Total Power Consumption | 3000 W |
| Net Weight | 100 kg |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

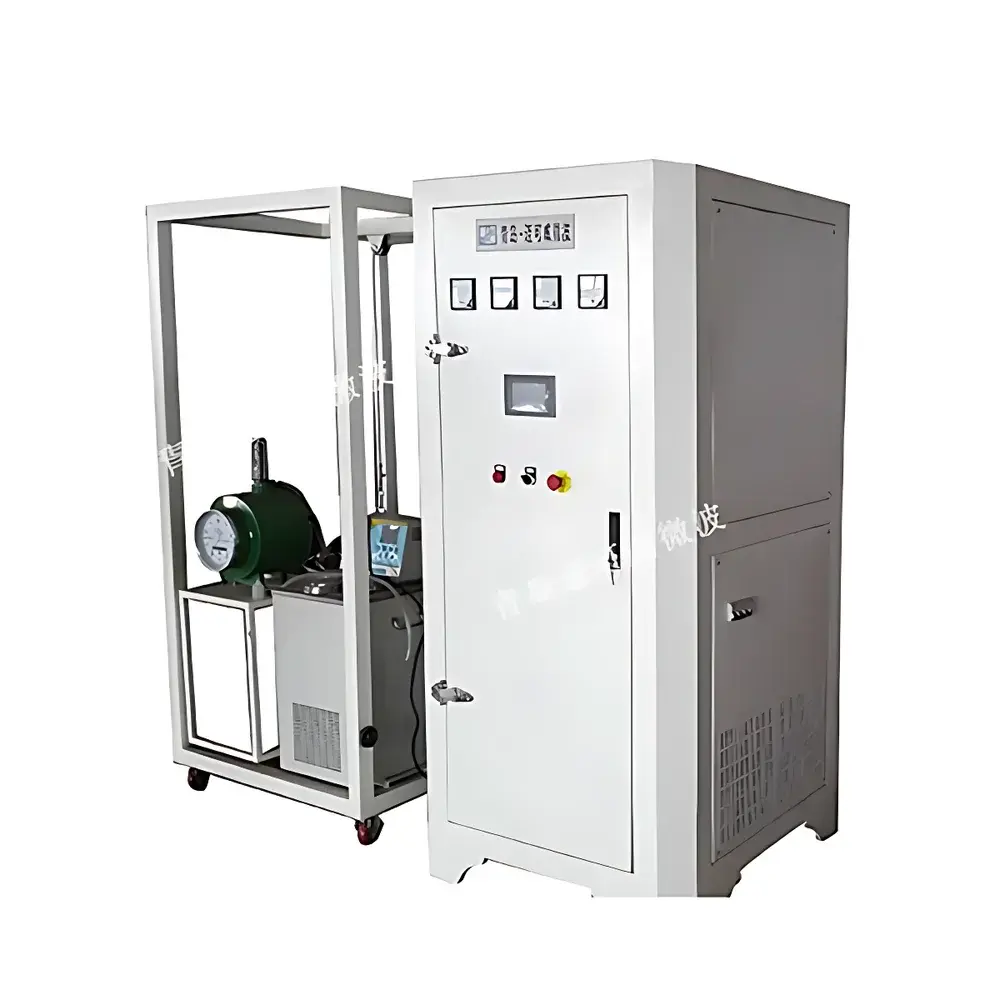

| Model | MGF-3 |
| Instrument Type | High-Temperature Microwave Pyrolysis System |
| Temperature Range | 200–250 °C |
| Temperature Stability | ±1 °C |
| Cavity Material | 304 Stainless Steel |
| Heating Method | Microwave (2.4 kW) |
| System Integration | Integrated Gas Preheating, Condensation, Gas Capture, and PLC-Based Control |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

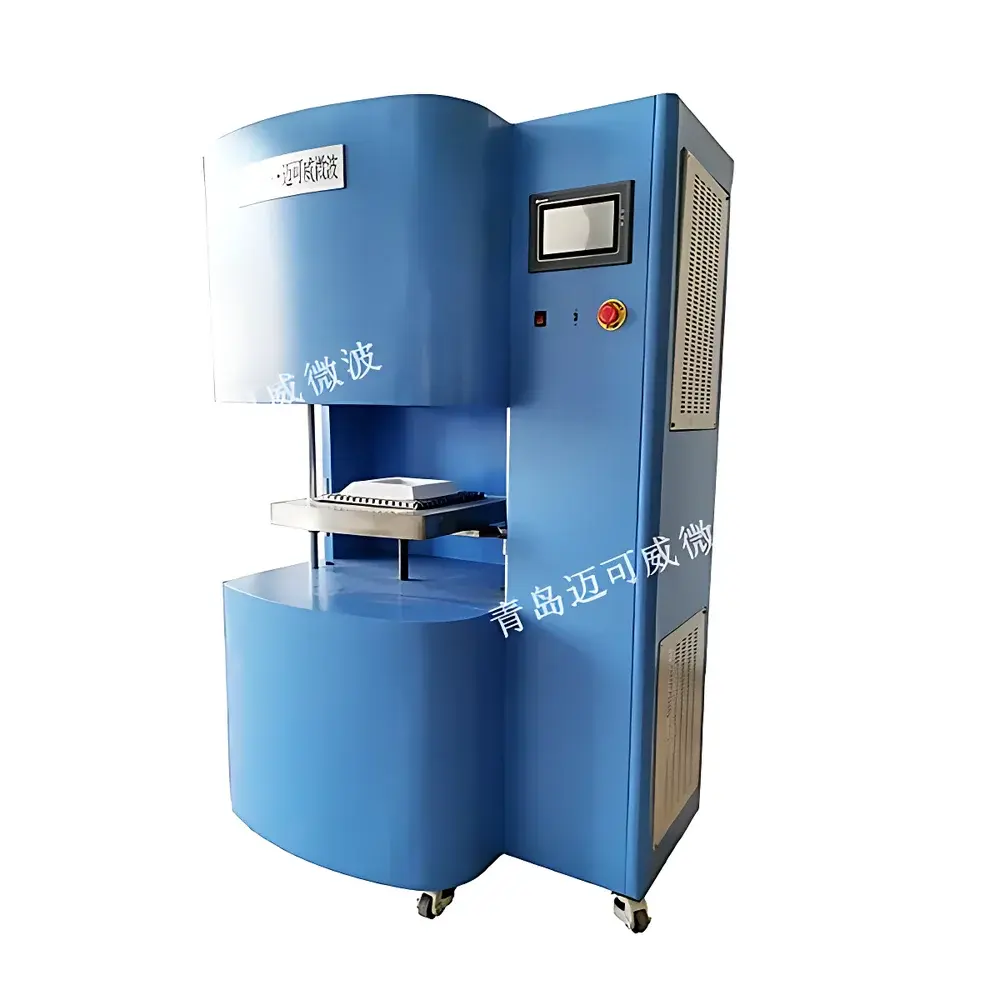

| Model | MKZ-SM8B |
| Instrument Type | High-Temperature Microwave Furnace |
| Temperature Range | 0–1200 °C (extendable to 1400 °C with enhanced insulation) |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 1000 × 800 × 1700 mm (W × D × H) |
| Chamber Volume | ~7 L (190 × 190 × 200 mm) |
| Chamber Material | Seamless Stainless Steel Welded Construction |
| Heating Method | 2450 MHz Microwave Energy (0–4000 W, Continuously Adjustable) |
| Atmosphere Control | Micro-positive Pressure Sealed Cavity with Inlet/Outlet Gas Ports |
| Loading Mechanism | Motorized Bottom-Lift Tray with Triple-Barrier Door (Thermal/Microwave/Gas-Tight) |
| Crucible Options | 150 × 150 mm Ceramic Crucibles (Mullite, Alumina, Quartz, or Silicon Carbide) |
| Control System | PLC-Based Intelligent Controller with Color Touchscreen Interface |
| Data Management | Multi-step Programmable Profiles, Real-Time Temperature/Time Curve Display, USB Data Export, Audit-Trail-Capable Logging |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Category | Domestic |

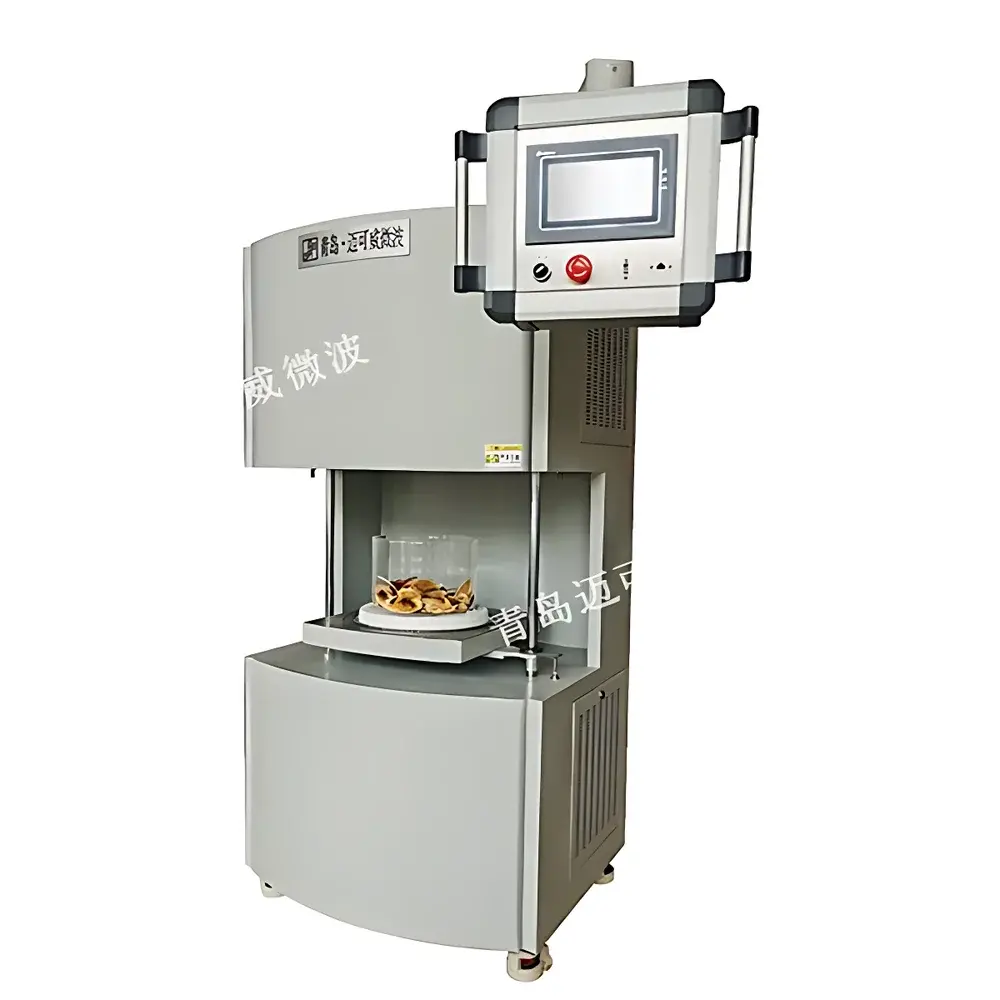

| Model | HXH-S15 / HXH-S20A |
| Instrument Type | High-Temperature Microwave Ashing Oven |
| Temperature Range | 0–1200 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 1400 × 750 × 1800 mm (HXH-S15) / 910 × 750 × 1950 mm (HXH-S20A) |
| Chamber Capacity | 15 L / 20 L quartz crucible |
| Chamber Material | Seamless stainless steel welding construction |
| Heating Method | Dual-mode — microwave energy (0–4.8 kW, 2450 MHz) + optional auxiliary electric heating (up to 1000 °C, 4 kW) |
| Atmosphere Control | Adjustable inlet for air or inert gas |
| Temperature Sensing | Type K thermocouple, 0–1200 °C |
| Automation | PLC-based intelligent control with color touchscreen interface |
| Data Management | Multi-step programmable protocols, recipe storage, USB data export |
| Optional Modules | Integrated thermogravimetric monitoring (0–20 kg load cell), real-time mass loss tracking |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MGZ-G6A |
| Instrument Type | Vacuum Oven |
| Temperature Range | 0–300 °C |
| Temperature Uniformity | ±1 °C |
| Chamber Volume | 400 L |
| Chamber Material | 304 Stainless Steel |
| Heating Method | Microwave Energy |
| Rated Microwave Power | 4800 W (Variable Frequency, Continuously Adjustable) |
| Ultimate Vacuum | −0.099 MPa |
| Non-Contact Infrared Temperature Monitoring | 0–300 °C |
| Explosion Protection Option | Ex d IIB T4 |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

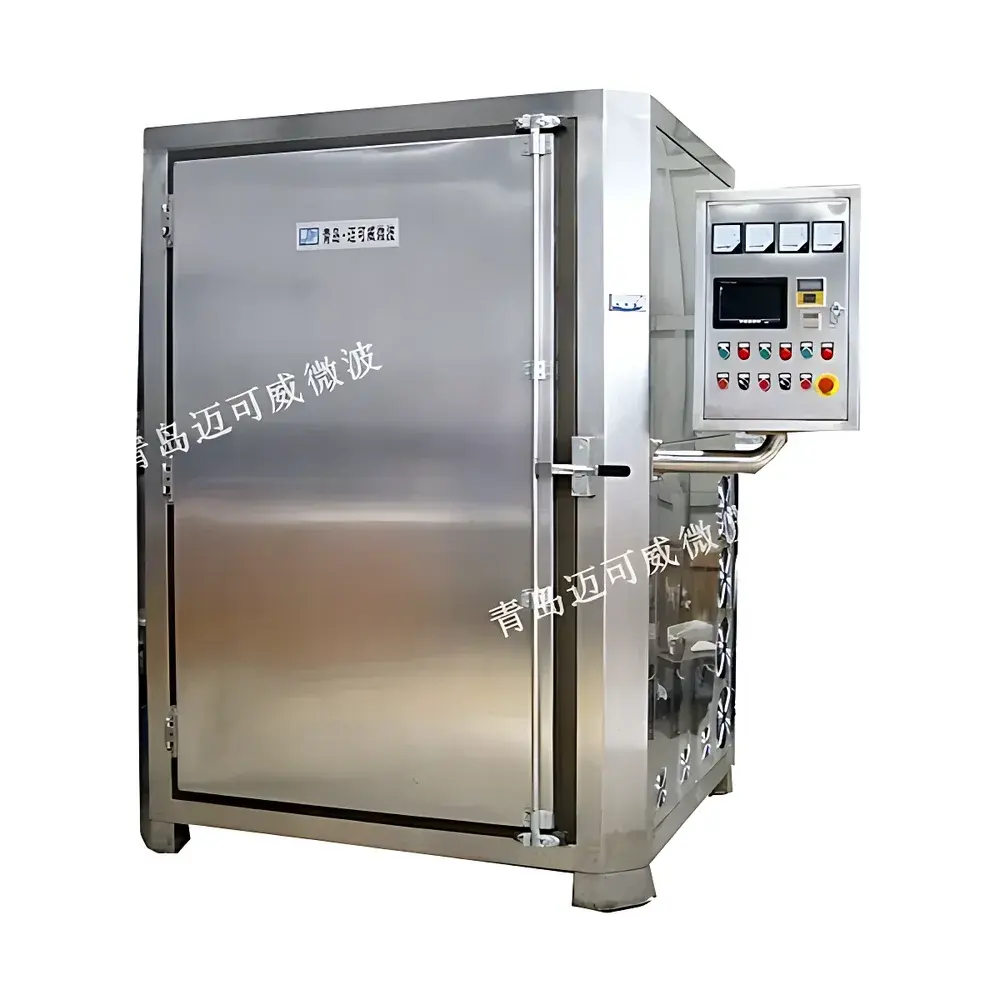

| Model | MGX-G Series |
| Price Range | USD 4,200 – 7,000 |
| Instrument Type | General-Purpose Drying Oven |
| Temperature Range | 0–300 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 500 × 600 × 750 mm (W × D × H) |
| Internal Volume | 175 L |
| Interior Material | AISI 304 Stainless Steel |
| Heating Method | Microwave-Assisted Forced-Air Convection |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

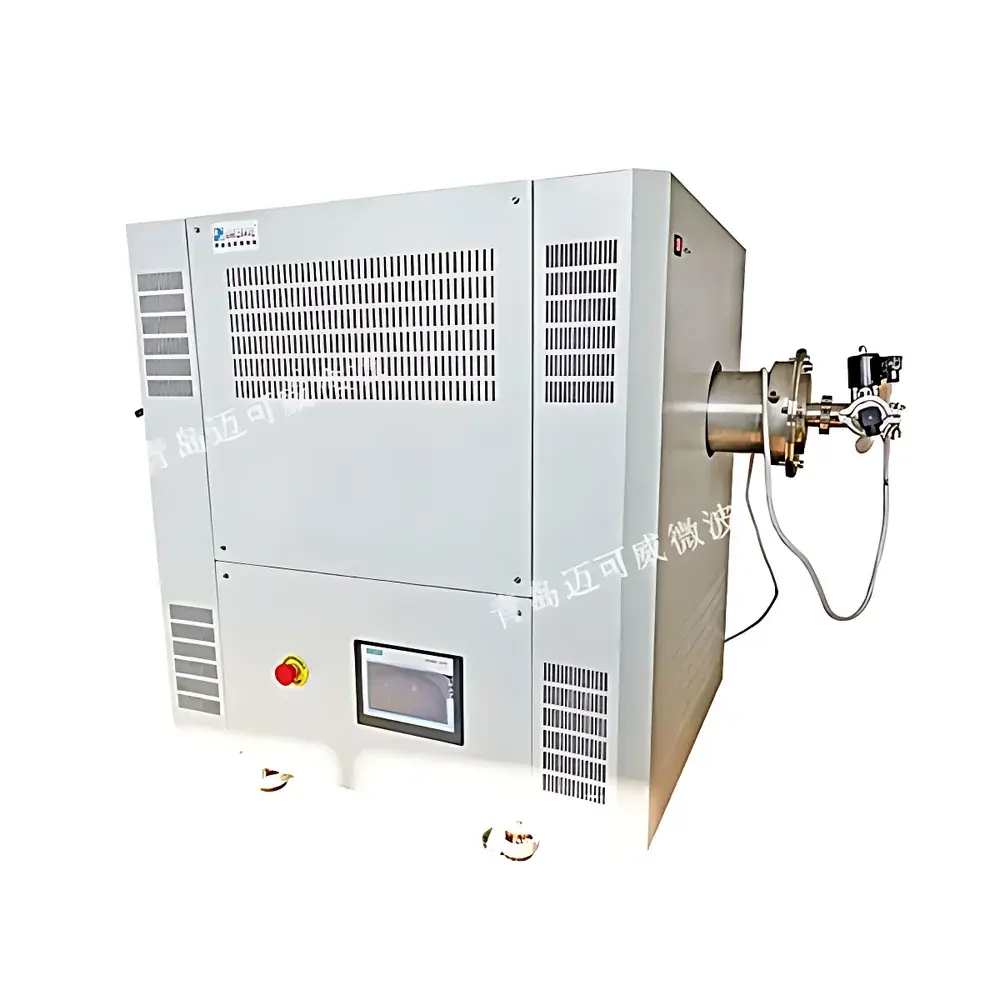

| Model | MKG-T4HD |
| Temperature Range | 700–1500 °C (up to 1600 °C short-term) |
| Temperature Uniformity | ±1 °C |
| Chamber Dimensions | Φ100–Φ230 mm tube ID (adjustable), max. 1600 °C operational envelope |
| Inner Tube Material | High-purity alumina (standard), optional quartz or molybdenum disilicide |
| Heating Method | 2450 MHz continuous-wave microwave energy |
| Microwave Power | 3200 W (water-cooled magnetron, non-pulsed, infinitely variable) |
| External Dimensions | 1500 × 800 × 650 mm (W × H × D) |
| Weight | 90 kg |
| Power Supply | 380 V AC / 50 Hz |
| Cooling | Integrated recirculating water chiller for magnetron |
| Vacuum Capability | Up to –0.099 MPa (absolute) |
| Safety Compliance | Microwave leakage < 5 mW/cm² (IEC 61000-3-2 compliant) |
| Certification | ISO 9001 certified |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

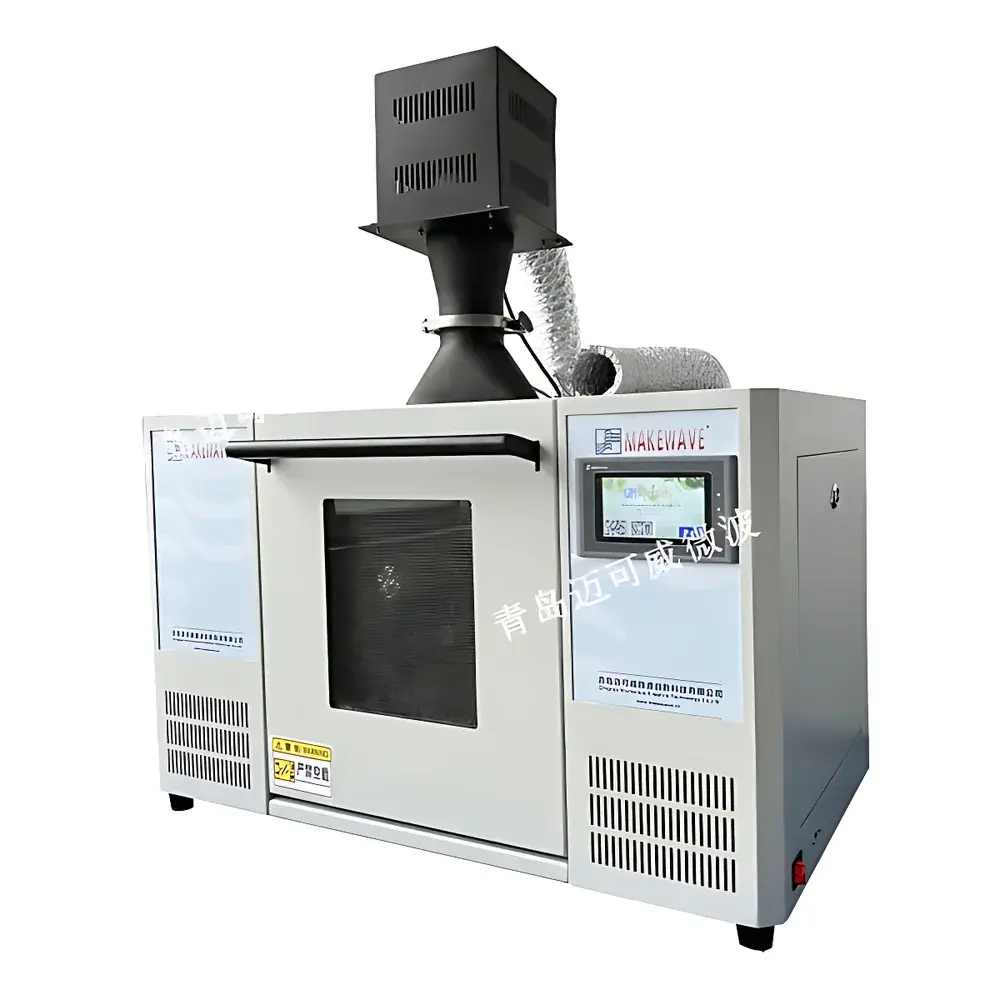

| Model | MKX-G1C1B |
| Instrument Type | High-Temperature Oven |
| Temperature Range | 0–300 °C |
| Temperature Uniformity | ±1 °C |
| External Dimensions | 782 × 800 × 450 mm (W × H × D) |
| Internal Chamber Dimensions | 250 × 285 × 275 mm (W × H × D) |
| Internal Cavity Material | 304 Stainless Steel with Multi-Layer PTFE Coating |
| Heating Method | Continuous Non-Pulsed Microwave at 2450 MHz |
| Rated Microwave Power | 800 W |
| Microwave Leakage | <5 mW/cm² |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 1300 W |
| Net Weight | 65 kg |
